HME Drive-Thru Menu-Board Microphone (DM5)
HME Drive-Thru Menu-Board Microphone (DM5)
SKU:G29652-1
Couldn't load pickup availability
Keep it covered with a Protection Plan One monthly price for repairs, and a spare ships first when something fails.
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

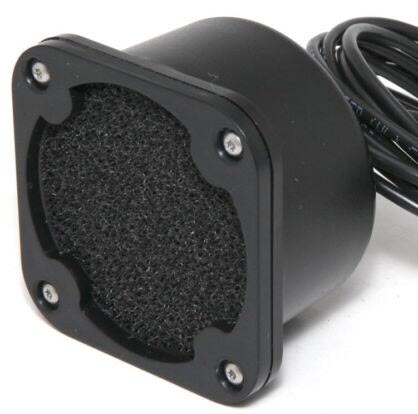

The HME DM5 is the outdoor menu-board microphone for EOS | HD, SYS6200, and NEXEO | HDX. It captures clear guest audio at the speaker post so order takers hear every word.
- Drive-Thru MicrophoneElectronic mic for menu boards and speaker posts.
- Modern Platform FitEOS | HD, SYS6200, and NEXEO | HDX.
- Clear Guest AudioBuilt for noisy lanes and outdoor mounting.
- Compact HousingAbout 2.81 in square face, 1.78 in deep.
- Weather RatedOperating range -30 to 60 C (-22 to 140 F).
Where it fits
- NEXEO | HDX
- Pairs with the IB7000 interface box and SS7000 or SP10 speaker for outdoor guest audio.
- EOS | HD
- Standard outdoor mic for EOS | HD speaker posts and menu boards.
Specifications
Microphone
| Model | DM5 |
|---|---|
| Type | Electronic |
| Impedance | 200 ohm |
| Dimensions | 2.81 in H x 2.81 in W x 1.78 in D (71.5 x 71.5 x 45.1 mm) |
| Weight | 4.37 oz (123.9 g) |
| Operating Temperature | -30 to 60 C (-22 to 140 F) |
Compatibility
| Systems | EOS | HD, SYS6200, NEXEO | HDX |
|---|---|
| Typical Speaker Pairing | SP10 or SS7000 |
Physical specs from HME PUB-00144 Rev F. EOS | HD and SYS6200 fit come from HME product positioning for the DM5; NEXEO | HDX fit is confirmed on the IB7000 analog mic input in that data sheet. Sold and supported by TechChefs, an authorized HME dealer. Call or text 972-901-9948 if you need help matching a part to your system.
Shipping & support
Shipping & support
Orders ship from our shop in Duncanville, Texas. Need it fast, ordering for multiple locations, or want it installed? Call 972-901-9948 and we will sort it out.
