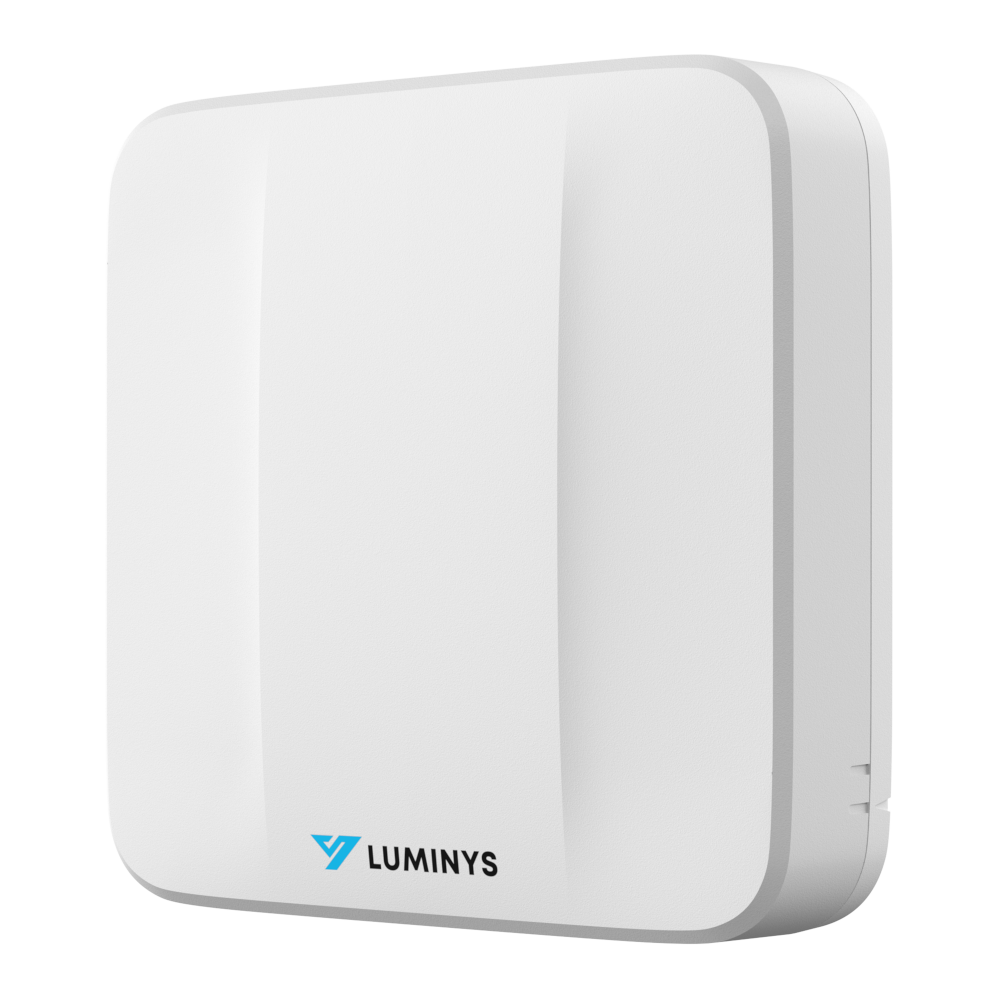

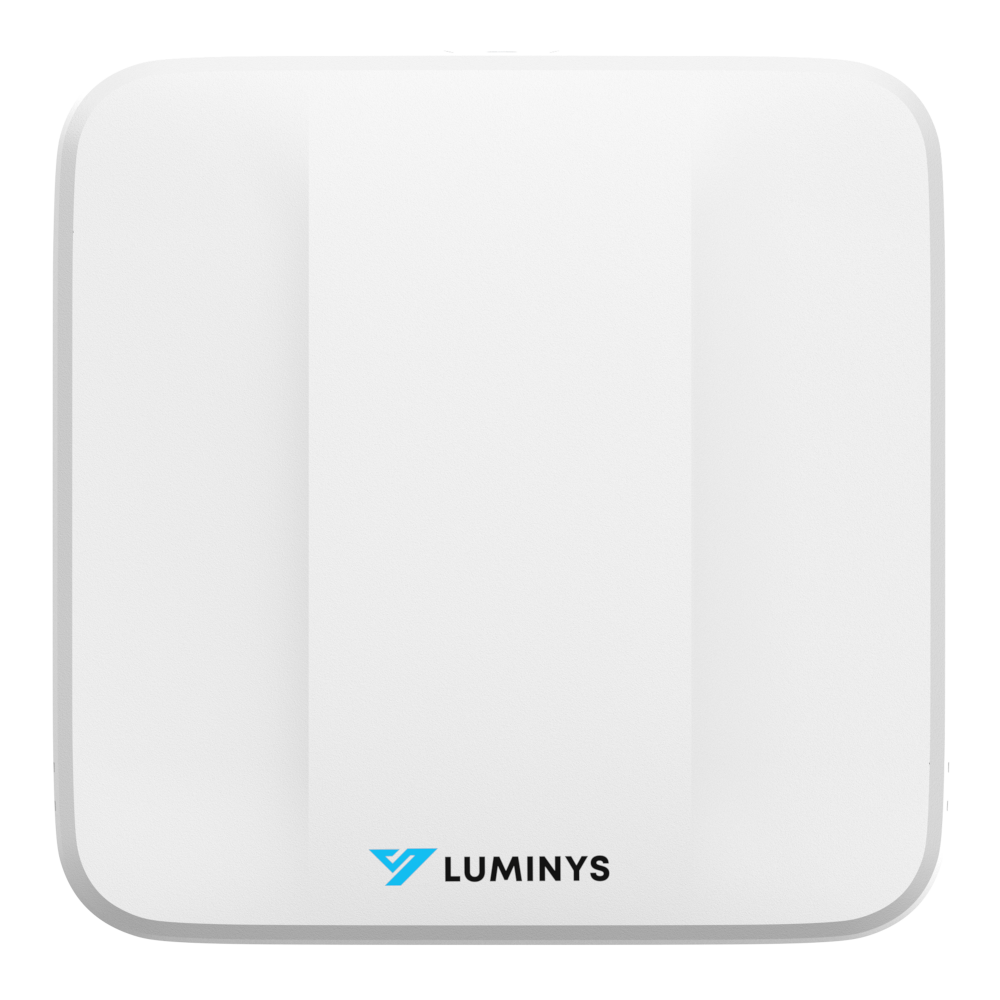

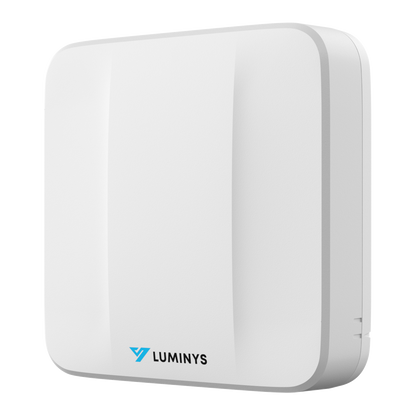

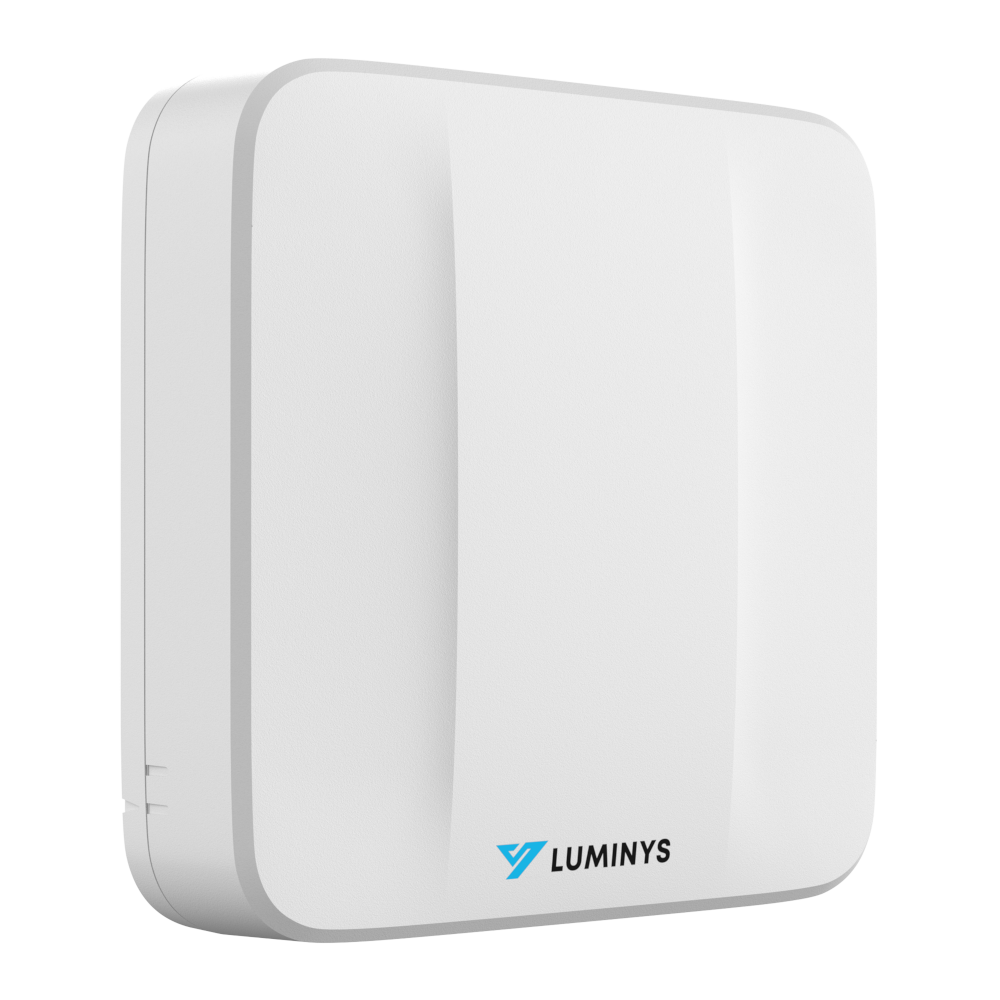

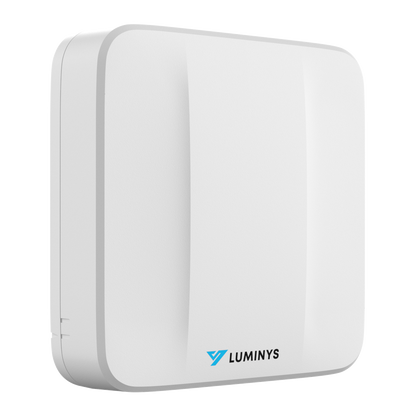

Luminys 2-Door Web Access Controller (C-2PA)
Luminys 2-Door Web Access Controller (C-2PA)
SKU:C-2PA
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support
The Luminys C-2PA is a two-door web access controller built for flexibility, scalability and reliability. Manage doors, users and credentials right from a browser, then grow from 2 doors to as many as 30 by adding sub-controllers.
- 2 doors, up to 30Supports 2 doors in main controller mode, expandable up to 30 doors with sub-controllers.
- 1,000 usersManages up to 1,000 users in main controller mode, 10,000 in sub-controller mode.
- Multi-verificationCard, PIN, Bluetooth, or any combination of the three.
- Built-in web serverConfigure and monitor everything from a browser. No software to install.
- Anti-passback and interlockSupports anti-passback, door interlock and alarm integration.
Key technologies
- Web-based management
- Seamless control through a browser for simplified setup, user management and monitoring.
- Scalability
- Supports up to 30 doors by adding additional controllers in sub-mode.
- Bluetooth credentials
- Secure, contactless access with mobile credentials. Works with supported readers and the web controller.
- Anti-passback
- Prevents re-entry with the same credential without a proper exit, enforcing strict access in high-security areas.
Specifications
System
| CPU | Dual-Core 1 GHz |
|---|---|
| RAM | 256 MB |
| ROM | 4 GB |
| Network protocol | TCP, P2P, DDNS, DNS, UDP, IPv4 |
| Interoperability | CGI, ONVIF |
| Third-party compatibility | SDK, API |
| Status light | Solid red: power on. Solid green: normal. Flashing red: abnormal power. Flashing blue: updating. |
| Buzzer | Built-in |
Functions
| Verification methods | Bluetooth, remote, fingerprint, password, card, combination |
|---|---|
| Period list | 128 periods |
| Holiday period | 128 periods |
| External card readers | Up to 2 RS-485 or 2 Wiegand readers |
| Multi-person unlock | Supported |
| First-person unlock | Supported |
| Interlock | Supported |
| Anti-passback | Supported |
| Real-time monitoring | Supported |
| Web configuration | Supported |
| Network update | Supported |
| Restricted / trusted list | Supported |
| User / card types | General, VIP, Guest, Staff, Blocklist, Manager, Other |
Storage capacity
| Users | 1,000 main mode, 10,000 sub mode |
|---|---|
| Cards | 5,000 main mode, 50,000 sub mode |
| Fingerprints | 3,000 |
| Bluetooth cards | 5,000 |
| Records | 300,000 |
Interface and alarm
| RS-485 | 3 channels |
|---|---|
| Wiegand | 2 input channels |
| Network | 1 × RJ-45 10/100 Mbps Ethernet |
| Exit buttons | 2 |
| Door sensors | 2 |
| Lock control | 2 |
| Alarm I/O | 2 inputs, 2 outputs |
| Alarm linkage | Supported |
| Events | Tamper, duress, door sensor timeout, intrusion, card usage threshold exceeded, duress fingerprint |
Electrical
| Power supply | 12 VDC or PoE (IEEE 802.3at Type 2, Class 4) |
|---|---|
| Standby power | ≤ 2 W (no external devices) |
| Power budget (DC) | 1700 mA at 12 V for external devices |
| Power budget (PoE) | 1200 mA at 12 V for external devices |
Construction
| Dimensions | 7.3 × 7.3 × 2.3 in. (186.4 × 185.8 × 58.3 mm) |
|---|---|
| Net weight | 1.6 lb (0.7 kg) |
| Gross weight | 2.2 lb (1.0 kg) |
| Package | 10.0 × 9.6 × 3.4 in. (254 × 243 × 86 mm) |
| Operating temp | 14 °F to 131 °F (-10 °C to 55 °C), 5% to 95% RH non-condensing |
| Protection rating | IK06 |
| Material | PC and ABS |

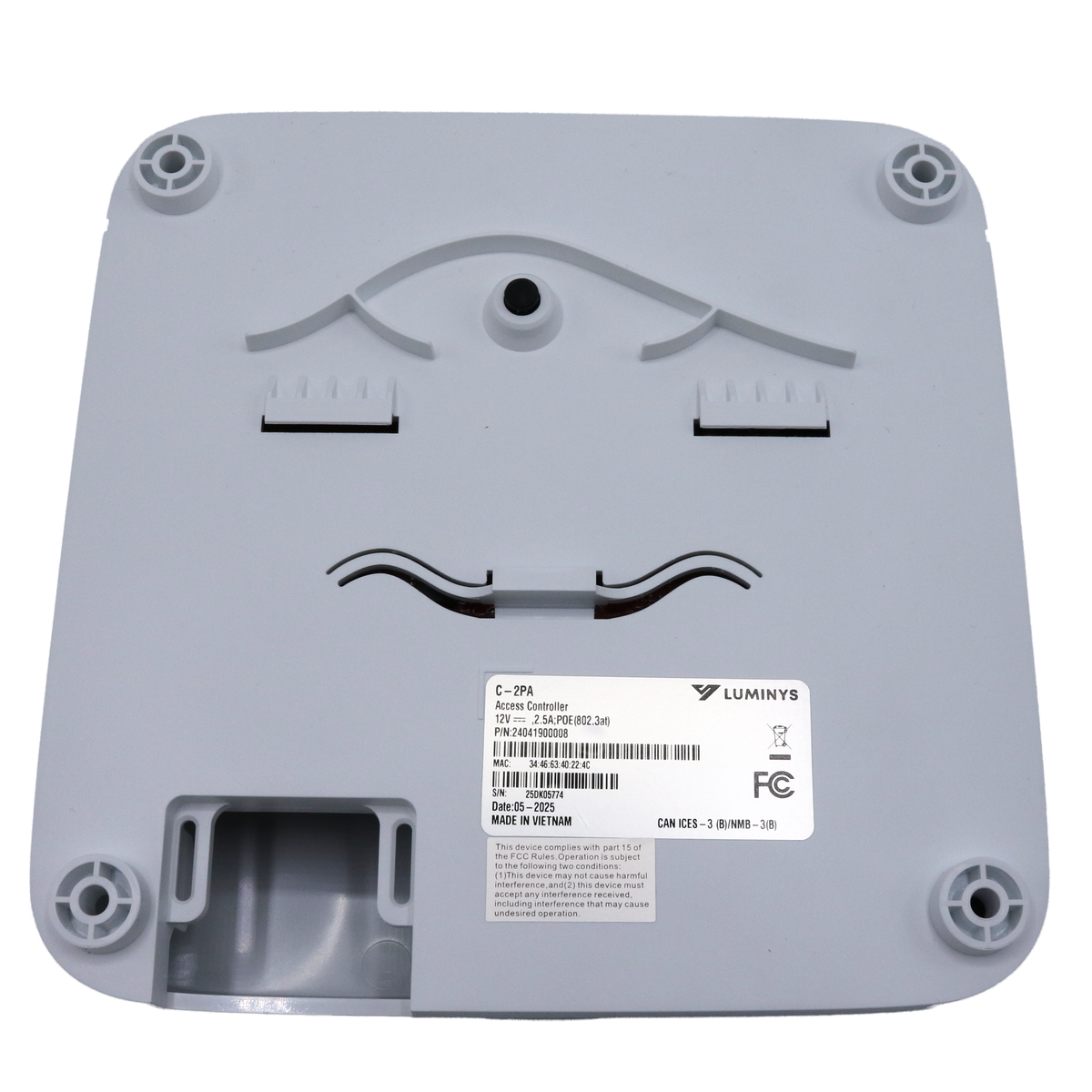

| Mounting | Guide rail mount, surface mount |
| Certifications | FCC, IC |
| Compliance | NDAA |
Download the official C-2PA datasheet (PDF)
LumiCloud Access Control door subscription sold separately for additional remote management features. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
