Luminys 4 x 5MP Network LumiFlex Unstitched Multi-sensor Camera (N9P-20RAV)

Name: Luminys 4 x 5MP Network LumiFlex Unstitched Multi-sensor Camera (N9P-20RAV)
Brand: Luminys
SKU: N9P-20RAV
Price: 3023.99 USD
Availability: InStock

SKU:N9P-20RAV

$3,023.99

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

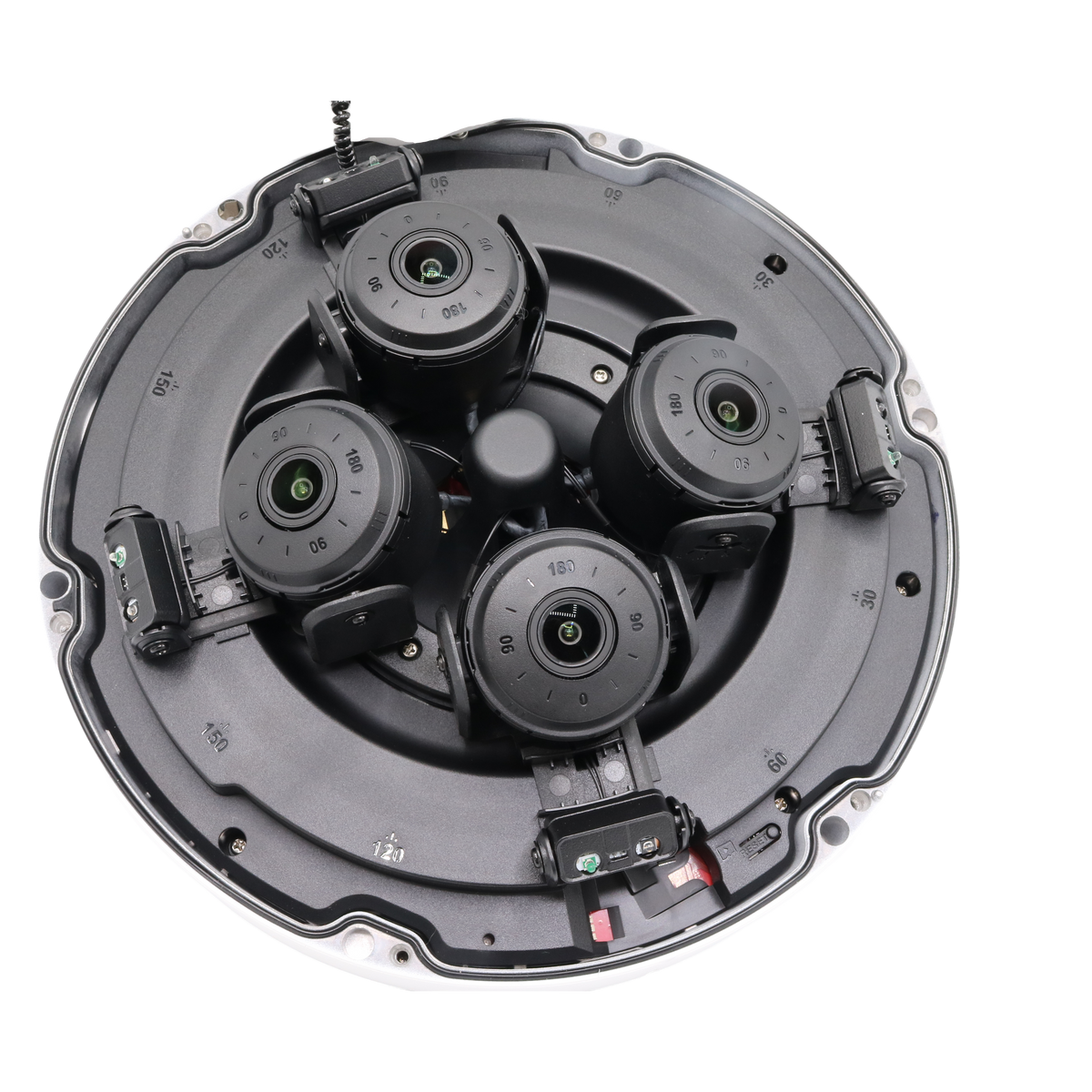

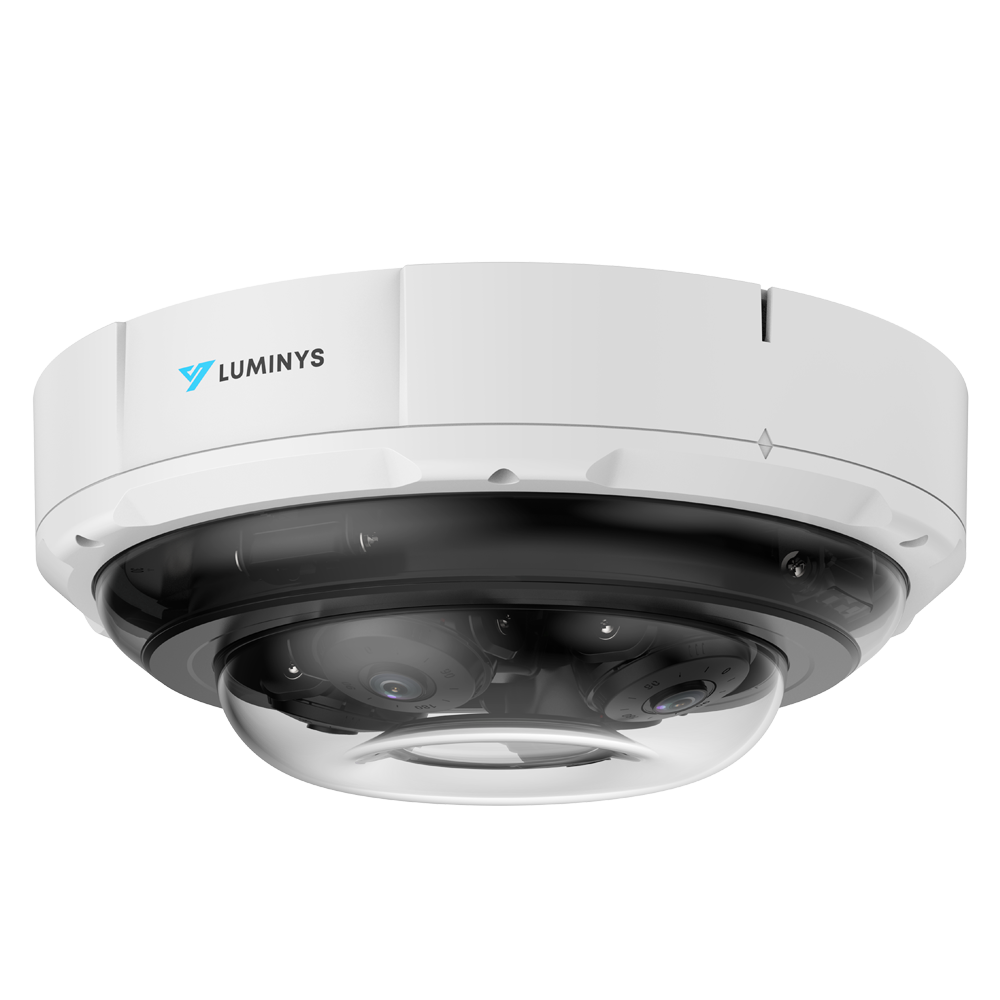

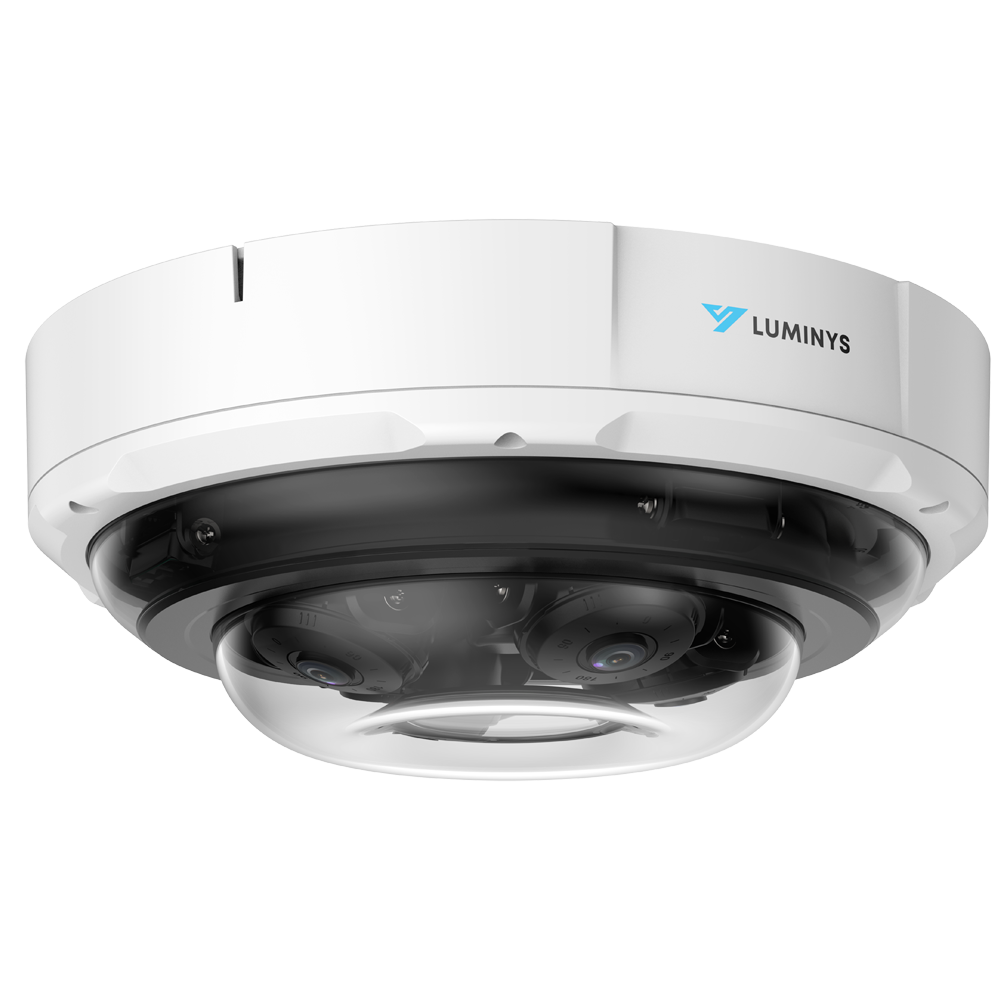

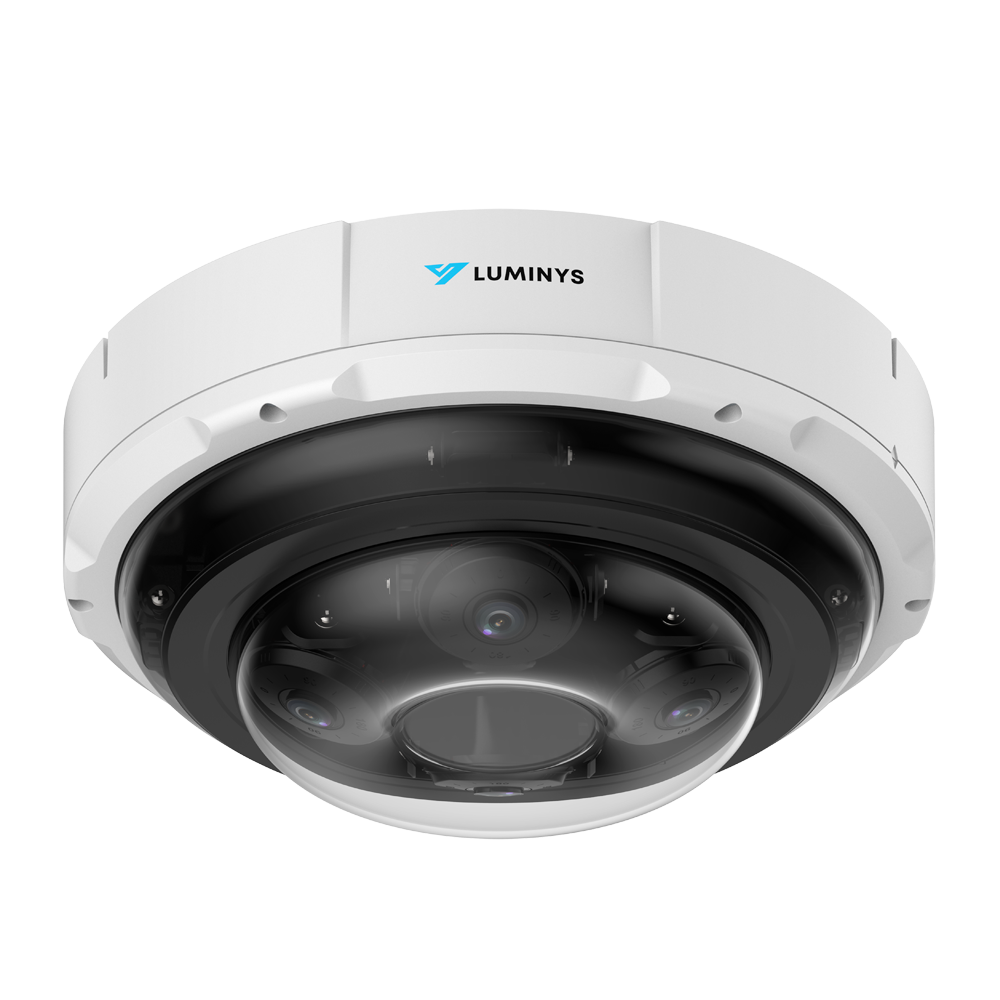

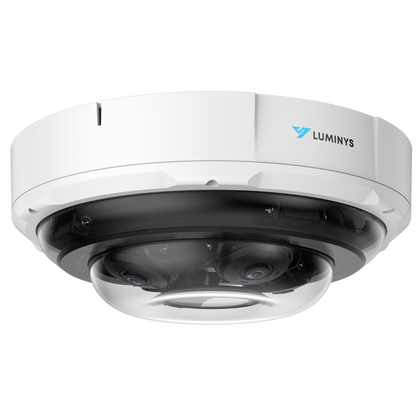

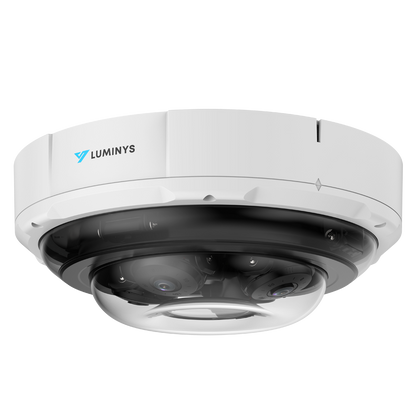

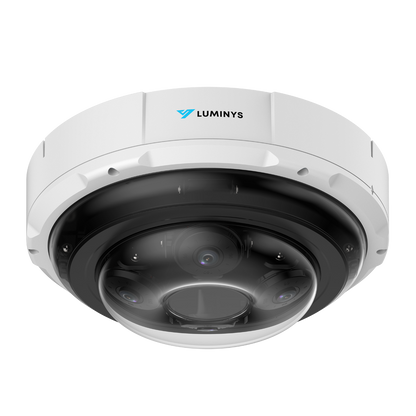

The Luminys N9P-20RAV is a 4 x 5MP LumiFlex Multi-Directional Network Camera built around a Four (4) 1/2.7-in. 5MP Progressive CMOS sensor and a 2.8 mm to 12.0 mm lens. It is IP67 and IK10 rated, NDAA compliant, and powered by 12 VDC, PoE+ (802.3at).

Captures 180°, 270°, and 360° Unstitched Video100° to 42° horizontal and 74° to 32° vertical field of view.
2.8 mm to 12.0 mm Motorized Vari-Focal Lens100° to 42° horizontal field of view, F1.7 maximum aperture.
Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
LumiAnalyticsFace Detection, People Counting, Smart Object Detection
LumiFlexLumiFlex technology delivers the comprehensive, flexible coverage of multiple single-sensor cameras using one camera housing.
LumiDesertProRated for -30 °C to 60 °C (-22°F to 140°F) operation.

Key technologies

Video Content Analytics+: Video Content Analytics+ is the umbrella for Line Crossing, Intrusion, Loitering Detection, and Parking Detection analytics. Line Crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. Loitering Detection sends alerts to mobile devices when it detects a person or vehicle lingering in an area for a pre-set duration. Parking Detection establishes a virtual perimeter around designated parking zones and triggers alerts when vehicles exceed the allowed parking time. VCA+ is specifically designed for more advanced and specialized applications as it offers more advanced features compared to standard video content analytics (VCA).
LumiAnalytics 1: LumiAnalytics 1 is the umbrella for Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map. These analytics use detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.

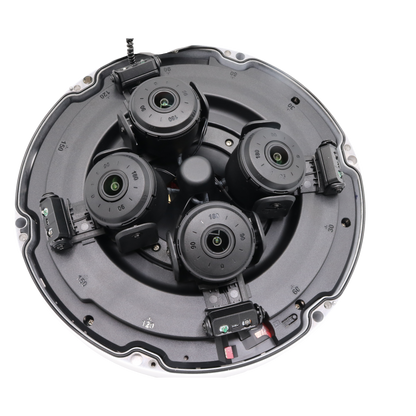

LumiFlex: LumiFlex technology delivers the comprehensive, flexible coverage of multiple single-sensor cameras using one camera housing. LumiFlex cameras have multiple camera sensors that can be individually positioned to capture different areas of a scene. The footage from each sensor can then be combined to create one continuous stream to reduce the number of licenses required for a higher return on investment.
LumiDesertPro: LumiDesertPro ensures dependable performance in temperatures up to 60 °C (140 °F).

Specifications

Camera

Luminys Series	N9 Series (Specialty)
Image Sensor	Four (4) 1/2.7-in. 5MP Progressive CMOS
Maximum Resolution	2592 × 1944 per Sensor
Minimum Illumination	Color: 0.005 Lux at F1.7 Black and White: 0.0005 Lux at F1.7 0 Lux With IR Illumination On
Number of Illuminators	Eight (8) IR LEDs
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	Up to 30.0 m (98.4 ft)
Electronic Shutter Speed	Automatic, Manual 1/30 s to 1/100,000 s
Installation Angle	Pan: 0° to 360° Tilt: 0° to 75° Rotation: 0° to 355°
S/N Ratio	> 56 dB

Lens

Iris Type	Fixed
Lens Type	Motorized Vari-Focal
Focal Length	2.8 mm to 12.0 mm
Maximum Aperture	F1.7
Field of View	Horizontal: 100° to 42° Vertical: 74° to 32° Diagonal: 133° to 53°
Close Focus Range	0.8 m (2.6 ft)
DORI Distance	Detect: 66.0 m to 140.4 m (216.5 ft to 460.6 ft) Observe: 26.4 m to 56.1 m (86.6 ft to 184.1 ft) Recognize: 13.2 m to 28.8 m (43.3 ft to 94.5 ft) Identify: 6.6 m to 14.0 m (21.7 ft to 45.9 ft)

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Stream Capability	Three (3) Streams
Resolution	Single Stream: 5MP (2592 × 1944), 4MPP (2560 × 1440), 3MP (2304 × 1296/2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D (704 × 480), VGA (640 × 480), CIF (352 × 240) Consolidated Stream: 8MP (3296 × 2472), 5MP (2592 × 1944), 1080p (1920 × 1080)
Maximum Frame Rate	Single Stream: Main Stream 5MP at 30 fps, Sub Stream 1 D at 30 fps, Sub Stream 2 1080p 30 fps Consolidated Stream: Main Stream 2MP at 30 fps, Sub Stream 1 D at 30 fps, Sub Stream 2 8MP at 30 fps
Video Bit Rate	H.264: 3 kbps to 19,712 kbps H.265: 3 kbps to 19,712 kbps
Bit Rate Control	CBR/VBR
Day/Night	Auto (ICR), Color, Black and White
Light Balancing	Digital Wide Dynamic Range (DWDR)
Noise Reduction	3D NR
Image Rotation	Supported
Mirroring	Supported
Region of Interest	Four (4) Areas
Privacy Masking	Eight (8) Areas

Analytics

Video Content Analytics+	Line Crossing (Human/Vehicle), Intrusion (Human/Vehicle), Loitering Detection, Parking Detection
Face Detection	Capture Snapshots and Facial Attributes
LumiAnalytics	Face Detection, People Counting, Smart Object Detection
People Counting	Tripwire and In-Area People Counting, Queue Management With Report

Audio

Compression	PCM, G.711, G.726
Interface	Input: One-Channel RCA Port Output: One-Channel RCA Port

Alarm

Event

No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, People Gathering, Parking Detection, Scene Changing, Audio Detection, External Alarm, Face Detection, People Counting In Area, Abnormal Number of People Detection, People Counting, People Stay Detection

Interface

Input: Three (3) Channels (Max. 5 VDC, 5 mA)
Output: Two (2) Channels (Max. 12 VDC, 300 mA)

Network

Network Interface	RJ-45 (10/100/1000 Base-T)
RS-485 Interface	One (1) Channel (Baud Rate Range: 1,200 bps to 115,200 bps)
Protocol	IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x
Interoperability	ONVIF (Profile S/G/T), API, P2P
Browser	Firefox, Chrome, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	MicroSD Card (Max. 256 GB), FTP, SFTP, NAS

Electrical

Power Supply	12 VDC, PoE+ (802.3at)
Power Consumption	< 24.7 W

Construction

Net Weight	2.8 kg (6.1 lb)
Gross Weight	4.5 kg (9.9 lb)
Operating Temperature	-30 °C to 60 °C (-22°F to 140°F) < 95% RH (Non-Condensing)
Storage Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Protection Ratings	IP67, IK10
Dimensions	111.3 mm × Φ286.1 mm (4.4 in. × Φ11.3 in.)
Material	Metal, Plastic

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA
1. This product does not support heat map or queue management	analytics.

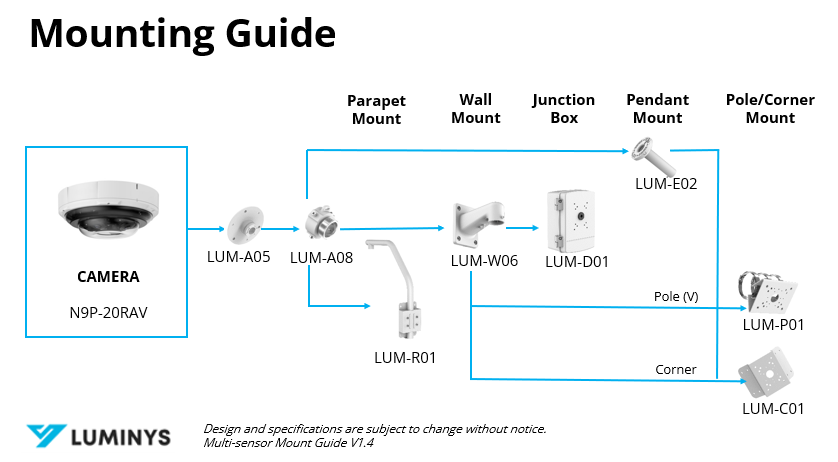

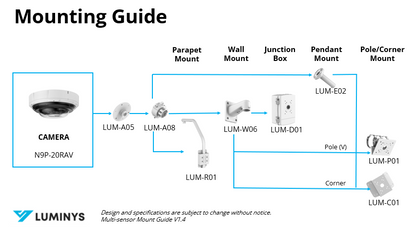

Mounting options

Pendant Mount	LUM-A05 + LUM-A08 + LUM-E02
Wall Mount	LUM-A05 + LUM-A08 + LUM-W06
Pole Mount (Horizontal)	LUM-A05 + LUM-A08 + LUM-E02 + LUM-P01
Pole Mount (Vertical)	LUM-A05 + LUM-A08 + LUM-W06 + LUM-P01
Corner Mount	LUM-A05 + LUM-A08 + LUM-W06 + LUM-C01

Download the official N9P-20RAV datasheet (PDF)
