Luminys 4MP Network LPR Camera (Vari-Focal) (N9L-4RAL)
Luminys 4MP Network LPR Camera (Vari-Focal) (N9L-4RAL)
SKU:N9L-4RAL
Regular price
$1,555.99
Regular price
Sale price
$1,555.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

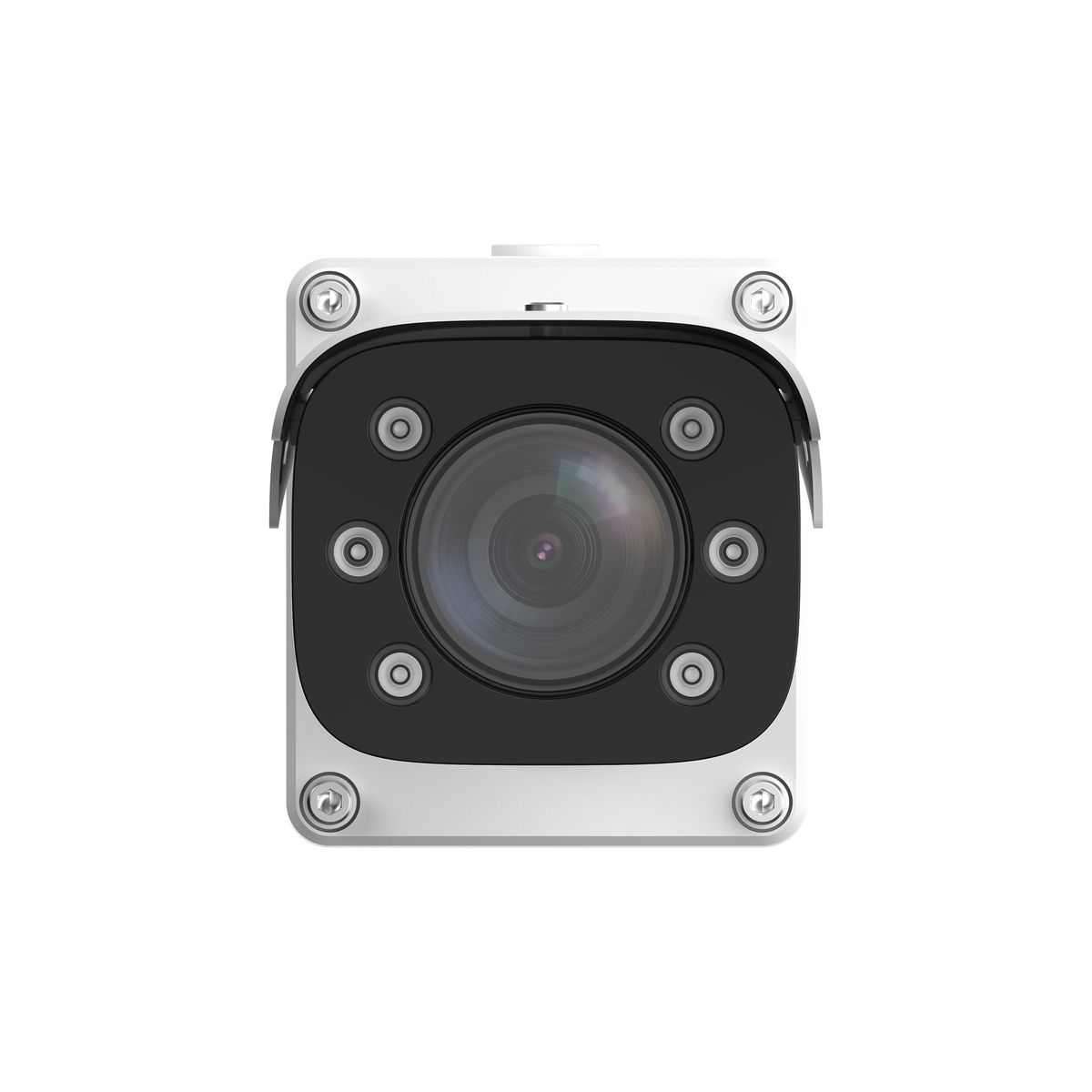

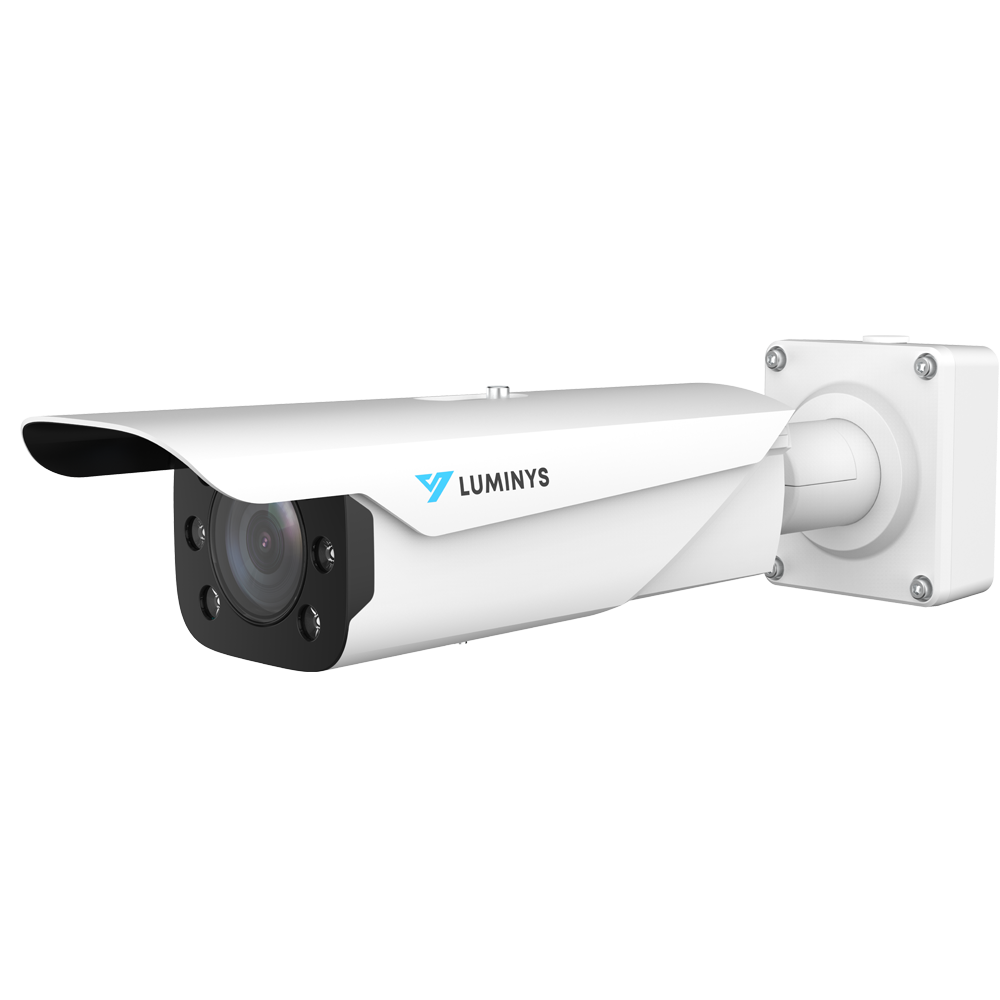

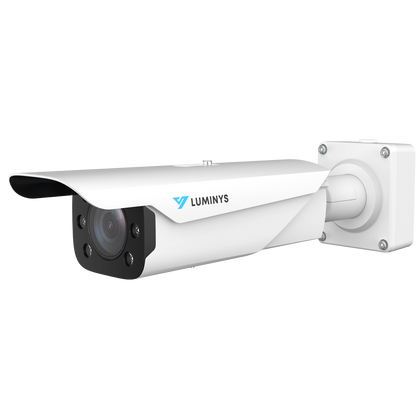

The Luminys N9L-4RAL is a 4MP Network LPR Camera built around a 1/1.8-in. 4MP Progressive CMOS sensor and a 10 to 50 mm (0.4 to 2.0 in.) vari-focal lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC, PoE+.
- 4MP Bullet Housing1/1.8-in. 4MP Progressive CMOS, 2688 × 1520 (OSD Black Strip Excluded) maximum resolution.
- 10.0 to 50.0 mm Motorized Lens40.55° (W)-9.33° (T) horizontal field of view.
- Maximum License Plate Recognition Speed80.5 km/h (50.0 mi/h)
- Maximum IR Illumination Distance30.0 m (98.4 ft)
- ANPR With 99% Accuracy
Specifications
Camera
| Luminys Series | N9 Series (Specialty) |
|---|---|
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 (OSD Black Strip Excluded) |
| Minimum Illumination | 0.002 Lux (Built-In Illuminator On) |
| Number of Illuminators | Six (6) IR Illuminators With Adjustable Brightness |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
| Maximum Detection Speed | 80.5 km/h (50.0 mi/h) |
| Detection Width | 6.0 m to 7.0 m (19.7 ft to 23.0 ft) |
| Capture Distance | 8.0 m to 30.0 m (26.3 to 98.4 ft) |
| Trigger Mode | Video Detection, I/O Coil |
| Shutter Mode | Single Shutter |
| Electronic Shutter Speed | Automatic, Manual 1/25 s-1/10,000 s |
Lens
| Lens Mount | Module |
|---|---|
| Iris Type | Automatic (W:1.33: T:1.34) |
| Lens Type | Motorized Vari-Focal |
| Focal Length | 10 to 50 mm (0.4 to 2.0 in.) |
| Field of View |
Horizontal: 40.55° (W)-9.33° (T) Vertical: 22.7° (W)-5.3° (T) Diagonal: 46.6° (W)-10.63° (T) |
Video
| Compression | H.265, H.264M, H.264H, MJPEG |
|---|---|
| Image Encoding Format | JPEG |
| Stream Capability | Two (2) Streams |
| Resolution |
Main Stream: 4MP (2688×1520), 2MP (1600×1200), 1080p (1920×1080), 720p (1280 × 720) Sub Stream: 720p (1280 × 720), 960H (960× 480), D (704 × 480), CIF (352 × 240) |
| Maximum Frame Rate |
Main Stream: 2688 x 1520/1600 x 1200/1920 x 1080/1280 x 720 at 30 fps Sub Stream: 1280 × 720/960 x 480/704 x 408/352 x 240 at 30 fps |
| Video Bit Rate |
H.264/H.265: 4096 to 10240 kbps MJPEG: 8192 to 40960 kbps |
| Light Balancing | Wide Dynamic Range (96 dB) |
| White Balancing | Auto, Outdoor, Manual, Partial White Balance, Natural, Street Lamp |
| Exposure Mode | Manual, Auto |
| Noise Reduction | 3D NR, Video 3D NR, Video Spatial 3D NR, Video Temporal 3D NR |
| Edge Enhancement | Supported |
| OSD Overlay | Time, Plate, Vehicle (Color, Type) Vehicle Position, Counterfeit, Checkpoint Direction, Trigger Source, Custom |
| Image Tampering Prevention | Watermark, Verification Function |
Analytics
| Vehicle Detection Rate | ≥ 99% |
|---|---|
| Vehicle Recognition Rate | ≥ 95% |
| Vehicle Recognition Attributes | Vehicle Color, Front-Seat Passenger, Licensed/Unlicensed |
| LumiTrajectory | Displays Plate and Vehicle Path |
Audio
| Interface | Output: One (1) Channel (RCA port) |
|---|
Alarm
| Event | No SD Card, Insufficient Memory, SD Card Error, Offline, IP Conflict, Illegal Access, Security Exception |
|---|---|
| Interface |
Input: 2-Channel Optocoupler (On/Off) Output: 2-Channel Relay (Can Be Used to Connect Other Devices) |
Network
| Interface | One (1) RJ-45 (100/1000 Mbps Ethernet) Port, Two (2) RS-485 Ports, One (1) Wiegand Channel |
|---|---|
| Interoperability | ONVIF (Profile S/T), CGI, SDK |
| Auto Registration | Supported |
| Security | Username/Password, MAC Address Binding, HTTPS Encryption, IEEE 802.1×, Network Access Control |
| Automatic Network Replenishment (ANR) | Supported via Platform/FTP |
| Storage | Built-In 1 TF Card Port (Max. 128 GB) |
Electrical
| Power Supply | 12 VDC, PoE+ |
|---|---|
| Power Consumption | < 20 W |
Construction
| Net Weight | 3.2 kg (7.05 lb) |
|---|---|
| Gross Weight | 5.2 kg (11.46 lb) |
| Operating Temperature | -30 to 65 °C (-22 to 149 °F) 10 to 90% RH (Non-Condensing) |
| Protection Ratings | IP67 |
| Product Dimensions (L × W × H) | 497.4 × 121.6 × 130.0 mm (19.6 × 4.8 × 5.1 in.) |
| Packaging Dimensions (L × W × H) | 625.0 × 305.0 × 270.0 mm (24.6 × 12.0 × 10.6 in.) |
| Installation | Wall, Pole, or Ceiling Mount |
| Material | Metal and Plastic |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |

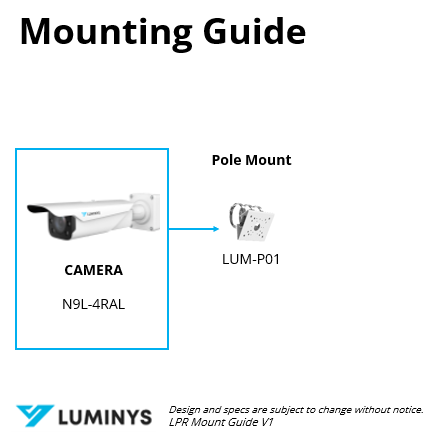

Mounting options
| Pole Mount | LUM-P01 |
|---|
Download the official N9L-4RAL datasheet (PDF)
