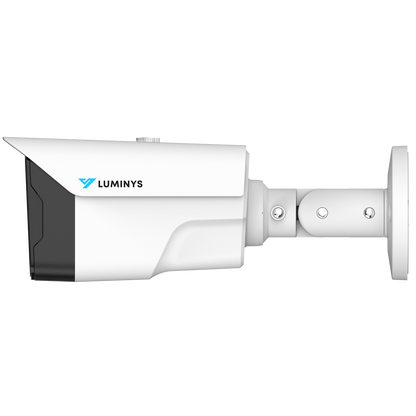

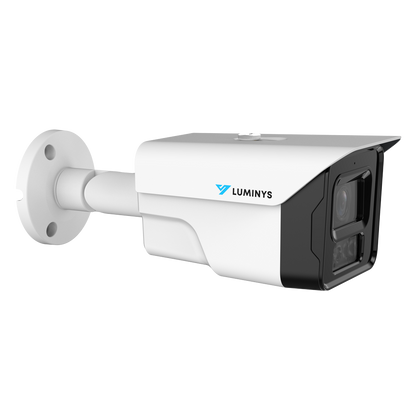

Luminys 4MP Network LumiNightKing Bullet Camera (2.8mm) (N4B-4VA2)
Luminys 4MP Network LumiNightKing Bullet Camera (2.8mm) (N4B-4VA2)
SKU:N4B-4VA2
Regular price
$325.99
Regular price
Sale price
$325.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

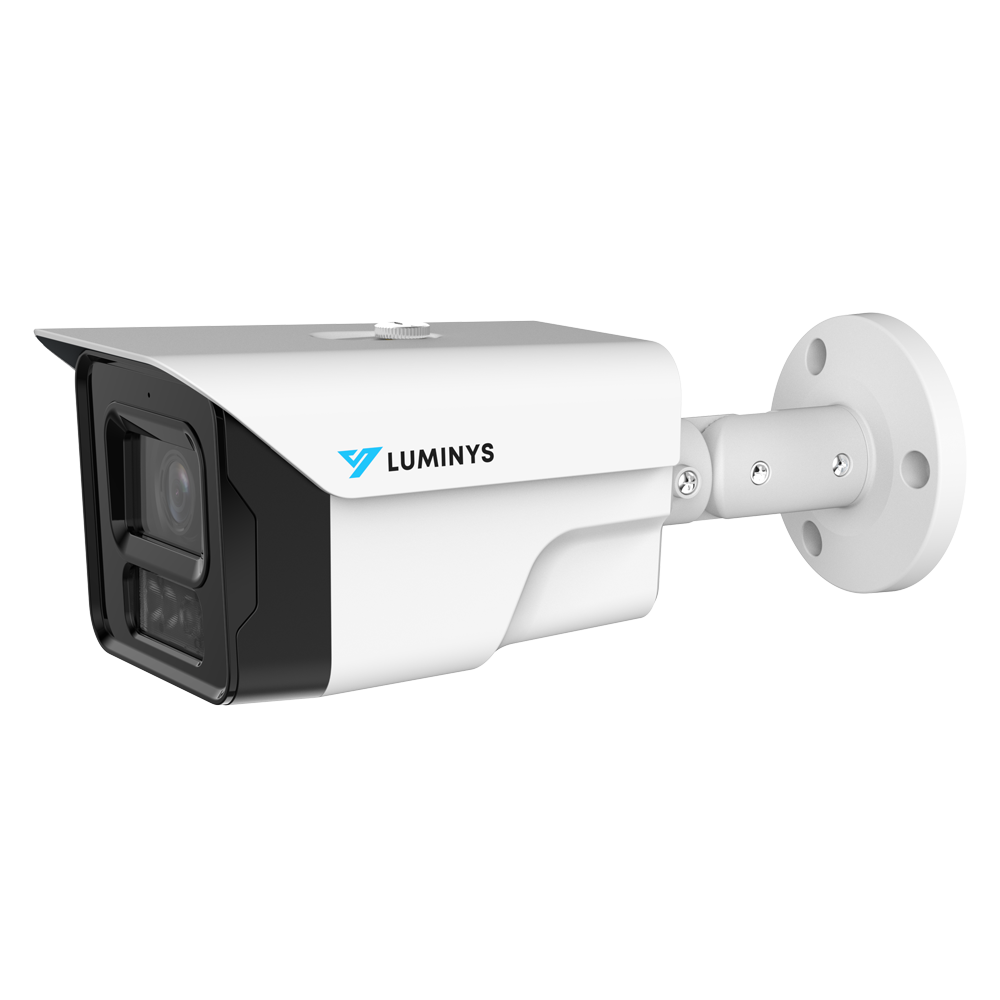

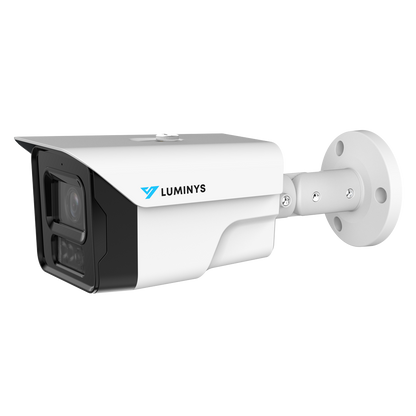

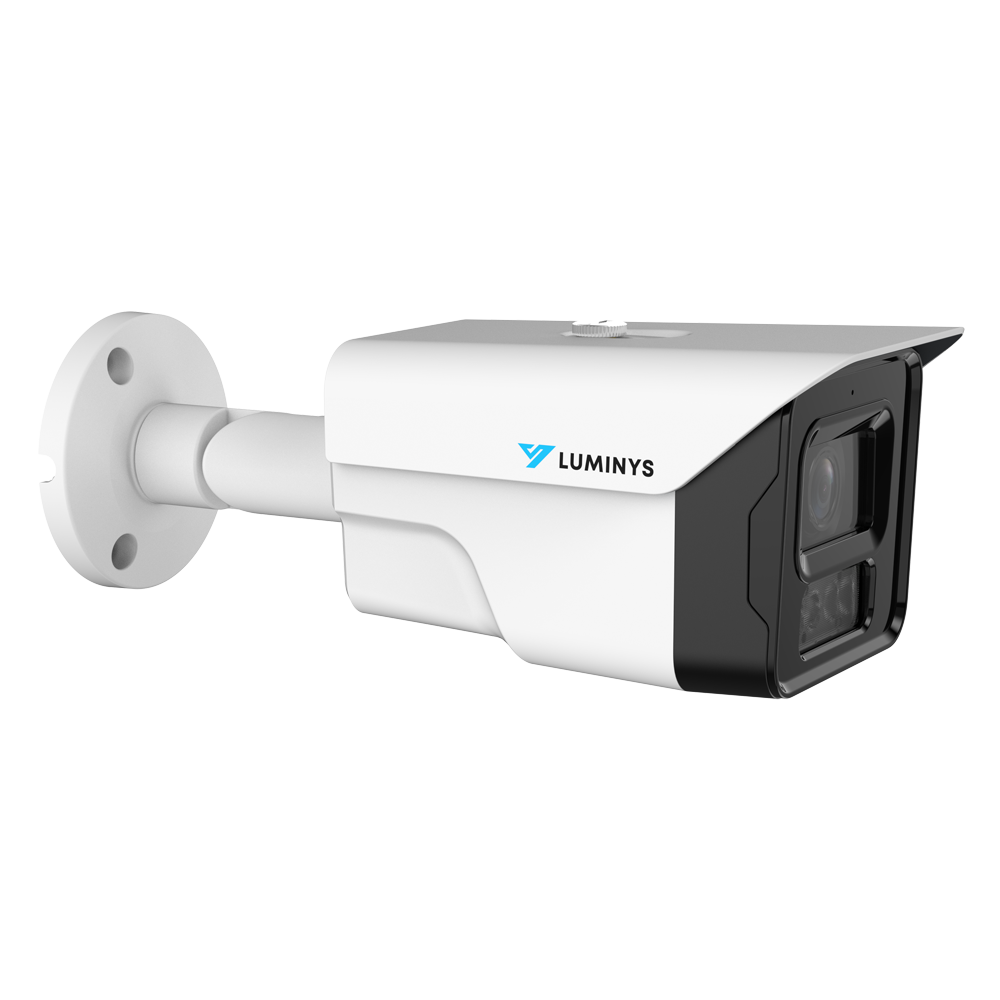

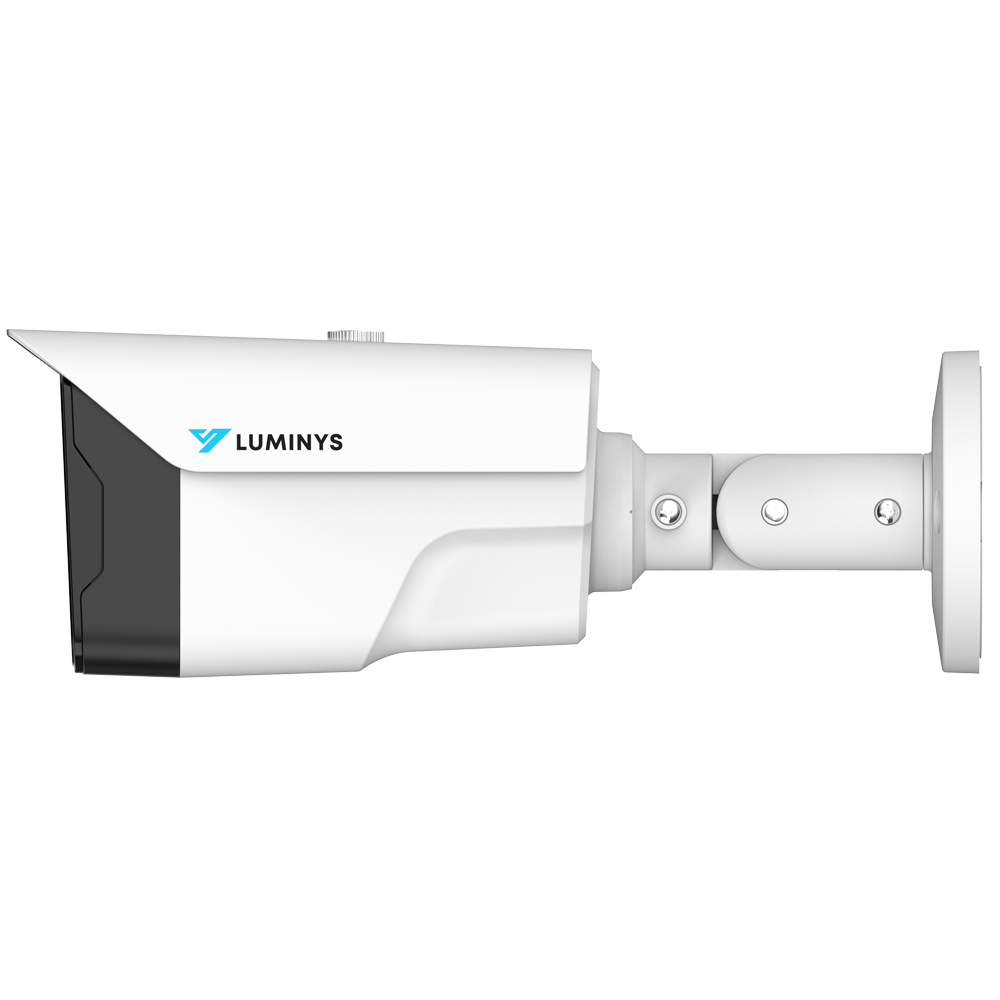

The Luminys N4B-4VA2 is a 4MP Network LumiNightKing Bullet Camera built around a 1/1.8-in. 4MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC or PoE (802.3af).
- 4MP Bullet Housing1/1.8-in. 4MP Progressive CMOS, 2688 x 1520 maximum resolution.
- 2.8 mm Lens112° horizontal field of view, F1.0 maximum aperture.
- AI-ISP
- White-Light LEDsIllumination up to 45.7 m (150.0 ft).
- Video Content AnalyticsLine Crossing, Intrusion
- iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.
Key technologies
- LumiNightKing
- LumiNightKing technology provides advanced, versatile low-light performance. Cameras with this technology combine a large pixel size sensor, an advacned AI-ISP, and ultra-wide F1.0 to capture images in near-total darkness without relying on IR or visible white-light LEDs. LumiNightKing cameras also have white-light LEDs that can be programmed to remain on throughoout the night for deterrence and lighting.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensures rugged all-weather performance. LumiPolarPro enables dependable performance in extreme cold in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in high temperatures up to 60 °C (140 °F).
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 x 1520 |
| Minimum Illumination | Color: 0.0006 lux at F1.0 |
| Number of Illuminators | White Light: Four (4) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | 45.7 m (150.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
| S/N Ratio | > 50 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View |
Horizontal: 112° Vertical: 60° Diagonal: 134° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance |
Detect: 57.7 m (189.3 ft) Observe: 23.0 m (75.5 ft) Recognize: 11.4 m (37.4 ft) Identify: 5.6 m (18.4 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|---|
| Stream Capability | Two (2) Streams |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate |
Main Stream: 4MP at 30 fps Sub Stream 1: D at 30 fps |
| Video Bit Rate |
H.264: 3 to 6,144 kbps H.265: 3 to 6,144 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° |
| Mirror Image | Supported |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics | Line Crossing, Intrusion |
|---|---|
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
Audio
| Compression | PCM, G.711a, G.711Mu |
|---|---|
| Interface | Input: Built-In Microphone |
Alarm
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
|---|
Network
| Interface | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
Electrical
| Power Supply | 12 VDC/PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Maximum 5.5 W, Normal 2.0 W PoE: Maximum 7.2 W, Normal 3.0 W |
Construction
| Net Weight | 0.6 kg (1.3 lb) |
|---|---|
| Gross Weight | 0.8 kg (1.8 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions (L x W x H) | 220.1 mm x 87.4 mm x 78.8 mm (8.7 in. x 3.4 in. x 3.1 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |

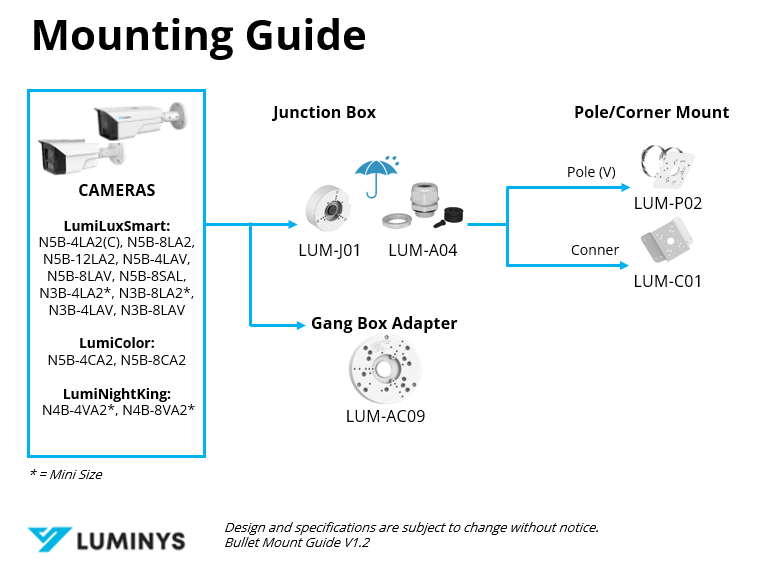

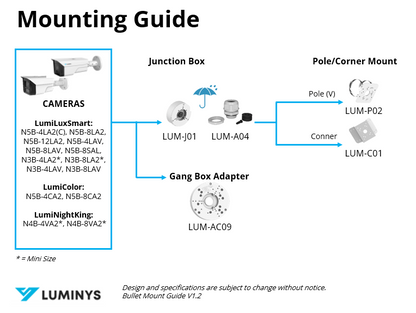

Mounting options
| Junction Box | LUM-J01 + LUM-A04 |
|---|---|
| Vertical Pole Mount | LUM-J01 + LUM-A04 + LUM-P02 |

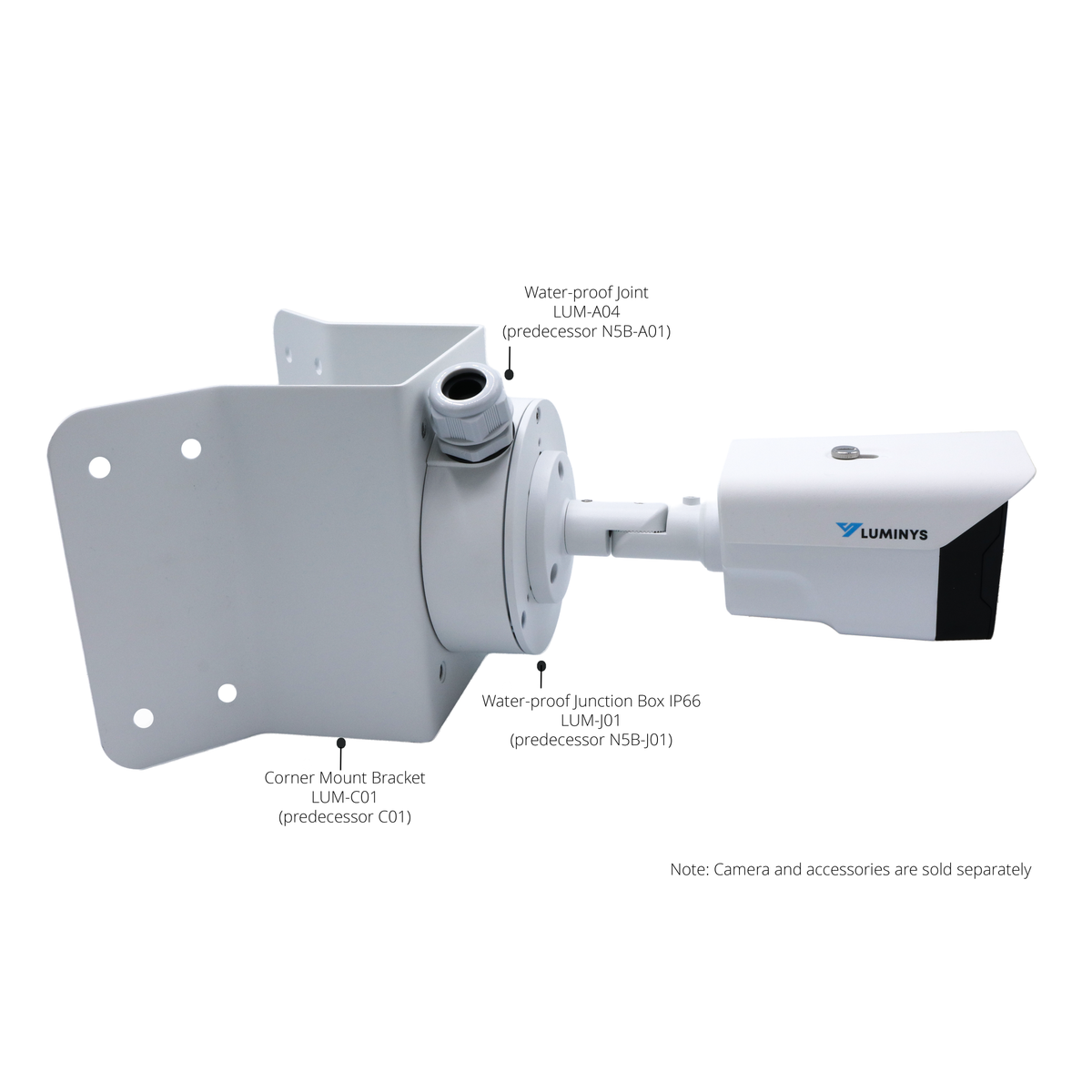

| Corner Mount | LUM-J01 + LUM-A04 + LUM-C01 |
Download the official N4B-4VA2 datasheet (PDF)
