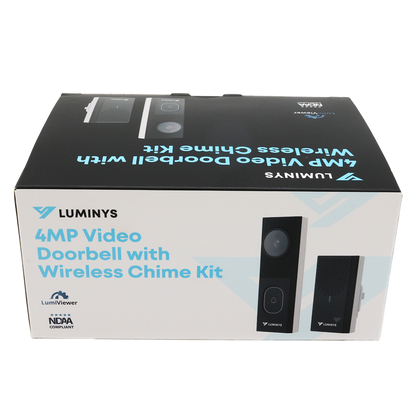

Luminys 4MP 2-Wire Video Doorbell and Chime Kit (DW401-CW01)
Luminys 4MP 2-Wire Video Doorbell and Chime Kit (DW401-CW01)
SKU:DW401-CW01
Regular price
$350.98
Regular price
Sale price
$350.98
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

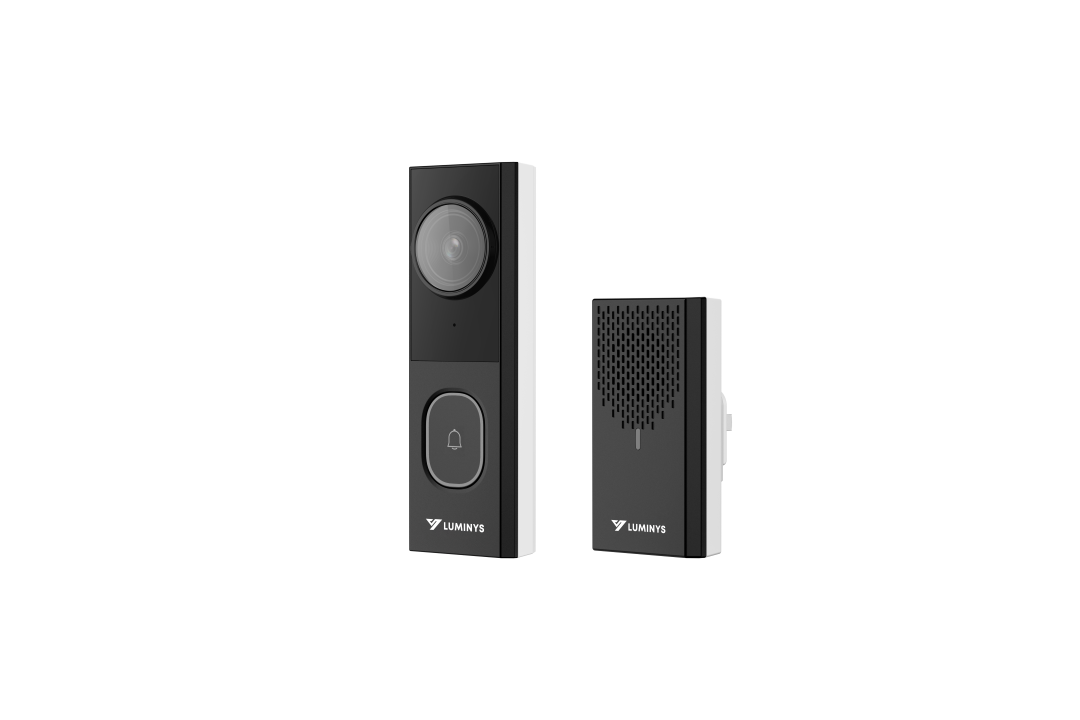

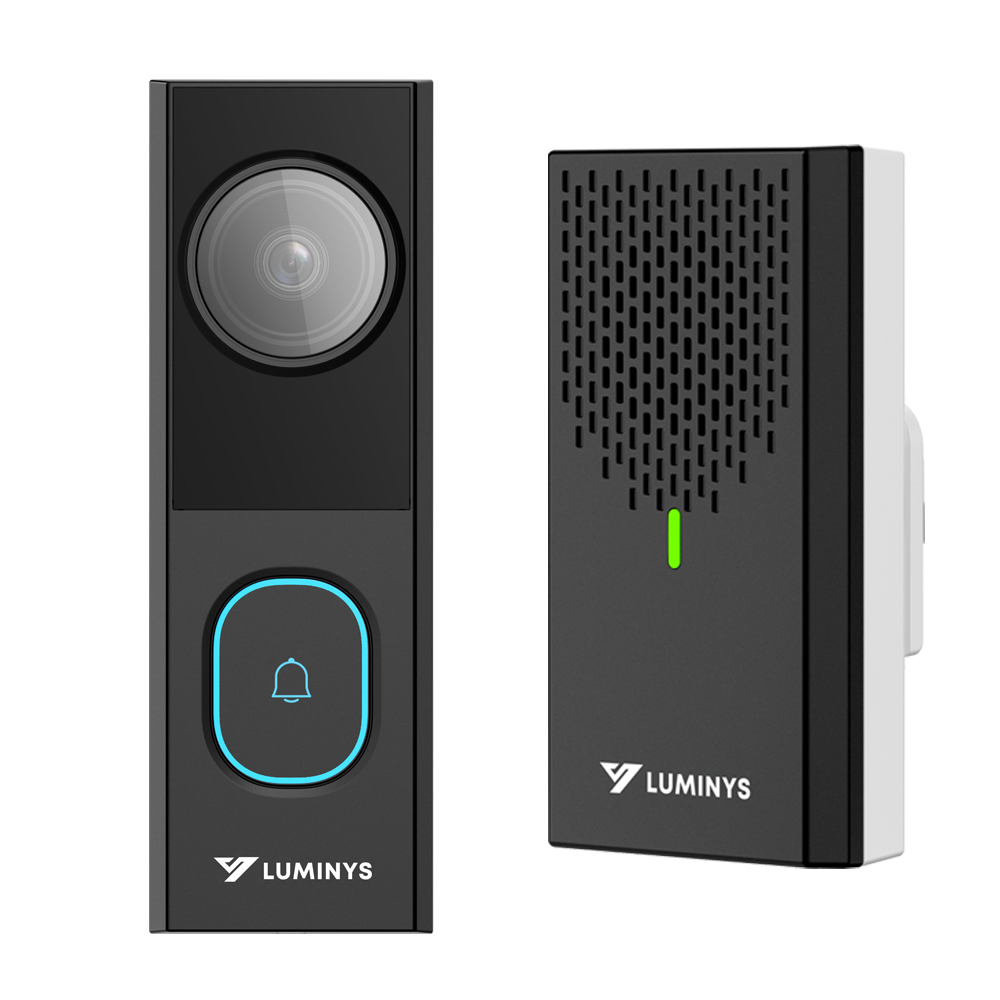

The Luminys DW401-CW01 pairs a 4MP 2-wire video doorbell with a plug-in wireless chime. The doorbell records 2560 × 1440 at 15 fps through a 125.3° wide lens, sees up to 10.1 m (33.0 ft) in the dark with IR, and lets you talk to visitors from the LumiViewer Mobile App. It is IP65 rated and NDAA compliant, with a 32 GB microSD card pre-installed.
1×
+
DoorbellDW4014MP 2-Wire Video Doorbell32 GB microSD card pre-installed
1×

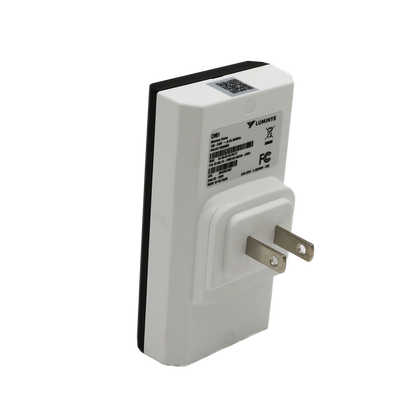

ChimeCW01Plug-In Wireless Chime, Wi-Fi 6
- 4MP (2560 × 1440) at 15 fps1/3-in. CMOS sensor with a 2.3 mm lens: 125.3° horizontal, 69.3° vertical, 149.8° diagonal field of view.
- 2.4GHz/5GHz Dual-Band Wi-Fi 6The doorbell connects over dual-band Wi-Fi 6 plus Bluetooth for setup. Power comes from existing 2-wire doorbell wiring (10 to 24 VDC or 14 to 24 VAC) or USB (5 VDC).
- IR Night Vision up to 10.1 m (33.0 ft)Two (2) IR LEDs with automatic, manual, or off control.
- Intelligent Motion Detection (iMD)Alarms for vehicles and humans, with up to three (3) custom detection shapes for targeted events.
- Built-In Microphone and SpeakerTwo-way talk, plus up to three (3) quick replies and three (3) custom replies.
- Combine Up to Eight (8) DevicesLink multiple doorbells and chimes, with eight (8) ringtone options. Per Luminys, the doorbell only works with the CW01 chime; third-party chimes are not supported.
- IP65 Ingress ProtectionProtection against dust and heavy rain for outdoor installs, rated from -25 °C to 55 °C (-13 °F to 131 °F).
- 32 GB MicroSD Card Pre-InstalledLocal recording out of the box, with support for cards up to 256 GB.
Key technologies
- Intelligent Motion Detection (iMD)
- Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicles in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
- IP65 Ingress Protection
- IP65 ingress protection ensures protection against dust and heavy rain, making it ideal for outdoor installations and rugged conditions.
Specifications
DoorbellDW4014MP 2-Wire Video Doorbell
Camera
| Image Sensor | 1/3-in. CMOS |
|---|---|
| Number of Illuminators | Two (2) IR LEDs |
| Illuminator Control | Automatic, Manual, Off |
| Illumination Distance | Up to 10.1 m (33.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.3 mm |
| Maximum Aperture | F2.2 |
| Field of View |
Horizontal: 125.3° Vertical: 69.3° Diagonal: 149.8° |
| Close Focus Range | 0.5 m (1.6 ft) |
| DORI Distance |
Detect: 46.0 m (151.0 ft) Observe: 18.3 m (60.0 ft) Recognize: 9.1 m (30.0 ft) Identify: 4.6 m (15.0 ft) |
Video
| Compression | H.265, H.264 |
|---|---|
| Standard Codec | Supported |
| Stream Capability | Two (2) |
| Resolution | 4MP (2560 × 1440), 1080p (1920 × 1080), 720p (1280 × 720), 640 × 360, 320 × 240 |
| Maximum Frame Rate |
Main Stream: 4MP/1080p/720p at 15 fps Sub Stream 1: 640 × 360/320 × 240 at 15 fps |
| Video Bit Rate |
H.264: 1,792 kbps to 4,096 kbps H.265: 512 kbps to 4,096 kbps |
| Day/Night | Automatic (ICR), Black and White |
| Light Balancing | Digital Wide Dynamic Range (DWDR) |
| Noise Reduction | 3D NR |
| Image Angle | 0°, 180° |
| Image Mirroring | Supported |
Analytics
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
|---|---|
| Custom Shapes | Supports up to Three (3) Custom Shapes for Targeted Events |
Audio
| Compression | PCM, G.711a, G.711Mu |
|---|---|
| Interface |
Input: Built-In Microphone Output: Built-In Speaker |
Network
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
|---|---|
| Wireless Communication | 2.4GHz/5GHz Dual-Band Wi-Fi (Wi-Fi 6), Bluetooth |
| Interoperability | ONVIF (Profiles S, G, T) |
| Storage | 32GB Pre-Installed MicroSD Card (Supports Up to 256 GB) |
| Client | LumiViewer Mobile App |
Electrical
| Power Supply | USB (5 VDC ±5%, 2 A) or binding post power supply (10 to 24 VDC/14 to 24 VAC, 1.0 A) |
|---|---|
| Power Consumption |
Basic: 1.7 W (5 VDC), 2.1 W (24 VDC), 2.2 W (24 VAC) Maximum: 3.7 W (5 VDC), 4.5 W (24 VDC), 4.6 W (24 VAC) |
Construction
| Net Weight | 99.3 g (0.2 lb) |
|---|---|
| Product Dimensions (L × W × H) | 180.1 mm × 90.1 mm × 27.0 mm (7.1 in. × 3.6 in. × 1.1 in.) |
| Operating Temperature | -25 °C to 55 °C (-13 °F to 131 °F) |
| Operating Humidity | ≤ 95% (RH), Non-Condensing |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Humidity | ≤ 95% (RH), Non-Condensing |
| Protection Ratings | IP65 |
| Casing Material | Plastic |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |

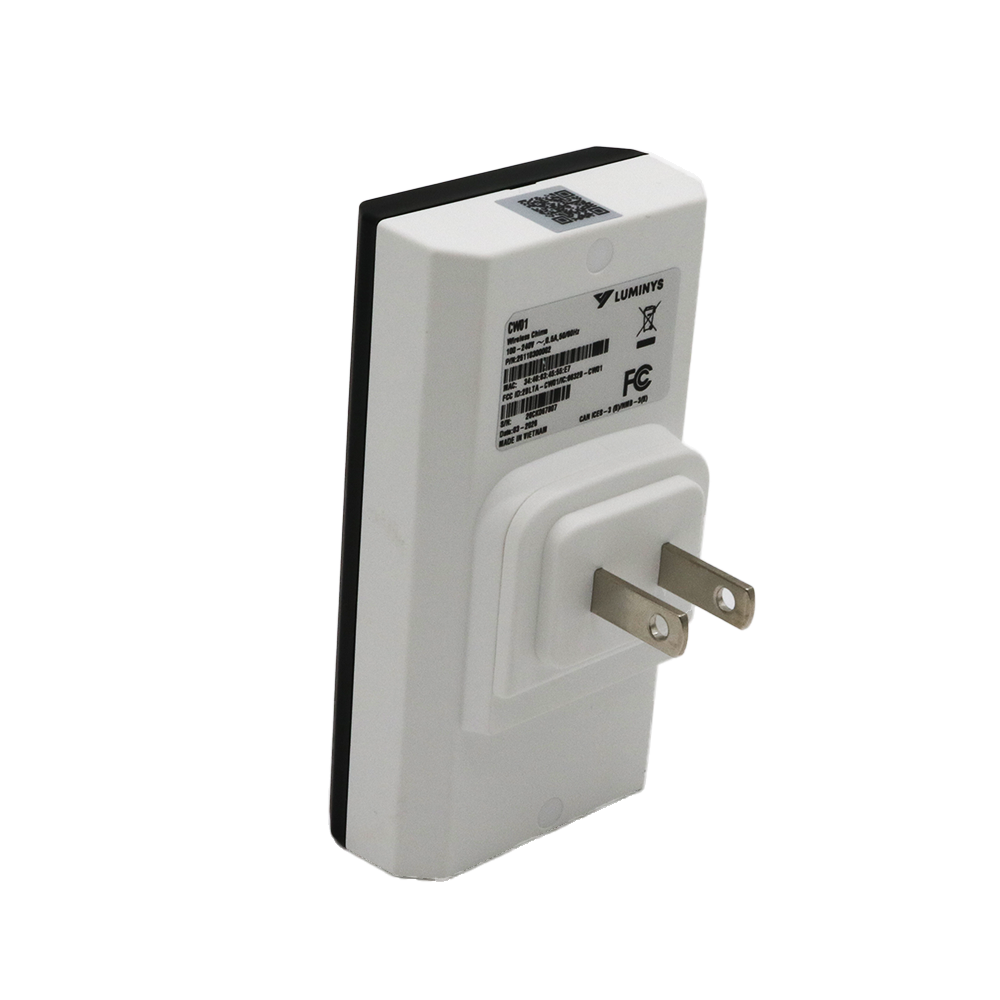

ChimeCW01Plug-In Wireless Chime
Chime
| Audio Output | Built-In Speaker |
|---|---|
| Wi-Fi Protocol | IEEE 802.11b/g/n/ax 2.4000 to 2.4835 GHz, 2.4 G, EIRP ≤ 20 dBm |
| Wireless Communication | 2.4GHz Wi-Fi (Wi-Fi 6), Bluetooth |
| Remote Firmware Updates | Supported |
| Power Supply | 100 to 240 VAC 50/60 Hz |
| Power Consumption | < 5 W |
| Net Weight | 88.5 g (0.2 lb) |
| Product Dimensions (L × W × H) | 94.1 mm × 50.0 mm × 50.0 mm (3.7 in. × 1.97 in. × 1.97 in.) |
| Operating Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Operating Humidity | 20% to 95% (RH), Non-Condensing |
| Appearance Color | Black (Front Casing) + White (Back Cover) |
| Casing Material | Plastic |
| Certifications | FCC, IC |
| Compliance | NDAA |

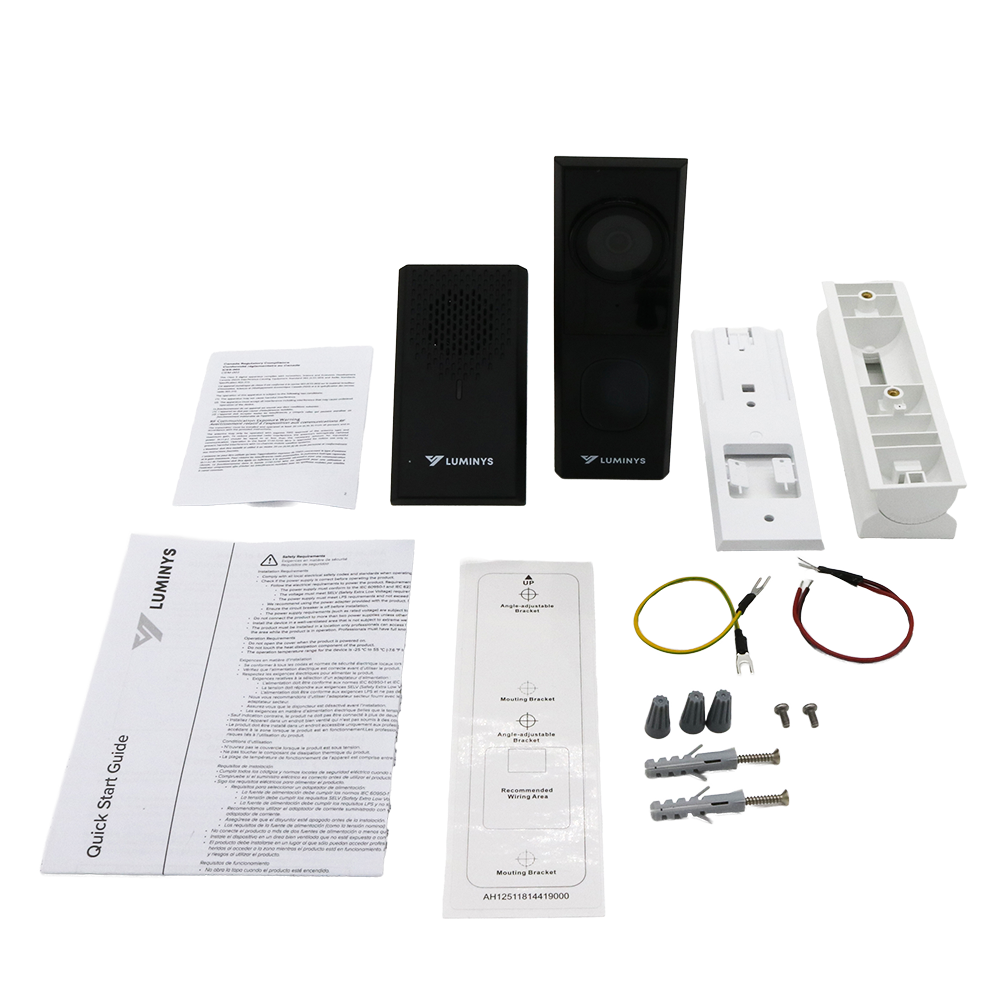

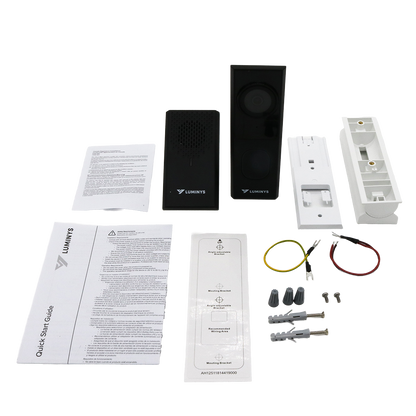

In the box
| 1 | 4MP Video Doorbell |
|---|---|
| 1 | Wireless Chime |

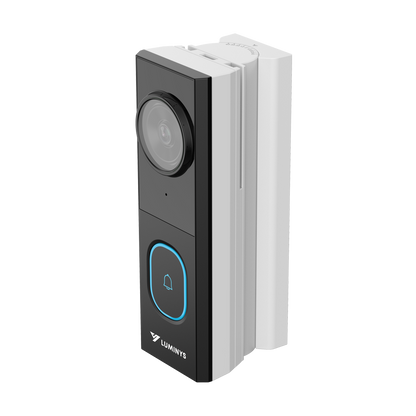

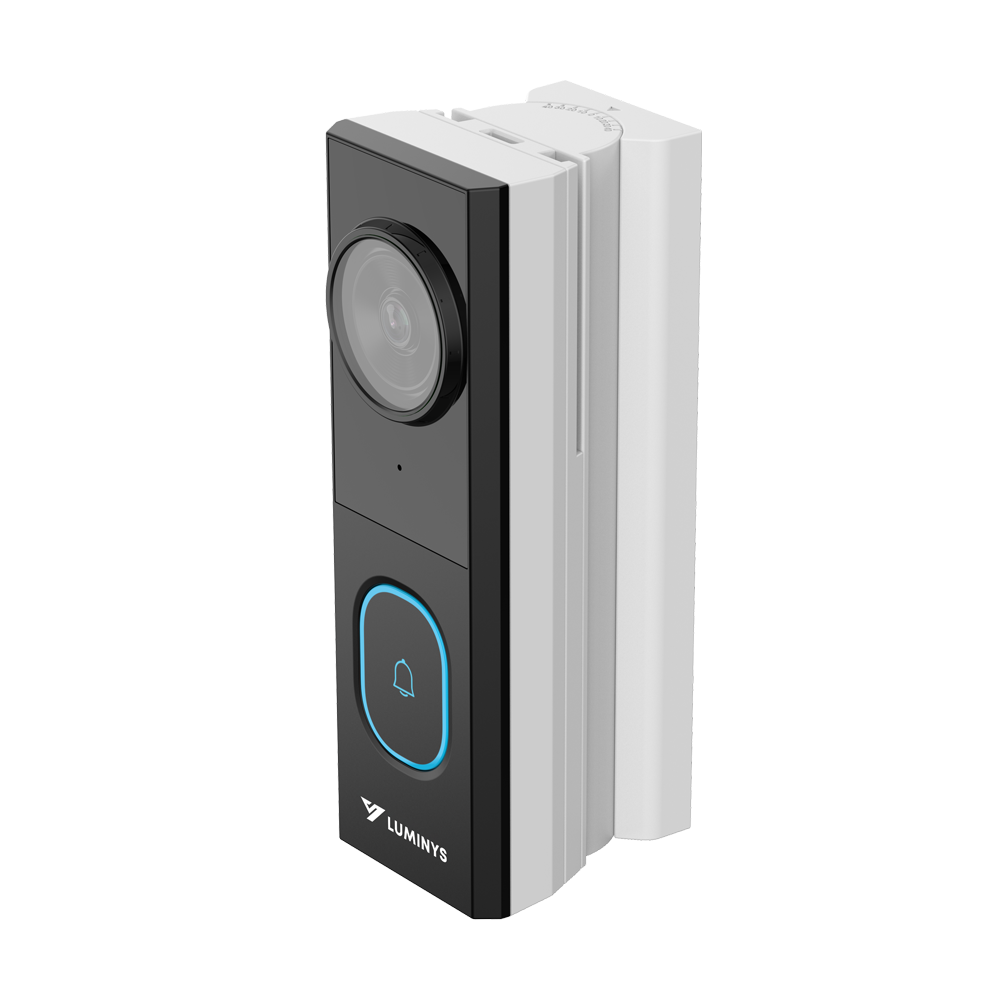

| 1 | Positioning Mount Plate |
| 1 | Flat Mount Plate |
| 1 | Extension Wire |
| 1 | Jumper Cable |
| 1 | Mounting Template |
| 3 | Wire Nut |
| 2 | Wall Anchor |
| 2 | Phillips Head Screw |
| 1 | 32 GB MicroSD Card (Pre-Installed) |
| 1 | Quick Start Guide |
| 1 | Regulatory Information |
Download the official DW401-CW01 datasheet (PDF)
Per Luminys: This doorbell is only compatible with the CW01. Third-party chimes are not supported. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
