Luminys 8 Channel 5MP LumiLuxLite IP Bundle (K56-8L1A2)

Name: Luminys 8 Channel 5MP LumiLuxLite IP Bundle (K56-8L1A2)
Brand: Luminys
SKU: K56-8L1A2
Price: 1277.98 USD
Availability: InStock

SKU:K56-8L1A2

$1,277.98

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

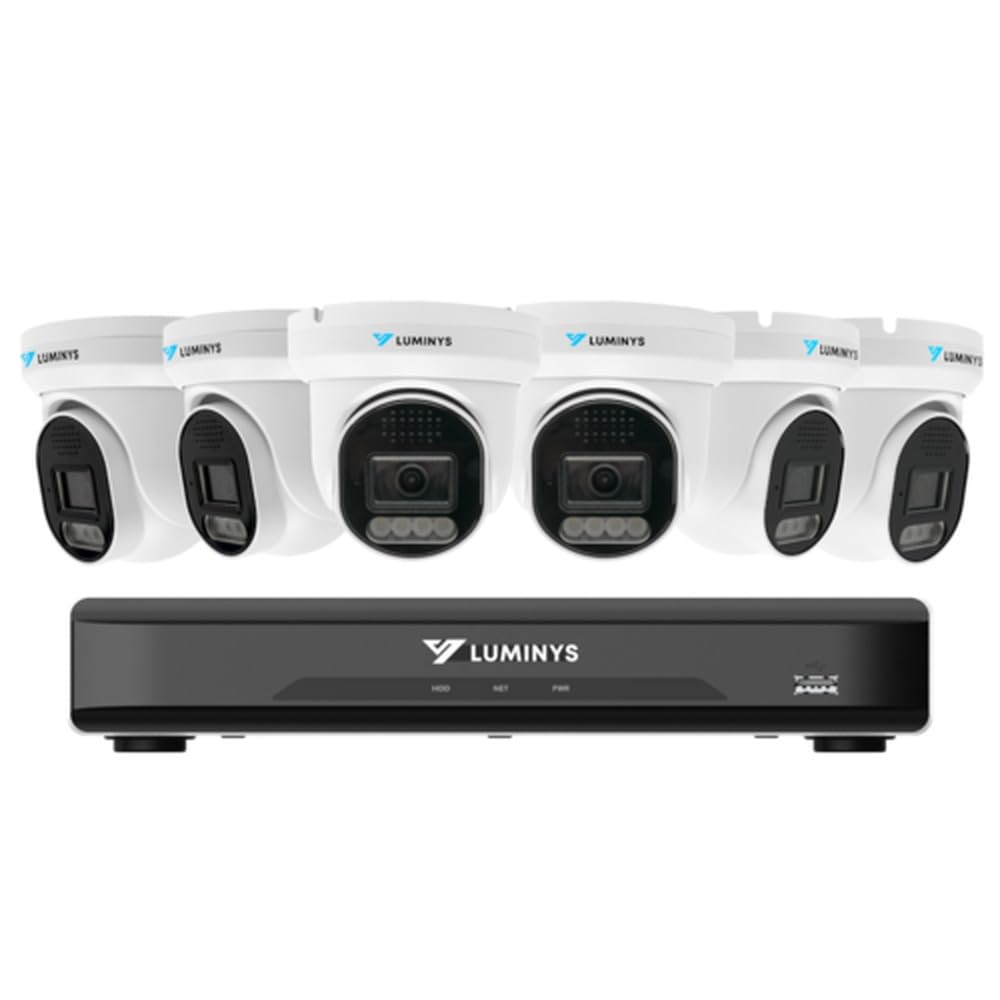

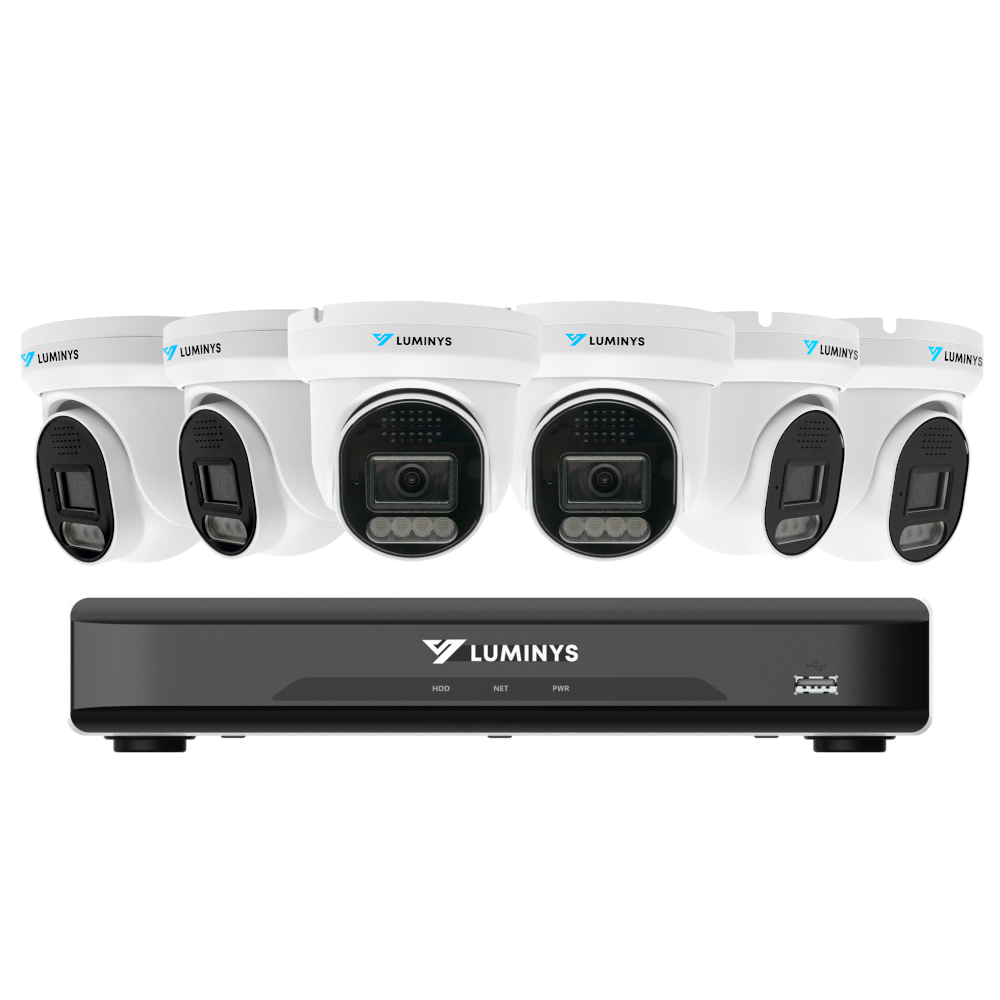

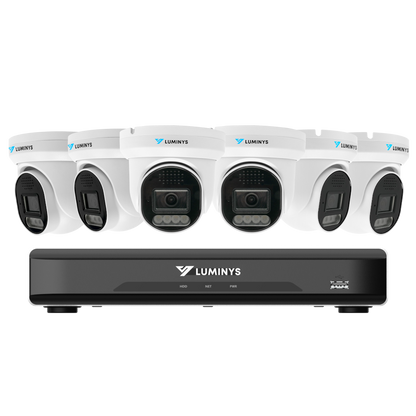

The Luminys K56-8L1A2 is a full-featured security solution. It contains one (1) Luminys R3 series NVR and six (6) 5MP network cameras. The NVR ships with a 2 TB hard drive pre-installed, and every camera connects with a single network cable for power and video. Every device is NDAA compliant.

1×

NVRR31-8PA2R3 Series NVR, 4K 8 Channel, 8 PoE2 TB hard drive pre-installed

6×

CameraN3T-5KA25MP LumiLuxLite Fixed Turret Network Camera (2.8 mm)Kit-only camera, R3 NVRs only

4K NVR With 2 TB HDDR31-8PA2 R3 Series NVR with a 2 TB hard drive pre-installed (supports up to 10 TB per drive).
Eight (8) Channels With One (1) SATA PortSix (6) cameras are included, so two (2) channels are open for additional cameras.
HDMI and VGA OutputHDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080.
PoE Plug-and-Play8 built-in PoE ports power and connect each camera over a single network cable, with a 72 W total PoE budget.
5MP Turret Housing1/2.7-in. 5MP Progressive CMOS sensor, 2880 × 1620 maximum resolution, IP66 rated.
Camera Compatible With R3 Recorders OnlyPer Luminys, the included cameras are only compatible with Luminys R3 NVRs.
2.8 mm Fixed Lens108.3° horizontal field of view, F1.6 maximum aperture.
LumiLuxLiteFour (4) White-Light LEDs, Four (4) IR LEDs. IR up to 30.0 m (98.4 ft), white light up to 20.0 m (65.6 ft).
Intelligent Motion Detection (iMD)Supported with alarms for vehicles and humans.

Key technologies

LumiLuxLite: LumiLuxLite technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxLite cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
Intelligent Motion Detection (iMD): Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.

Specifications

NVRR31-8PA2R3 Series NVR, 4K 8 Channel, 8 PoE

Video

Video Input	Eight (8) Channels
Recording Resolutions	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output Resolutions	HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Live View/Playback Resolutions	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

Decoding

Format	H.265, H.264, H.264H, H.264B, MJPEG
Capability	Two (2) Channel: 8MP at 30 fps Eight (8) Channel: 1080p at 30 fps
Synchronous Playback	1, 4, 8 Views

Supported Analytics by Camera

Intelligent Motion Detection	Eight (8) Channels
Smart Search	Search by Target Classification and Event Type

Interface

SATA	One (1) Port
HDD	2 TB Pre-Installed HDD (Max. 10 TB per HDD)
Network	One (1) Port, RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
PoE	Eight (8) Ports, RJ-45 Self-Adaptive Ethernet (10/100 Mbps)
USB	Front Panel: One (1) USB 2.0 Port Rear Panel: One (1) USB 2.0 Port
Audio	Input: One (1) RCA Channel Output: One (1) RCA Channel

Network

Bandwidth	Incoming/Recording: 80 Mbps Outgoing: 60 Mbps
Protocol	HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
Interoperability	ONVIF, RTSP
PoE Standard	IEEE 802.3 af/at
Client	LumiViewer, LumiViewer Mobile App, LumiCloud

Electrical

Power Supply	48 V/53 VDC, 2 A/1.8 A
Power Consumption	< 10 W (Without HDD) PoE: 72 W (Max. Output for Single Port: 25.5 W)

Construction

Weight	2.1 kg (4.6 lb) Without HDD
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	10% to 93%
Dimensions (W x L x H)	260.0 mm × 233.2 mm × 43.7 mm (10.2 in. × 9.2 in. × 1.8 in.)

Certifications and Compliance

Certifications	FCC
Compliance	NDAA

Camera (kit only)N3T-5KA25MP LumiLuxLite Fixed Turret Network Camera (2.8 mm)

Camera

Luminys Series	N3 Series (Starter)
Image Sensor	1/2.7-in. 5MP Progressive CMOS
Maximum Resolution	2880 × 1620
Minimum Illumination	Color: 0.01 Lux at F1.6 (AGC On) Black/White: 0 Lux With IR Light On
Number of Illuminators	Four (4) White-Light LEDs, Four (4) IR LEDs, Supports LumiLuxLite
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	IR: Up to 30.0 m (98.4 ft) White Light: Up to 20.0 m (65.6 ft)
Electronic Shutter Speed	Automatic, Manual 1/5 s to 1/20,000 s
Installation Angle	Pan: 0° to 355° Rotation: 0° to 360° Tilt: 0° to 80°
S/N Ratio	> 38 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.6
Field of View	Horizontal: 108.3° Vertical: 59.9° Diagonal: 126.8°

Video

Compression	H.265, H.264
Standard Codec	Supported
Stream Capability	Two (2)
Resolution	2880 × 1620, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720, D1 (704 × 576), VGA (640 × 480), CIF (352 × 288)
Maximum Frame Rate	Main Stream: 2880 × 1620 at 25 fps Sub Stream: D1 at 25 fps
Video Bit Rate	H.265: 128 kbps to 6,144 kbps H.264: 64 kbps to 1,024 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Digital Wide Dynamic Range (DWDR), BLC, HLC
Image Angle	0°/180°
Mirror Rotation	Supported
Privacy Masking	Four (4) Zones

Analytics

Intelligent Motion Detection	Supported With Alarms for Vehicles and Humans

Audio

Compression	G.711U
Interface	Input: Built-In Microphone Output: Built-In Speaker

Alarm

Event	Motion Detection, iMD

Network

Interface	RJ-45 (10/100 Base-T)
Protocol	HTTP, TCP/IP, IPv4, DHCP, NTP
Interoperability	ONVIF (Profile S), SDK
Browser	Chrome, Firefox, Edge
Storage	FTP, SFTP, Micro SD Card (Max. 128 GB)

Electrical

Power Supply	12 VDC (-15% to +25%), PoE (802.3af)
Power Consumption	Maximum (White-Light On): 8.5 W Normal (IR Off): 2.0 W

Construction

Net Weight	0.5 kg (1.0 lb)
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity	< 90% RH
Protection Ratings	IP66
Product Dimensions	φ 111.0 mm × 100.8 mm (φ 4.4 in. × 4.0 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

Download the official K56-8L1A2 datasheet (PDF)

Per Luminys: LumiCloud integration for the kit is limited to the following functions: iMD On/Off, iMD notification, and iMD event playback. Per Luminys: This camera is only compatible with Luminys R3 NVRs. Per Luminys: Some analytics may require firmware upgrades. Please visit the Luminys Wiki page for the latest firmware. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
