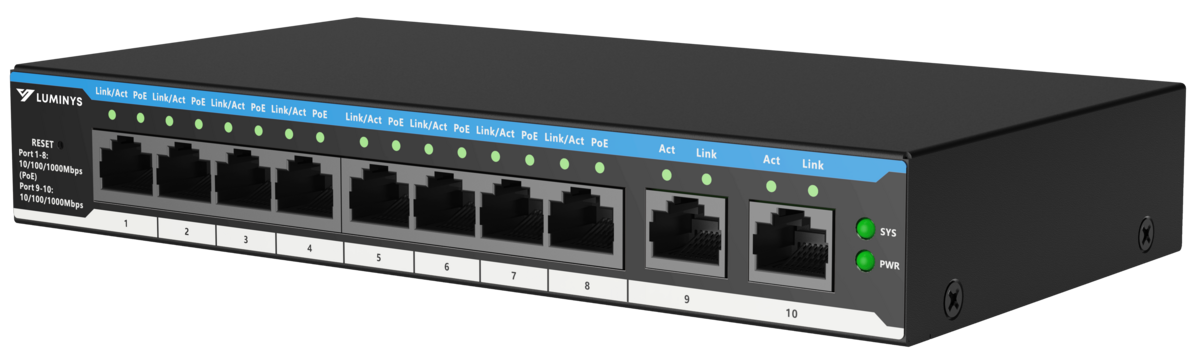

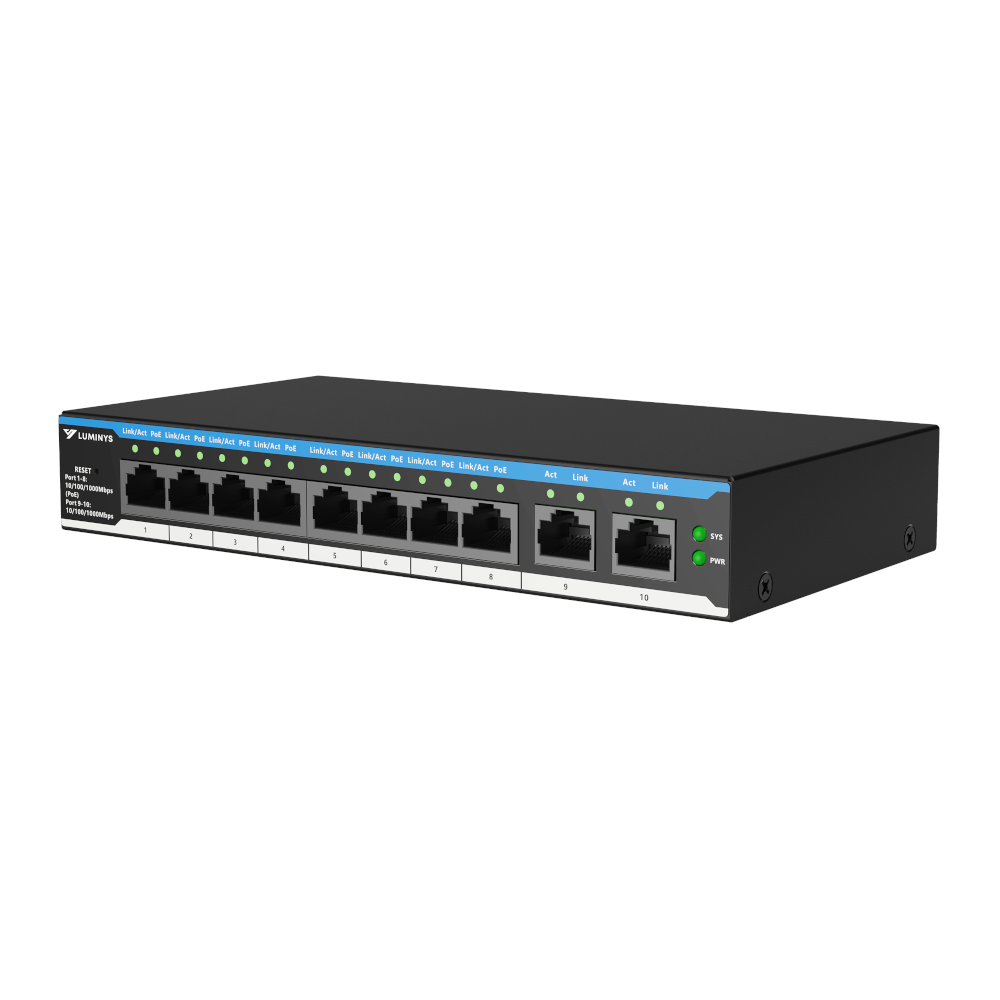

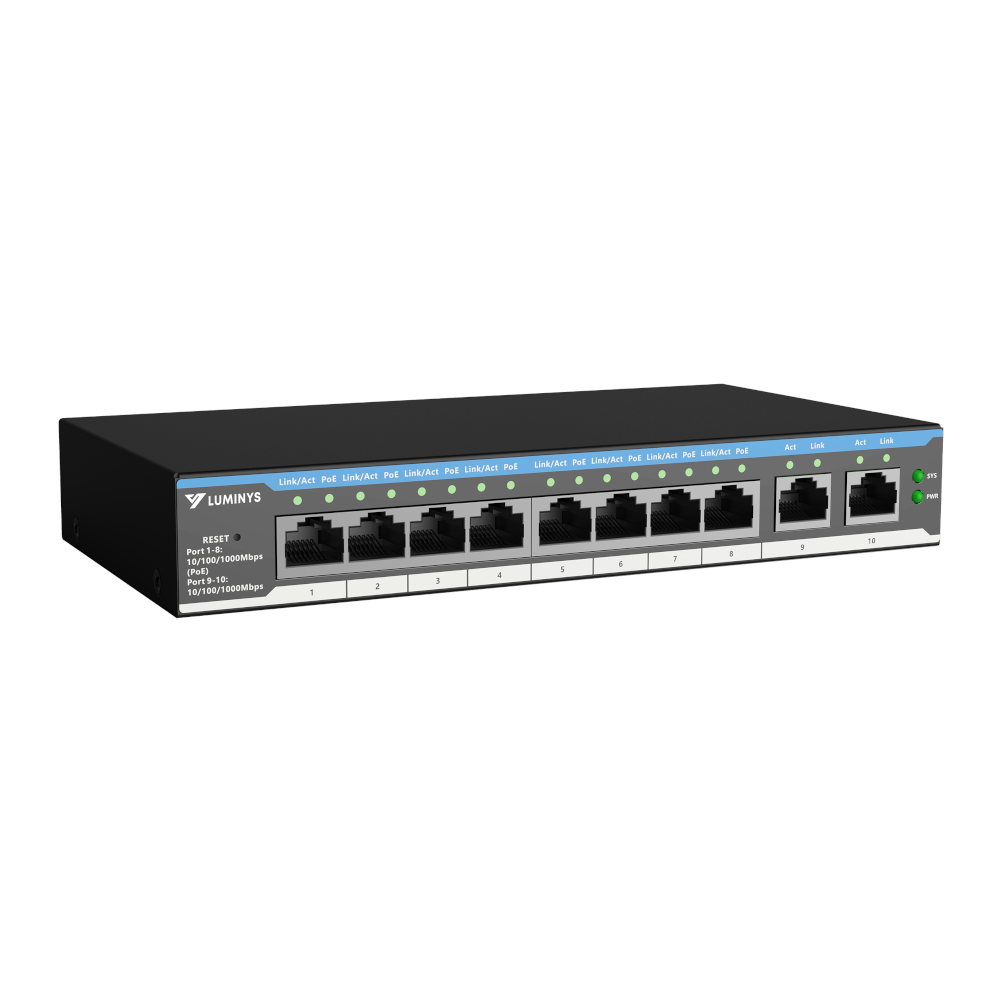

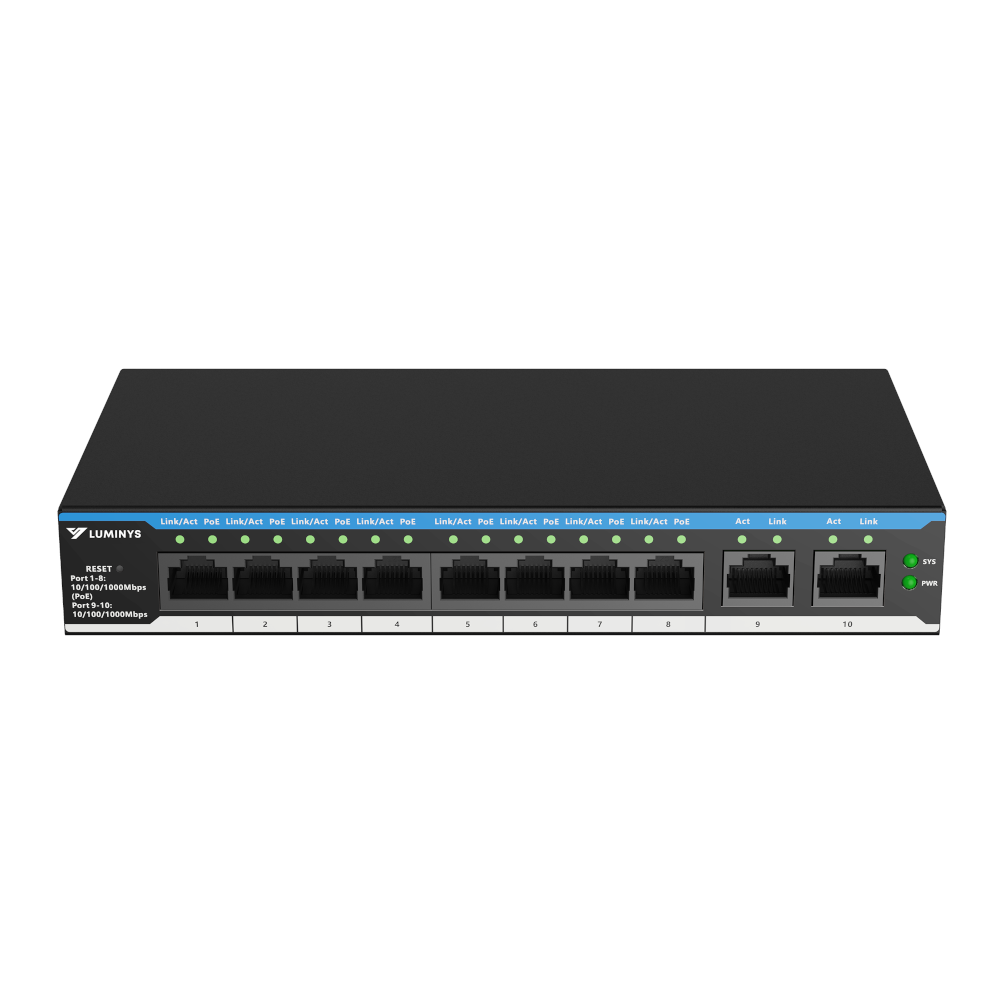

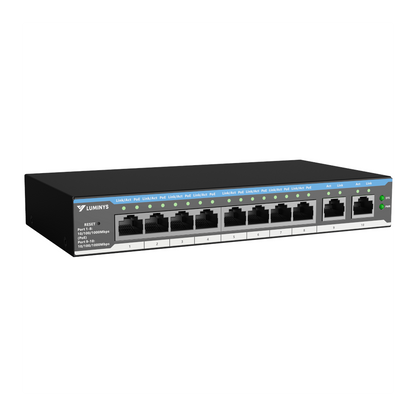

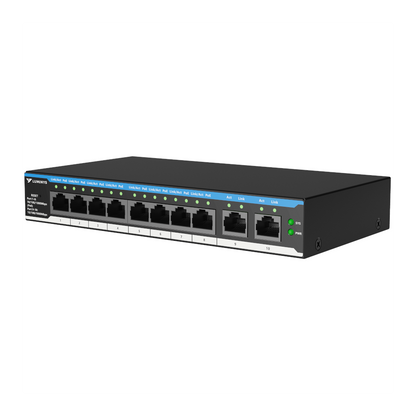

Luminys 8-Port PoE Cloud Managed Gigabit Switch (PoE++) (SML-10GPA)

The Luminys SML-10GPA is an 8-port PoE cloud-managed gigabit switch. It powers and connects up to 8 cameras or devices from one compact box, extends PoE up to 820 ft with LumiPoE, and is managed from a browser or LumiCloud.

• 8 PoE ports + 2 uplinks8 gigabit PoE ports and 2 gigabit RJ-45 uplink ports. Port 1 delivers PoE++ up to 90 W; ports 2 to 8 deliver PoE+ up to 30 W.
• 110 W PoE budget110 W total PoE power budget.
• LumiPoE up to 820 ftExtends PoE up to 820 ft (250 m) at 10 Mbps.
• Intelligent PoE + WatchdogPrioritizes key ports and automatically restarts unresponsive cameras.
• 20 Gbps switchingSwitching capacity of 20 Gbps.

Key technologies

Intelligent PoE

Control and monitor power consumption in real time. Prioritizes the most important ports while preventing malfunction during power changes.

PoE Watchdog

Monitors connected PoE devices and reboots them when a problem occurs, so the system keeps running.

Up to 90 W on port 1

Supports IEEE 802.3af, 802.3at and 802.3bt, with up to 90 W on the PoE++ port for high-power devices.

Web and cloud management

Manage from the built-in web interface or remotely through LumiCloud.

Specifications

Download the official SML-10GPA datasheet (PDF)

PoE distance figures are Luminys lab results for reference; actual distance varies with device power draw and cable. LumiCloud basic remote management is included. The LumiCloud switch subscription (LCL-SW100) for switch and port management features is sold separately. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
