Luminys 8CH 8MP LumiLightBand IP Bundle (K86-8B2A4)

Name: Luminys 8CH 8MP LumiLightBand IP Bundle (K86-8B2A4)
Brand: Luminys
SKU: K86-8B2A4
Price: 1814.38 USD
Availability: InStock

SKU:K86-8B2A4

$1,814.38

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

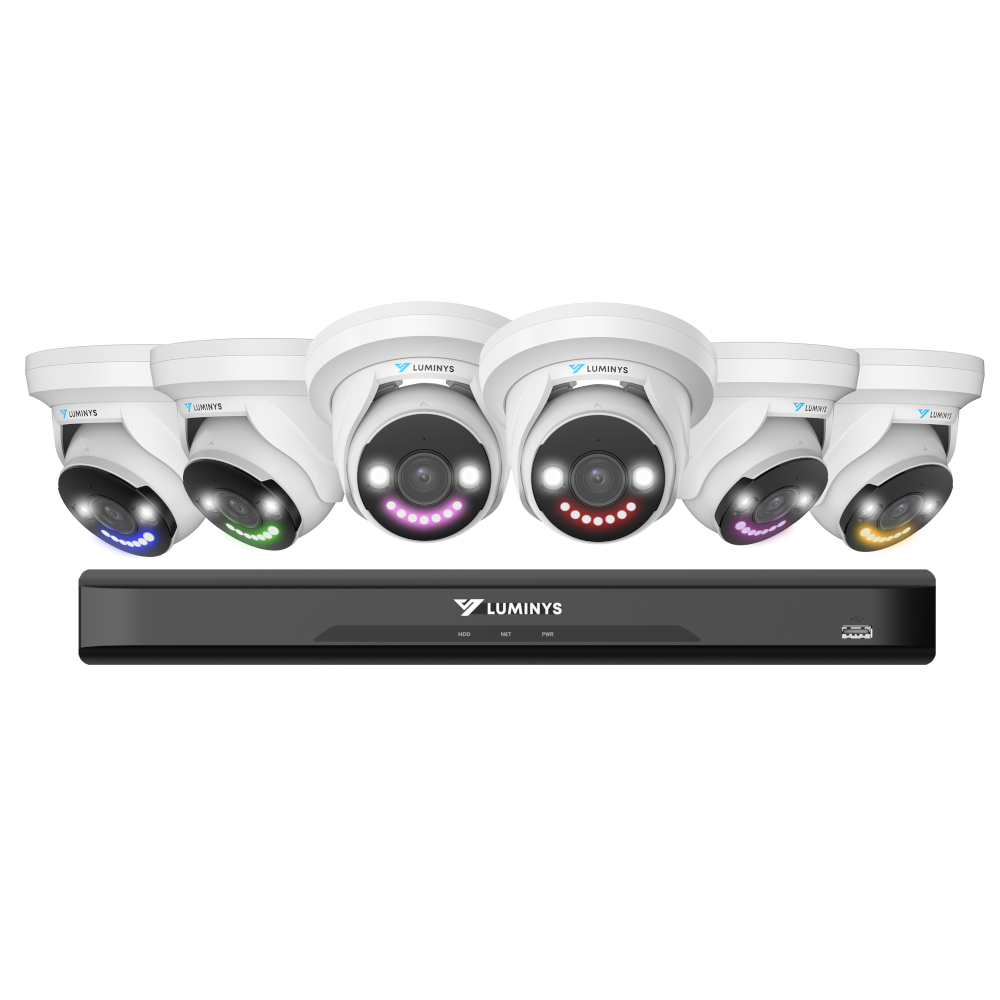

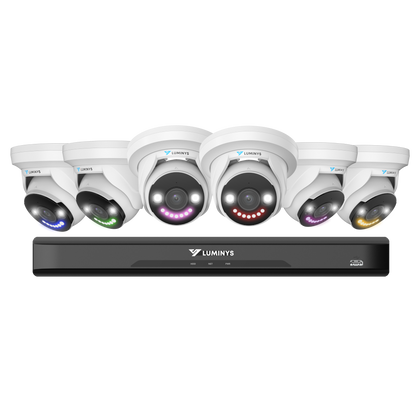

The Luminys K86-8B2A4 is a full-featured security solution. It contains one (1) Luminys R3 series NVR and six (6) 8MP network cameras. The NVR ships with a 4 TB hard drive pre-installed, and every camera connects with a single network cable for power and video. Every device is NDAA compliant.

1×

NVRR32-8PA4R3 Starter Series NVR, 4K 8 Channel, 8 PoE4 TB hard drive pre-installed

6×

CameraN3T-8BA28MP Network LumiLightBand Turret Camera (2.8 mm)

4K NVR With 4 TB HDDR32-8PA4 R3 Starter Series NVR with a 4 TB hard drive pre-installed (supports up to 10 TB per drive).
Eight (8) Channels With Two (2) SATA PortsSix (6) cameras are included, so two (2) channels are open for additional cameras.
HDMI and VGA OutputHDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080.
PoE Plug-and-Play8 built-in PoE ports power and connect each camera over a single network cable, with a 115 W total PoE budget.
8MP Turret Housing1/2.8-in. 8MP Progressive CMOS sensor, 3840 × 2160 maximum resolution, IP67 rated.
2.8 mm Fixed Lens111° horizontal field of view, F1.6 maximum aperture.
LumiLightBandLumiLightBand technology activates a camera's light strip according to a schedule, event trigger, or motion detection.
Video Content AnalyticsLine Crossing and Intrusion detection on every included camera.
Intelligent Motion Detection (iMD)Supported with alarms for vehicles and humans.

Key technologies

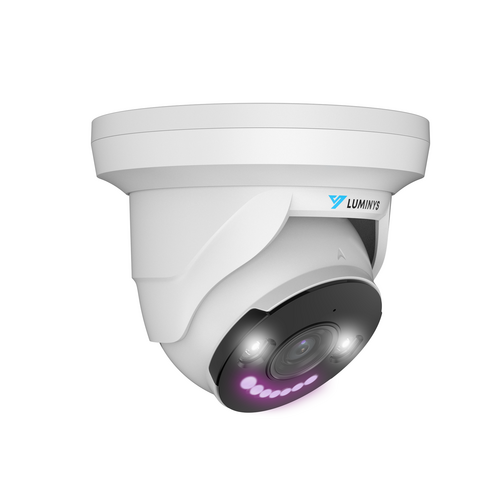

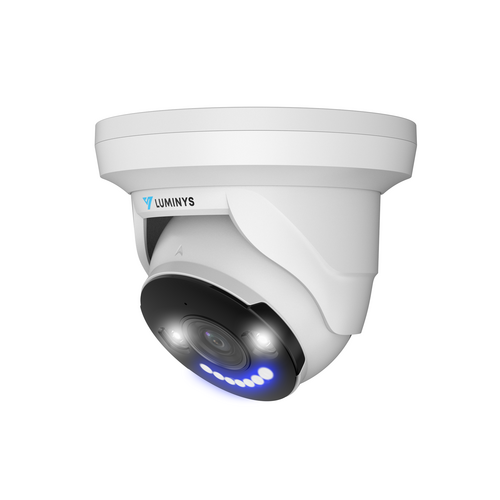

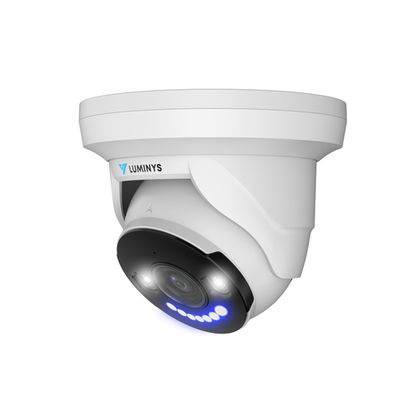

LumiLightBand: LumiLightBand technology activates a camera's light strip according to a schedule, event trigger, or motion detection. When the camera's sensor detects motion, the semi-ring of colorful LEDs turn red to deter intruders. Once motion stops, the colorful LEDs return to their normal state. The lights come in eight (8) different colors and can be set to keep steady, wave, or flash for a specific amount of time. LumiLightBand cameras offer three low-light modes: covert IR-only mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.

Specifications

NVRR32-8PA4R3 Starter Series NVR, 4K 8 Channel, 8 PoE

Video

Video Input	Eight (8) Channels
Recording Resolutions	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output Resolutions	HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Live View/Playback Resolutions	8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

Decoding

Format	H.265, H.264, MJPEG
Capability	Two (2) Channel: 8MP at 30 fps Eight (8) Channel: 1080p at 30 fps
Synchronous Playback	1, 4, 8 Views

Supported Analytics by Camera

Intelligent Motion Detection	Eight (8) Channels
Video Content Analytics (VCA)	Eight (8) Channels
Face Detection	Four (4) Channels
License Plate Recognition	Four (4) Channels
Smart Search	Search by Target Classification, Pictures by Channel, Time, and Event Type

Interface

SATA	Two (2) Ports
HDD	4 TB Pre-Installed HDD (Max. 10 TB per HDD)
Network	One (1) Port, RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
PoE	Eight (8) Ports, RJ-45 Self-Adaptive Ethernet (10/100 Mbps)
USB	Front Panel: One (1) USB 2.0 Port Rear Panel: One (1) USB 2.0 Port
Alarm	Input: Four (4) Channels Output: Two (2) Channels
Audio	Input: One (1) RCA Channel Output: One (1) RCA Channel

Network

Bandwidth	Incoming/Recording: 160 Mbps Outgoing: 60 Mbps
Protocol	HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
Interoperability	ONVIF, RTSP
PoE Standard	IEEE 802.3 af/at
Client	LumiViewer, LumiViewer Mobile App, LumiCloud

Electrical

Power Supply	100-240 V, 47-63 Hz, 3.5 A
Power Consumption	< 10 W (HDD Not Included) PoE: 115 W (Max. Output for Single Port: 25.5 W)

Construction

Weight	2.5 kg (5.5 lb) Without HDD
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	10% to 93%
Dimensions (W x L x H)	372.0 mm × 325.8 mm × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.)

Certifications and Compliance

Certifications	FCC
Compliance	NDAA

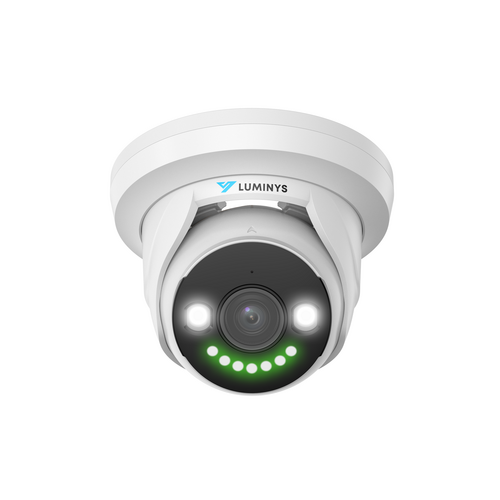

CameraN3T-8BA28MP Network LumiLightBand Turret Camera (2.8 mm)

Camera

Luminys Series	N3 Series (Entry Level)
Image Sensor	1/2.8-in. 8MP Progressive CMOS
Maximum Resolution	3840 × 2160
Minimum Illumination	Color: 0.008 Lux at F1.6 (30 IRE) Black/White: 0.0008 Lux at F1.6 (30 IRE) 0 Lux With IR Light On
Number of Illuminators	One (1) IR LED, Two (2) White-Light LEDs, Supports LumiLightBand
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	IR/Warm-Light: Up to 30.0 m (98.4 ft)
Electronic Shutter Speed	Automatic, Manual; 1/3 s to 1/100,000 s
Installation Angle	Pan and Rotation: 0° to 360° Tilt: 0° to 78°
S/N Ratio	> 50 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.6
Field of View	Horizontal: 111° Vertical: 58° Diagonal: 132°
Close Focus Range	1.5 m (4.9 ft)
DORI Distance	Detect: 58.2 m (190.9 ft) Observe: 23.3 m (76.4 ft) Recognize: 11.6 m (38.1 ft) Identify: 5.8 m (19.0 ft)

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Stream Capability	Two (2) Streams
Resolution	8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 5MP (2880 × 1620), 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2048 × 1536), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Maximum Frame Rate	Main Stream: 3840 × 2160 at 20 fps Sub Stream: D1 at 20 fps
Video Bit Rate	H.264: 32 to 8192 kbps H.265: 12 to 8192 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB)
Noise Reduction	3D NR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° With 4MP Resolution and Lower)
Mirroring	Supported
Region of Interest	Four (4) Zones
Privacy Masking	Four (4) Zones

Analytics

Video Content Analytics	Line Crossing, Intrusion
Intelligent Motion Detection	Supported With Alarms for Vehicles and Humans

Audio

Compression	PCM, G.711a, G.711Mu
Interface	Input: Built-in Microphone

Alarm

Event	No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Audio Detection, iMD

Network

Port	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP,RTSP, RTMP, FTP, SFTP,NAS, DHCP,DNS DDNS, QoS, UPnP, NTP, NFS, PPPoE, SMTP, 802.1x
Interoperability	ONVIF (Profile S/G/T), CGI, SDK
Browser	Chrome, Firefox, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP, SFTP, NAS, MicroSD Card (Max. 256 GB)

Electrical

Power Supply	12 VDC, PoE (802.3af)
Power Consumption	12 VDC: 8.4 W (Max.), 3.2 W (Normal) PoE: 9.8 W (Max.), 4.3 W (Normal)

Construction

Net Weight	0.5 kg (1.1 lb)
Gross Weight	0.7 kg (1.4 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	< 95% RH (Non-Condensing)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Protection Ratings	IP67
Dimensions (L × W × H)	Φ 122.0 mm × 104.7 mm (Φ 4.8 in. × 4.1 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

Download the official K86-8B2A4 datasheet (PDF)
