Luminys Facial Recognition Terminal (C-F4A)
Luminys Facial Recognition Terminal (C-F4A)
SKU:C-F4A
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

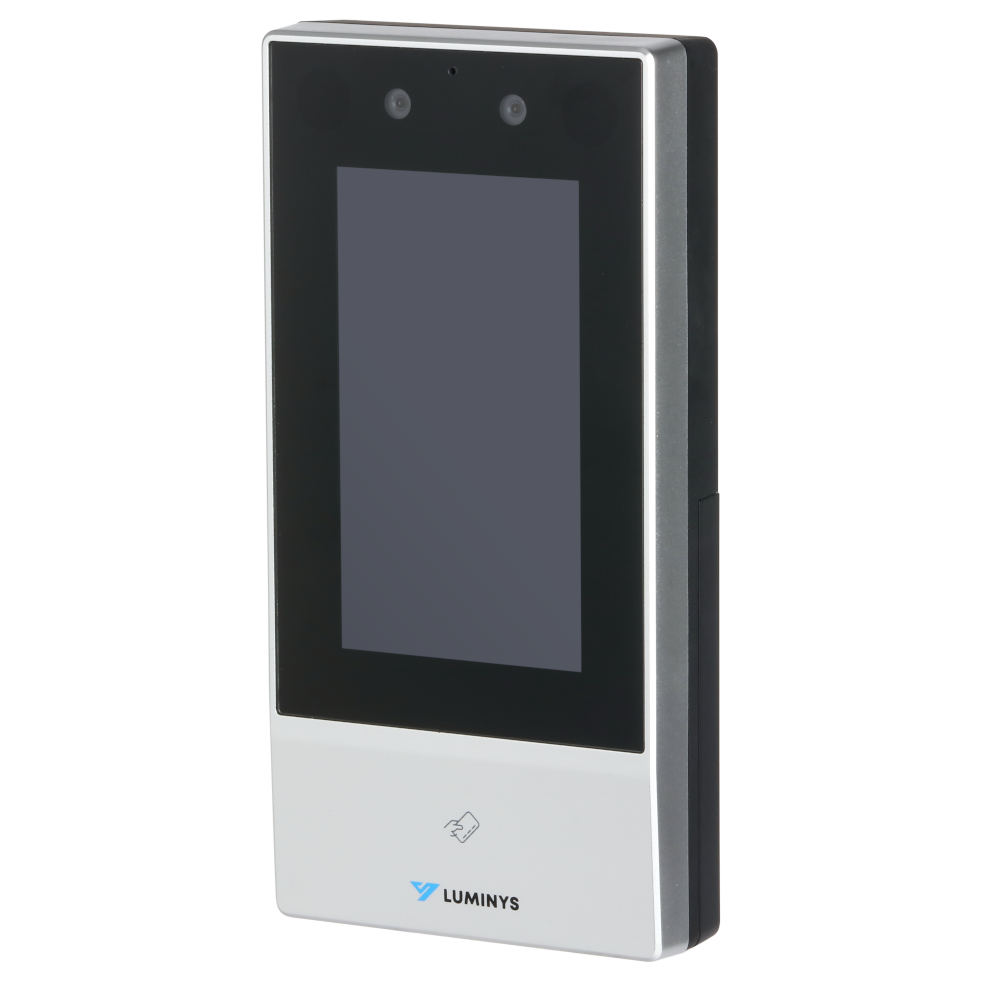

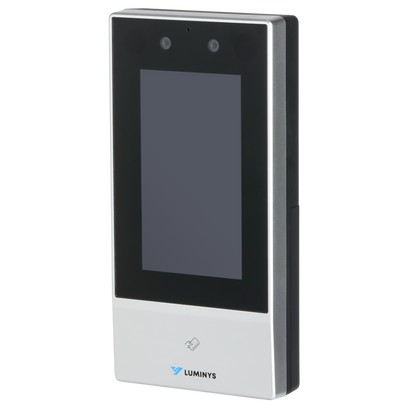

The Luminys C-F4A is a facial recognition terminal with a 4.3 in. touchscreen and a dual-lens 2MP camera. It verifies users by face, card or password in about 0.2 seconds, recognizes spoofing attempts using photos or video, and is built for busy, high-risk entrances indoors and out.
- Dual-lens face recognition4.3 in. LCD touchscreen with a dual-lens 2MP camera for reliable facial recognition.
- Face, card or passwordSupports multiple authentication methods including face, card and password.
- Up to 6,000 usersManages up to 6,000 users with storage for cards, credentials and event records.
- 0.2 s, 99.9% accurateFast, accurate facial recognition with a 0.2 s response time and up to 99.9% accuracy.
- Indoor and outdoorBuilt for indoor and outdoor use with PoE, Wi-Fi and IP65-rated protection.
Key technologies
- High-speed face recognition
- The dual-lens camera verifies users within 0.2 seconds and recognizes spoofing attempts using photos or video. Ideal for busy, high-risk environments.
- Multi-credential access
- Different authentication methods and credentials give you flexible, secure access control options.
- LumiViewer integration
- Monitor and manage the terminal from the LumiViewer desktop client and mobile app: live view, remote door unlock, two-way audio, unlock history, recordings and screenshots.
- IP65 protection
- Protected against dust and heavy rain, ideal for outdoor installations and rugged conditions.
Specifications
System
| Operating system | Linux |
|---|---|
| Network protocol | SIP, TCP, RTP, P2P, UDP, RTSP, IPv4 |
| Interoperability | CGI, ONVIF |
| Compatible platforms | LumiViewer desktop client (Windows), LumiViewer mobile app |
| Third-party compatibility | SDK, API, OSDP |
Network
| Ethernet | 1 × RJ-45 10/100 Mbps |
|---|---|
| Wi-Fi | 2.4 GHz, IEEE 802.11 b/g/n |
Face and card recognition
| Verification methods | Face recognition, IC card, password, remote (mobile, PC, web client) |
|---|---|
| Card type | IC card, 13.56 MHz (MIFARE) |
| Card reading distance | 0 to 1.2 in. (0 to 3.0 cm) |
| Face recognition height | 3.6 ft to 6.6 ft (1.1 m to 2.0 m) |
| Face recognition distance | 1.0 ft to 4.9 ft (0.3 m to 1.5 m) |
| Recognition accuracy | 99.9% |
| Recognition speed | 0.2 s |
| Multi-face recognition | Up to 6 faces at once |
| First-user authentication | A designated first user must authenticate before others can be verified |
Interface and alarm
| Power | 1 DC power port |
|---|---|
| PoE | 1 RJ-45 port with PoE (IEEE 802.3at) |
| RS-485 | 1 port |
| Wiegand | 1 port |
| Lock control | Two-wire connection |
| Door sensor | 1 |
| Exit button | 1 |
| USB | 1 USB-A port |
| Alarm I/O | 1 input, 1 output |
| Alarm linkage | Supported |
| Events | Tamper, duress, anti-passback, unlock timeout, intrusion, usage threshold exceeded |
Electrical
| Power supply | 12 VDC or PoE (IEEE 802.3at Type 2, Class 4) |
|---|---|
| Power consumption | ≤ 12 W |
Construction
| Dimensions | 7.1 × 3.6 × 1.1 in. (180.1 × 90.1 × 27.0 mm) |
|---|---|
| Gross weight | 1.5 lb (0.7 kg) |
| Package | 10.6 × 5.4 × 3.1 in. (268 × 136 × 78 mm) |
| Operating temp | -22 °F to 140 °F (-30 °C to 60 °C) |
| Operating humidity | 0% to 90% RH, non-condensing |
| Protection rating | IP65 |
| Casing material | PC and GF |
| Mounting | 86 mm (3.4 in.) junction box, turnstile, surface, wall |
| Certifications | FCC |
| Compliance | NDAA |
Download the official C-F4A datasheet (PDF)
Access control management requires the Windows version of the LumiViewer desktop client. The Mac version does not support access control. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
