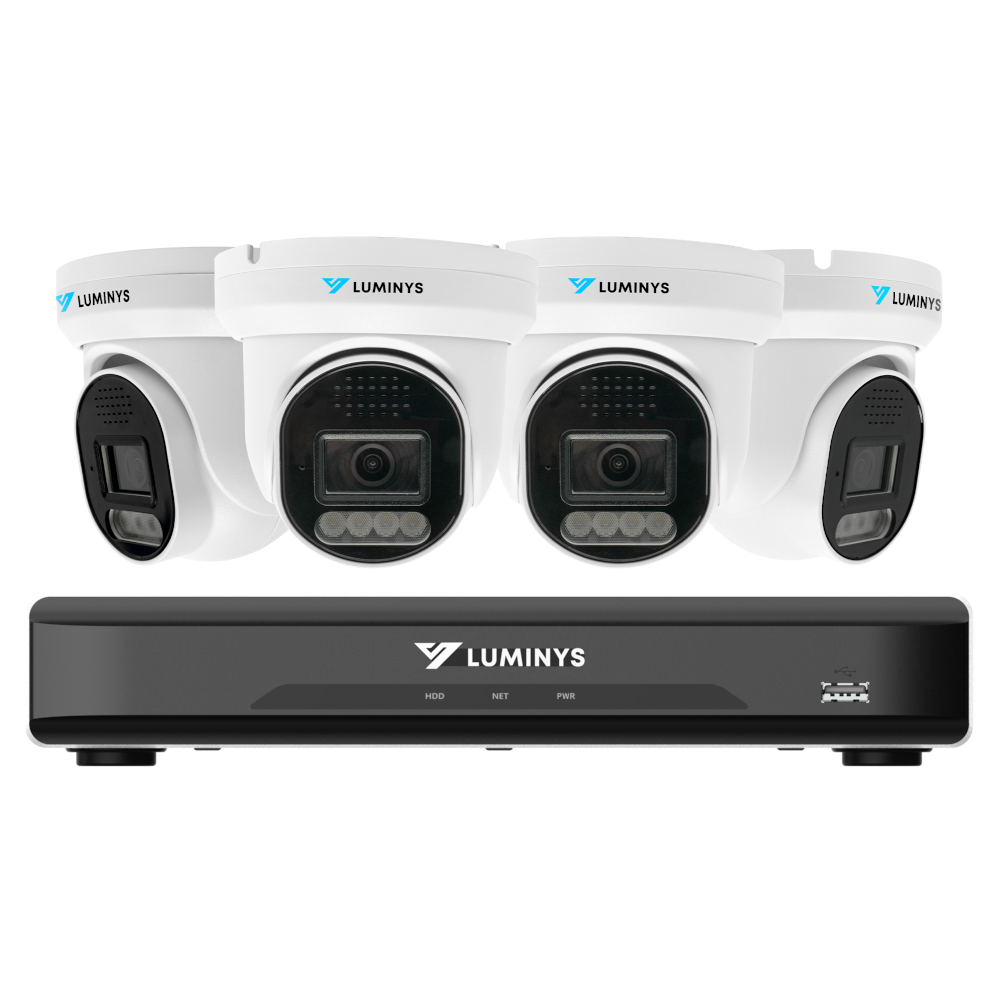

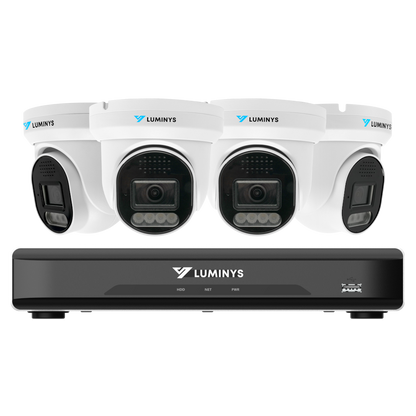

• Luminys K54-4L1A2 5MP LumiLuxLite Network Kit, complete kit
  • Luminys K54-4L1A2 5MP LumiLuxLite Network Kit, kit packaging
  • Luminys K54-4L1A2 5MP LumiLuxLite Network Kit, kit packaging, side view
  • Luminys K54-4L1A2 5MP LumiLuxLite Network Kit, camera packaging
  • Luminys K54-4L1A2 5MP LumiLuxLite Network Kit, camera packaging, side view
1 5

Luminys

Luminys K54-4L1A2 4-Camera 5MP Kit

Luminys K54-4L1A2 4-Camera 5MP Kit

K54-4L1A2

$989.98
$989.98
Sale Sold out
Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

  • Genuine OEM part
  • Ships from Texas
  • Real tech support

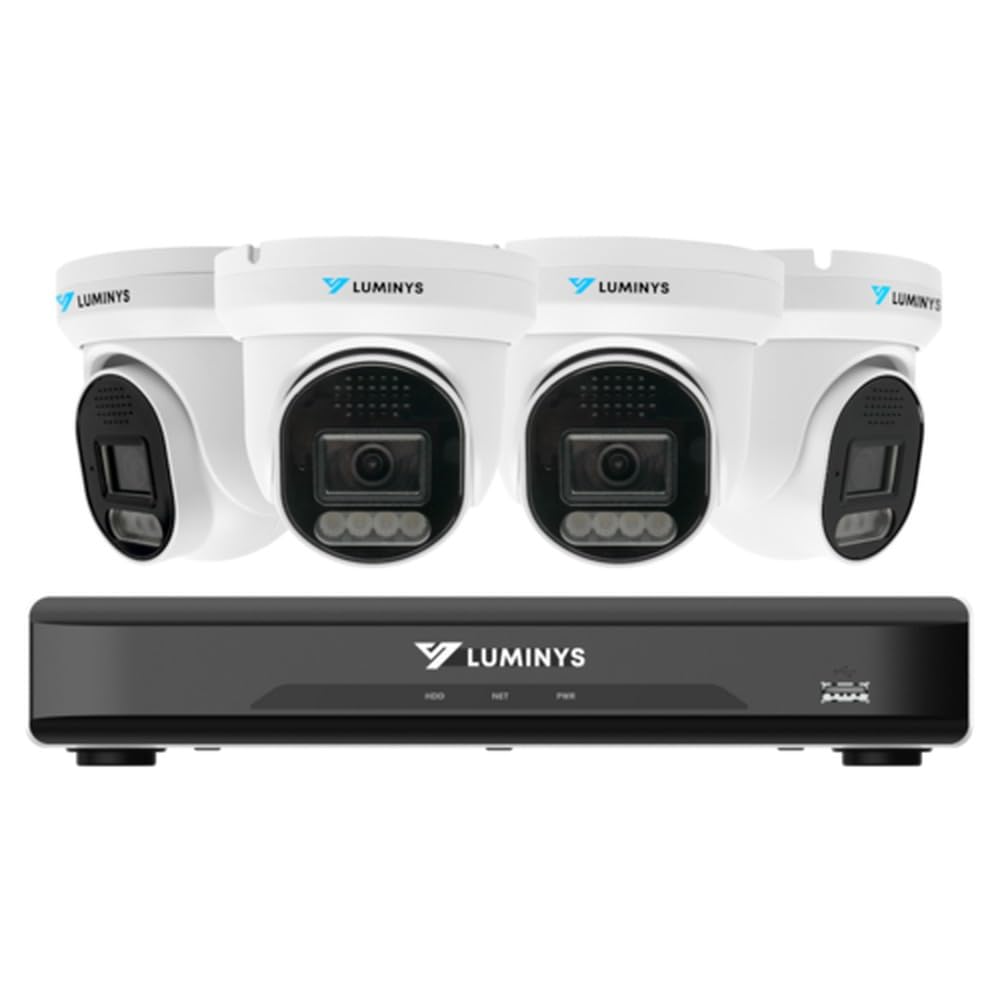

The Luminys K54-4L1A2 is a full-featured security solution. It contains one (1) Luminys R3 Starter series NVR and four (4) 5MP network cameras. The NVR ships with a 2 TB hard drive pre-installed, and every camera connects with a single network cable for power and video. Every device is NDAA compliant.

1×
NVRR31-4PA2R3 Starter Series NVR, 4K 4 Channel, 4 PoE2 TB hard drive pre-installed
4×
CameraN3T-5KA25MP LumiLuxLite Fixed Turret Network Camera (2.8 mm)Kit-only camera, R3 NVRs only
  • 4K NVR With 2 TB HDDR31-4PA2 R3 Starter Series NVR with a 2 TB hard drive pre-installed (supports up to 10 TB per drive).
  • Four (4) Channels with One (1) SATA PortFour (4) cameras are included, so every channel is ready to record out of the box.
  • HDMI and VGA OutputHDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080.
  • PoE Plug-and-Play4 built-in PoE ports power and connect each camera over a single network cable, with a 36 W total PoE budget.
  • 5MP Turret Housing1/2.7-in. 5MP Progressive CMOS sensor, 2880 × 1620 maximum resolution, IP66 rated.
  • Camera Compatible With R3 Recorders OnlyPer Luminys, the included cameras are only compatible with Luminys R3 NVRs.
  • 2.8 mm Fixed Lens108.3° horizontal field of view, F1.6 maximum aperture.
  • LumiLuxLiteFour (4) White-Light LEDs, Four (4) IR LEDs. IR up to 30.0 m (98.4 ft), white light up to 20.0 m (65.6 ft).
  • Intelligent Motion Detection (iMD)Supported with alarms for vehicles and humans.

Key technologies

LumiLuxLite
LumiLuxLite technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxLite cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
Intelligent Motion Detection (iMD)
Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.

Specifications

NVRR31-4PA2R3 Starter Series NVR, 4K 4 Channel, 4 PoE
Video
Video Input Four (4) Channels
Recording Resolutions 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output Resolutions HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Live View/Playback Resolutions 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding
Format H.265, H.264, MJPEG
Capability Two (2) Channel: 8MP at 30 fps
Four (4) Channel: 1080p at 30 fps
Synchronous Playback 1, 4 Views
Supported Analytics by N3T-5KA2
Intelligent Motion Detection Four (4) Channels
Smart Search Search by Target Classification and Time
Interface
SATA One (1) Port
HDD 2 TB Pre-Installed HDD (Max. 10 TB per HDD)
Network One (1) Port, RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
PoE Four (4) Ports, RJ-45 Self-Adaptive Ethernet (10/100 Mbps)
USB Front Panel: One (1) USB 2.0 Port
Rear Panel: One (1) USB 2.0 Port
Audio Input: One (1) RCA Channel
Output: One (1) RCA Channel
Network
Bandwidth Incoming/Recording: 80 Mbps
Outgoing: 60 Mbps
Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
Interoperability ONVIF, RTSP
PoE Standard IEEE 802.3 af/at
Client LumiViewer, LumiViewer Mobile App, LumiCloud
Electrical
Power Supply 48 V/53 VDC, 1.25 A/1.13 A
Power Consumption < 10 W (Without HDD)
PoE: 36 W (Max. Output for Single Port: 25.5 W)
Construction
Weight 1.9 kg (4.1 lb) Without HDD
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity 10% to 93%
Dimensions (W x L x H) 260.0 mm × 233.2 mm × 43.7 mm (10.2 in. × 9.2 in. × 1.8 in.)
Certifications and Compliance
Certifications FCC
Compliance NDAA
Camera (kit only)N3T-5KA25MP LumiLuxLite Fixed Turret Network Camera (2.8 mm)
Camera
Luminys Series N3 Series (Starter)
Image Sensor 1/2.7-in. 5MP Progressive CMOS
Maximum Resolution 2880 × 1620
Minimum Illumination Color: 0.01 Lux at F1.6 (AGC On)
Black/White: 0 Lux With IR Light On
Number of Illuminators Four (4) White-Light LEDs, Four (4) IR LEDs, Supports LumiLuxLite
Illuminator Control Automatic, Manual
Maximum Illumination Distance IR: Up to 30.0 m (98.4 ft)
White Light: Up to 20.0 m (65.6 ft)
Electronic Shutter Speed Automatic, Manual
1/5 s to 1/20,000 s
Installation Angle Pan: 0° to 355°
Rotation: 0° to 360°
Tilt: 0° to 80°
S/N Ratio > 38 dB
Lens
Iris Type Fixed
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F1.6
Field of View Horizontal: 108.3°
Vertical: 59.9°
Diagonal: 126.8°
Video
Compression H.265, H.264
Standard Codec Supported
Stream Capability Two (2)
Resolution 2880 × 1620, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720, D1 (704 × 576), VGA (640 × 480), CIF (352 × 288)
Maximum Frame Rate Main Stream: 2880 × 1620 at 25 fps
Sub Stream: D1 at 25 fps
Video Bit Rate H.265: 128 kbps to 6,144 kbps
H.264: 64 kbps to 1,024 kbps
Bit Rate Control CBR/VBR
Day/Night Automatic (ICR), Color, Black and White
Light Balancing Digital Wide Dynamic Range (DWDR), BLC, HLC
Image Angle 0°/180°
Mirror Rotation Supported
Privacy Masking Four (4) Zones
Analytics
Intelligent Motion Detection Supported With Alarms for Vehicles and Humans
Audio
Compression G.711U
Interface Input: Built-In Microphone
Output: Built-In Speaker
Alarm
Event Motion Detection, iMD
Network
Interface RJ-45 (10/100 Base-T)
Protocol HTTP, TCP/IP, IPv4, DHCP, NTP
Interoperability ONVIF (Profile S), SDK
Browser Chrome, Firefox, Edge
Storage FTP, SFTP, Micro SD Card (Max. 128 GB)
Electrical
Power Supply 12 VDC (-15% to +25%), PoE (802.3af)
Power Consumption Maximum (White-Light On): 8.5 W
Normal (IR Off): 2.0 W
Construction
Net Weight 0.5 kg (1.0 lb)
Operating Temperature -30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity < 90% RH
Protection Ratings IP66
Product Dimensions φ 111.0 mm × 100.8 mm (φ 4.4 in. × 4.0 in.)
Material Metal
Certifications and Compliance
Certifications FCC, IC
Compliance NDAA

Download the official K54-4L1A2 datasheet (PDF)

Per Luminys: LumiCloud integration for the kit is limited to the following functions: iMD On/Off, iMD notification, and iMD event playback. Per Luminys: This camera is only compatible with Luminys R3 NVRs. Per Luminys: Some analytics may require firmware upgrades. Please visit the Luminys Wiki page for the latest firmware. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
