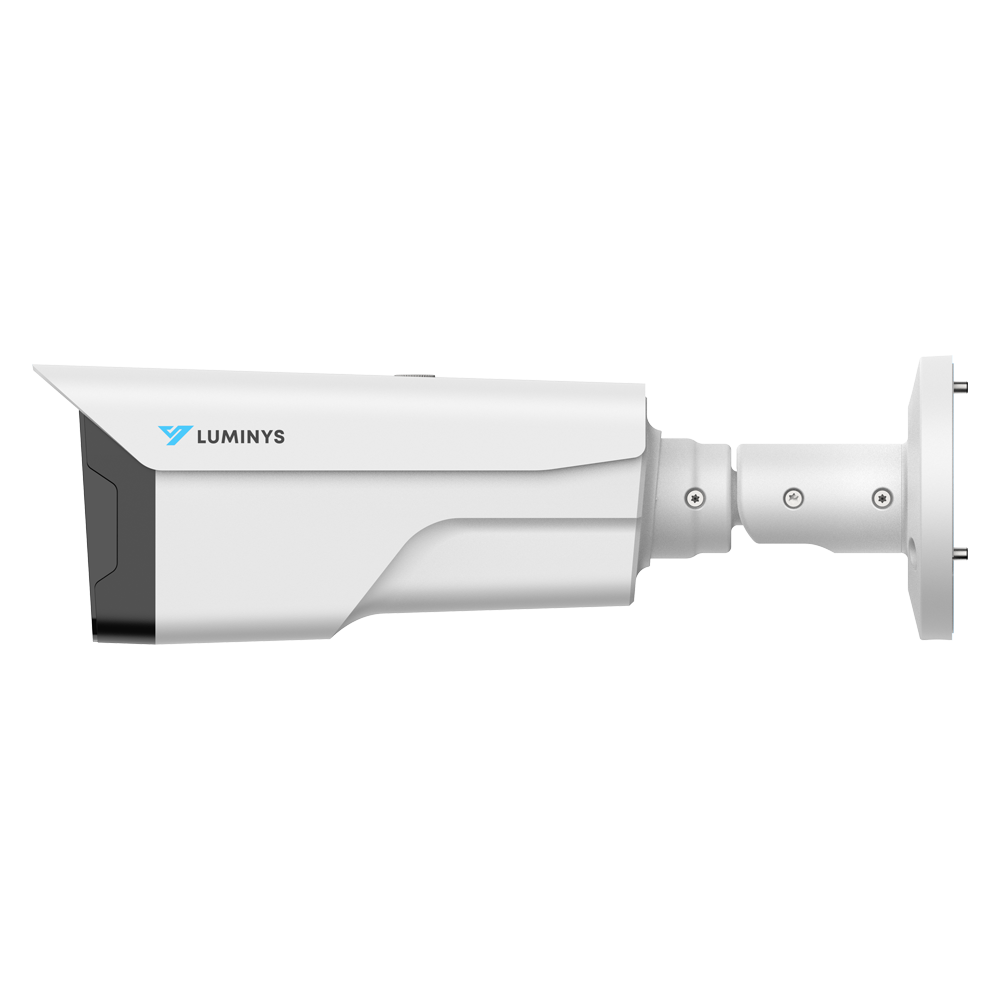

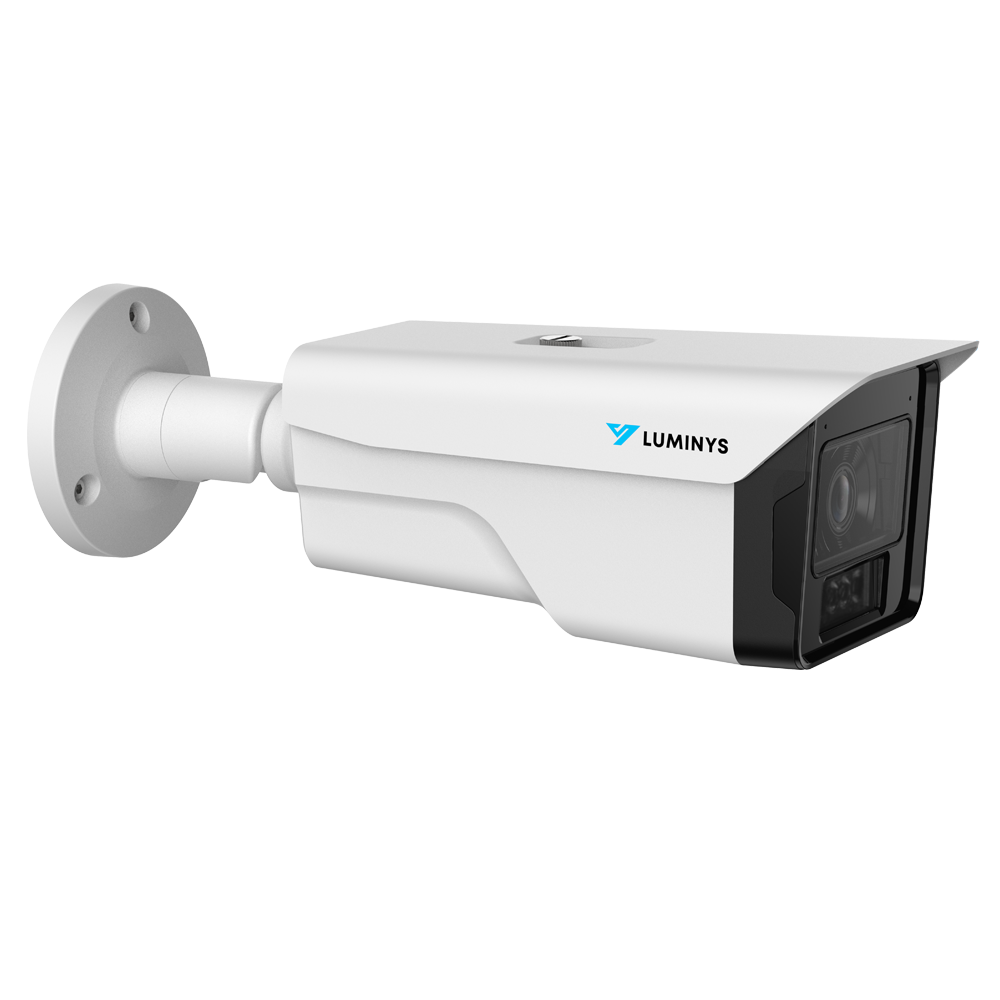

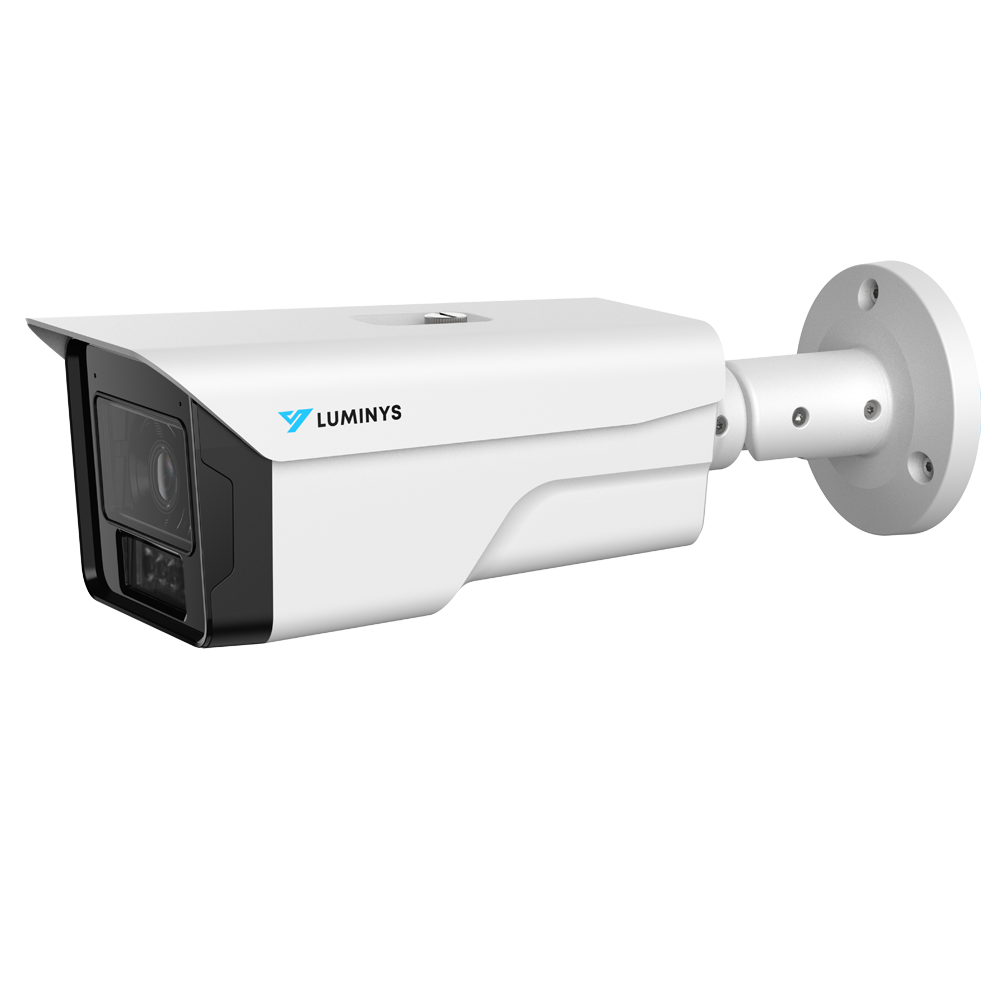

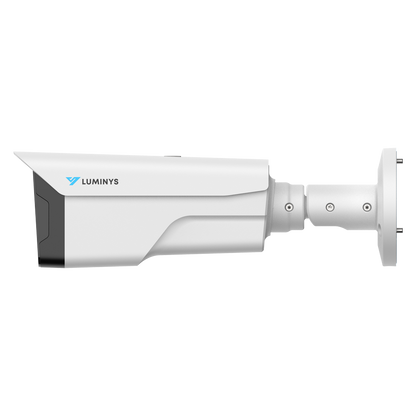

Luminys N5-C 4MP LumiColor IP Standard Bullet, 2.8 mm, White-lights (N5B-4CA2)

The Luminys N5B-4CA2 is a 4MP Network LumiColor Bullet Camera built around a 1/1.8-in. 4MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 and IK10 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3at), LumiPower.

• 4MP Bullet Housing1/1.8-in. 4MP Progressive CMOS, 2688 × 1520 maximum resolution.
• 2.8 mm Lens112° horizontal field of view, F1.0 maximum aperture.
• LumiColor With White-Light LEDsLumiColor technology allows you to capture color footage in complete darkness (0 lux).
• Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
• LumiAnalyticsFace Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
• iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
• LumiPowerLumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet.
• LumiPolarPro and LumiDesertProRated for -40 °C to 60 °C (-40 °F to 140 °F) operation.

Key technologies

LumiColor

LumiColor technology allows you to capture color footage in complete darkness (0 lux). Cameras with this technology have integrated white-light LEDs to illuminate scenes in low lighting. The integrated white lights work in combination with a large aperture lens to capture more available light and reproduce color images with superior detail and contrast.

LumiSearch

LumiSearch technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR.

LumiAnalytics

LumiAnalytics is the umbrella for Face Detection, People Counting, Queue Management, Smart Object Detection, and Heat Map. These analytics use detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.

LumiPower

LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.

LumiPolarPro and LumiDesertPro

LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.

Specifications

Download the official N5B-4CA2 datasheet (PDF)

Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
