Luminys N9 Specialty Series 8MP Fisheye 1.85 mm, IR LEDs (N9F-8RA1)
Luminys N9 Specialty Series 8MP Fisheye 1.85 mm, IR LEDs (N9F-8RA1)
SKU:N9F-8RA1
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

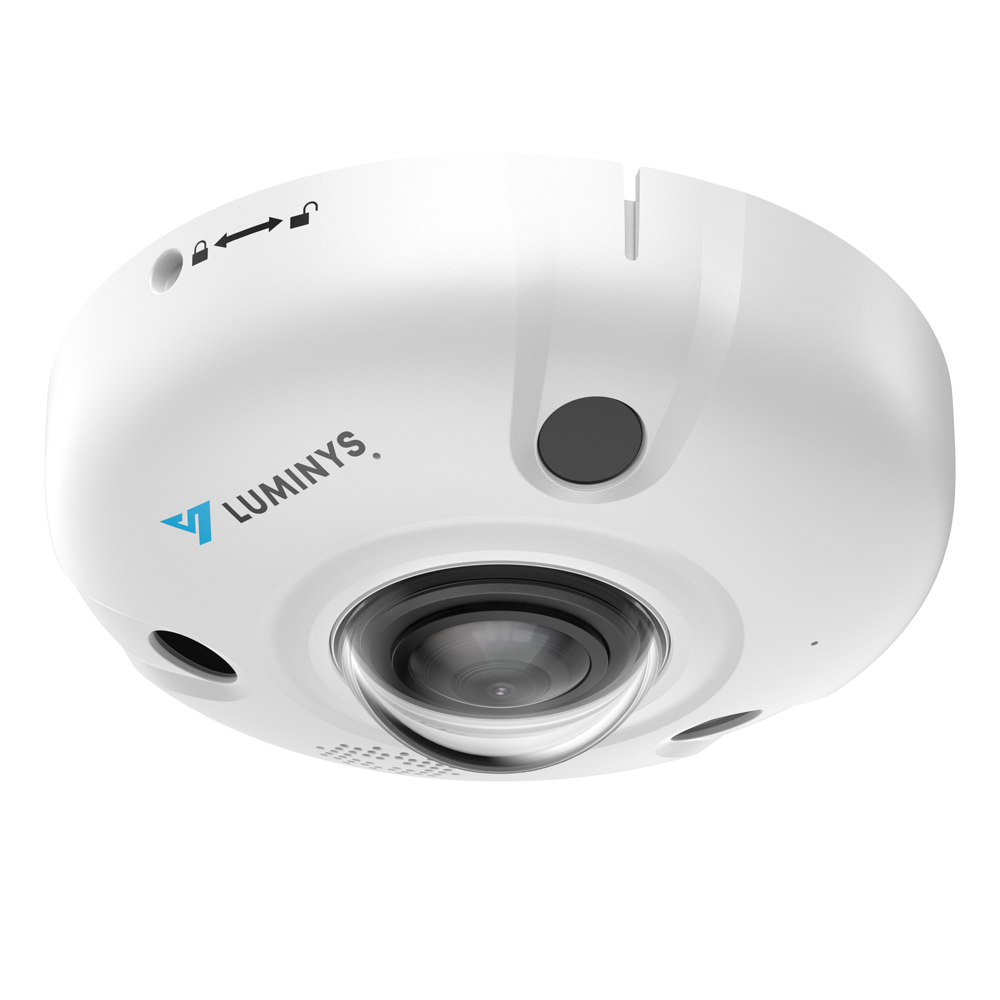

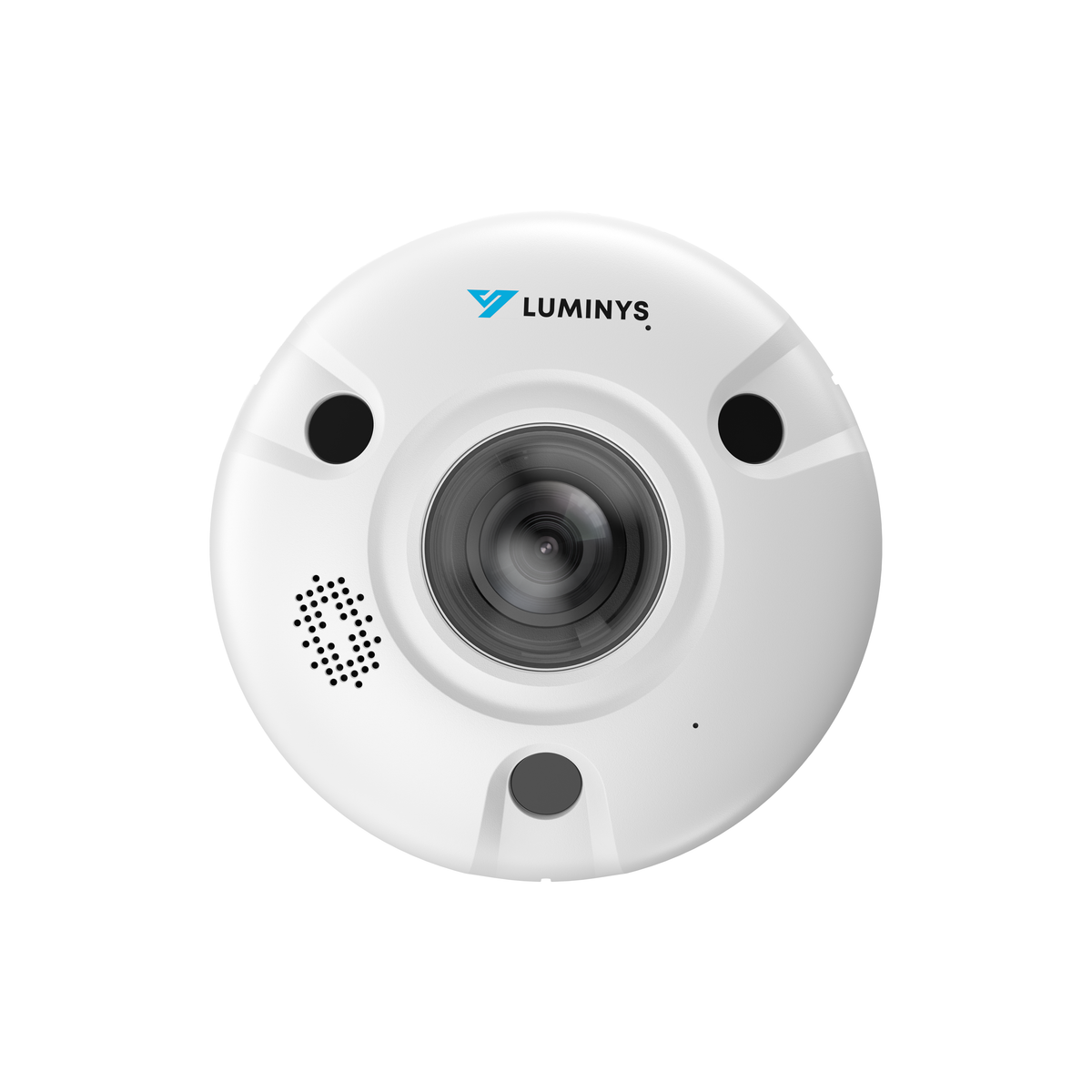

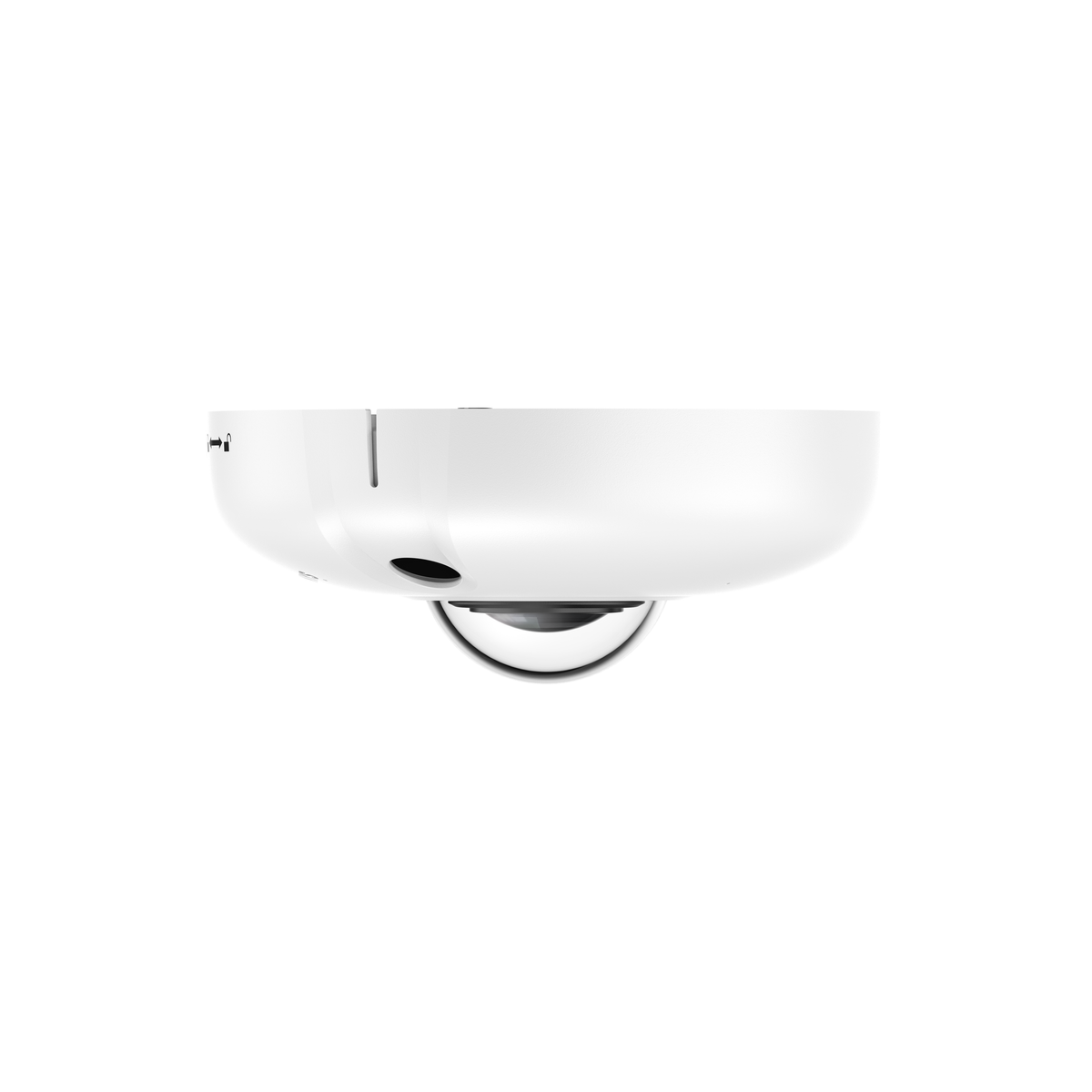

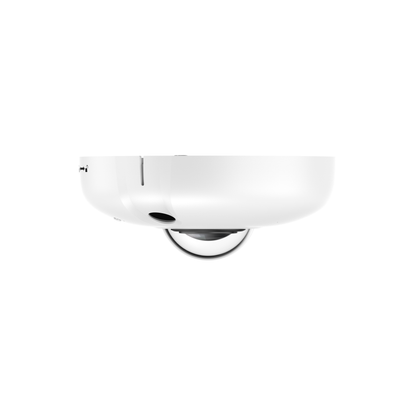

The Luminys N9F-8RA1 is an 8MP Network Fisheye 360° Camera built around a 1/1.7-in. 8MP Progressive CMOS sensor and a 1.85 mm lens. It is IP67 and IK10 rated, NDAA compliant, and powered by 12 VDC or PoE+.
- 8MP IR Dome Housing1/1.7-in. 8MP Progressive CMOS.
- 360° or 180° Stitched Single-sensor185° horizontal and 180° vertical field of view.
- 1.85 mm Lens185° horizontal field of view, F2.0 maximum aperture.
- IR Distance33 ft
- Video Content AnalyticsLine Crossing and Intrusion
- LumiAnalyticsPeople Counting, Queue Management, Heat Map
Key technologies
- LumiAnalytics
- LumiAnalytics technology uses detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.
Specifications
Camera
| Luminys Series | Specialty Series |
|---|---|
| Image Sensor | 1/1.7-in. 8MP Progressive CMOS |
| Minimum Illumination |
Color: 0.01 Lux (F2.0) Black/White: 0.001 Lux (F2.0) 0 Lux With IR Light On |
| Number of Illuminators | Three (3) IR LEDs |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | 10.0 m (32.81 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
Lens
| Type | Fixed |
|---|---|
| Focal Length | 1.85 mm |
| Maximum Aperture | F2.0 |
| Field of View |
Horizontal: 185° Vertical: 180° |
| Close Focus Range | 0.4 m (1.31 ft) |
| DORI Distance |
Detect: 40.0 m (131.2 ft) Observe: 16.0 m (52.5 ft) Recognize: 8.0 m (26.2 ft) Identify: 4.0 m (13.1 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Substream Only) |
|---|---|
| Stream Capability | Three (3) Streams |
| Resolution | 3280 × 2480 (8MP), 2880 × 2160 (6MP), 2048 x 1536 (3MP), 704 x 480 (D1), 352 x 240 (CIF) |
| Maximum Frame Rate |
Mainstream: 3280 × 2480 at 30 fps Substream 1: 704 x 480 at 30 fps Substream 2: 1920 x 1080 at 30 fps Fisheye Mode: 1O (3280 × 2480), 1P (4096 × 1024), 2P (2432 × 2432), 1R (1216 × 1216), 2R (2432 × 2432), 4R (2432 × 2432), 1O+3R (2432 × 2432) |
| Video Bit Rate |
H.265: 3 kbps to 12288 kbps H.264: 8 kbps to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | DWDR |
| Noise Reduction | 3D NR |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics | Line Crossing, Intrusion |
|---|---|
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| Heat Map | Supported |
Audio
| Capability | Two-Way Audio |
|---|---|
| Compression | G.711A, G.711Mu, PCM, G.726, G.723 |
| Interface | Input: Built-In Dual Microphone and 1-channel RCA Port Output: Built-In Speaker and 1-Channel RCA Port |
Alarm
| Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm, People Counting In Area, Stay Detection, People Counting; Security Exception |
|---|---|
| Interface |
Input: Two (2) Channels 5mA 3V-5VDC Output: Two (2) Channels 1,000mA 30VDC/500mA 50VDC |
Network
| Port | RJ-45 |
|---|---|
| Protocol | IPv4, IPv6, TCP, UDP, RTP, RTCP, RTSP, RTMP, NTP, HTTP, ARP, SMTP, FTP, SFTP. DHCP, DNS, DDNS, QoS, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, MicroSD Card (Max. 256 GB) |
Environmental
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
|---|---|
| Operating Humidity | 0 to 95% RH |
| Storage Temperature | -30 °C to 70 °C (-22 °F to 158°F) |
| Protection Rating | IP67, IK10 |
Electrical
| Power Supply | 12 VDC/PoE+, < 13.9W |
|---|
Construction
| Net Weight | 0.8 kg (1.7 lb) |
|---|---|
| Gross Weight | 1.2 kg (2.7 lb) |
| Dimensions | 59.8 mm × Φ 149.8 mm (2.4 in. × Φ 5.9 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Mounting options
| Junction Box | LUM-J03 |
|---|---|
| Pendant Mount | LUM-A03 + LUM-E02 |
| Wall Mount | LUM-A03 + LUM-W03 |
| Pole Mount | LUM-A03 + LUM-W03 or LUM-W06 + LUM-P01 |
| Corner Mount | LUM-A03 + LUM-W03 or LUM-W06 + LUM-C01 |
Download the official N9F-8RA1 datasheet (PDF)
Per Luminys: This camera does not support Smart Object Detection or Face Detection. Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
