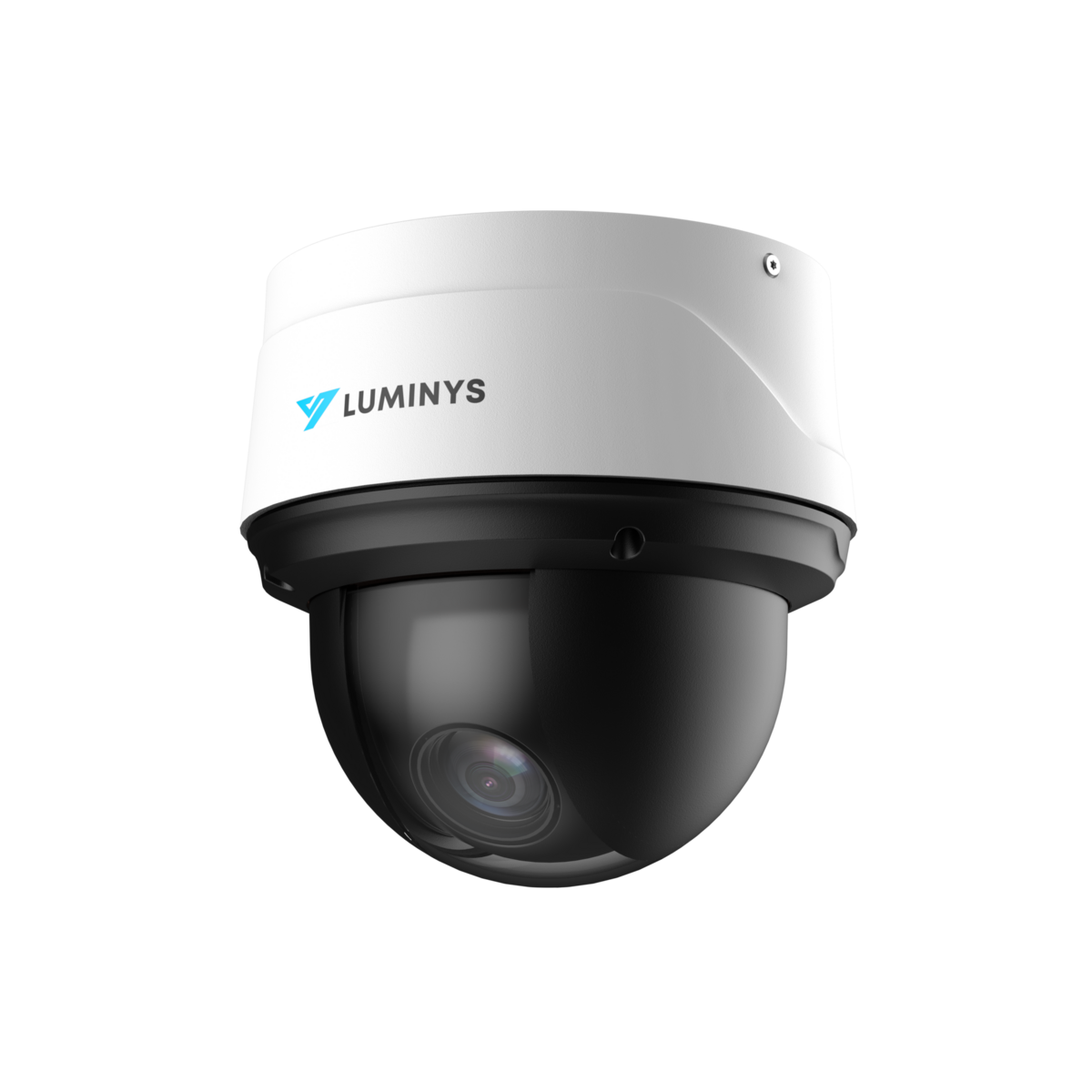

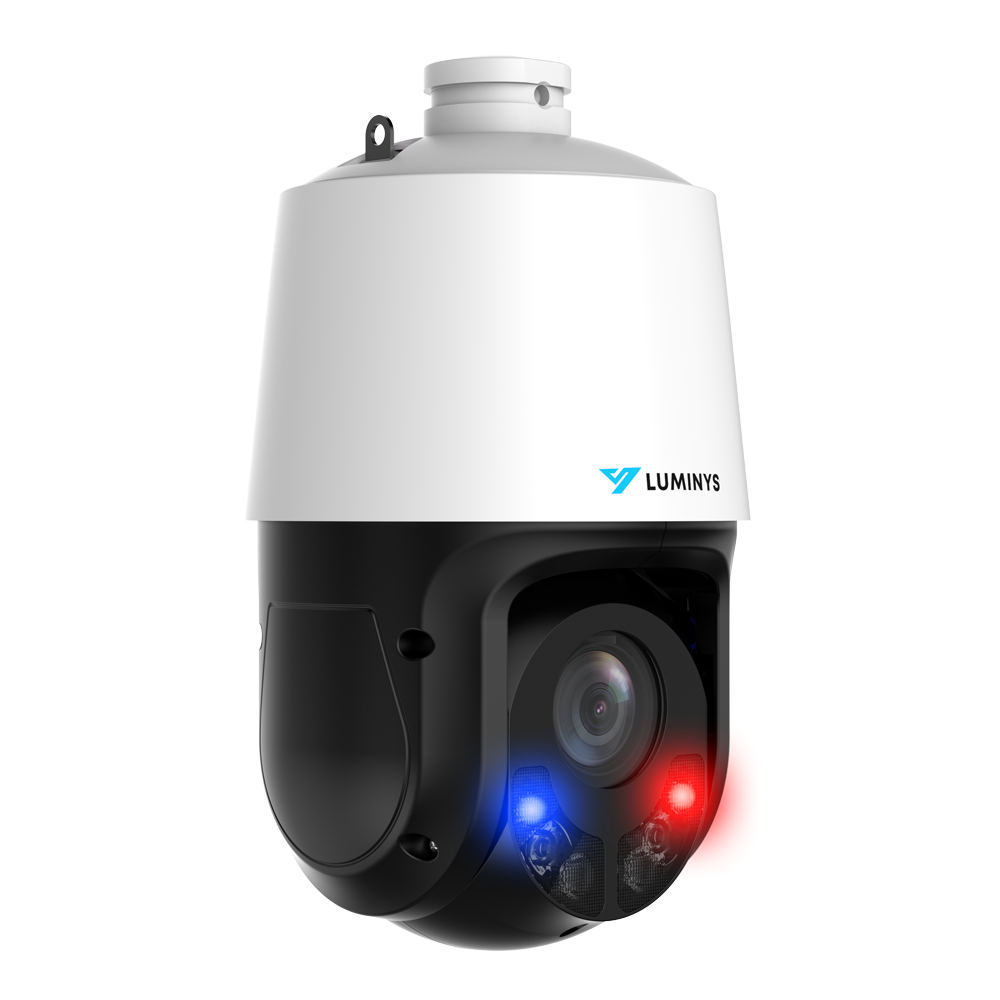

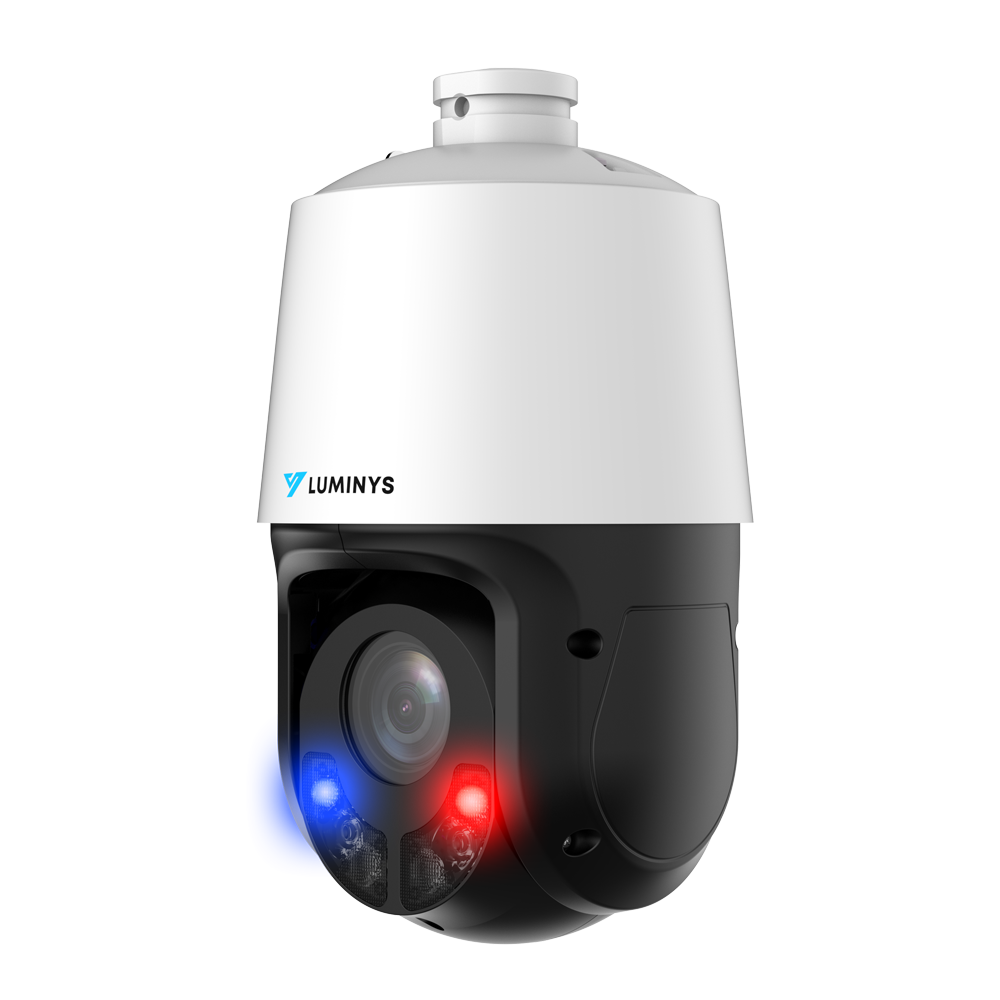

Luminys P4 8MP 25x LumiDeterrent PTZ Camera (P44-8DB25)
Luminys P4 8MP 25x LumiDeterrent PTZ Camera (P44-8DB25)
SKU:P44-8DB25
Regular price
$2,332.78
Regular price
Sale price
$2,332.78
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support
The Luminys P44-8DB25 is an 8MP Network 25x LumiDeterrent PTZ Camera built around a 1/2.8-in. Progressive CMOS sensor and a 5.0 mm (F1.6) to 125.0 mm (F3.6) lens. It is IP66 rated, NDAA compliant, and powered by 12 VDC, PoE+ (802.3at).
- 8MP Dome Housing1/2.8-in. Progressive CMOS, 3840 x 2160 maximum resolution.
- 25x Maximum Optical ZoomFocal length 5.0 mm (F1.6) to 125.0 mm (F3.6).
- LumiDeterrent With Red/Blue Lights and Built-In SpeakerLumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security.
- Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
- Face DetectionFace Detection: Capture Snapshots and Facial Attributes.
- iMD, LumiTracking, LumiFocusIntelligent Motion Detection, supported with alarms for vehicles and humans.
- Dual-IlluminationIR and White-Light LEDs
- LumiPolarPro and LumiDesertProRated for -40 °F to 149 °F (-40 °C to 65 °C) operation.
Key technologies
- Video Content Analytics+ (VCA+)
- Video Content Analytics+ (VCA+) is the umbrella for Line Crossing, Intrusion, Loitering Detection, and Parking Detection analytics. Line Crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. Loitering Detection sends alerts to mobile devices when it detects a person or vehicle lingering in an area for a pre-set duration. Parking Detection establishes a virtual perimeter around designated parking zones and triggers alerts when vehicles exceed the allowed parking time. VCA+ is specifically designed for more advanced and specialized applications as it offers more advanced features compared to standard video content analytics (VCA).
- LumiDeterrent
- LumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.
- LumiTracking
- LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
- LumiFocus
- LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 65 °C (149 °F).
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Zoom | 25x |
| Image Sensor | 1/2.8-in. Progressive CMOS |
| Maximum Resolution | 3840 x 2160 |
| Minimum Illumination |
Color: 0.006 Lux at F1.6 Black/White: 0.0006 Lux at F1.6 0 Lux With Illuminators On |
| Number of Illuminators | Two (2) IR LEDs, Two (2) White-Light LEDs |
| Illumination Range |
IR: 100.1 m (330.0 ft) White Light: 50.3 m (165.0 ft) |
| Illuminator Control | Zoom Priority, Manual, Automatic, Off |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Control Speed | Manual |
| Power Off Memory | Supported |
| S/N Ratio | > 56 dB |
Lens
| Focal Length | 5.0 mm (F1.6) to 125.0 mm (F3.6) |
|---|---|
| Aperture | F1.6 to F3.6 |
| Field of View |
Horizontal: 53.1° to 3.4° Vertical: 30.4° to 1.9° Diagonal: 59.3° to 3.9° |
| Close Focus Range | 0.1 m to 1.5 m (0.3 ft to 4.9 ft) |
| DORI Distance |
Detect: 137.9 m to 3,448.3 m (452.5 ft to 11,313.1 ft) Observe: 55.2 m to 1,379.3 m (181.0 ft to 4,525.2 ft) Recognize: 27.6 m to 689.7 m (90.5 ft to 2,262.6 ft) Identify: 13.8 m to 344.8 m (45.3 ft to 1,131.3 ft) |
Pan/Tilt/Zoom
| Range |
Pan: 0° to 360° Endless Tilt: -15° to 90° Auto Flip: 180° |
|---|---|
| Pan Speed |
Manual Control: 0.1°/s to 120°/s Preset: 0.1°/s to 240°/s |
| Tilt Speed |
Manual Control: 0.1°/s to 120°/s Preset: 0.1°/s to 240°/s |
| Preset | 300 |
| Tour | 8 (Up to 32 Presets per Tour) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| 3D Positioning | Automatically Pans, Tilts, and Zooms to a Selected Area |
| LumiFocus | Images Maintain Focus When Zooming In or Out |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only) |
|---|---|
| Standard Codec | Supported |
| Stream Capability | Three (3) Streams |
| Resolution | 8MP (3840 x 2160), 4MP (2560 x 1440), 3MP (2304 x 1296), 3MP (2048 x 1536), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate |
Main Stream: 8MP (3840 x 2160) at 30 fps Sub Stream 1: D (704 x 480), 720p (1280 x 720) at 30 fps Sub Stream 2: 1080p (1920 x 1080) at 30 fps |
| Video Bit Rate |
H.265: 1,280 kbps to 10,240kbps H.264: 4,096 kbps to 16,384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB), BLC, HLC |
| Noise Reduction | 3D NR |
| Visual Angle | 0°, 180° |
| Privacy Mask | Eight (8) Zones |
| Region of Interest | Eight (8) Regions |
Analytics
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering Detection, Parking Detection, Crossing Virtual Fence, Abandoned/Missing Object, Aggregate Detection, Vehicle/ Human Alarm Classification, Linkage Tracking |
|---|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| LumiDeterrent | Built-In Speaker and Flashing Red and Blue Lights |
| LumiTracking | Automatically Tracks a Target in Motion for an Allotted Amount of time or Until the Object Exits the Scene |
Audio
| Compression | G.711a, G.711Mu, PCM |
|---|---|
| Sampling Bitrate |
PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz |
| Interface |
Input: One (1) Channel Output: Built-In Speaker and One (1) Channel |
Alarm
| Event | Motion Detection, Audio Detection, Video Tampering, Scene Changing, Disk Full, Disk Error, Security Warning, External Alarm, AI Event |
|---|---|
| Interface |
Input: Two (2) Channel Output: One (1) Channel |
Network
| Interface | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Browser | Chrome, Firefox, Safari, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP/SFTP, NAS, Micro SD Card (Max. 512 GB) |
Electrical
| Power Supply | 12 VDC, PoE+ (802.3at) |
|---|---|
| Power Consumption | 8 W (Standard), 12 W (Max.) |
Construction
| Net Weight | 2.7 kg (6.0 lb) |
|---|---|
| Gross Weight | 4.5 kg (9.9 lb) |
| Operating Temperature | -40 °F to 149 °F (-40 °C to 65 °C) |
| Operating Humidity | Less than 95% RH |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection Ratings | IP66 |
| Product Dimensions | Φ160.0 mm x 280.5 mm (Φ6.3 in. x 11.0 in.) |
| Packaging Dimensions (L x W x H) | 267.0 mm x 267.0 mm x 437.0 mm (10.5 in. x 10.5 in. x 9.3 in.) |
| Protection Ratings | IP66 |
| Material | Metal Cover With Plastic Dome |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |

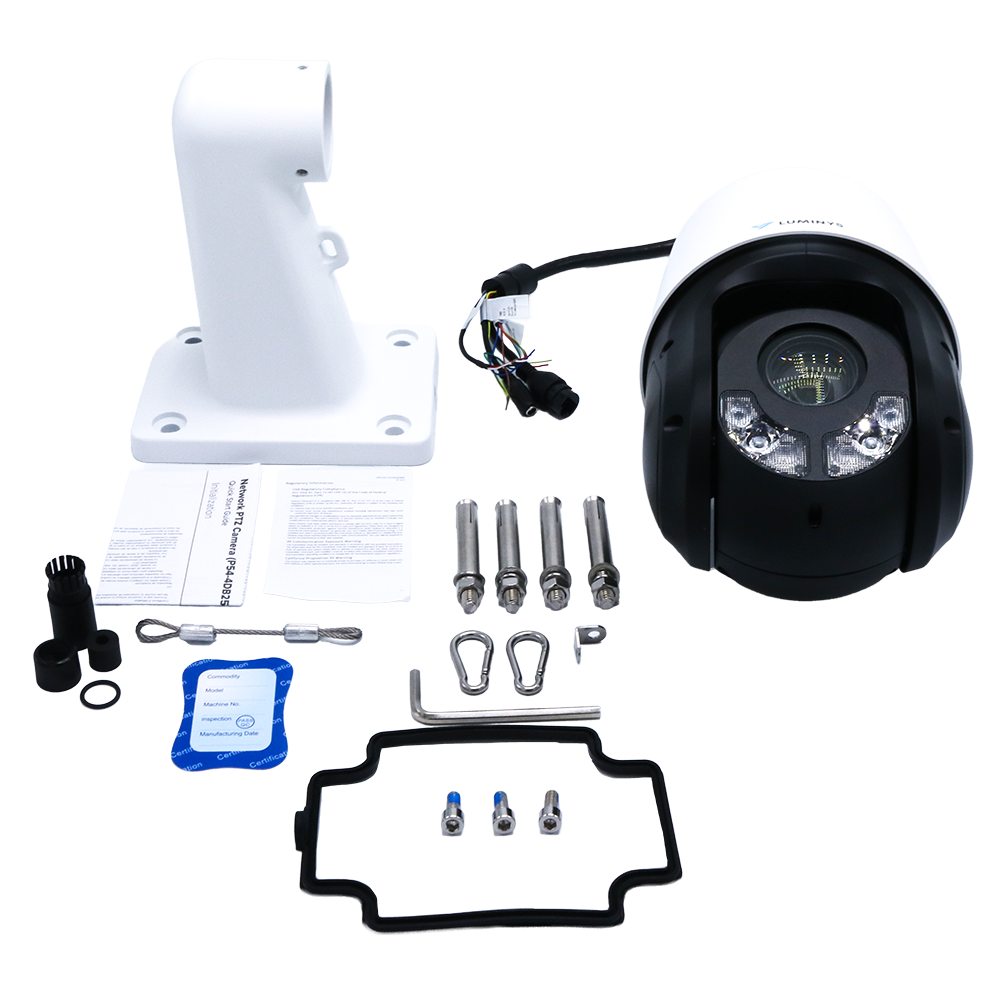

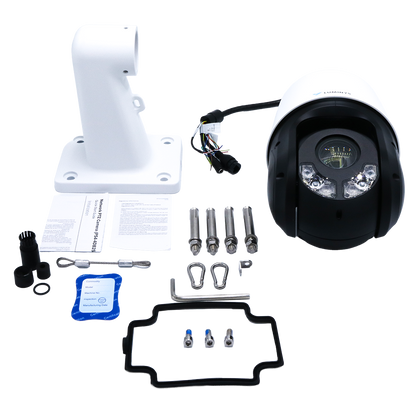

In the box
| 1 | 8MP Network 25x LumiDeterrent PTZ Camera (Luminys SKU: P44-8DB25) |
|---|---|
| 1 | Wall Mount Bracket (Luminys SKU: N5D/N5T/N3T/P45/P5-W01) |
| 1 | Wall Mount Bracket Gasket |
| 1 | S5.0 L-Shaped Wrench |
| 1 | Package of Mounting Components |
| 1 | Steel Wire Rope |
| 1 | Quick Start Guide |
| 1 | Regulatory Information |
Mounting options
| Wall Mount | LUM-W02 (included) |
|---|---|
| Horizontal Pole Mount | LUM-W02 (included) + LUM-D01 + LUM-P01 |
| Vertical Pole Mount | LUM-A08 + LUM-E02 + LUM-P01 |
| Corner Mount | LUM-W02 (included) + LUM-C01 |
Download the official P44-8DB25 datasheet (PDF)
Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
