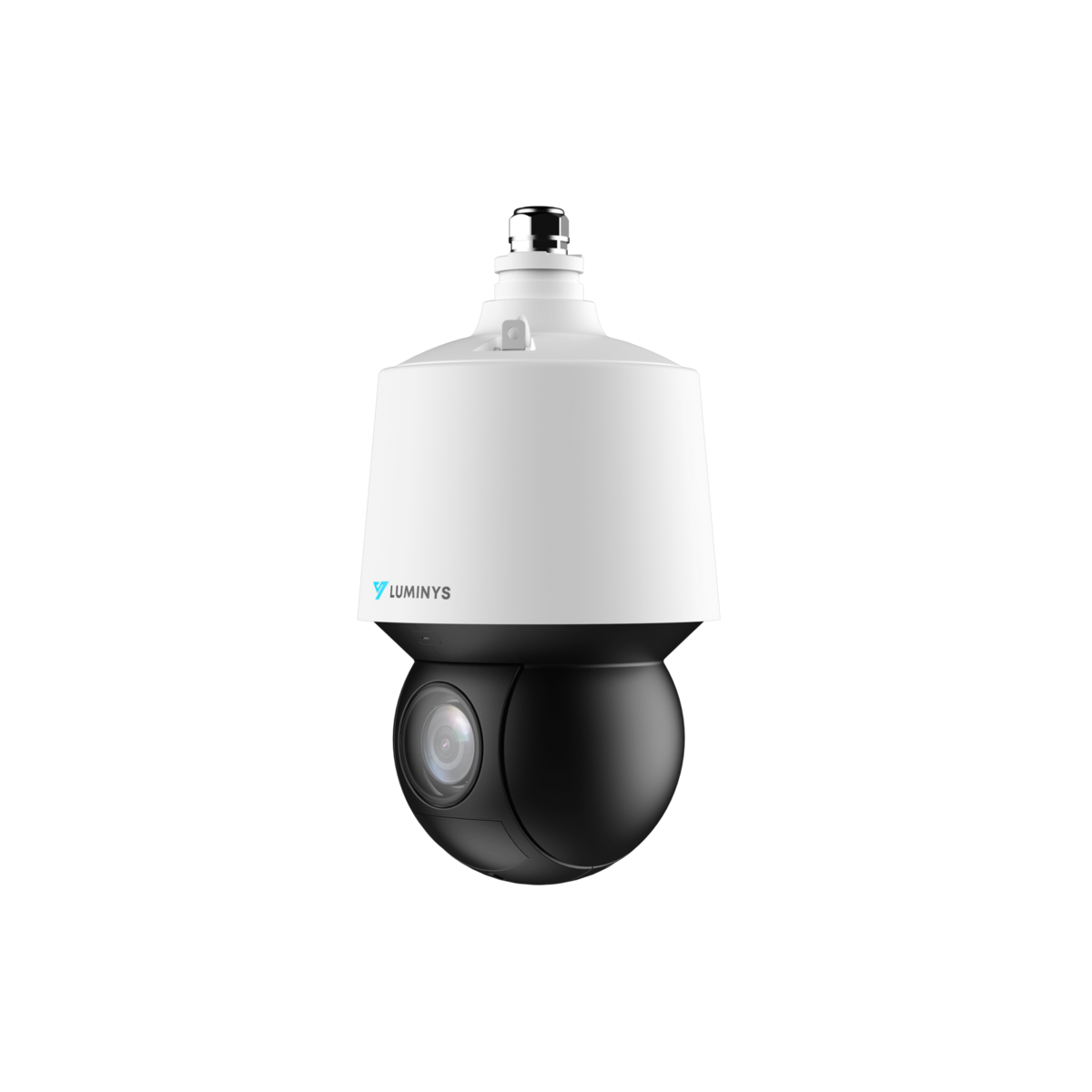

Luminys P4 8MP 25x PTZ Camera with IR (P45-8RA25)
Luminys P4 8MP 25x PTZ Camera with IR (P45-8RA25)
SKU:P45-8RA25
Regular price
$2,429.98
Regular price
Sale price
$2,429.98
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support
The Luminys P45-8RA25 is an 8MP Network 25x PTZ Camera built around a 1/1.8-in. 8MP Progressive CMOS sensor and a 5.4 mm to 135.0 mm lens. It is IP67 and IK10 rated, NDAA compliant, and powered by 24 VDC (2.5 A ± 25%), PoE+ (802.3at).
- 8MP Dome Housing1/1.8-in. 8MP Progressive CMOS, 3840 × 2160 maximum resolution.
- 25x Maximum Optical ZoomFocal length 5.4 mm to 135.0 mm.
- Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
- Face Detection, People CountingFace Detection: Capture Snapshots and Facial Attributes. People Counting: Entry/Exit and In-Area People Counting, Queue Management With Report.
- iMD, LumiTracking, LumiFocusIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -40 °F to 158 °F (-40 °C to 70 °C) operation.
Key technologies
- LumiTracking
- LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
- LumiFocus
- LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 60 °C (140 °F).
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Zoom | 25x |
| Image Sensor | 1/1.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination |
Color: 0.005 Lux at F1.6 Black/White: 0.0005 Lux at F1.6 0 Lux With IR On |
| Number of Illuminators | Four (4) IR LEDs |
| Illumination Range | 492.1 ft (150.0 m) |
| Illuminator Control | Manual, Automatic |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Control Speed | Manual Control Pan: 0.1° to 250° Tilt: 0.1° to 140° |
| S/N Ratio | > 55 dB |
Lens
| Focal Length | 5.4 mm to 135.0 mm |
|---|---|
| Aperture | F1.6 to F4.0 |
| Field of View |
Horizontal: 61.6° to 3.6° Vertical: 35.7° to 2.0° Diagonal: 66.6°to 4.0° |
| Close Focus Range | 0.3 ft to 6.6 ft (0.1 m to 2.0 m) |
| DORI Distance |
Detect: 353.0 ft to 8858.3 ft (107.6 m to 2700.0 m) Observe: 141.1 ft to 3541.7 ft (43 m to 1079.5 m) Recognize: 70.5 ft to 1771.0 ft (21.5 m to 539.8m) Identify: 34.5 ft to 885.8 ft (10.5 m to 270.0 m) |
Pan/Tilt/Zoom
| Range | Pan: 0° to 360° Endless Tilt: -15° to 90°, Auto Flip: 180° |
|---|---|
| Pan Speed | Manual Control: 0.1°/s to 250°/s Preset: 250°/s |
| Tilt Speed | Manual Control: 0.1°/s to 140°/s Preset: 140°/s |
| Preset | 300 |
| Tour | 8 (Up to 32 Presets per Tour) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| LumiFocus | Images Maintain Focus When Zooming In or Out |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only) |
|---|---|
| Smart Codec | Supported |
| Stream Capability | Three (3) Streams |
| Resolution | 8MP (3840 x 2160), 4MP (2560 × 1440), 3MP (2048 × 1536/ 2304 × 1296), 1080p (1920 ×1080), 1.3MP (1280 × 960), 720p (1280 × 720), D (704 × 480), VGA (640x480), CIF (352 × 240) |
| Maximum Frame Rate |
Main Stream 8MP/4MP/3MP/1080p/1.3MP/720p at 30 fps Sub Stream 1: D1/VGA/CIF at 30 fps Sub Stream 2: 1080p/1.3MP/720p at 30 fps |
| Video Bit Rate |
H.265: 38 kbps to 8960 kbps H.264: 96 kbps to 14848 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB), BLC, HLC |
| Noise Reduction | 3D NR |
| Image Rotation | 180° |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Region of Interest | 8 Regions |
| Privacy Masking | 24 Areas (Up to 8 Areas in the Same View) |
Analytics
| Video Content Analytics+ | Line Crossing, Intrusion, Parking Detection, Crossing Virtual Fence, Aggregate Detection, Vehicle/Human Alarm Classification, Linkage Tracking, Loitering Detection |
|---|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| People Counting | Entry/Exit and In-Area People Counting, Queue Management With Report |
| LumiTracking | Automatically Tracks a Target in Motion for an Allotted Amount of time or Until the Object Exits the Scene |
Audio
| Compression | G.711a, G.711Mu, PCM, AAC |
|---|---|
| Sampling Bitrate |
PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz AAC: 8,000 Hz, 16,000 Hz, 32,000 Hz 48,000 Hz, 64,000 Hz |
| Interface |
Input: One (1) Channel Output: One (1) Channel |
Alarm
| Event | Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, SD Card Error, Insufficient SD Card Storage |
|---|---|
| Linkage | Capture, Recording, Send Email, Preset, Tour, Pattern, Alarm Digital Output, Audio |
| Interface |
Input: Two (2) Channel Output: One (1) Channel |
Network
| Interface | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Browser | Chrome, Firefox, Safari, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP/SFTP, NAS, Micro SD Card (Max. 512 GB) |
Electrical
| Power Supply | 24 VDC (2.5 A ± 25%), PoE+ (802.3at) |
|---|---|
| Power Consumption | 23 W (Max.) |
Construction
| Net Weight | 4.7 kg (10.4 lb) |
|---|---|
| Gross Weight | 8.0 kg (17.6 lb) |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Protection Ratings | IP67, IK10 |
| Dimensions | Φ191.0 mm × 332.0 mm (Φ7.5 in. × 13.1 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |

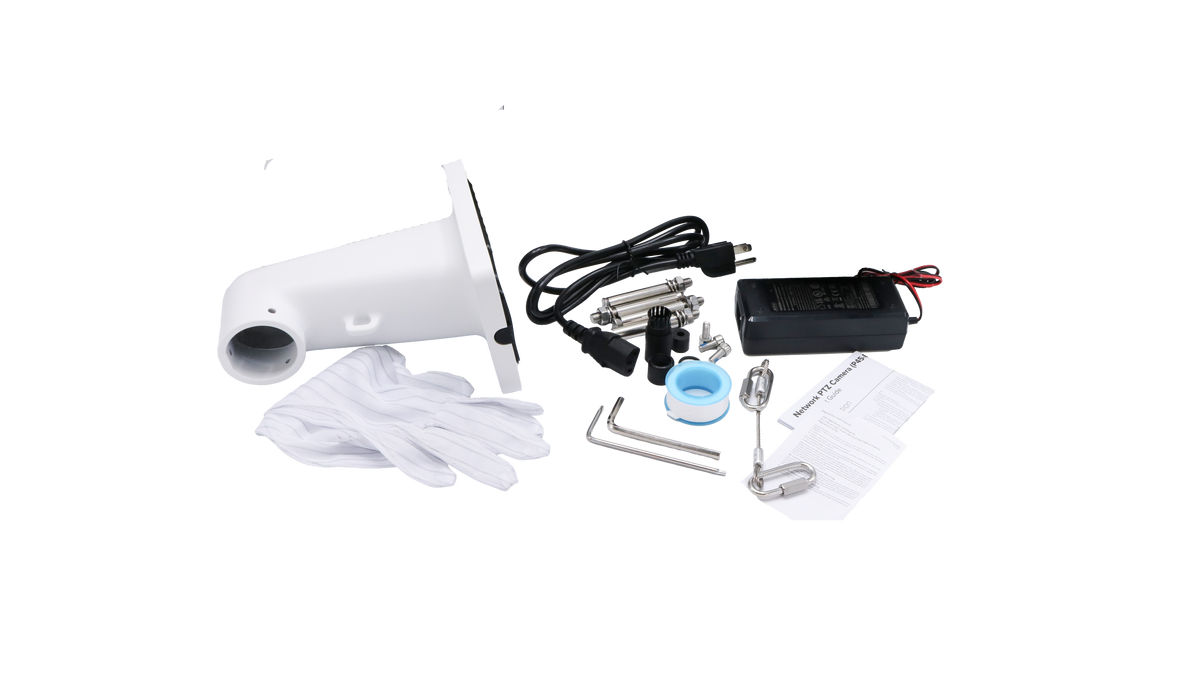

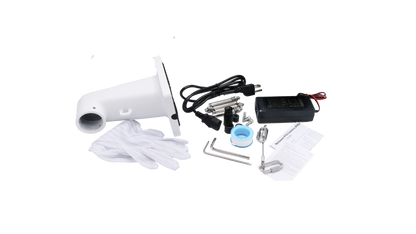

In the box
| 1 | 8MP Network 25x PTZ Camera (Luminys SKU: P45-8RA25) |
|---|---|
| 1 | Wall Mount Bracket (Luminys SKU: N5D/N5T/N3T/P45/P5-W01) |
| 1 | Wall Mount Rubber Grommet |
| 1 | Set Waterproof Connector |
| 1 | Power Adapter |
| 4 | Expansion Bolts |
| 3 | Hex Screws |
| 1 | T15 L-Shaped Allen Wrench |
| 1 | S5.0 L-Shaped Allen Wrench |
| 1 | Set Anti-Static Gloves |
| 1 | Roll of Waterpoof Tape |
| 1 | Quick Start Guide |
| 1 | Regulatory Information |
Mounting options
| Wall Mount | LUM-W02 (included) |
|---|---|
| Horizontal Pole Mount | LUM-W02 (included) + LUM-D01 + LUM-P01 |
| Vertical Pole Mount | LUM-A08 + LUM-E02 + LUM-P01 |
| Corner Mount | LUM-W02 (included) + LUM-C01 |
Download the official P45-8RA25 datasheet (PDF)
Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
