Luminys P5-D 4K+4MP 25x Panoramic Hybrid LumiDeterrent PTZ Camera (P54-4DA25)

Name: Luminys P5-D 4K+4MP 25x Panoramic Hybrid LumiDeterrent PTZ Camera (P54-4DA25)
Brand: Luminys
SKU: P54-4DA25
Price: 2721.58 USD
Availability: InStock

SKU:P54-4DA25

$2,721.58

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

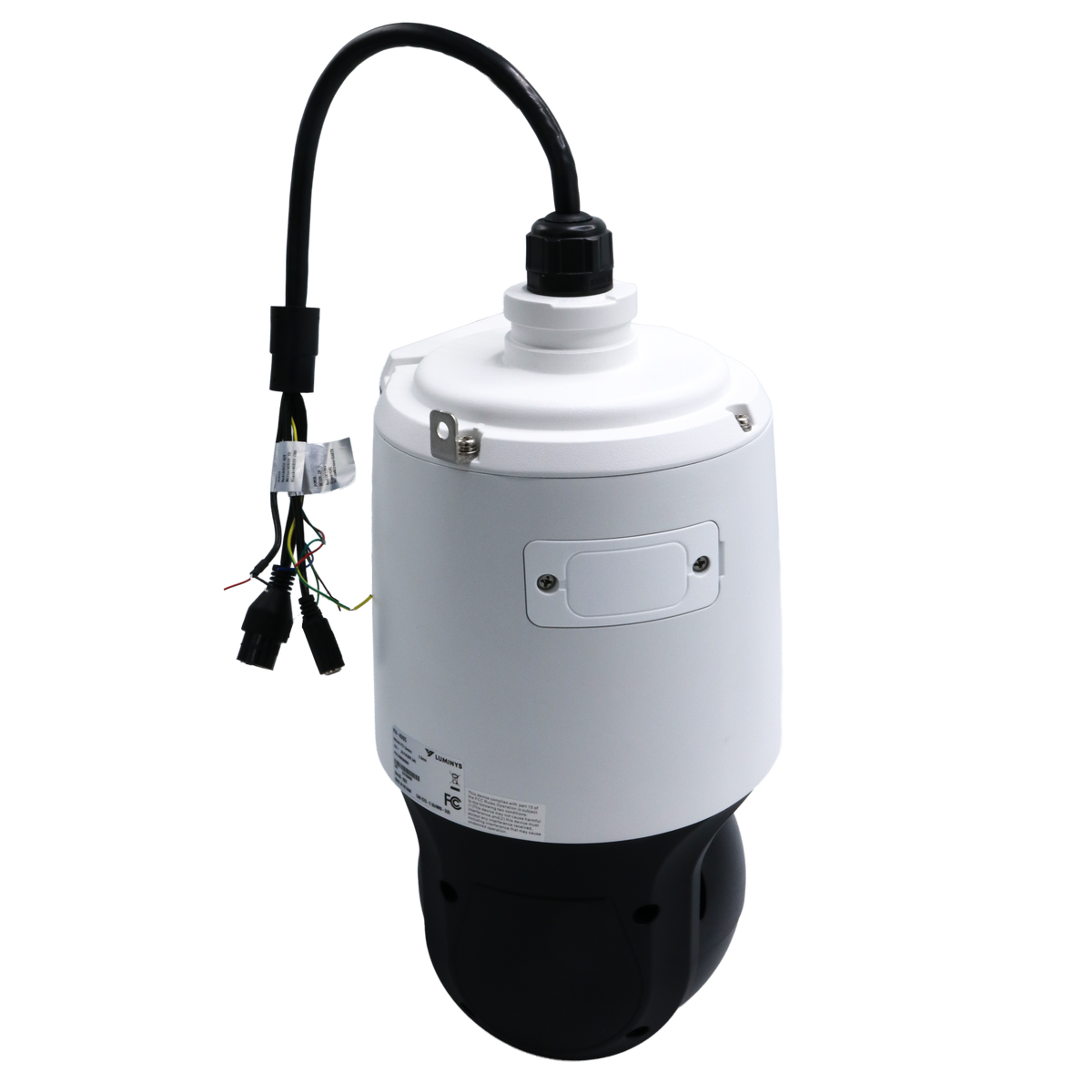

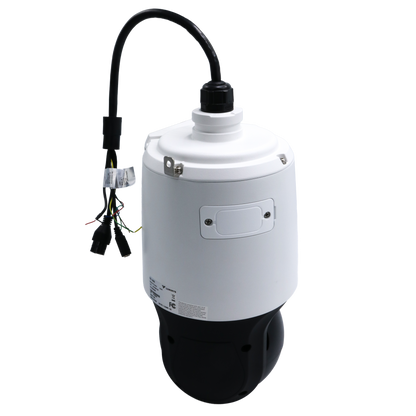

The Luminys P54-4DA25 is a 4MP Network 25x LumiDeterrent Dual-Stitched Lens PTZ Camera. A 4MP PTZ with a 5.0 mm to 125.0 mm lens works alongside a 2.8 mm panoramic camera that covers a 180° horizontal field of view at up to 4096 × 1860. It is IP66 rated, NDAA compliant, and powered by 12 VDC or PoE+ (802.3at).

4MP PTZ With 2 x 4MP Dual-Stitched Lens CameraA 2.8 mm panoramic camera covers 180° horizontally at up to 4096 × 1860, while the 4MP PTZ zooms from 5.0 mm to 125.0 mm.
25x Maximum Optical ZoomFocal length Panoramic: 2.8 mm; PTZ: 5.0 mm to 125.0 mm.
LumiDeterrent With Red/Blue Lights and Built-In SpeakerLumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security.
Dual-IlluminationIR and White-Light LEDs
Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
iMD, LumiTracking, LumiFocusIntelligent Motion Detection, supported with alarms for vehicles and humans.
LumiPolarPro and LumiDesertProRated for -40 °F to 149 °F (-40 °C to 65 °C) operation.

Key technologies

Video Content Analytics+ (VCA+): Video Content Analytics+ (VCA+) is the umbrella for Line Crossing, Intrusion, Loitering Detection, and Parking Detection analytics. Line Crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. Loitering Detection sends alerts to mobile devices when it detects a person or vehicle lingering in an area for a pre-set duration. Parking Detection establishes a virtual perimeter around designated parking zones and triggers alerts when vehicles exceed the allowed parking time. VCA+ is specifically designed for more advanced and specialized applications as it offers more advanced features compared to standard video content analytics (VCA).
LumiDeterrent: LumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.
LumiTracking: LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
LumiFocus: LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.
LumiPolarPro and LumiDesertPro: LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 65 °C (149 °F).

Specifications

Camera

Luminys Series	Mainstream
Zoom	25x
Image Sensor	Panoramic: 1/2.7-in. Progressive CMOS PTZ: 1/2.8-in. Progressive CMOS
Maximum Resolution	Panoramic: 4096 × 1860 PTZ: 2560 × 1440
Minimum Illumination	Panoramic: Color 0.005 Lux at F1.4, Black/White 0.0005 Lux at F1.4, 0 Lux With Illuminators On PTZ: Color 0.005 Lux at F1.6, Black/White 0.0005 Lux at F1.6, 0 Lux With Illuminators On
Number of Illuminators	Panoramic: Two (2) IR LEDs, Two (2) White-Light LEDs PTZ: Two (2) IR LEDs, Two (2) White-Light LEDs
Illumination Range	Panoramic: IR 30.0 m (98.4 ft), White Light 30.0 m (98.4 ft) PTZ: IR 100.0 m (328.1 ft), White Light 40.0 m (131.2 ft)
Illuminator Control	Panoramic: Manual, Automatic, Off PTZ: Zoom Priority, Manual, Automatic, Off
Electronic Shutter Speed	1/1 s to 1/300,000 s
Control Speed	Manual
Power Off Memory	Supported
S/N Ratio	> 55 dB

Lens

Focal Length	Panoramic: 2.8 mm PTZ: 5.0 mm to 125.0 mm
Aperture	Panoramic: F1.4 PTZ: F1.6 to F3.6
Field of View	Panoramic: Horizontal 180.0°, Vertical 86.0° PTZ: Horizontal 51.9° to 3.0°, Vertical 39.7° to 2.2°, Diagonal 63.1° to 3.7°
Close Focus Range	Panoramic: 0.6 m (2.0 ft) PTZ: 0.1 m to 0.5 m (0.3 ft to 1.6 ft)
DORI Distance	Panoramic: Detect 55.5 m (182.1 ft), Observe 22.0 m (72.2 ft), Recognize 11.0 m (36.1 ft), Identify 5.3 m (17.4 ft) PTZ: Detect 99.9 m to 2549.5 m (327.8 ft to 8364.5 ft) Observe: 39.5 m to 1000.0 m (129.6 ft to 3280.8 ft) Recognize: 19.5 m to 495.5 m (64.0 ft to 1625.7 ft) Identify: 9.8 m to 249.5 m (32.2 ft to 818.6 ft)

Pan/Tilt/Zoom

Range	Pan: 0° to 360° Endless Tilt: -15° to 90° Auto Flip: 180°
Pan Speed	Manual Control: 0.1°/s to 180°/s Preset: 180°/s
Tilt Speed	Manual Control: 0.1°/s to 90°/s Preset: 90°/s
Preset	300
Tour	8 (Up to 32 Presets per Tour)
Pattern	5
Scan	5
Scheduled Modes	Preset, Pattern, Tour, Scan
Preset Freezing	Freezes Images Between Presets
3D Positioning	Automatically Pans, Tilts, and Zooms to a Selected Area
LumiFocus	Images Maintain Focus When Zooming In or Out

Video

Compression	Panoramic: Smart Encoding H.265, H.265, Smart Encoding H.264, H.264, MJPEG (Sub Stream 1 Only) PTZ: Smart Encoding H.265, H.265, Smart Encoding H.264, H.264, MJPEG (Sub Stream 1 Only)
Standard Codec	Supported
Stream Capability	Three (3) Streams
Resolution	Panoramic: 8MP (4096 × 1860), 2MP (2048 × 928), 1080p(1920 × 1080), 720p (1280 × 720), 1024 × 448, D (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 ×240) PTZ: 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D (704 × 480), VGA (640 × 480), CIF (352 × 240)
Maximum Frame Rate	Panoramic: Main Stream 4096 × 1860 at 30 fps, Sub Stream 1 1024 × 448/D1/VGA/CIF at 30 fps Sub Stream 2: 2048 × 928/1080p/1.3 M/720p at 30 fps PTZ Main Stream 4MP/3MP/1080p/1.3MP/720p at 30 fps Sub Stream 1: D1/VGA/CIF at 30 fps Sub Stream 2: 1080p/1.3MP/720p at 30 fps
Video Bit Rate	Panoramic: H.265 51 kbps to 13,312 kbps, H.264 128 kbps to 16,384 kbps PTZ: H.265 38 kbps to 10,240 kbps, H.264 96 kbps to 16,384 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB), BLC, HLC
Noise Reduction	2D NR, 3D NR
Image Rotation	180°
Image Stabilization	Electronic
Defog	Electronic
Region of Interest	Eight (8) Regions

Analytics

Video Content Analytics+	Line Crossing, Intrusion, Loitering Detection, Parking Detection, Crossing Virtual Fence, Abandoned/Missing Object, Aggregate Detection, Vehicle/ Human Alarm Classification, Linkage Tracking
Intelligent Motion Detection	Supported with Alarms for Vehicles and Humans
LumiDeterrent	Built-In Speaker and Flashing Red and Blue Lights
LumiTracking	Automatically Tracks a Target in Motion for an Allotted Amount of time or Until the Object Exits the Scene

Audio

Compression	G.711a, G.711Mu, PCM
Sampling Bitrate	PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz
Interface	Input: One (1) Channel Output: Built-In Speaker and One (1) Channel

Alarm

Event	Motion/Tampering Detection, Offline, IP Conflict, No SD Card, Disk Full, SD Card Error, Scene Changing
Linkage	Capture, Record, Send Email, Alarm Digital Output, Audio, Warning Light
Interface	Input: Two (2) Channel Output: One (1) Channel

Network

Interface	RJ-45 (10/100 Base-T)
Protocol	HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS
Interoperability	ONVIF (Profile S/G/T), CGI, SDK, P2P
Browser	Chrome, Firefox, Safari, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP/SFTP, NAS, Micro SD Card (Max. 512 GB)

Electrical

Power Supply	12 VDC (3 A ± 10%), PoE+ (802.3at)
Power Consumption	25 W (Max.)

Construction

Net Weight	3.1 kg (6.8 lb)
Gross Weight	4.6 kg (10.1 lb)
Operating Temperature	-40 °F to 149 °F (-40 °C to 65 °C)
Protection Ratings	IP66
Dimensions	194.2 mm × 160.0 mm × 311.0 mm (7.7 in. × 6.3 in. × 12.2 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

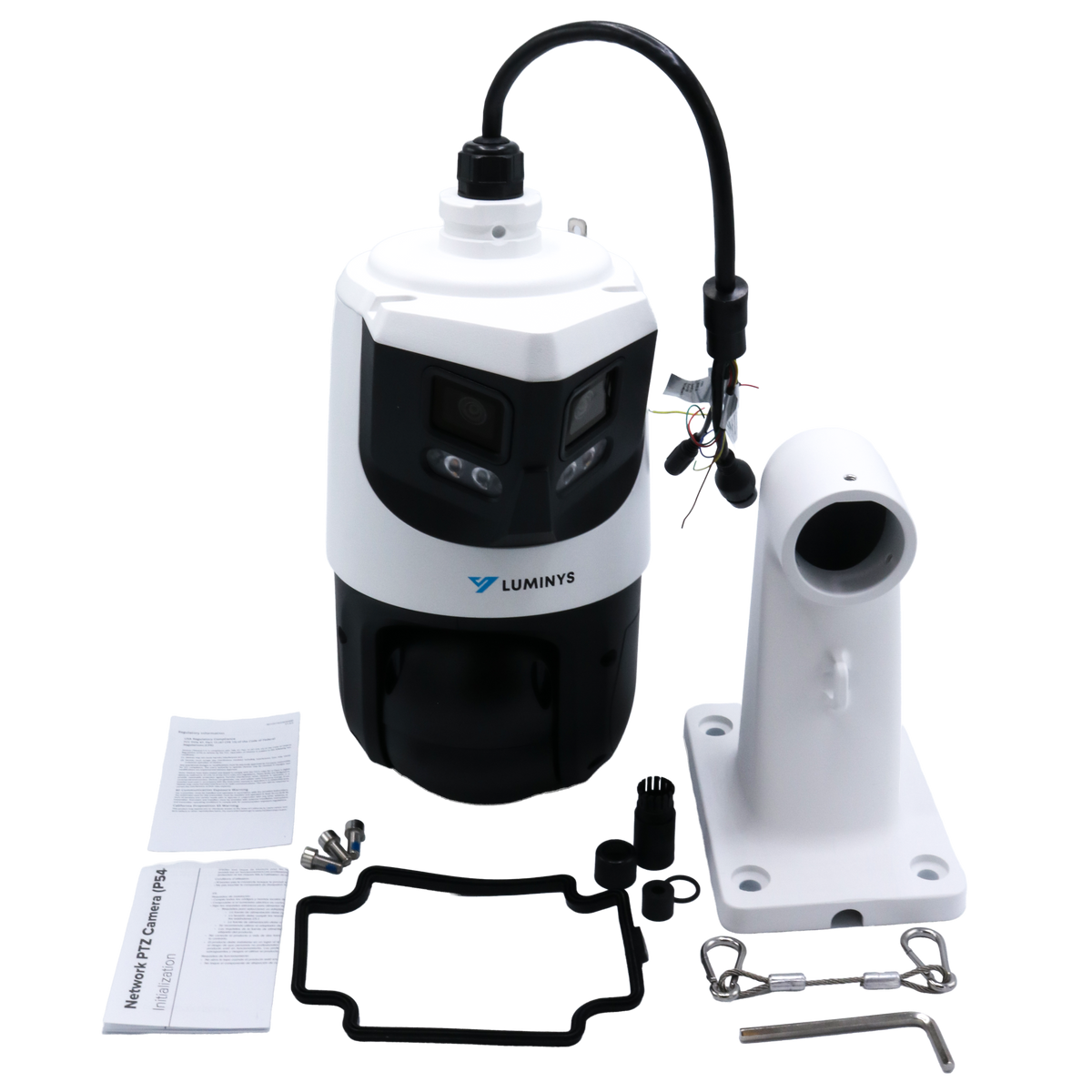

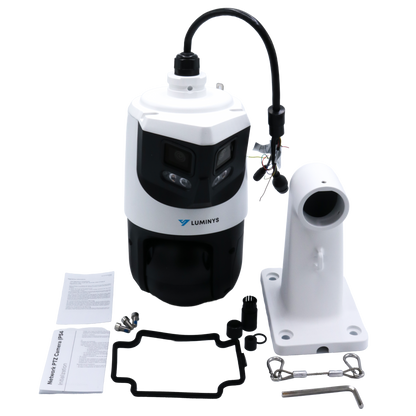

In the box

1	4MP Network 25x LumiDeterrent Dual-Stitched Lens PTZ Camera
1	Wall Mount Bracket (Luminys SKU: P54-W01)
1	Wall Mount Bracket Gasket
1	S5.0 L-Shaped Wrench
1	Package of Mounting Components
1	Steel Wire Rope
1	Quick Start Guide
1	Regulatory Information

Mounting options

Wall Mount	LUM-W02 (included)
Wall Mount (Option 2)	LUM-W02 (included) + LUM-D01
Pole Mount	LUM-W02 (included) + LUM-P01
Corner Mount	LUM-W02 (included) + LUM-C01

Download the official P54-4DA25 datasheet (PDF)

Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
