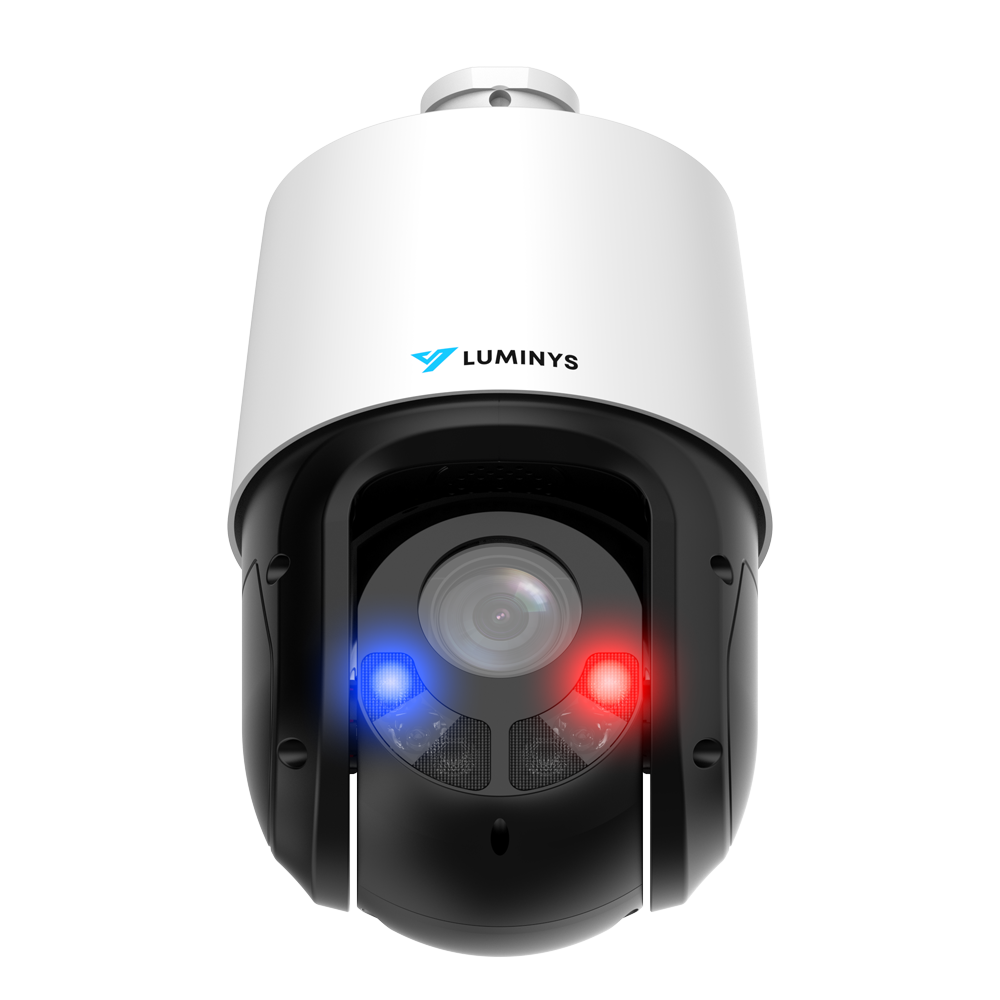

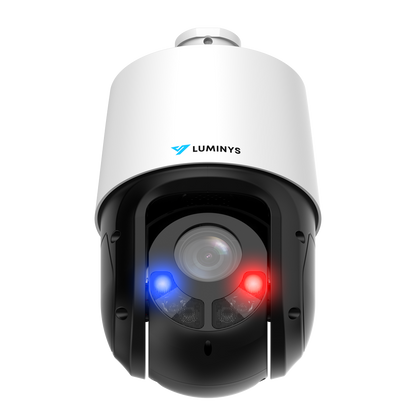

Luminys P5-D 4MP 25x LumiDeterrent PTZ Camera (P54-4DB25)

The Luminys P54-4DB25 is a 4MP Network 25x LumiDeterrent PTZ Camera built around a 1/2.8-in. Progressive CMOS sensor and a 5.0 mm (F1.6) to 125.0 mm (F3.6) lens. It is IP66 rated, NDAA compliant, and powered by 12 VDC, PoE+ (802.3at).

• 4MP Dome Housing1/2.8-in. Progressive CMOS, 2560 × 1440 maximum resolution.
• 25x Maximum Optical ZoomFocal length 5.0 mm (F1.6) to 125.0 mm (F3.6).
• LumiDeterrent With Red/Blue Lights and Built-In SpeakerLumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security.
• Dual-IlluminationIR and White-Light LEDs
• LumiSearchLumiSearch technology enables fast target detection and tracking in security video using a single reference image.
• Face DetectionFace Detection: Capture Snapshots and Facial Attributes.
• Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
• iMD, LumiTracking, LumiFocusIntelligent Motion Detection, supported with alarms for vehicles and humans.
• LumiPolarPro and LumiDesertProRated for -40 °F to 149 °F (-40 °C to 65 °C) operation.

Key technologies

LumiSearch

LumiSearch technology enables fast target detection and tracking in security video using a single reference image. The algorithm analyzes body shape to locate a person across any LumiSearch- enabled camera or NVR. It does not use facial recognition, require pre-registration, or collect personal data; instead, individuals are assigned random numbers used only for matching.

Video Content Analytics+ (VCA+)

Video Content Analytics+ (VCA+) is the umbrella for Line Crossing, Intrusion, Loitering Detection, and Parking Detection analytics. Line Crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. Loitering Detection sends alerts to mobile devices when it detects a person or vehicle lingering in an area for a pre-set duration. Parking Detection establishes a virtual perimeter around designated parking zones and triggers alerts when vehicles exceed the allowed parking time. VCA+ is specifically designed for more advanced and specialized applications as it offers more advanced features compared to standard video content analytics (VCA).

LumiDeterrent

LumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.

LumiTracking

LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.

LumiFocus

LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.

LumiPolarPro and LumiDesertPro

LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 65 °C (149 °F).

Specifications

Download the official P54-4DB25 datasheet (PDF)

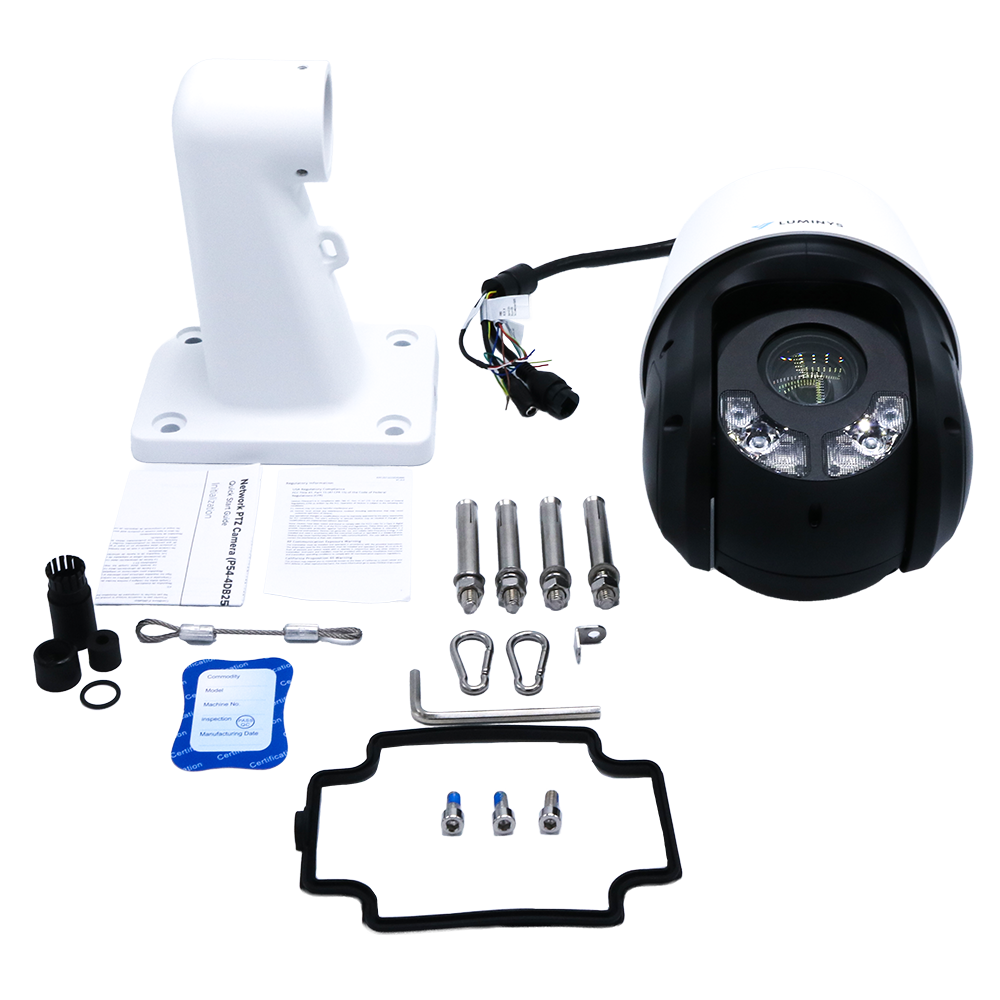

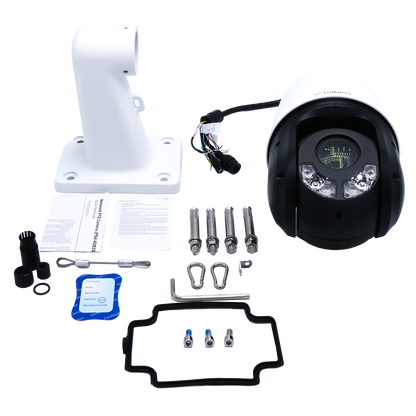

Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
