Luminys P5-S 4MP 25x LumiSearch PTZ with IR (P54-4SA25)

Name: Luminys P5-S 4MP 25x LumiSearch PTZ with IR (P54-4SA25)
Brand: Luminys
SKU: P54-4SA25
Price: 1218.58 USD
Availability: InStock

SKU:P54-4SA25

$1,218.58

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

The Luminys P54-4SA25 is a 4MP Network 25x LumiSearch PTZ Camera built around a 1/2.8-in. 4MP Progressive CMOS sensor and a 5.0 mm to 125.0 mm lens. It is IP66 rated, NDAA compliant, and powered by 12 VDC (3 A ± 10%), PoE+ (802.3at).

4MP Dome Housing1/2.8-in. 4MP Progressive CMOS, 2560 × 1440 maximum resolution.
25x Maximum Optical ZoomFocal length 5.0 mm to 125.0 mm.
Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
Face DetectionFace Detection: Capture Snapshots and Facial Attributes.
LumiSearchLumiSearch technology enables fast target detection and tracking in security video using a single reference image.
iMD, LumiTracking, LumiFocusIntelligent Motion Detection, supported with alarms for vehicles and humans.
LumiPolarPro and LumiDesertProRated for -40 °F to 158 °F (-40 °C to 70 °C) operation.

Key technologies

LumiTracking: LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
LumiSearch: LumiSearch technology enables fast target detection and tracking in security video using a single reference image. The algorithm analyzes body shape to locate a person across any LumiSearch- enabled camera or NVR. It does not use facial recognition, require pre-registration, or collect personal data; instead, individuals are assigned random numbers used only for matching.
LumiFocus: LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.
LumiPolarPro and LumiDesertPro: LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 60 °C (140 °F).

Specifications

Camera

Luminys Series	Mainstream
Zoom	25x
Image Sensor	1/2.8-in. 4MP Progressive CMOS
Maximum Resolution	2560 × 1440
Minimum Illumination	Color: 0.005 Lux at F1.6 Black/White: 0.0005 Lux at F1.6 0 Lux With IR Light On
Number of Illuminators	Four (4) IR LEDs
Illumination Range	328.1 ft (100.9 m)
Illuminator Control	Manual, Smart IR, Zoom Priority, Off
Electronic Shutter Speed	1/3 s to 1/100,000 s
Control Speed	Manual Control Pan: 0.1° to 200°/s Tilt: 0.1° to 120°/s
S/N Ratio	> 55 dB

Lens

Focal Length	5.0 mm to 125.0 mm
Aperture	F1.6 to F3.6
Field of View	Horizontal: 51.9° to 3.0° Vertical: 39.7° to 2.2° Diagonal: 63.1° to 3.7°
Close Focus Range	0.1 m to 0.5 m (0.3 ft to 1.6 ft)
DORI Distance	Detect: 315.9 ft to 6797.2 ft (96.3 m to 2071.8 m) Observe: 125.3 ft to 2718.2 ft (38.2 m to 828.5 m) Recognize: 64.0 ft to 1358.3 ft (19.5 m to 414.0 m) Identify: 32.2 ft to 679.1 ft (9.8 m to 207.0 m)

Pan/Tilt/Zoom

Range	Pan: 0° to 360° Endless Tilt: -15° to 90°, Auto Flip: 180°
Pan Speed	Manual Control: 0.1°/s to 200°/s Preset: 0.1°/s to 240°/s
Tilt Speed	Manual Control: 0.1°/s to 120°/s Preset: 0.1°/s to 200°/s
Preset	300
Tour	8 (Up to 32 Presets per Tour)
Pattern	5
Scan	5
Scheduled Modes	Preset, Pattern, Tour, Scan
Preset Freezing	Freezes Images Between Presets
LumiFocus	Images Maintain Focus When Zooming In or Out

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only)
Standard Codec	Supported
Stream Capability	Three (3) Streams
Resolution	4MP (2560 × 1440), 3MP (2304 × 1296), 3MP (2048 × 1536), 1080p (1920 × 1080), 960p (1280 × 960), 720p (1280 × 720), VGA (640 × 480), 352 × 240
Maximum Frame Rate	Main Stream 4MP/3MP/1080p/1.3MP/720p at 30 fps Sub Stream 1: D1/VGA/CIF at 30 fps Sub Stream 2: 1080p/1.3MP/720p at 30 fps
Video Bit Rate	H.265: 1 kbps to 8192 kbps H.264: 1 kbps to 14336 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB), BLC, HLC
Noise Reduction	2D NR, 3D NR
Image Rotation	180°
Image Stabilization	Electronic
Defog	Electronic
Region of Interest	8 Regions
Privacy Masking	24 Areas (Up to 8 Areas in the Same View)

Analytics

Video Content Analytics+	Line Crossing, Intrusion, Loitering Detection, Parking Detection, Crossing Virtual Fence, Abandoned/Missing Object, Aggregate Detection, Vehicle/ Human Alarm Classification, Linkage Tracking
Intelligent Motion Detection	Supported with Alarms for Vehicles and Humans
LumiSearch	Supported When Used With LumiSearch-Enabled NVRs
Face Detection	Capture Snapshots and Facial Attributes
LumiTracking	Automatically Tracks a Target in Motion for an Allotted Amount of time or Until the Object Exits the Scene

Audio

Compression	G.711a, G.711Mu, PCM, AAC
Sampling Bitrate	PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz AAC: 8,000 Hz to 64,000 Hz
Interface	Input: One (1) Channel Output: One (1) Channel

Alarm

Event	Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
Linkage	Capture, Recoding, Send Email, Preset, Tour, Pattern, Alarm Digital Output, Audio
Interface	Input: Two (2) Channel Output: One (1) Channel

Network

Interface	RJ-45 (10/100 Base-T)
Protocol	HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS
Interoperability	ONVIF (Profile S/G/T), CGI, SDK, P2P
Browser	Chrome, Firefox, Safari, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP/SFTP, NAS, Micro SD Card (Max. 512 GB)

Electrical

Power Supply	12 VDC (3 A ± 10%), PoE+ (802.3at)
Power Consumption	15 W (Max.)

Construction

Net Weight	3.0 kg (6.6 lb)
Gross Weight	4.5 kg (9.9 lb)
Operating Temperature	-40 °F to 158 °F (-40 °C to 70 °C)
Protection Ratings	IP66
Dimensions	Φ160.0 mm × 295.0 mm (Φ6.3 in. × 11.6 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

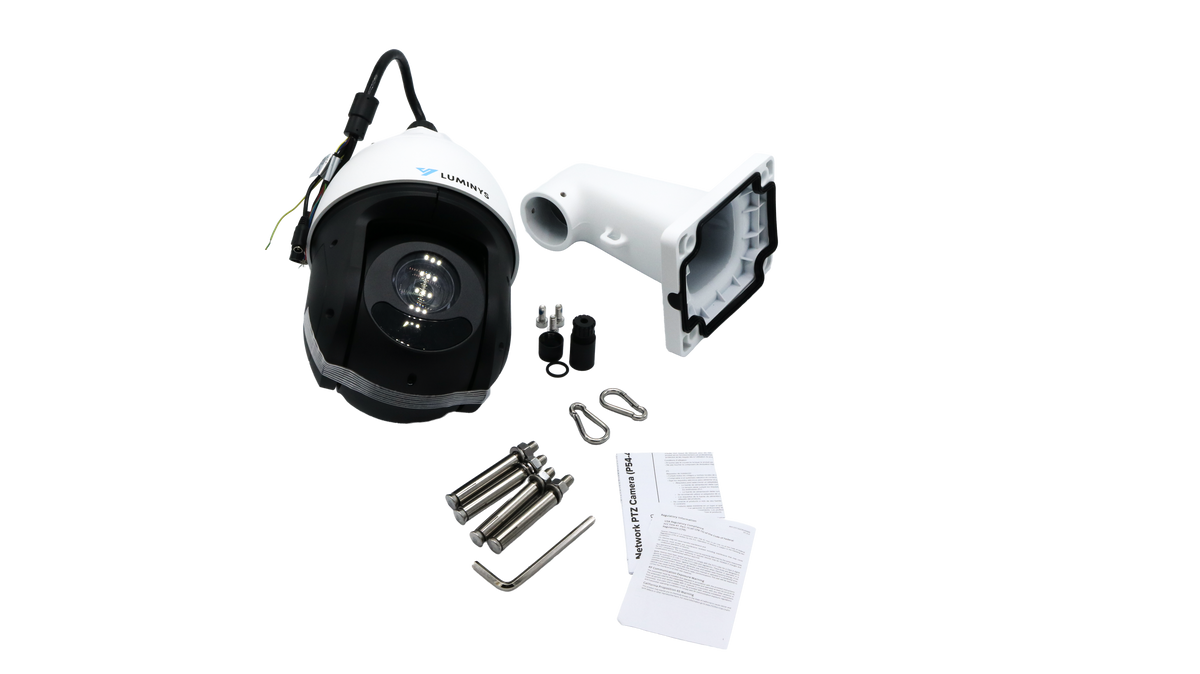

In the box

1	4MP Network 25x LumiSearch PTZ Camera (Luminys SKU: P54-4SA25)
1	Wall Mount Bracket (Luminys SKU: N5D/N5T/N3T/P45/P5-W01)
1	Wall Mount Rubber Grommet
1	Set Waterproof Connector
4	Expansion Bolts
3	Hex Screws
2	Spring Hooks
1	S5.0 L-Shaped Allen Wrench
1	Quick Start Guide
1	Regulatory Information

Mounting options

Wall Mount	LUM-W02 (included)
Horizontal Pole Mount	LUM-W02 (included) + LUM-D01 + LUM-P01
Vertical Pole Mount	LUM-A08 + LUM-E02 + LUM-P01
Corner Mount	LUM-W02 (included) + LUM-C01

Download the official P54-4SA25 datasheet (PDF)

Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
