Luminys P5-S 4MP 32x LumiSearch In-Ceiling PTZ (P5C-4SA32)
Luminys P5-S 4MP 32x LumiSearch In-Ceiling PTZ (P5C-4SA32)
SKU:P5C-4SA32
Regular price
$2,275.18
Regular price
Sale price
$2,275.18
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

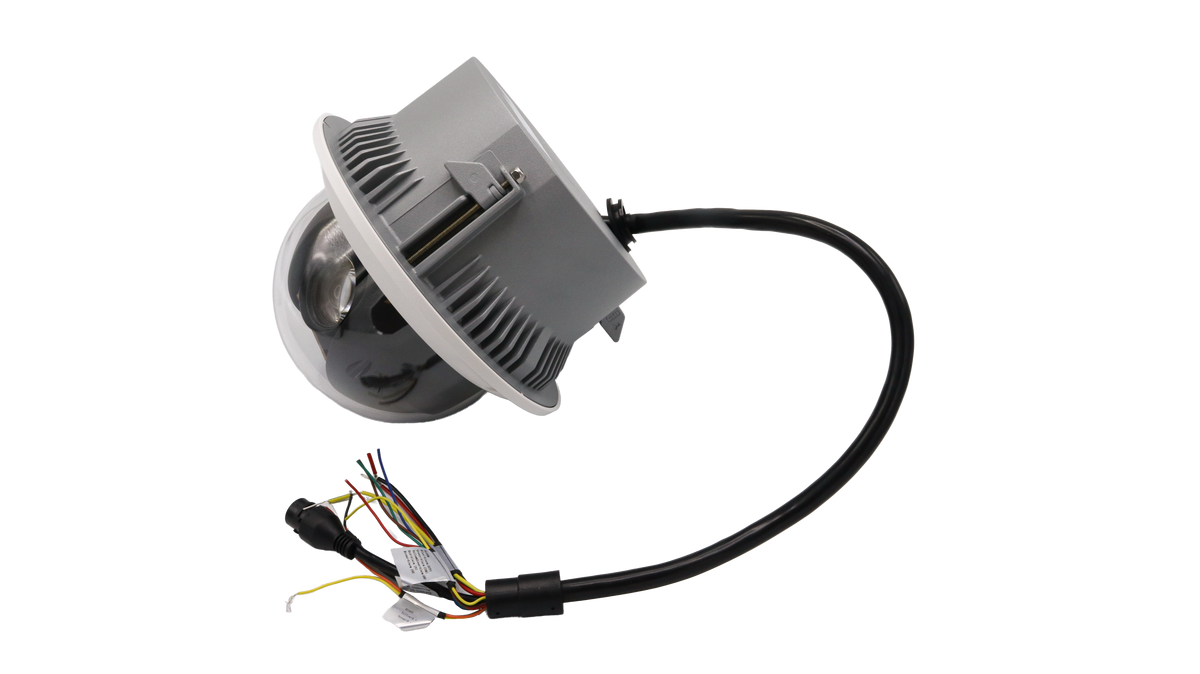

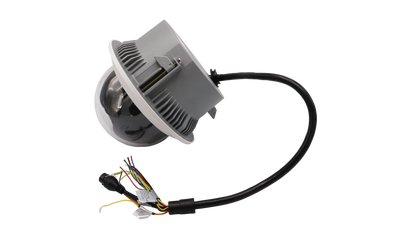

The Luminys P5C-4SA32 is a 4MP Network 32x LumiSearch PTZ Camera built around a 1/2.8-in. 4MP Progressive CMOS sensor and a 4.8 mm to 154.0 mm lens. It is IK10 rated, NDAA compliant, and powered by 24 VDC (2.5 A ± 25%), PoE+ (802.3at).
- 4MP In-Ceiling Dome Housing1/2.8-in. 4MP Progressive CMOS, 2560 × 1440 maximum resolution.
- 32x Maximum Optical ZoomFocal length 4.8 mm to 154.0 mm.
- Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
- Face Detection, People CountingFace Detection: Capture Snapshots and Facial Attributes. People Counting: Enter/Exit and In-Area People Counting, Queue Management With Report.
- LumiSearchLumiSearch technology enables fast target detection and tracking in security video using a single reference image.
- iMD, LumiTracking, LumiFocusIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -22 °F to +140 °F (-30 °C to +60 °C) operation.
Key technologies
- LumiTracking
- LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
- LumiSearch
- LumiSearch technology enables fast target detection and tracking in security video using a single reference image. The algorithm analyzes body shape to locate a person across any LumiSearch- enabled camera or NVR. It does not use facial recognition, require pre-registration, or collect personal data; instead, individuals are assigned random numbers used only for matching.
- LumiFocus
- LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 60 °C (140 °F).
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Zoom | 32x |
| Image Sensor | 1/2.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination |
Color: 0.005 Lux at F1.6 Black/White: 0.0005 Lux at F1.6 |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom |
Pan: 0.1° to 350° Tilt: 0.1° to 250° |
| S/N Ratio | > 55 dB |
| Power-Off Memory | Supported |
Lens
| Focal Length | 4.8 mm to 154.0 mm |
|---|---|
| Aperture | F1.6 to F4.0 |
| Field of View |
Horizontal: 55.8° to 2.3° Vertical: 31.9° to 1.3° Diagonal: 63.7° to 2.7° |
| Close Focus Range | 0.1 m to 1.5 m (0.3 ft to 4.9 ft) |
| DORI Distance |
Detect: 315.9 ft to 10,104.3 ft (96.3 m to 3079.8 m) Observe: 125.3 ft to 3,991.1 ft (38.2 m to 1,216.5 m) Recognize: 64.0 ft to 2,019.4 ft (19.5 m to 615.5 m) Identify: 32.2 ft to 1,010.5 ft (9.8 m to 308.0 m) |
Pan/Tilt/Zoom
| Range | Tilt: 0°to 90°, Auto Flip: 180° |
|---|---|
| Pan Speed | Manual Control: 0.1°/s to 350°/s Preset: 0.1°/s to 500°/s |
| Tilt Speed | Manual Control: 0.1°/s to 250°/s Preset: 0.1°/s to 500°/s |
| Preset | 300 |
| Tour | 8 (Up to 32 Presets per Tour) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| LumiFocus | Images Maintain Focus When Zooming In or Out |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only) |
|---|---|
| Stream Capability | Three (3) Streams |
| Resolution | 4MP (2560 × 1440), 3MP (2304 × 1296), 3MP (2048 × 1536), 1080p (1920 × 1080), 960p (1280 × 960), 720p (1280 × 720), VGA (640 × 480), D (704 × 480), CIF (352 × 240) |
| Maximum Frame Rate |
Main Stream 4MP/3MP/1080p/1.3MP/720p at 30 fps Sub Stream 1: D1/VGA/CIF at 30 fps Sub Stream 2: 1080p/1.3MP/720p at 30 fps |
| Video Bit Rate |
H.265: 38 kbps to 8960 kbps H.264: 96 kbps to 14848 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB), BLC, HLC |
| Noise Reduction | 2D NR, 3D NR |
| Image Rotation | 180° |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Region of Interest | Eight (8) Areas |
| Privacy Masking | 24 Areas (Up to 8 Areas in the Same View) |
Analytics
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering Detection, Parking Detection, People Counting, Abandoned/Missing Object, People Gathering, Vehicle/Human Alarm Classification, Linkage Tracking |
|---|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| People Counting | Enter/Exit and In-Area People Counting, Queue Management With Report |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
| LumiTracking | Automatically Tracks a Target in Motion for an Allotted Amount of Time or Until the Object Exits the Scene |
Audio
| Compression | G.711a, G.711Mu, PCM, AAC |
|---|---|
| Sampling Bitrate |
PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz AAC: 8,000 Hz, 16,000 Hz, 32,000 Hz 48,000 Hz, 64,000 Hz |
| Interface |
Input: One (1) Channel Output: One (1) Channel |
Alarm
| Event | Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection |
|---|---|
| Linkage | Capture, Recoding, Send Email, Preset, Tour, Pattern, Alarm Digital Output, Audio |
| Interface |
Input: Two (2) Channels Output: One (1) Channel |
Network
| Port | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Browser | Chrome, Firefox, Safari |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP/SFTP, NAS, Micro SD Card (Max. 512 GB) |
Electrical
| Power Supply | 24 VDC (2.5 A ± 25%), PoE+ (802.3at) |
|---|---|
| Power Consumption | 15 W (Max.) |
Construction
| Net Weight | 2.2 kg (4.9 lb) |
|---|---|
| Gross Weight | 3.7 kg (8.2 lb) |
| Operating Temperature | -22 °F to +140 °F (-30 °C to +60 °C) |
| Protection Ratings | IK10 |
| Dimensions | Φ198.2 mm × 176.6 mm (Φ7.8 in. × 7.0 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Download the official P5C-4SA32 datasheet (PDF)
Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
