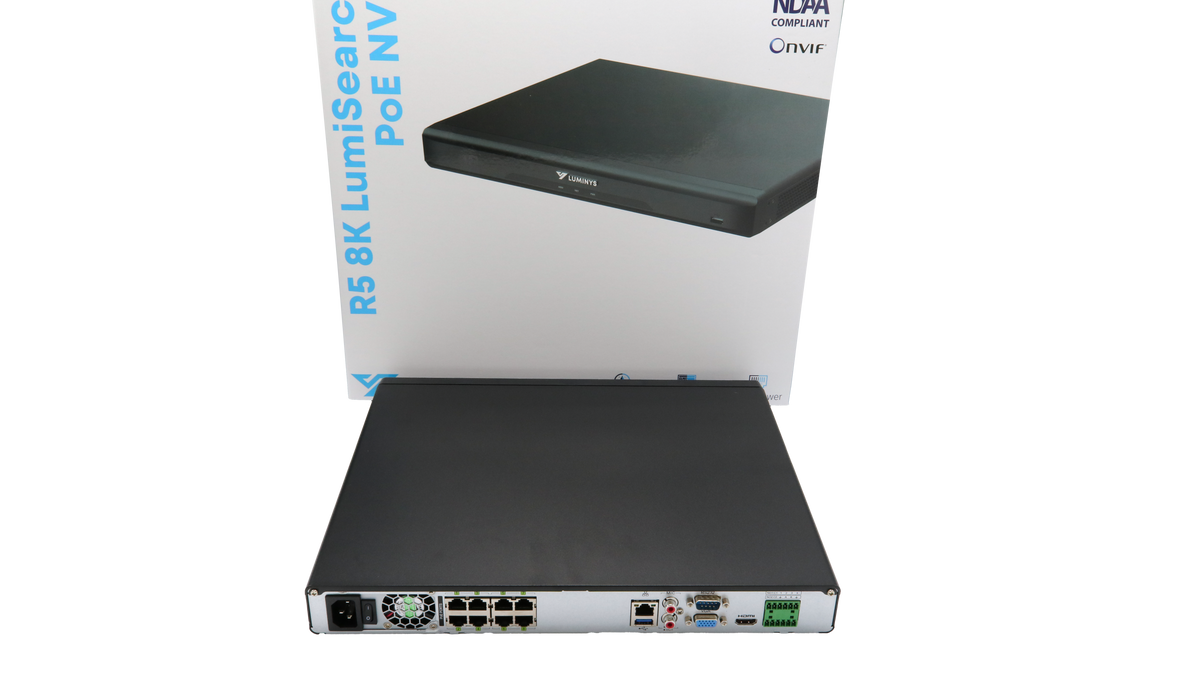

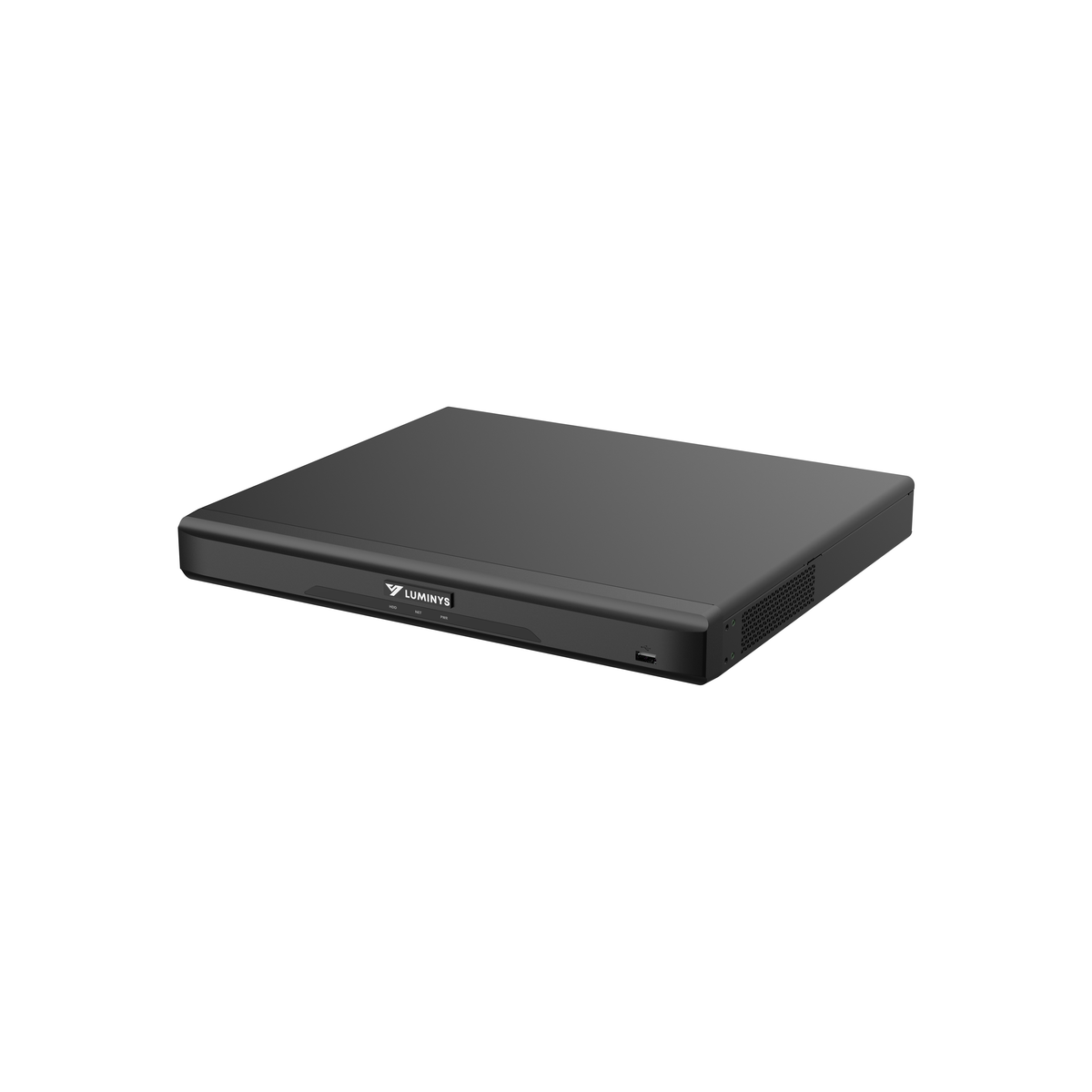

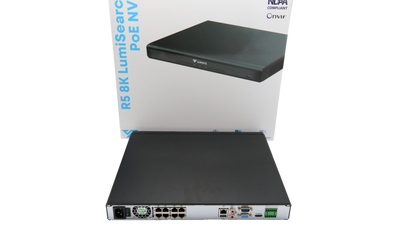

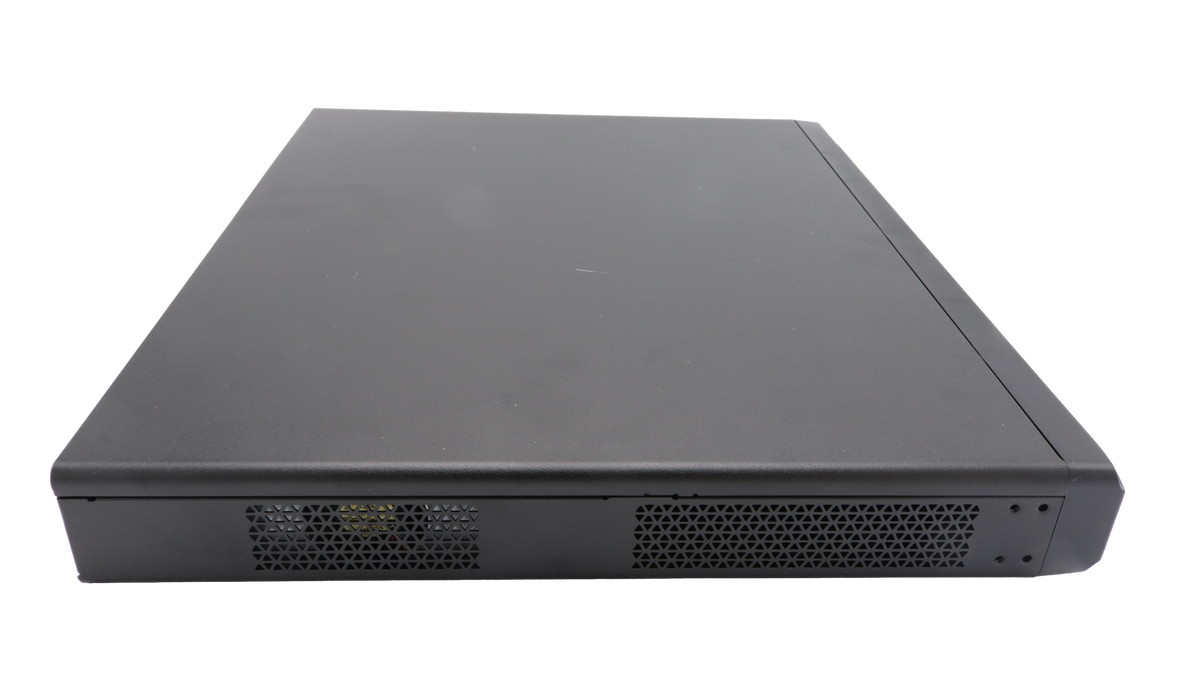

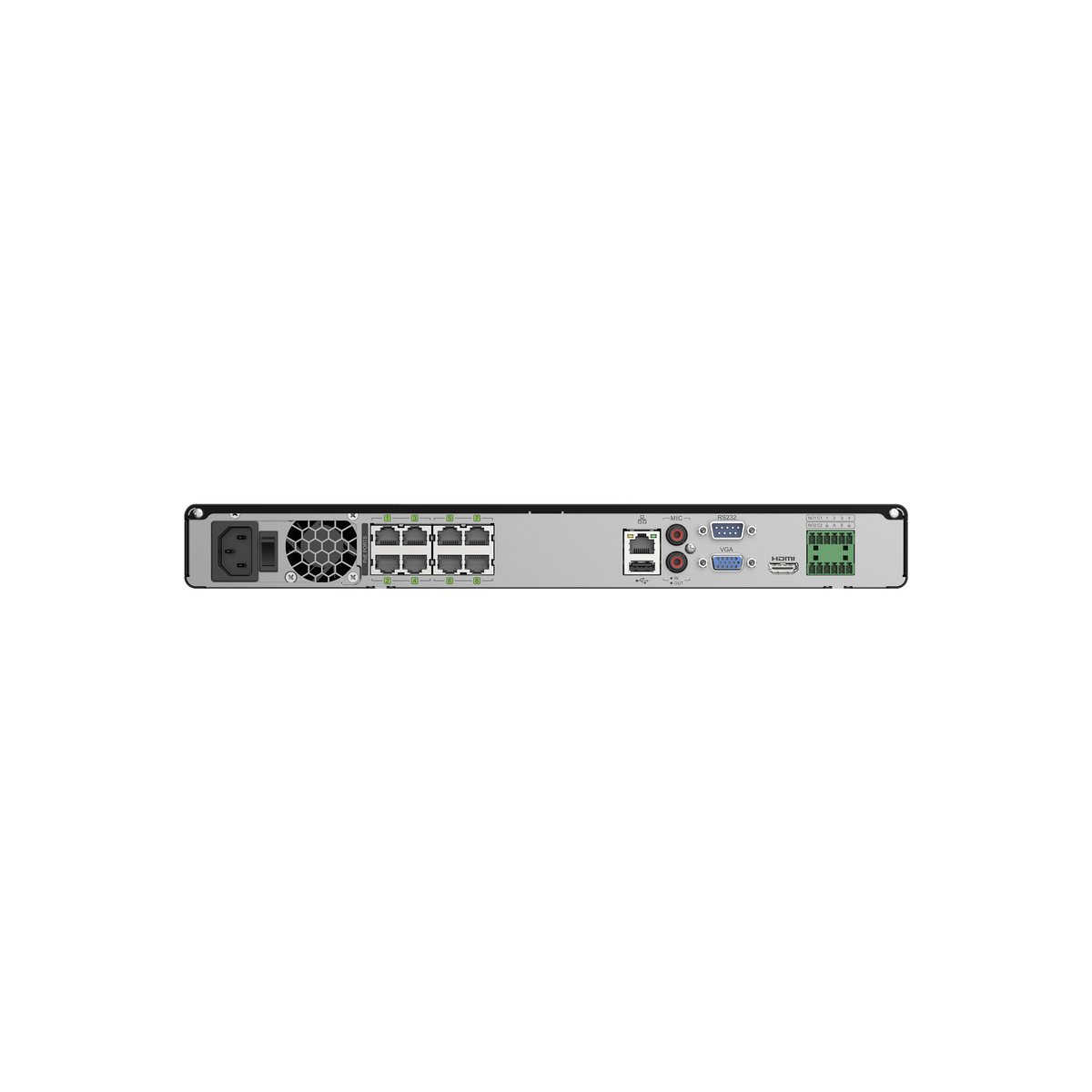

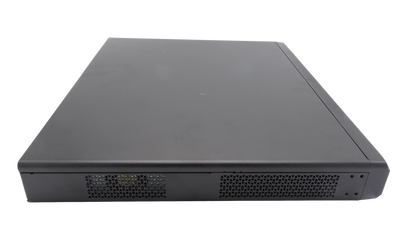

Luminys R5 Mainstream NVR, 32MP 8 CH 8-Port PoE, 2SATA, LumiPower, LumiSearch+ (R52-8PA)

The Luminys R52-8PA is an 8-channel R5 Mainstream Series NVR that records cameras up to 32MP and powers them through 8 built-in PoE ports. It has two SATA bays for up to 32 TB of storage (drives sold separately) and HDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080. It is NDAA compliant.

• 8K NVRRecords cameras up to 32MP. HDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080.
• 8 Channels With Two (2) SATA PortsEach SATA bay supports a drive up to 16 TB (sold separately). Incoming bandwidth up to 256 Mbps.
• 8 PoE Ports With LumiPower SupportLumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet.
• HDMI/VGA OutputHDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080.
• Supports LumiSearch+LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image.
• iMD, Face Recognition, and VCA by RecorderThe NVR runs iMD on up to 8CH, VCA on up to 4CH, and face capture and recognition on up to 2CH.

Key technologies

LumiSearch+

LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. LumiSearch+ provides enhanced LumiSearch functionality by allowing users search for targets using attribute search, filter out animals using animal search, and create custom intrusion zones to monitor irregular or high-risk areas more precisely.

LumiPower

LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.

LumiViewer

LumiViewer is a desktop and mobile application that streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.

Specifications

Download the official R52-8PA datasheet (PDF)

Per Luminys: LumiSearch+ requires the use of a LumiSearch+-enabled camera. Hard drives are not included. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
