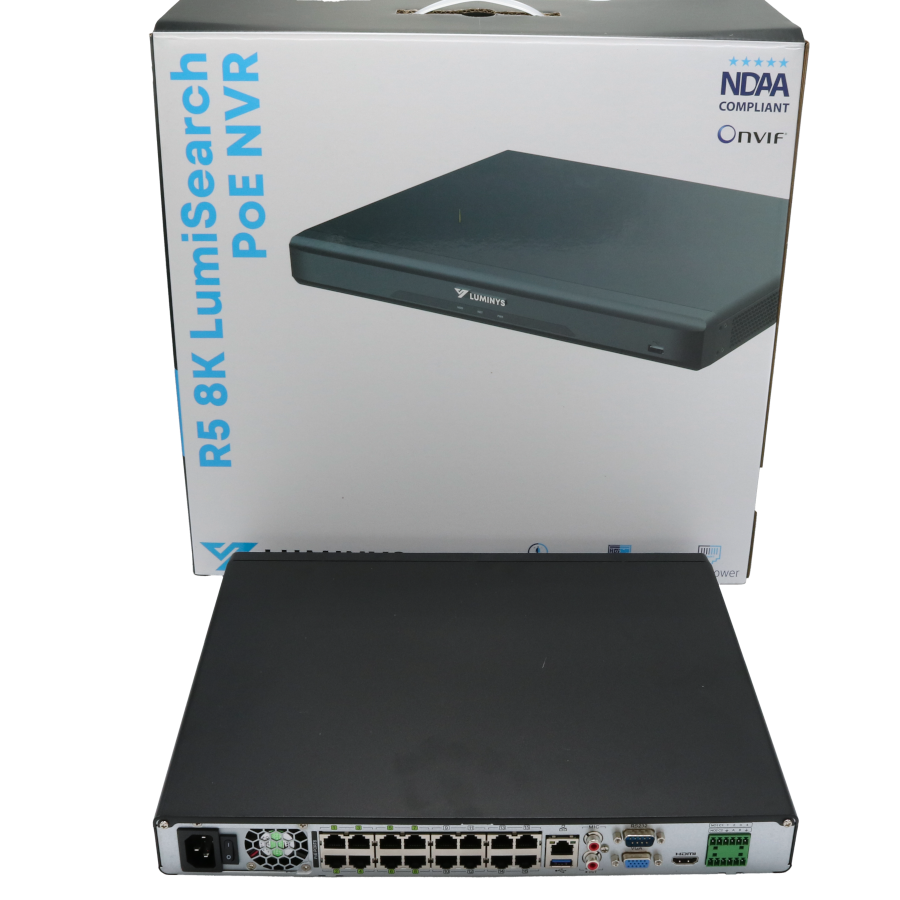

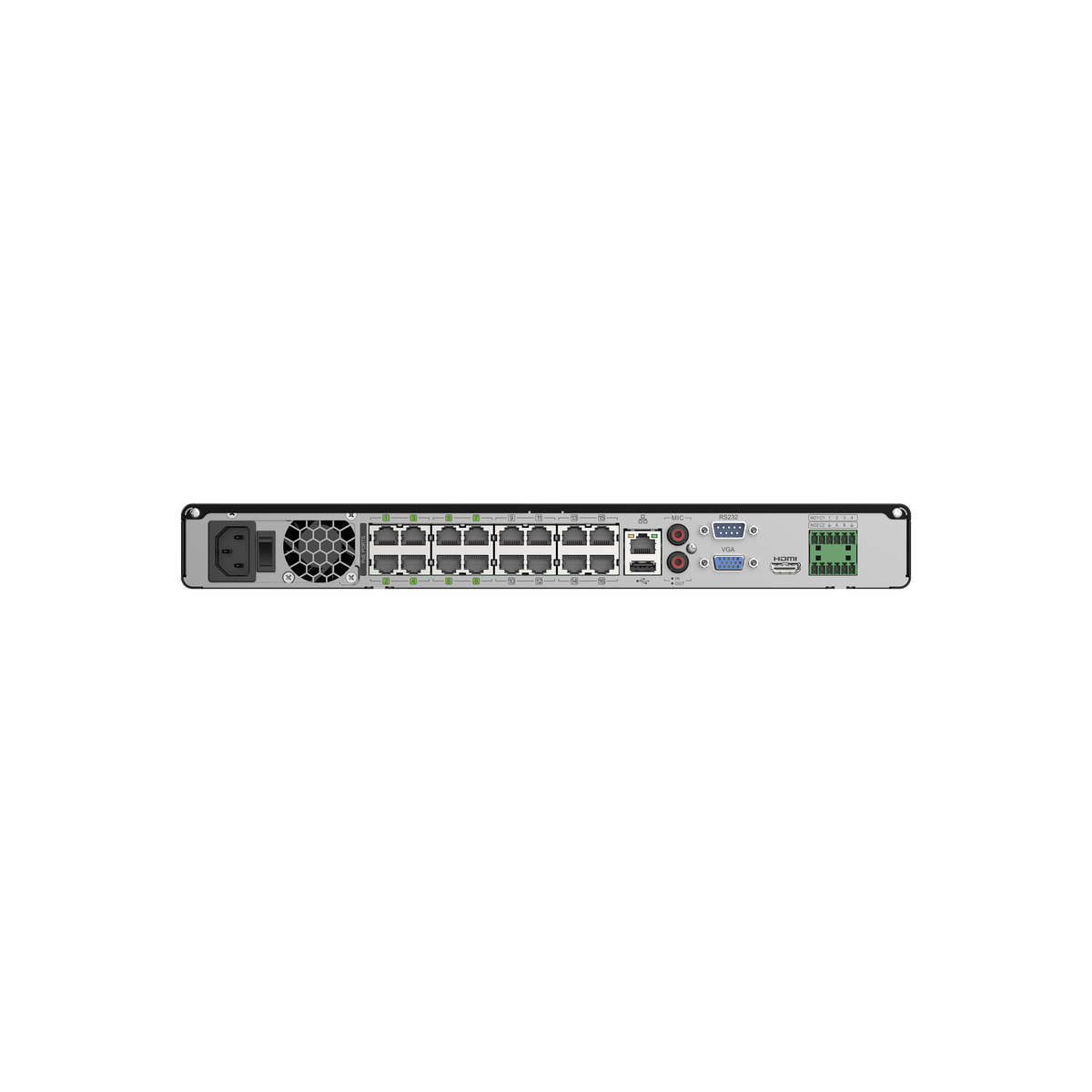

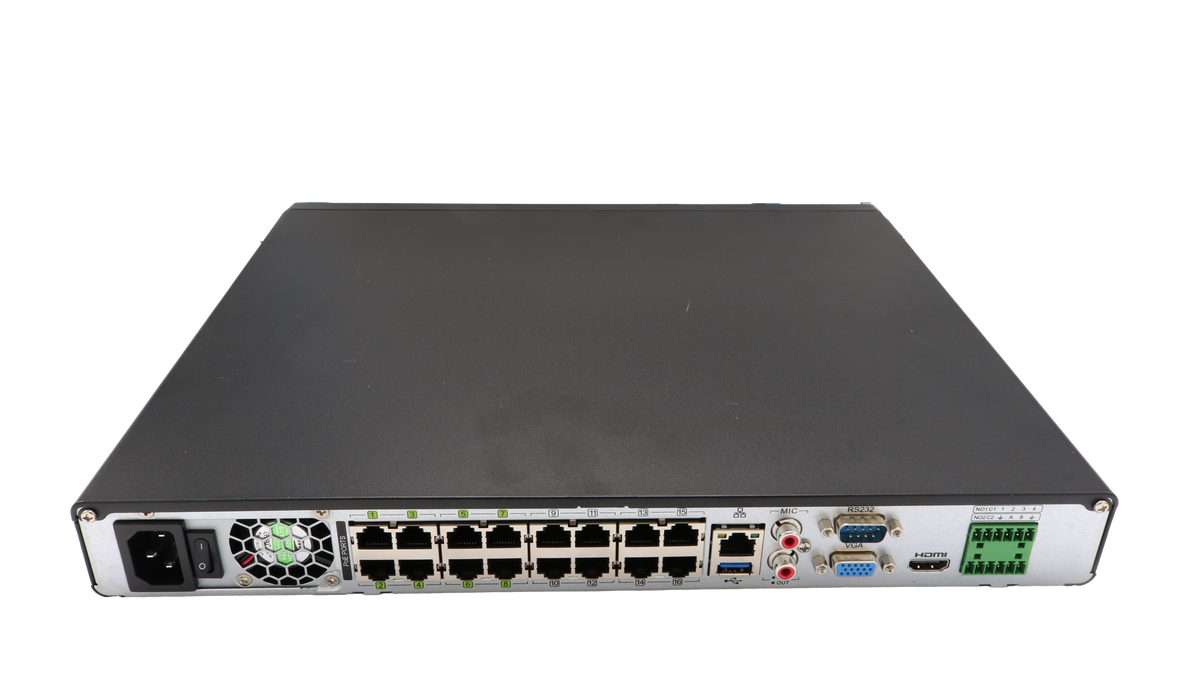

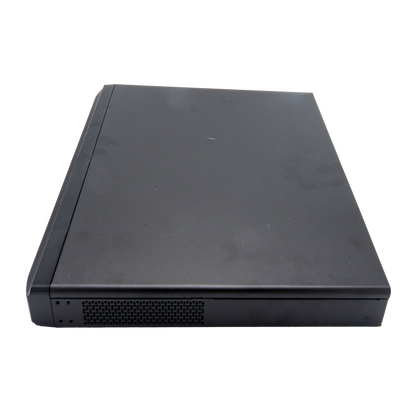

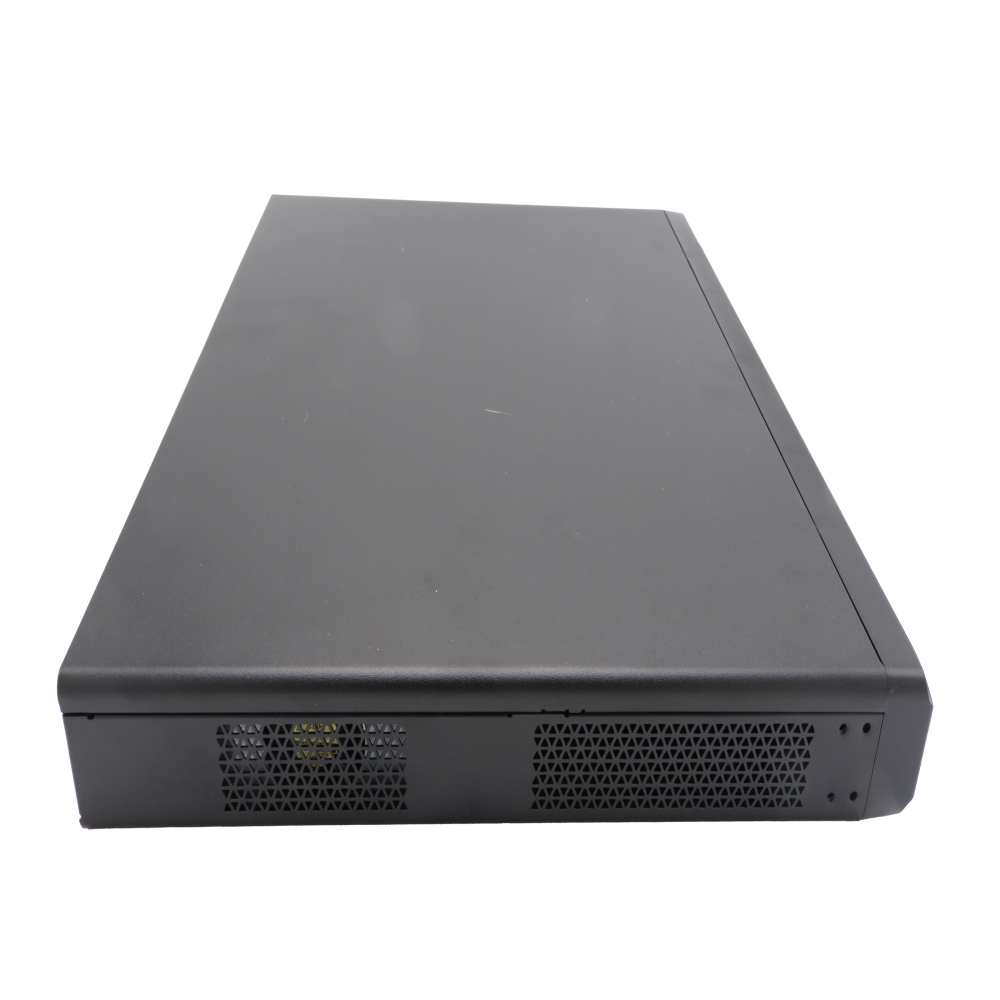

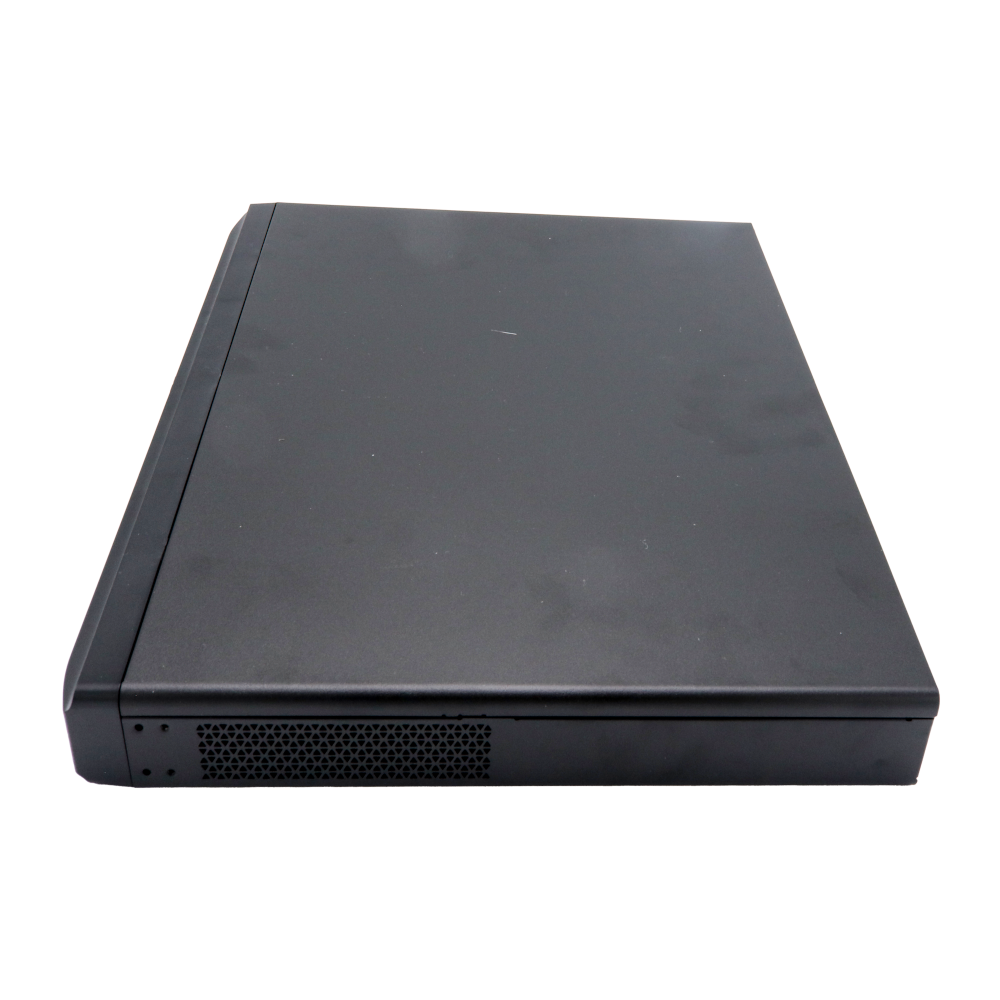

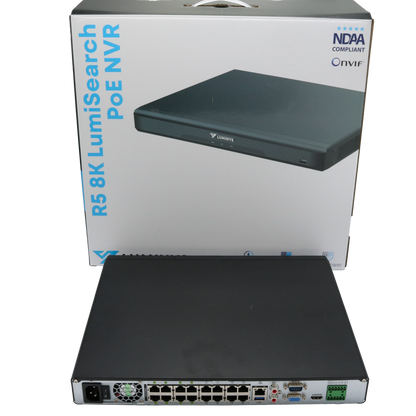

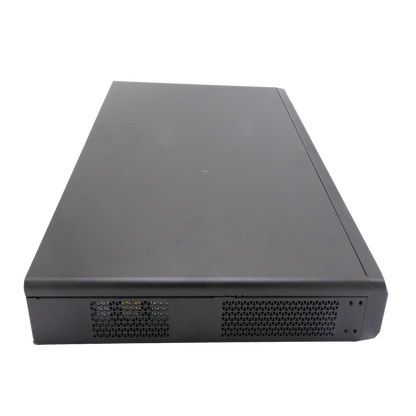

Luminys R5 Mainstream Series NVR, 8K 16 Channel, 16 PoE (R52-16PA)
Luminys R5 Mainstream Series NVR, 8K 16 Channel, 16 PoE (R52-16PA)
SKU:R52-16PA
Regular price
$1,123.99
Regular price
Sale price
$1,123.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support
The Luminys R52-16PA is a R5 Mainstream Series NVR, 8K 16 Channel, 16 PoE. It is NDAA compliant, and powered by 100-240 V, 47-63 Hz.
- 8K NVR
- 16 Channels With Two (2) SATA Ports
- 16 PoE Ports With LumiPower Support (Ports 1-8)LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet.
- HDMI/VGA Output
- Supports LumiSearch+*LumiSearch+* technology lets you quickly find, track, and identify targets in security footage using a reference image.
- iMD, Face Recognition, and VCA by RecorderIntelligent Motion Detection, camera: 16CH; NVR: 8CH.
Key technologies
- LumiSearch+*
- LumiSearch+* technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. LumiSearch+ provides enhanced LumiSearch functionality by allowing users search for targets using attribute search, filter out animals using animal search, and create custom intrusion zones to monitor irregular or high-risk areas more precisely.
- LumiPower
- LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.
- LumiViewer
- LumiViewer is a desktop and mobile application that streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.
Specifications
Video
| Video Input | 16 Channels |
|---|---|
| Recording Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions |
HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024 VGA: 1920 × 1080, 1280 x 1024 |
| Live View/Playback Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
Decoding
| Format | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG |
|---|---|
| Capability |
AI On: 1CH at 32MP (30 fps), 2CH at 16MP (30 fps), 4CH at 8MP (30 fps), 12CH at 4MP (30 fps) AI Off: 2CH at 32MP (30 fps), 4CH at 16MP (30 fps), 8CH at 8MP (30 fps), 16CH at 4MP (30 fps) |
| Live View Window Division | 1, 4, 8, 9, 16 views |
| Auxiliary Port Window Division | 1, 4, 8, 9, 16 views |
| Synchronous Playback | 16 Channels |
Supported Analytics
| Intelligent Motion Detection |
Camera: 16CH NVR: 8CH |
|---|---|
| Video Content Analytics (VCA) |
Camera: 16CH NVR: 4CH 10 Rules per Channel |
| Face Recognition |
Face Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 16CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total) |
| LumiSearch+* | 16CH (Must be Supported by Camera) |
| Video Metadata | 8CH (Analytics by Camera) |
| License Plate Recognition | 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers |
| *LumiSearch+ requires the use of a LumiSearch+-enabled | camera. |
Interface
| SATA | Two (2) Ports |
|---|---|
| HDD | Up to 16TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Sixteen (16) RJ-45 Self-Adaptive Ether-net (10/100 Mbps) |
| USB |
Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 3.0 |
| Serial Port | 1 x RS-232 |
| Alarm |
Input: Four (4) Channels Output: Two (2) Channels |
| Audio |
Input: 1-Channel RCA Input Output: 1-Channel RCA Output |
Network
| Bandwidth |
AI On: Incoming 220 Mbps, Outgoing 220 Mbps AI Off: Incoming 400 Mbps, Outgoing 400 Mbps |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud |
Electrical
| Power Supply | 100-240 V, 47-63 Hz |
|---|---|
| Power Consumption | < 10 W (HDD Not Included) PoE: 130 W (Max. Output for Single Port: 25.5 W) |
Construction
| Installation Method | Rack- or Desktop-Mount |
|---|---|
| Weight | 2.6 kg (5.9 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) 10% to 93% |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm (14.7 × 12.8 × 1.7 in.) |
Certifications and Compliance
| Certifications | FCC |
|---|---|
| Compliance | NDAA |
Download the official R52-16PA datasheet (PDF)
Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
