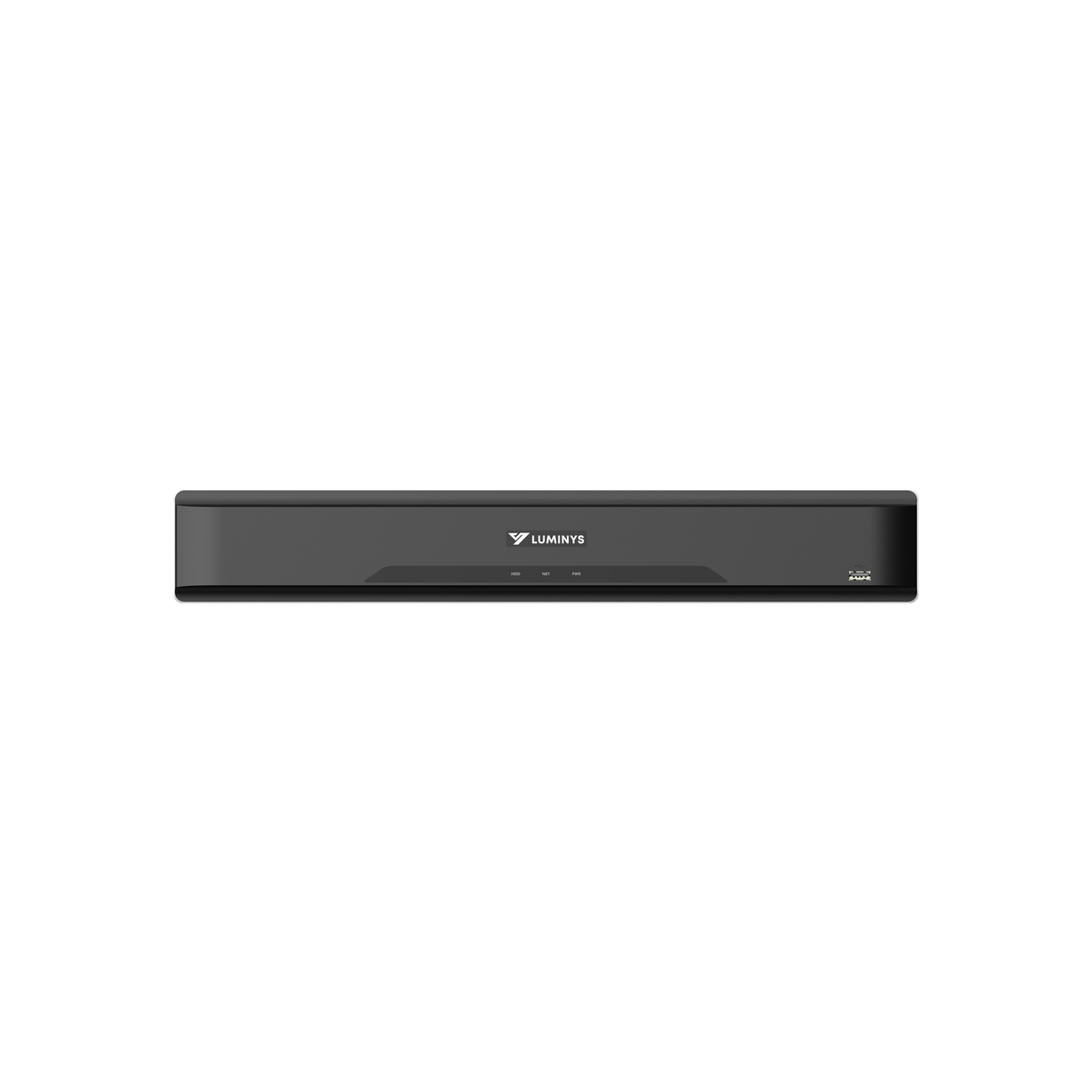

• Luminys R54-32NA4 Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC, front view

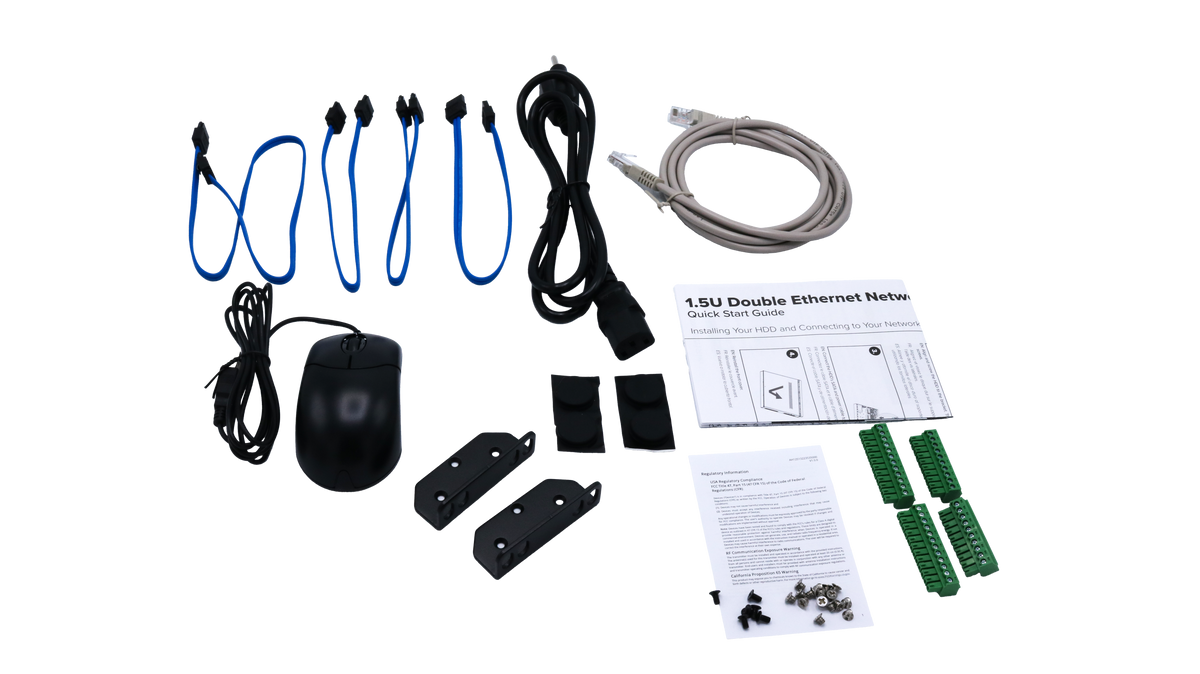

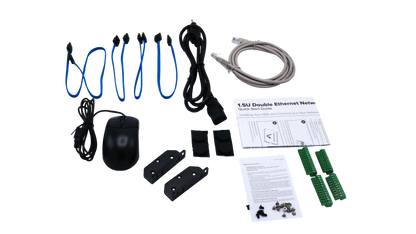

  • Luminys R54-32NA4 Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC, product view

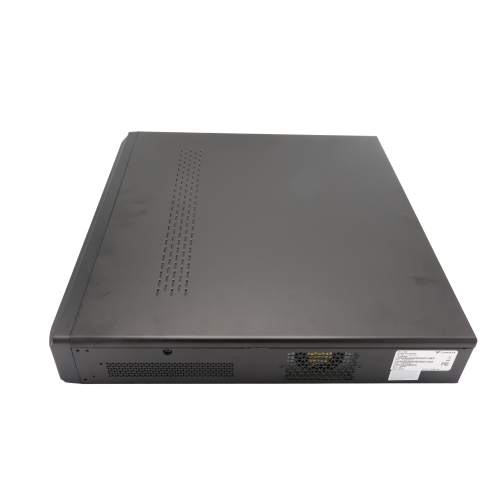

  • Luminys R54-32NA4 Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC, side view

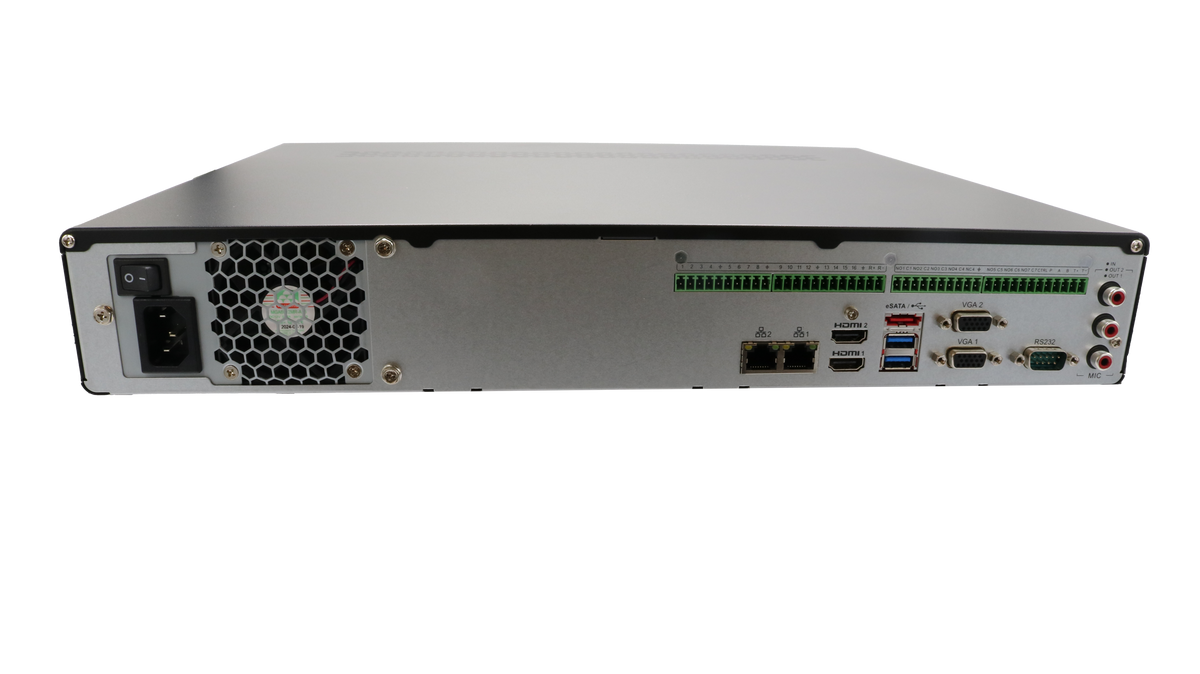

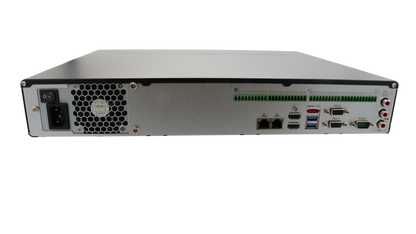

  • Luminys R54-32NA4 Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC, rear view

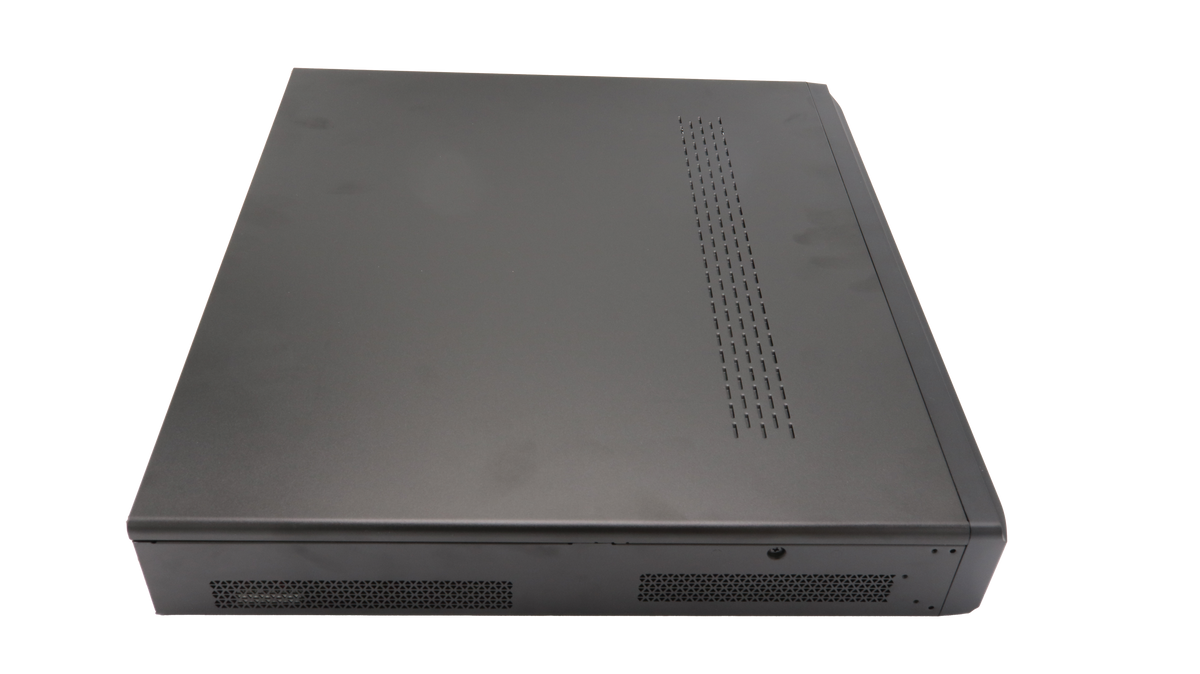

  • Luminys R54-32NA4 Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC, side view
  • Luminys R54-32NA4 Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC, side view
1 6

Luminys

Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC (R54-32NA4)

Luminys R5 Mainstream Series NVR, 8K 32 Channel, Dual NIC (R54-32NA4)

R54-32NA4

$2,241.99
$2,241.99
Sale Sold out
Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

  • Genuine OEM part
  • Ships from Texas
  • Real tech support

The Luminys R54-32NA4 is a R5 Mainstream Series NVR, 8K 32 Channel. It is NDAA compliant, and powered by 100 to 240 VAC, 50 to 60 Hz.

  • 8K NVR
  • 32 Channels With Four (4) SATA Ports and One (1) eSATA Port
  • Dual NIC
  • HDMI/VGA Output
  • Supports LumiSearch+*LumiSearch+* technology lets you quickly find, track, and identify targets in security footage using a reference image.
  • iMD, Face Recognition, and VCA by RecorderIntelligent Motion Detection, camera: 16CH; NVR: 8CH.

Key technologies

LumiSearch+*
LumiSearch+* technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. LumiSearch+ provides enhanced LumiSearch functionality by allowing users to create custom intrusion zones to monitor irregular or high-risk areas more precisely.
LumiViewer
LumiViewer is a desktop and mobile application that streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.

Specifications

Video
Video Input 32 Channels
Recording Resolutions 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output Resolutions HDMI (2CH): 4K (3840 × 2160), 1920 × 1080, 1280 x 1024
VGA (2CH): 1920 × 1080, 1280 x 1024 HDMI1/HDMI2 Independent Output HDMI1/VGA Simultaneous Output HDMI2/VGA2 Simultaneous Output
Live View/Playback Resolutions 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding
Format Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG
Capability AI On: 1CH at 32MP (30 fps), 2CH at 16MP (30 fps), 4CH at 8MP (30 fps), 12CH at 4MP (30 fps), 24CH at 1080p (30 fps)
AI Off: 2CH at 32MP (30 fps), 4CH at 16MP (30 fps), 8CH at 8MP (30 fps), 16CH at 4MP (30 fps), 32CH at 1080p (30 fps)
Live View Window Division 1, 4, 9, 16, 25, 36 Views
Auxiliary Port Window Division 1, 4, 8, 9, 16 Views
Synchronous Playback 16 Channels
Supported Analytics
Intelligent Motion Detection Camera: 16CH
NVR: 8CH
Video Content Analytics (VCA) Camera: 16CH
NVR: 4CH
10 Rules per Channel
Face Recognition Face Capture and Recognition: 2CH
Face Picture Comparison Alarm From
Camera: 16CH
Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total)
LumiSearch+* 16CH (Must be Supported by Camera)
Video Metadata 8CH (Analytics by Camera)
License Plate Recognition 8CH (LPR Camera Required)
Two (2) Block List, Two (2) Allow List
Up to 20,000 Plate Numbers
*LumiSearch+ requires the use of a LumiSearch+-enabled camera.
Interface
SATA Four (4) Ports
eSATA One (1) Port
HDD Up to 16TB per HDD
Network Two (2) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
USB Front Panel: 1 x USB 2.0
Rear Panel: 2 x USB 3.0
Serial Port 1 x RS-232
Alarm Input: 16 Channels
Output: 6 Channels
Audio Input: 1-Channel RCA Input
Output: 2-Channel RCA Output
Network
Bandwidth AI On: Incoming 220 Mbps, Outgoing 220 Mbps
AI Off: Incoming 400 Mbps, Outgoing 400 Mbps
Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
Interoperability ONVIF, RTSP
PoE Standard IEEE 802.3 af/at
Client LumiViewer, LumiViewer Mobile App, LumiCloud
Electrical
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption < 13 W (HDD Not Included)
Construction
Installation Method Rack- or Desktop-Mount
Weight 4.7 kg (10.5 lb) Without HDD
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
10% to 93%
Dimensions (W × D × H) 442.0 × 414.1 × 68.0 mm
(17.4 × 16.3 × 2.7 in.)
Certifications and Compliance
Certifications FCC
Compliance NDAA

Download the official R54-32NA4 datasheet (PDF)

Photos/specs from base model R54-32NA; Q3 SKU is drive-bundled variant. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
