Luminys R54-32PA 32-Channel Mainstream NVR

Name: Luminys R54-32PA 32-Channel Mainstream NVR
Brand: Luminys
SKU: R54-32PA
Price: 1871.98 USD
Availability: InStock

SKU:R54-32PA

$1,871.98

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

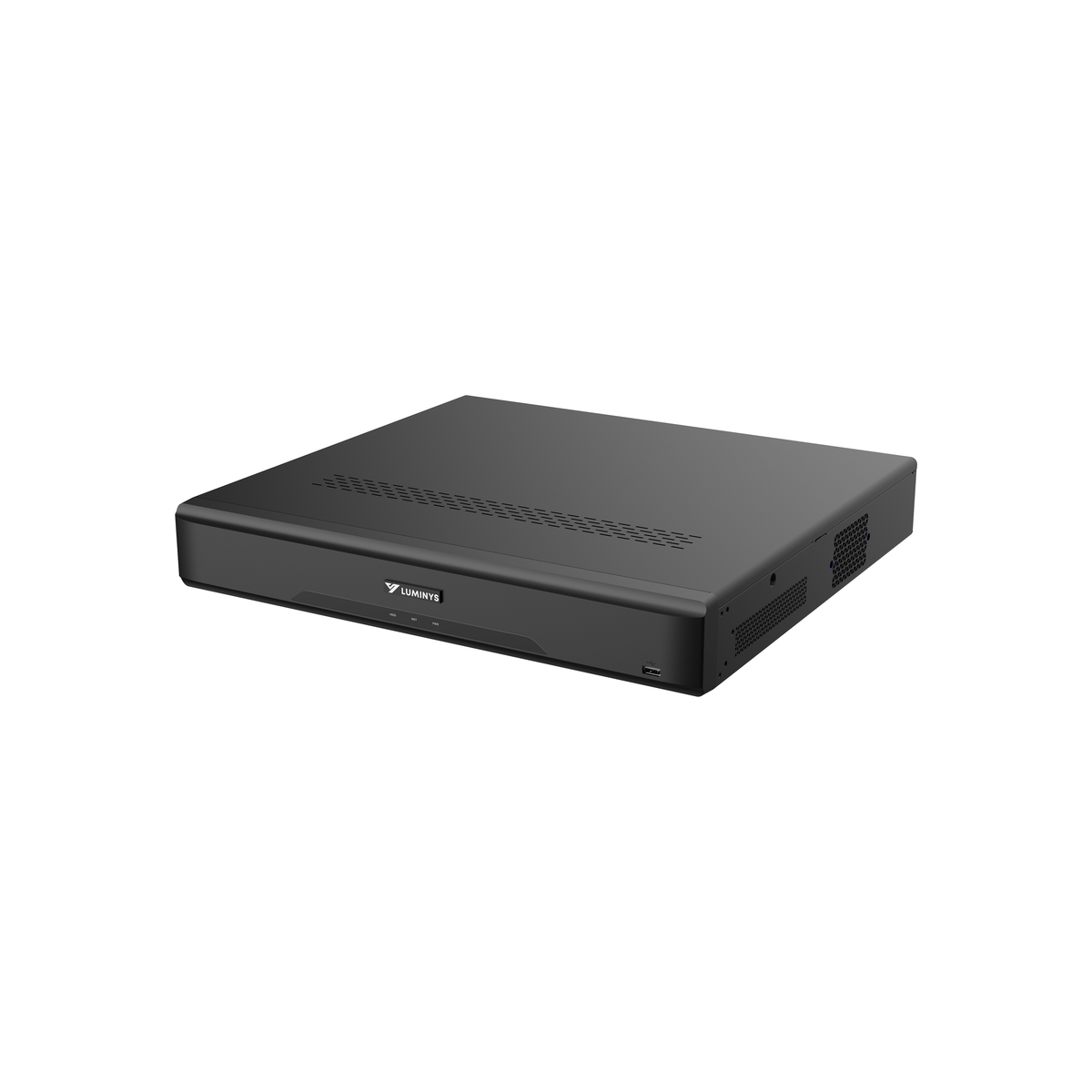

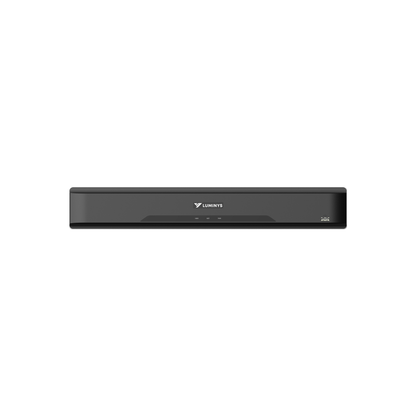

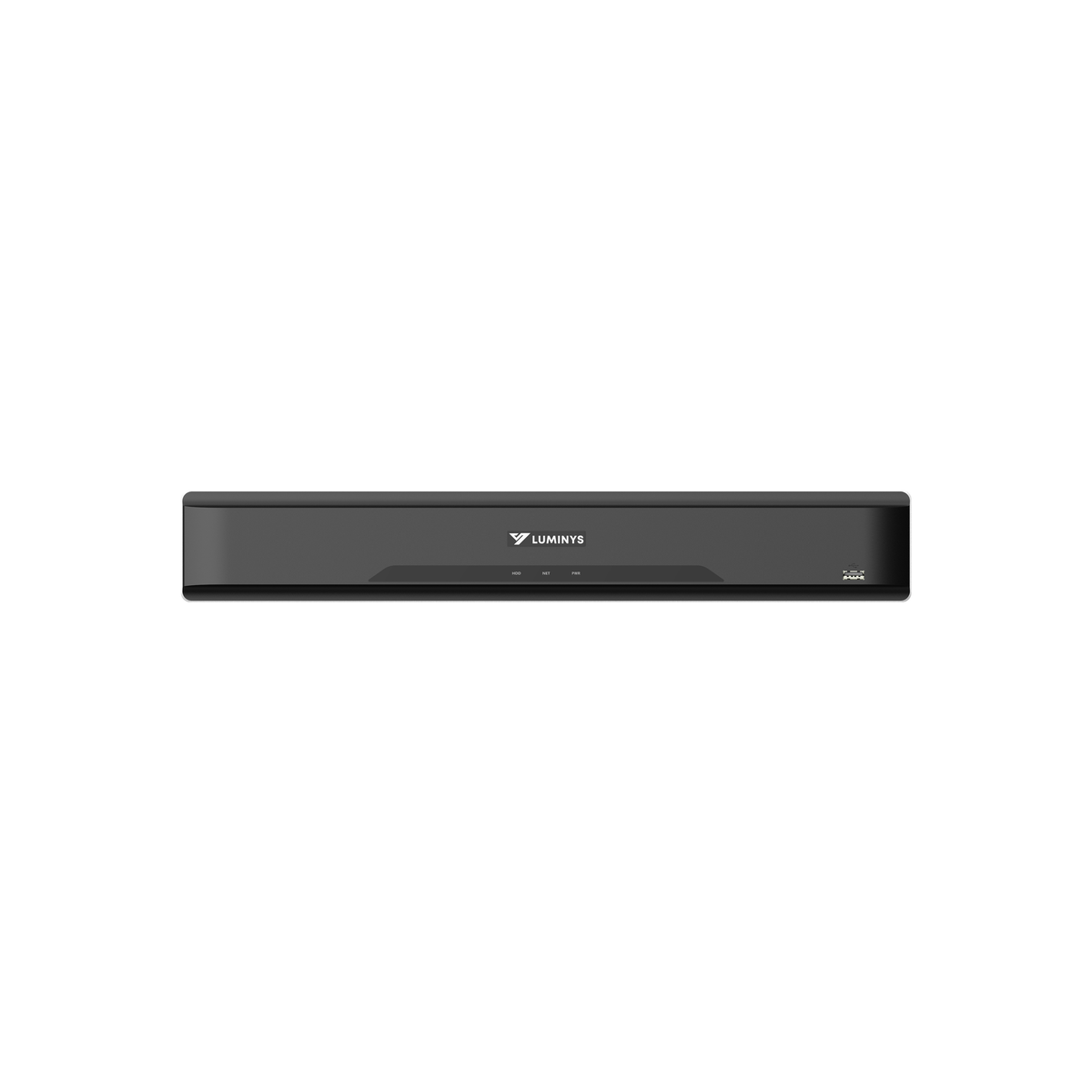

The Luminys R54-32PA is a 32-channel R5 Mainstream Series NVR that records cameras up to 32MP and powers them through 24 built-in PoE ports. It has four SATA bays for up to 64 TB of storage (drives sold separately), an eSATA port, and two HDMI outputs up to 4K (3840 × 2160) plus two VGA outputs up to 1920 × 1080. It is NDAA compliant.

8K NVRRecords cameras up to 32MP. Two HDMI outputs up to 4K (3840 × 2160) plus two VGA outputs up to 1920 × 1080.
32 Channels With Four (4) SATA Ports and One (1) eSATA PortEach SATA bay supports a drive up to 16 TB (sold separately). Incoming bandwidth up to 400 Mbps.
24 PoE Ports With LumiPower Support (Ports 1-8)LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet.
HDMI/VGA OutputTwo HDMI outputs up to 4K (3840 × 2160) plus two VGA outputs up to 1920 × 1080.
Supports LumiSearch+LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image.
iMD, Face Recognition, and VCA by RecorderThe NVR runs iMD on up to 8CH, VCA on up to 4CH, and face capture and recognition on up to 2CH.

Key technologies

LumiSearch+: LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. LumiSearch+ provides enhanced LumiSearch functionality by allowing users to create custom intrusion zones to monitor irregular or high-risk areas more precisely.
LumiPower: LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.
LumiViewer: LumiViewer is a desktop and mobile application that streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.

Specifications

Video

Video Input	32 Channels
Recording Resolutions	32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output Resolutions	HDMI (2CH): 4K (3840 × 2160), 1920 × 1080, 1280 × 1024 VGA (2CH): 1920 × 1080, 1280 × 1024 HDMI1/HDMI2 Independent Output HDMI1/VGA1 Simultaneous Output HDMI2/VGA2 Simultaneous Output
Live View/Playback Resolutions	32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF

Decoding

Format	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG
Capability	AI On: 1CH at 32MP (30 fps), 2CH at 16MP (30 fps), 4CH at 8MP (30 fps), 12CH at 4MP (30 fps), 24CH at 1080p (30 fps) AI Off: 2CH at 32MP (30 fps), 4CH at 16MP (30 fps), 8CH at 8MP (30 fps), 16CH at 4MP (30 fps), 32CH at 1080p (30 fps)
Live View Window Division	1, 4, 9, 16, 25, 36 Views
Auxiliary Port Window Division	1, 4, 8, 9, 16 Views
Synchronous Playback	16 Channels

Supported Analytics

Intelligent Motion Detection	Camera: 16CH NVR: 8CH
Video Content Analytics (VCA)	Camera: 16CH NVR: 4CH 10 Rules per Channel
Face Recognition	Face Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 16CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total)
LumiSearch+	16CH (Must be Supported by Camera)
Video Metadata	8CH (Analytics by Camera)
License Plate Recognition	8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers

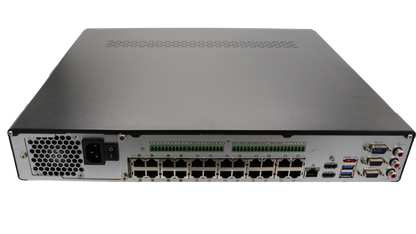

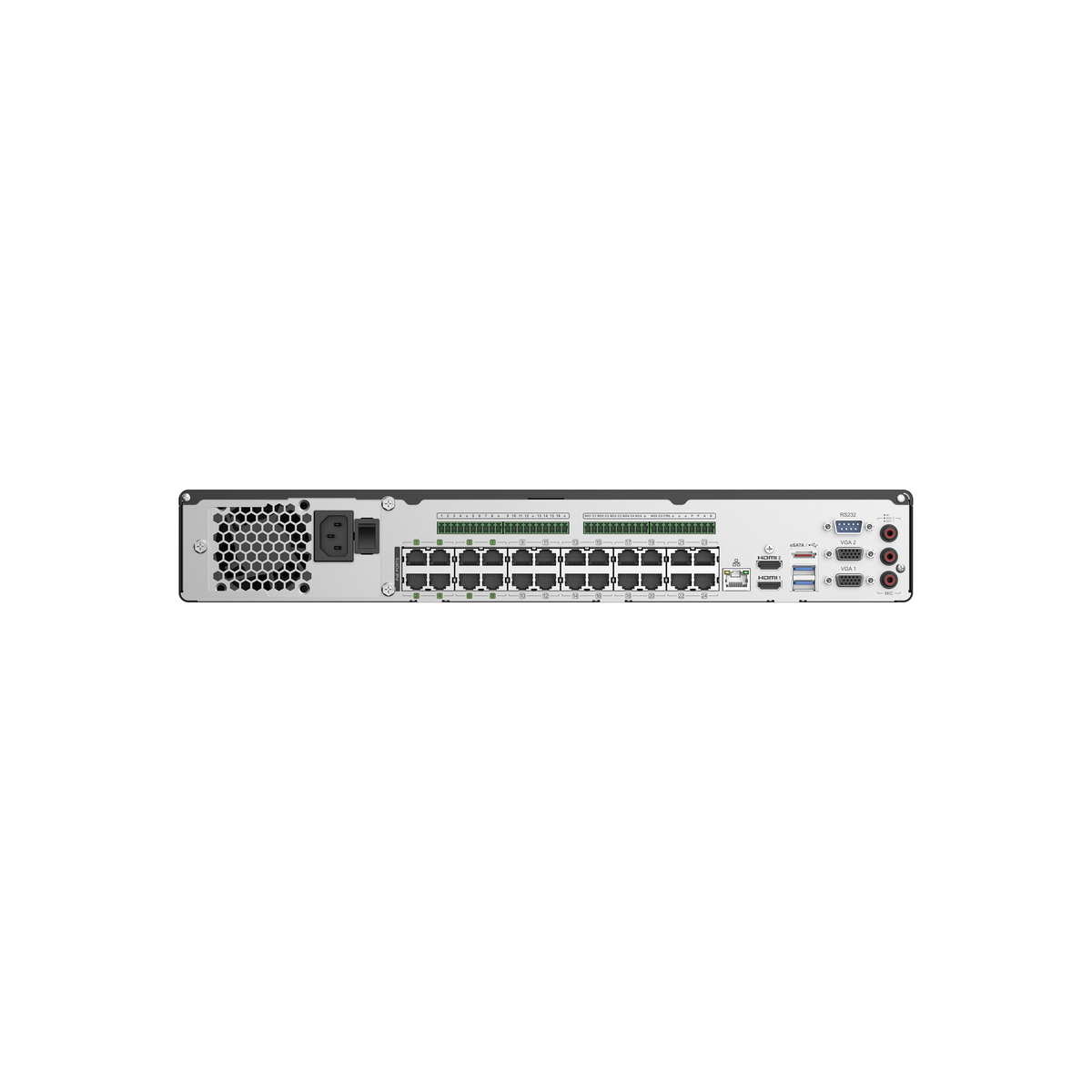

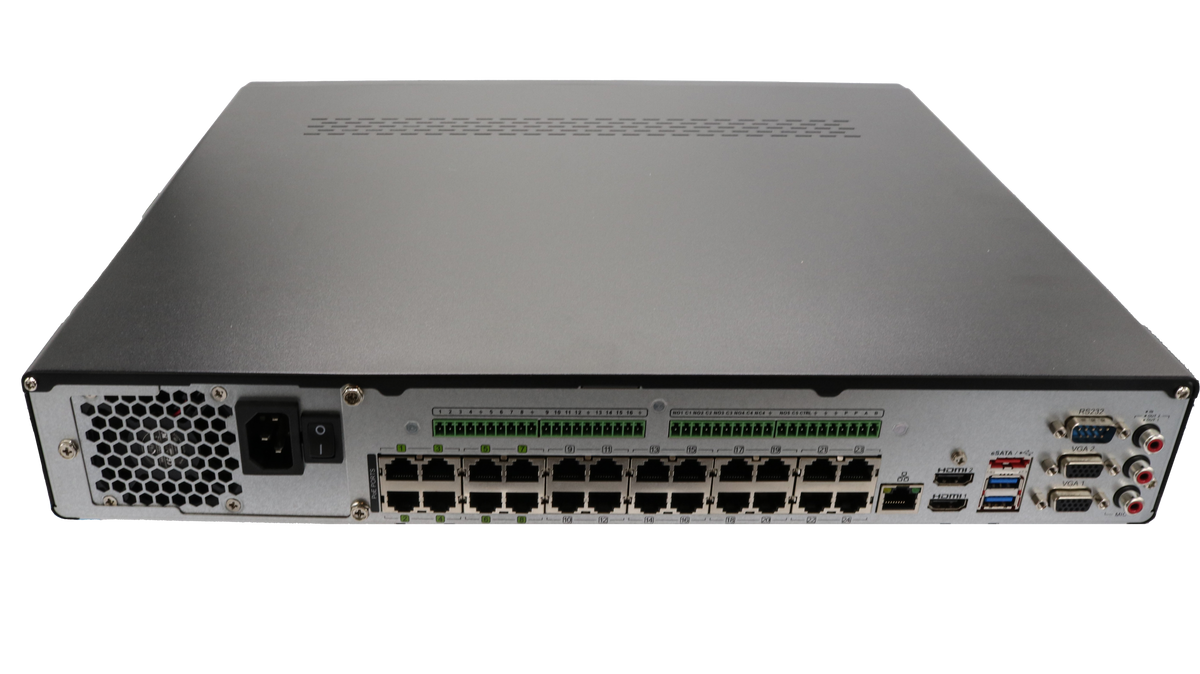

Interface

SATA	Four (4) Ports
eSATA	One (1) Port
HDD	Up to 16 TB per HDD
Network	One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
PoE	24 x RJ-45 Self-Adaptive Ethernet (10/100 Mbps)
USB	Front Panel: 1 x USB 2.0 Rear Panel: 2 x USB 3.0
Serial Port	1 x RS-232
Alarm	Input: 16 Channels Output: 6 Channels
Audio	Input: 1-Channel RCA Input Output: 2-Channel RCA Output

Network

Bandwidth	AI On: Incoming 220 Mbps, Outgoing 220 Mbps AI Off: Incoming 400 Mbps, Outgoing 400 Mbps
Protocol	HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
Interoperability	ONVIF, RTSP
PoE Standard	IEEE 802.3 af/at
Client	LumiViewer, LumiViewer Mobile App, LumiCloud

Electrical

Power Supply	100 to 240 VAC, 50 to 60 Hz
Power Consumption	< 13 W (HDD Not Included) PoE: 210 W (Max. Output for Single Port: 25.5 W)

Construction

Installation Method	Rack- or Desktop-Mount
Weight	4.7 kg (10.4 lb) Without HDD
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity	10% to 93%
Dimensions (W × D × H)	442.0 × 414.1 × 68.0 mm (17.4 × 16.3 × 2.7 in.)

Certifications and Compliance

Certifications	FCC
Compliance	NDAA

Download the official R54-32PA datasheet (PDF)

Per Luminys: LumiSearch+ requires the use of a LumiSearch+-enabled camera. Hard drives are not included. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
