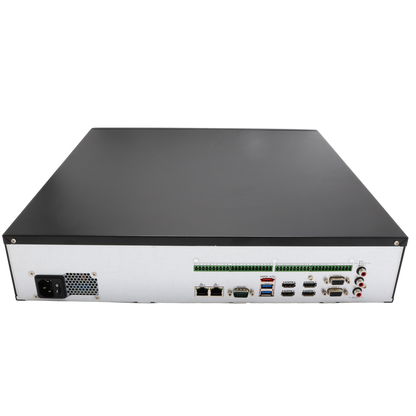

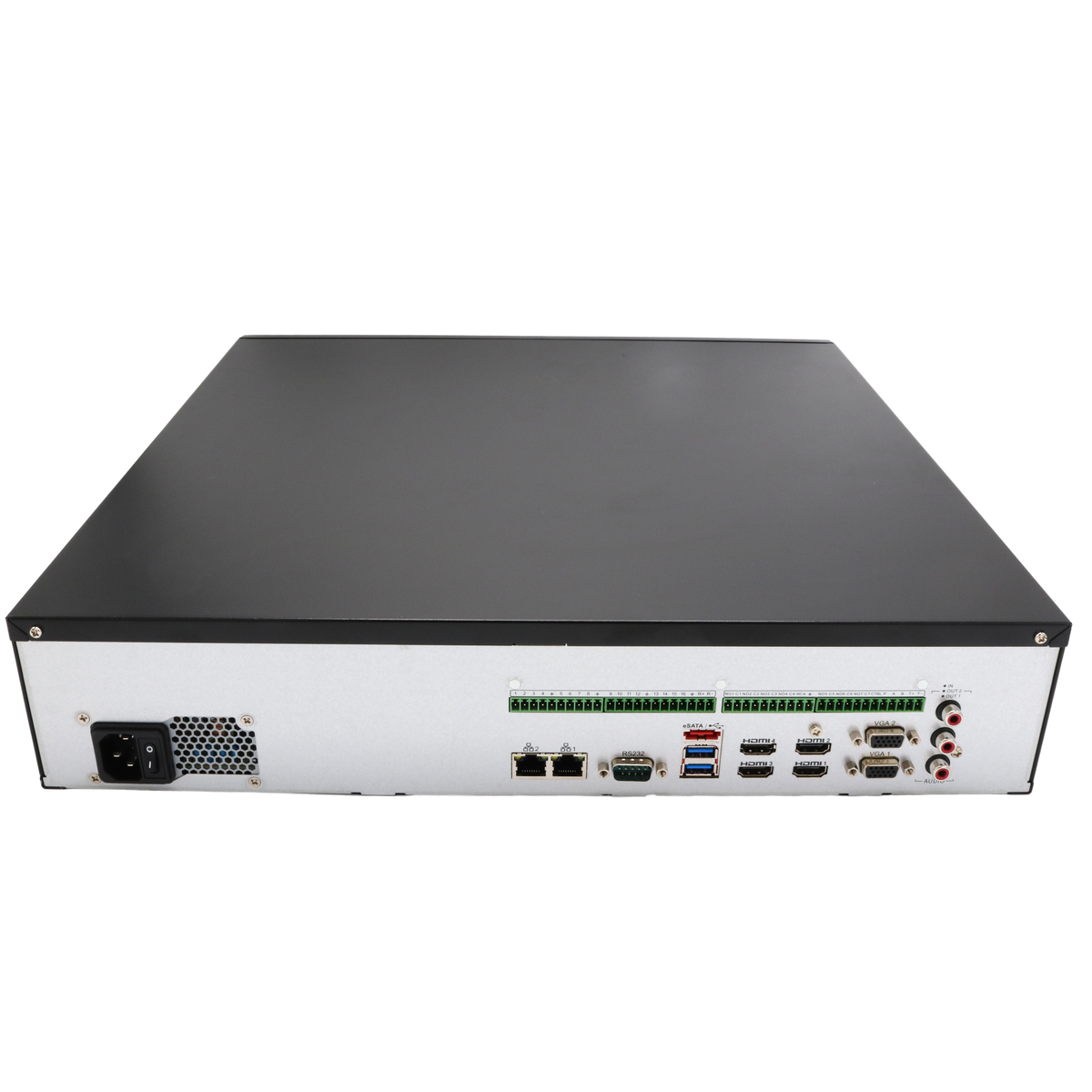

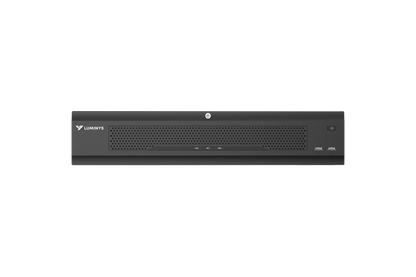

Luminys R68-64NA 64-Channel Extreme NVR
Luminys R68-64NA 64-Channel Extreme NVR
SKU:R68-64NA
Regular price
$3,563.98
Regular price
Sale price
$3,563.98
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

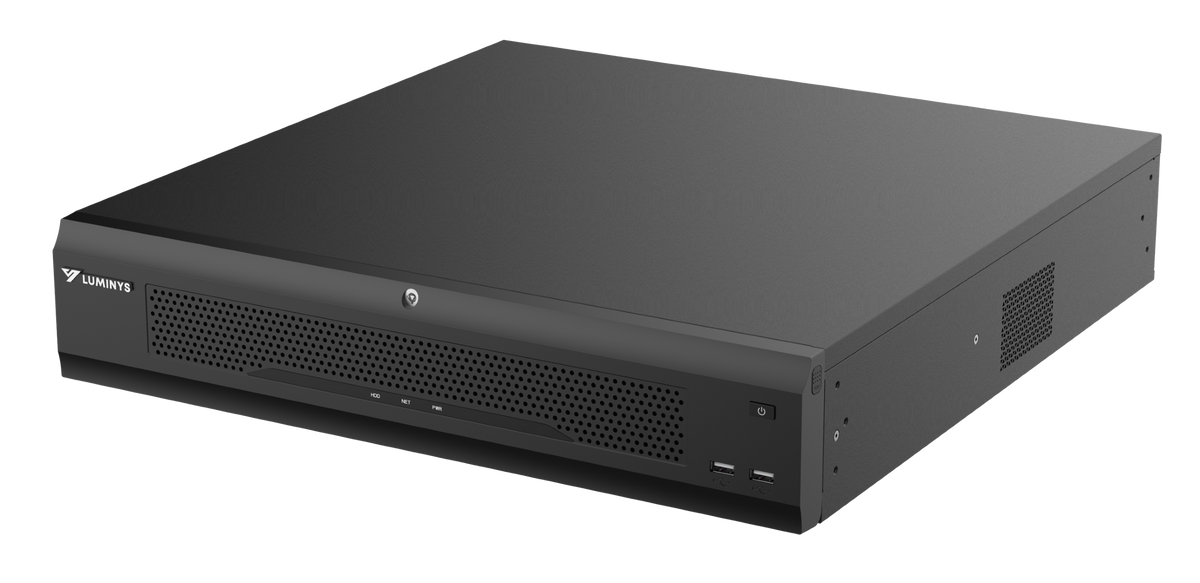

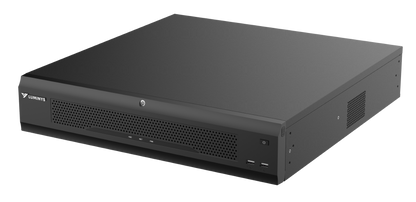

The Luminys R68-64NA is a 64-channel R6 Extreme Series NVR that records cameras up to 32MP. It has eight SATA bays for up to 160 TB of storage (drives sold separately) with RAID 0, 1, 5, 6, and 10, an eSATA port, and four HDMI outputs, including 8K (7680 × 4320) on HDMI 3, plus two VGA outputs. It is NDAA compliant.
- 64 ChannelsRecords cameras up to 32MP, with up to 1400 Mbps incoming bandwidth. Four HDMI outputs, including 8K (7680 × 4320) on HDMI 3, plus two VGA outputs.
- Analytics and LumiSearch+ by CameraAnalytics by Camera includes Intelligent Motion Detection (iMD), Video Content Analysis (VCA), Face Detection, Face Recognition, and Video Metadata by Camera.
- Analytics and Video Metadata by RecorderAnalytics by Recorder includes Intelligent Motion Detection (iMD), Video Content Analysis (VCA), Face Detection, Face Recognition, and Video Metadata by Recorder.
- LumiCloud Lite IncludedOptional upgrade to a LumiCloud HD Video Unity channel annual subscription license, sold separately.

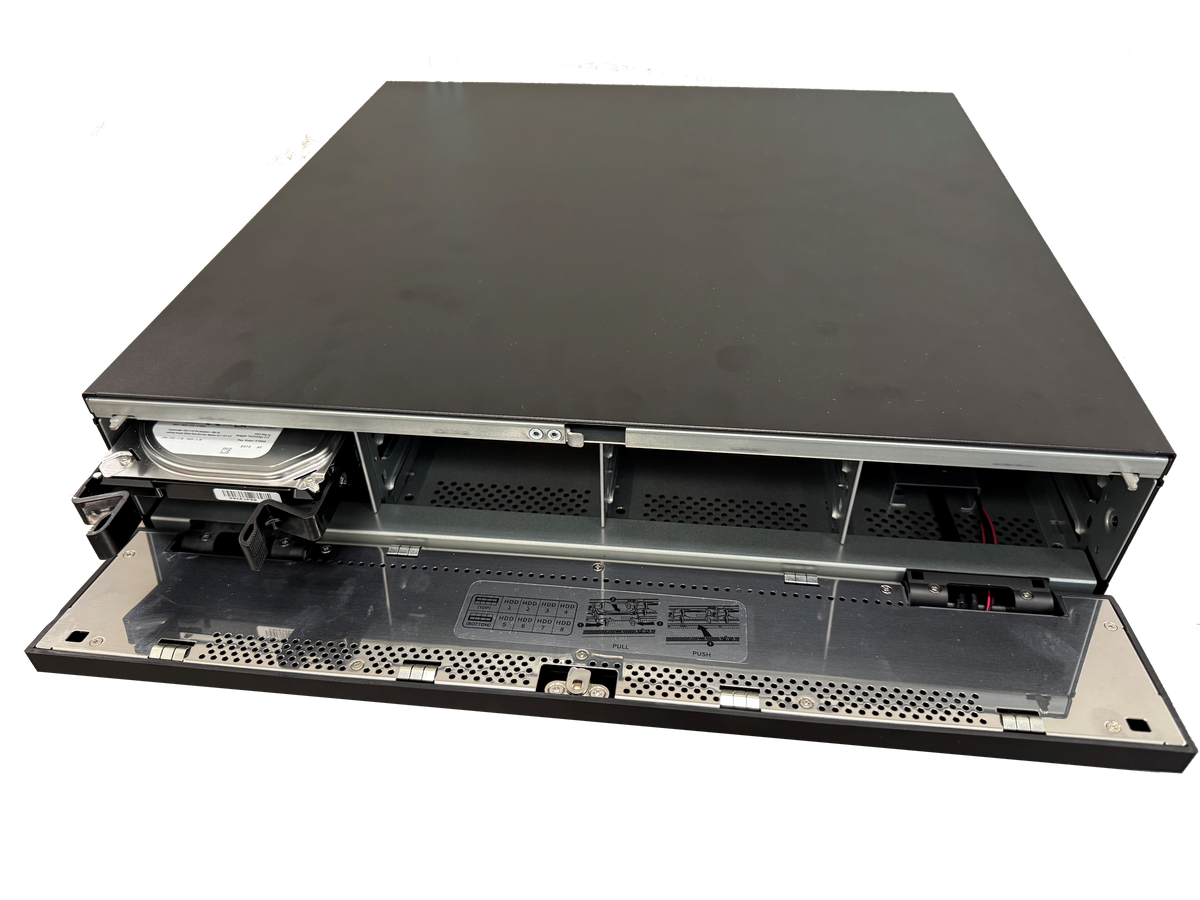

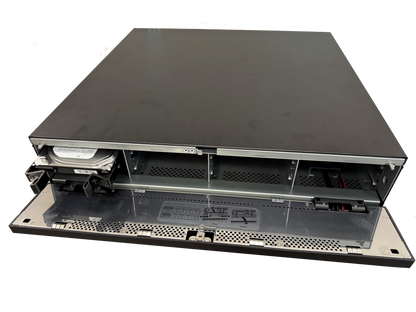

- Up to 160 TB Internal StorageEight (8) SATA bays support drives up to 20 TB each (sold separately), plus one (1) eSATA port.
- RAID 0, 1, 5, 6, and 10Hot swap supported, so a drive can be replaced without powering the recorder down.
- Dual NICTwo (2) RJ-45 self-adaptive Ethernet ports, 10/100/1000/2500 Mbps.
Key technologies
- LumiSearch+
- LumiSearch+ technology enhances the original functionality of LumiSearch+ for an even faster way to find, track, and identify targets in recorded video using a reference image. The LumiSearch+ algorithm simultaneously uses both metadata and the search functionality to analyze human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in video captured by any LumiSearch+ enabled camera and NVR.
- Analytics by Camera
- Analytics by Camera includes Intelligent Motion Detection (iMD), Video Content Analysis (VCA), Face Detection, Face Recognition, and Video Metadata by Camera. The analytical metadata is created by the Luminys cameras at the time the video is encoded. The NVR leverages these camera-edge analytics to create smarter video for the end-user to ease their video searching, authentication and video capabilities.
- Analytics by Recorder
- Analytics by Recorder includes Intelligent Motion Detection (iMD), Video Content Analysis (VCA), Face Detection, Face Recognition, and Video Metadata by Recorder. The NVR processes the video and creates the metadata that is encoded with the video on the NVR. This enables the NVR to create smarter video from any camera for the end-user to ease their video searching, authentication and video capabilities.
- Video Metadata by NVR
- Video Metadata by NVR allows greater third-party camera support by allowing the NVR to receive metadata from compatible cameras using ONVIF Profile M.
- License Plate Recognition (LPR)
- License Plate Recognition (LPR) technology is supported by Luminys LPR cameras. This technology improves safety and operational efficiency by automatically capturing and reading vehicle license plates for easy and accurate identification.
- LumiViewer
- LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring. The platform is available for desktop and mobile devices.
- LumiCloud
- LumiCloud is a Video Surveillance as a Service (VSaaS) solution powered by a variety of algorithms that provides the ability to search, receive alerts and analyze patterns of detections across locations and historical data. Data is centrally stored in the cloud with easy access from web browsers and smart phone apps. LumiCloud supports high- resolution video streams, ensures clarity, and provides real-time access from anywhere. This platform provides advanced analytics, customizable alerts, effective bandwidth management, and simple subscription-based scalability. LumiCloud Lite is included with this NVR and offers many of the LumiCloud key features, however cloud recording does require an upgrade to LumiCloud with a paid subscription.
Specifications
Video
| Video Input | 64 Channels |
|---|---|
| Recording Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions |
HDMI 1 and 2: 3840 × 2160, 1920 × 1080, 1280 × 1024 HDMI 3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024 HDMI 4: 1920 × 1080, 1280 × 1024 VGA 1 and 2: 1920 × 1080, 1280 × 1024 Simultaneous Mode: HDMI1/HDMI2/HDMI3/HDMI4, VGA1/VGA2, HDMI1/VGA1, and HDMI2/VGA2 simultaneous output Spot Output Mode: HDMI1/HDMI2/HDMI3/HDMI4 spot output |
| Live View/Playback Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
Decoding
| Format | Smart H.265+, Smart H.264+, H.265, H.264, MJPEG |
|---|---|
| Capability |
AI On: 1CH at 32MP/24MP (30 fps), 2CH at 16MP/12MP (30 fps), 4CH at 8MP (30 fps), 5CH at 6MP (30 fps), 6CH at 5MP (30 fps), 8CH at 4MP (30 fps), 16CH at 1080p (30 fps) AI Off: 2CH at 32MP/24MP (30 fps), 4CH at 16MP (30 fps), 5CH at 12MP (30 fps), 8CH at 8MP (30 fps), 12CH at 5MP (30 fps), 16CH at 4MP (30 fps), 32CH at 1080p (30 fps), 64CH at D1 (30 fps) |
| Live View Window Division | 1, 4, 8, 9, 16, 25, 36, 64 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9, 16, 32 Views |
| Synchronous Playback | 16 Channels |
Supported Analytics
| Intelligent Motion Detection |
Camera: 64CH (Max. 128 Targets per Second) NVR: 32CH |
|---|---|
| Video Content Analytics (VCA) |
Camera: 64CH (Max. 64 Targets per Second) NVR: 32CH (Simultaneous Output) OR 24CH (Spot Video Output) |
| Video Metadata |
Camera: 64CH NVR: 8CH |
| Face Detection |
Camera: 64CH NVR: 8CH (Simultaneous Output) OR 5CH (Spot Video Output) |
| Face Recognition |
Simultaneous Output: Face captured by camera 32CH, face captured by NVR 8CH Spot Video Output: Face captured by camera 16CH, face captured by NVR 5CH Up to 40 Face Picture Libraries (Max. 300,000 Pictures Total) |
| LumiSearch+ | 64CH (Must be Supported by Camera) |
| License Plate Recognition | 64CH (Max. 64 Targets per Second), LPR Camera Required One (1) Block List, One (1) Allow List Up to 20,000 Plate Numbers |
LumiCloud
| Platform | LumiCloud Lite (Included With Hardware) Optional Upgrade to LumiCloud HD Video Unity Annual Subscription License (Sold Separately) |
|---|---|
| Max. Number of Channels | NVR: 10CH |
Interface
| SATA | Eight (8) Ports |
|---|---|
| eSATA | One (1) Port |
| HDD | Up to 20 TB per HDD |
| RAID | 0, 1, 5, 6, 10 Hot Swap Supported |
| Network | Two (2) RJ-45 Self-Adaptive Ethernet (10/100/1000/2500 Mbps) |
| USB |

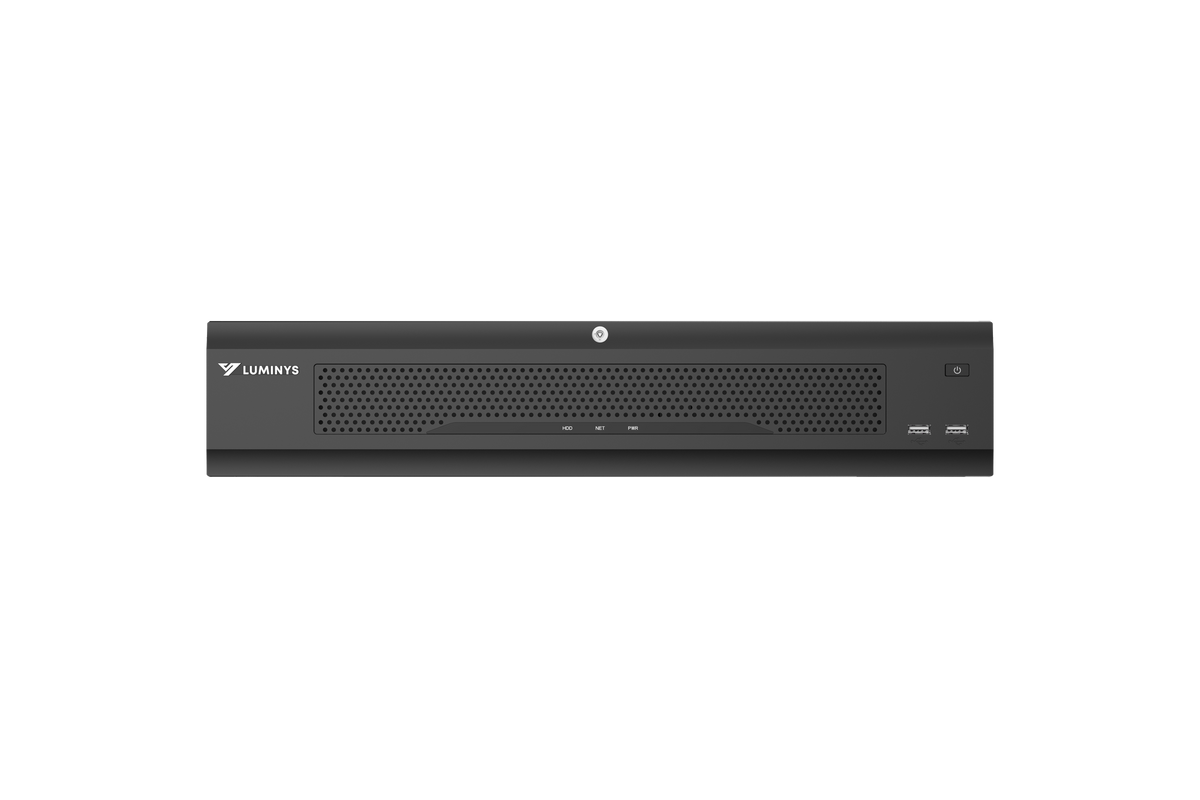

Front Panel: Two (2) x USB 2.0 Rear Panel: Two (2) x USB 3.0 |
| Serial Port | One (1) x RS-232, One (1) x RS-485 |
| Alarm |
Input: 16 Channels Output: Eight (8) Channels |
| Audio |
Input: One-Channel RCA Input Output: Two-Channel RCA Output Two-Way Audio Supported |
Network
| Bandwidth |
AI On: Incoming/Recording 700 Mbps, Outgoing 512 Mbps AI Off: Incoming/Recording 1400 Mbps, Outgoing 1024 Mbps |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| Client | LumiCloud, LumiViewer Desktop Client, LumiViewer Mobile App |
Electrical
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
|---|---|
| Power Consumption | < 18 W (HDD Not Included) |
Construction
| Installation Method | Rack- or Desktop-Mount |
|---|---|
| Housing | 2U |
| Weight | 7.2 kg (15.8 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 93% |
| Dimensions (W × D × H) | 442.0 mm × 457.3 mm × 88.0 mm (17.4 in. × 18.0 in. × 3.5 in.) |
Certifications and Compliance
| Certifications | FCC, UL/cUL |
|---|---|
| Compliance | NDAA |

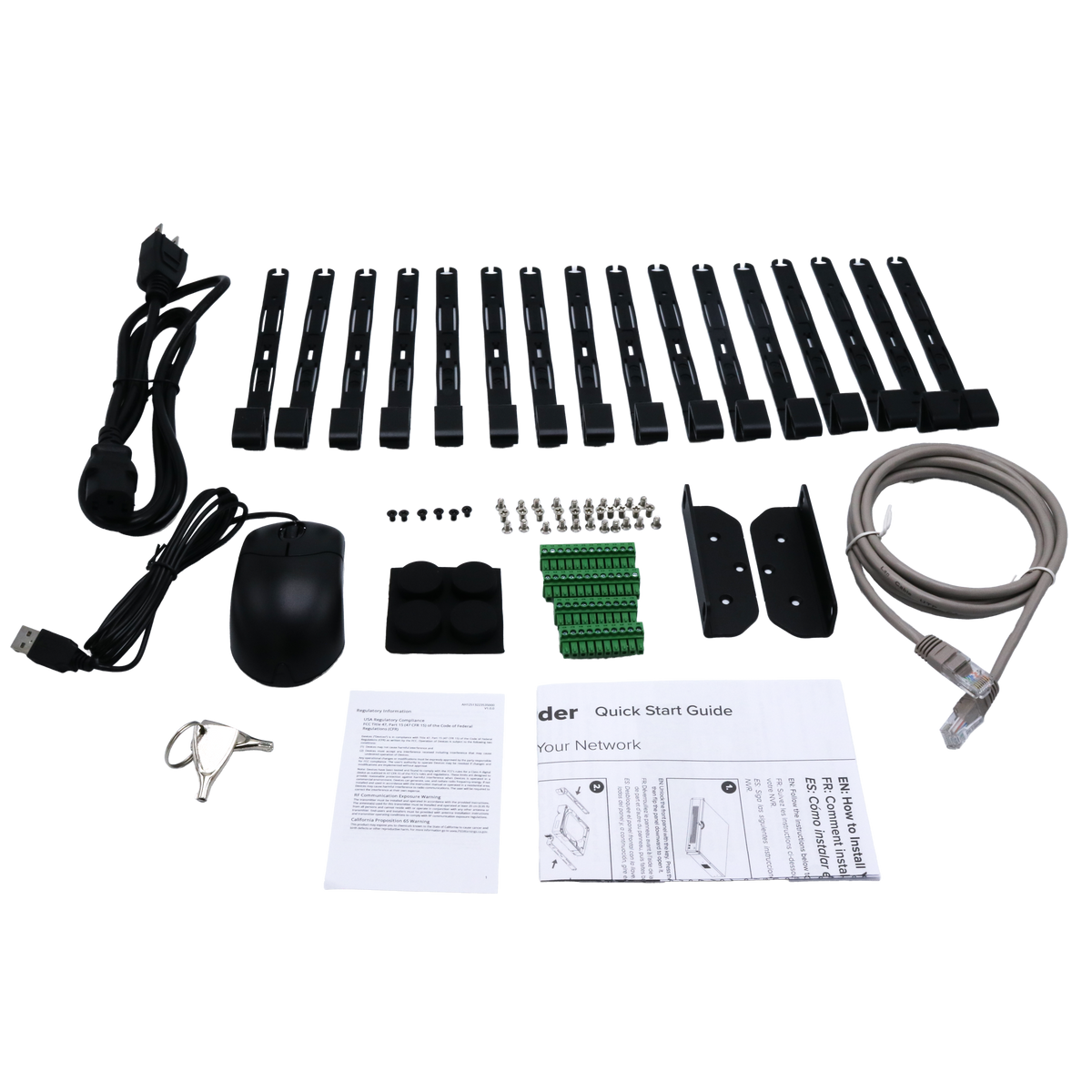

In the box
| 1 | R6 Extreme Series NVR |
|---|---|
| 1 | Power Cable, USA Plug, Type B, 3 Pin Plug, 15 A, 120 VAC |
| 1 | USB Mouse |
| 1 | Front Panel Key |
| 16 | Hard Drive Handles |
| 1 | Set of Screws |
| 1 | Set of Anti-Slip Pads |
| 1 | I/O Terminal Block |
| 2 | Mounting Bracket |
| 1 | CAT5E Ethernet Cable |
| 1 | Quick Start Guide |
| 1 | Regulatory Information |
Download the official R68-64NA datasheet (PDF)
Per Luminys: LumiSearch+ requires the use of a LumiSearch+-enabled camera. Per Luminys: A LumiCloud HD Video Unity Annual Subscription License is sold separately. Hard drives are not included. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
