Luminys 16-Port PoE Cloud Managed Gigabit Switch (PoE++) (SML-20GPA)

Name: Luminys 16-Port PoE Cloud Managed Gigabit Switch (PoE++) (SML-20GPA)
Brand: Luminys
SKU: SML-20GPA
Price: 503.98 USD
Availability: InStock

SKU:SML-20GPA

$503.98

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

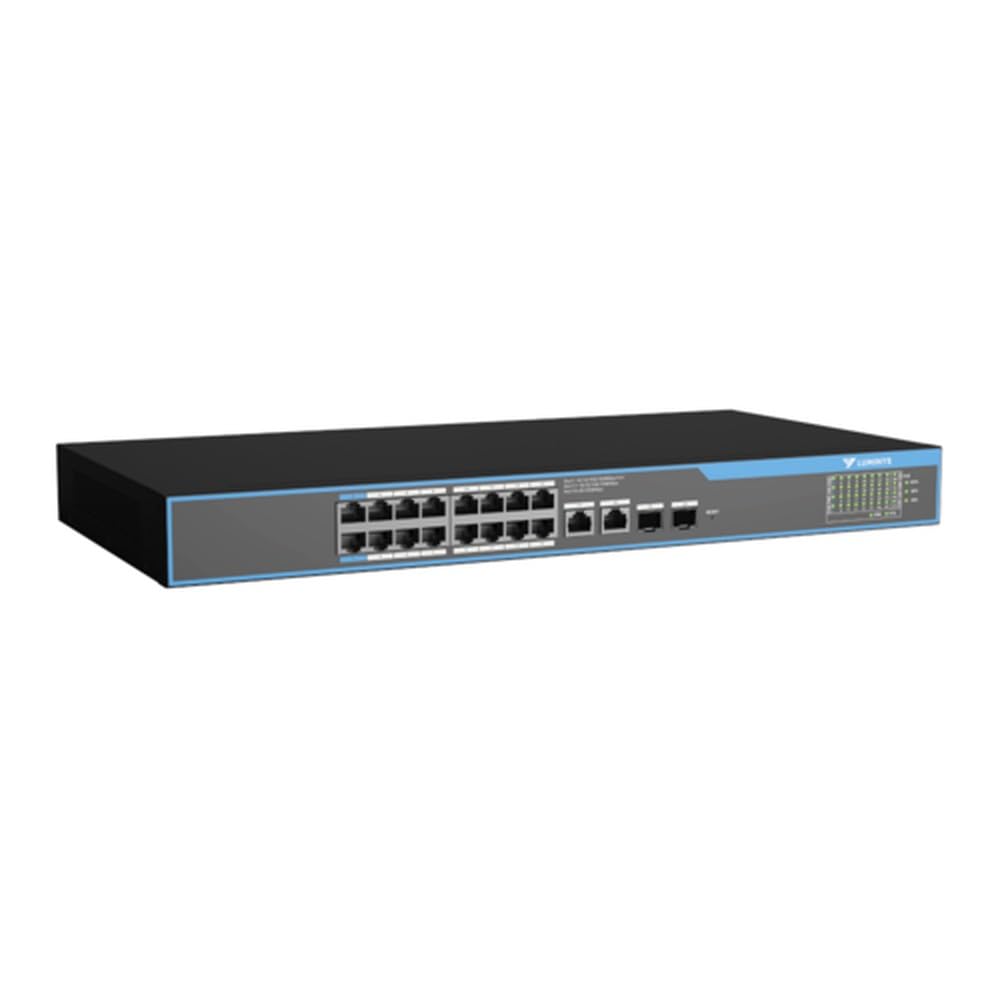

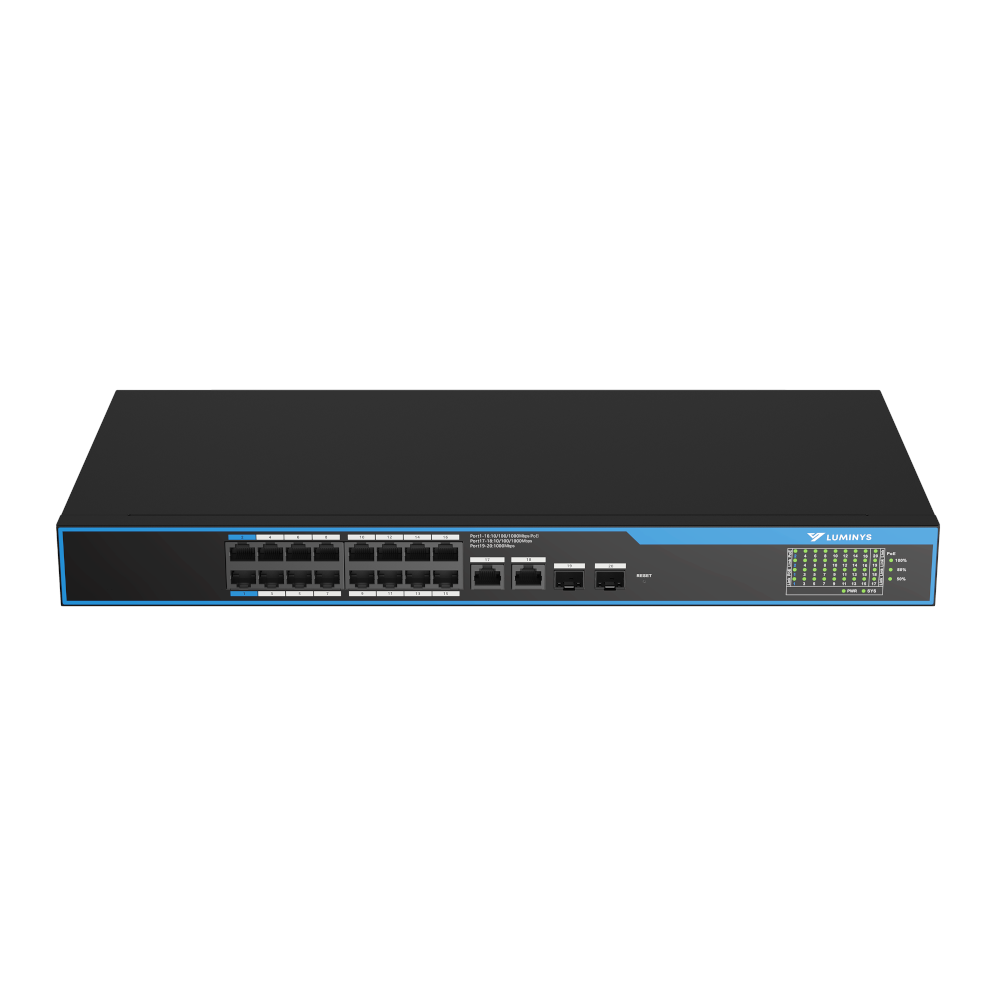

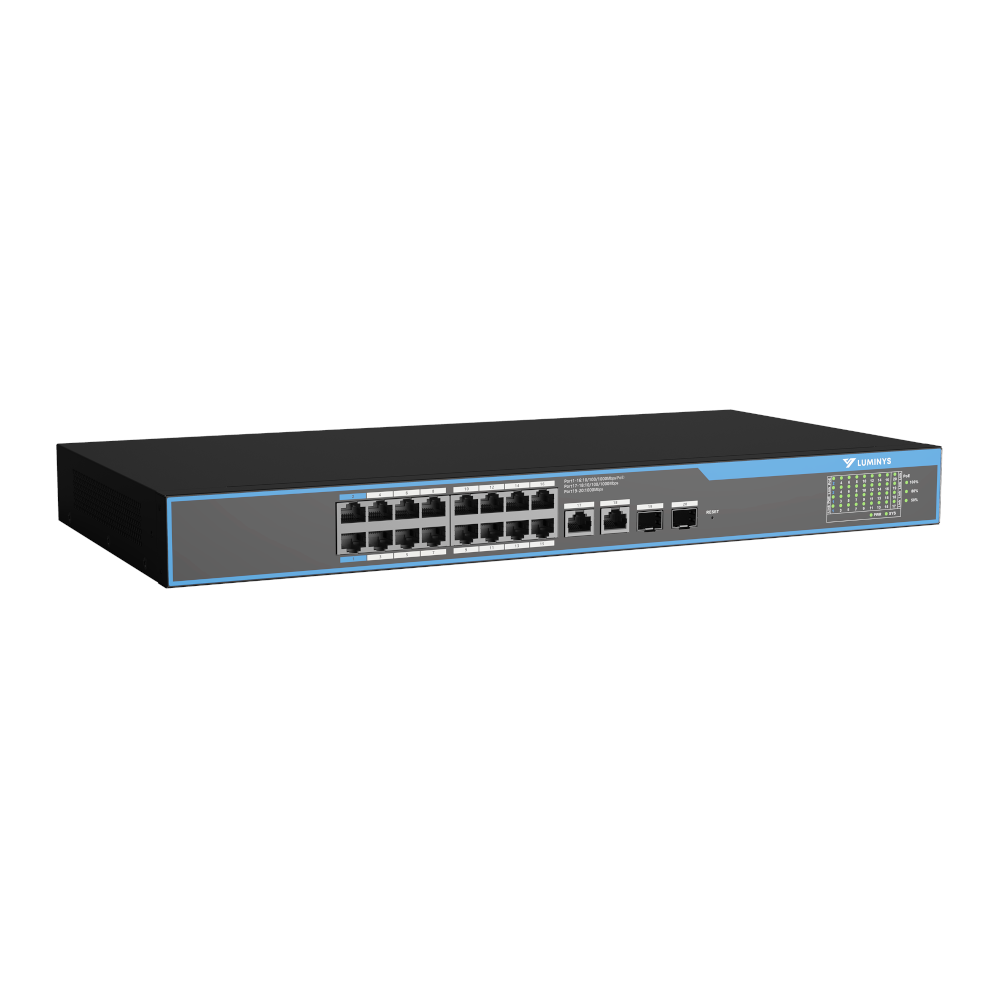

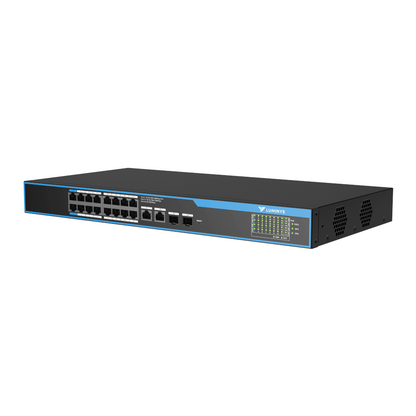

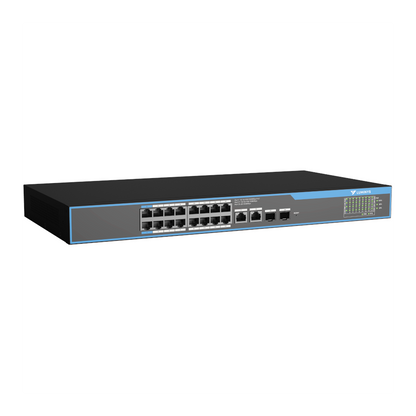

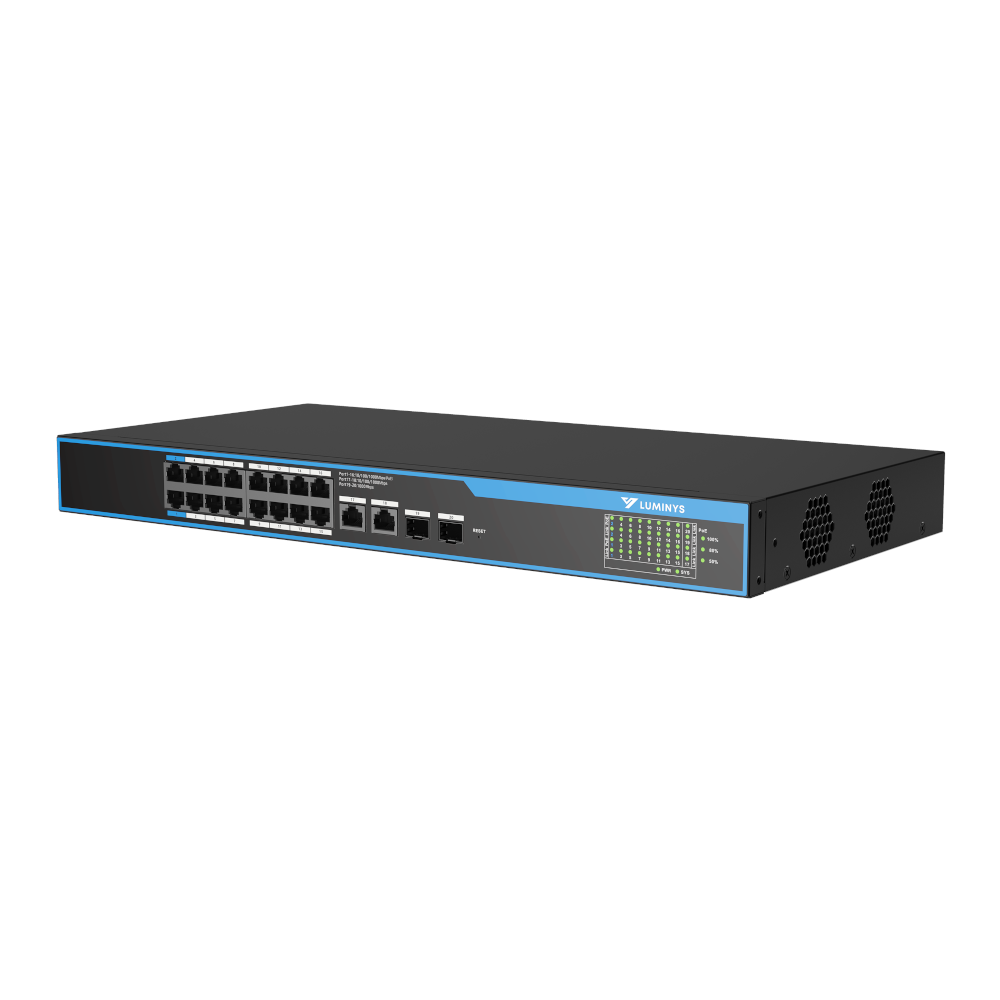

The Luminys SML-20GPA is a 16-port PoE cloud-managed gigabit switch. It powers and connects up to 16 cameras or devices from one rack-size unit, extends PoE up to 820 ft with LumiPoE, and is managed from a browser or LumiCloud.

16 PoE ports + 4 uplinks16 gigabit PoE ports plus 2 SFP and 2 RJ-45 uplink ports. Ports 1 and 2 deliver PoE++ up to 90 W; ports 3 to 16 deliver PoE+ up to 30 W.
240 W PoE budget240 W total PoE power budget.
LumiPoE up to 820 ftExtends PoE up to 820 ft (250 m) at 10 Mbps.
Intelligent PoE + WatchdogPrioritizes key ports and automatically restarts unresponsive cameras.
40 Gbps switchingSwitching capacity of 40 Gbps.

Key technologies

Intelligent PoE: Control and monitor power consumption in real time. Prioritizes the most important ports while preventing malfunction during power changes.
PoE Watchdog: Monitors connected PoE devices and reboots them when a problem occurs, so the system keeps running.
Up to 90 W on ports 1 and 2: Supports IEEE 802.3af, 802.3at and 802.3bt, with up to 90 W on the PoE++ ports for high-power devices.
Web and cloud management: Manage from the built-in web interface or remotely through LumiCloud.

Specifications

Ports and power

PoE ports	16 × 10/100/1000 Mbps (ports 1 and 2 PoE++, ports 3 to 16 PoE+)
Uplink ports	2 × 100/1000 Mbps SFP, 2 × 10/100/1000 Mbps RJ-45
Per-port PoE	Ports 1 and 2: ≤ 90 W (PoE++). Ports 3 to 16: ≤ 30 W (PoE+)
Total PoE budget	240 W
PoE standards	IEEE 802.3af, 802.3at (PoE+), 802.3bt (PoE++)
Network standards	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
PoE pin assignment	1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Performance

Switching capacity	40 Gbps
Packet forwarding rate	29.8 Mpps
Packet buffer	4.1 Mbit
MAC table	8,000
MTBF	86.9 years

Features

Layer	2
Port configuration	Port rate, flow control, port enabling
PoE Watchdog	Detects and restarts unresponsive cameras
Long-distance PoE	Up to 820 ft (250 m) at 10 Mbps
VLAN	Port-based, 32 VLANs
Flow control	IEEE 802.3x
Storm control	Unknown unicast, multicast, broadcast
Port mirroring	Supported
Port isolation	Supported
LLDP	Supported
DHCP	Client

PoE distance (Cat5e/Cat6)

PoE++ at 328 ft	71.3 W, 1000 Mbps
PoE++ at 492 ft	62 W, 10 Mbps
PoE++ at 656 ft	51 W, 10 Mbps
PoE++ at 820 ft	40 W, 10 Mbps
PoE+ at 328 ft	25.5 W, 1000 Mbps
PoE+ at 492 to 820 ft	25.5 W, 10 Mbps

Electrical

Power supply	Internal, 100 to 240 V AC, 47 to 63 Hz, max. 7 A
Power consumption	Idle 8.3 W, total 265.0 W
Surge protection	Power port 4 kV/2 kV, telecom port 8 kV

Construction

Dimensions	17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm)
Net weight	5.2 lb (2.4 kg)
Gross weight	6.6 lb (3.0 kg)
Operating temp	14 °F to 131 °F (-10 °C to 55 °C), 5% to 95% RH non-condensing
Storage temp	-40 °F to 158 °F (-40 °C to 70 °C)
Material	Metal
Certifications	FCC Part 15 Subpart B
Compliance	NDAA

Download the official SML-20GPA datasheet (PDF)

PoE distance figures are Luminys lab results for reference; actual distance varies with device power draw and cable. LumiCloud basic remote management is included. The LumiCloud switch subscription (LCL-SW100) for switch and port management features is sold separately. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
