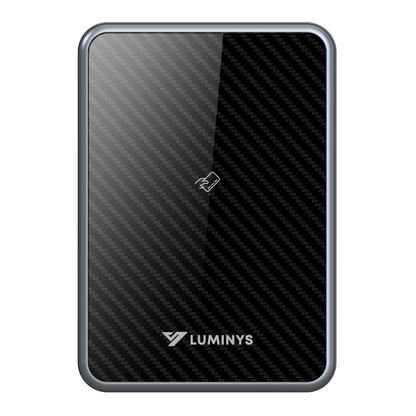

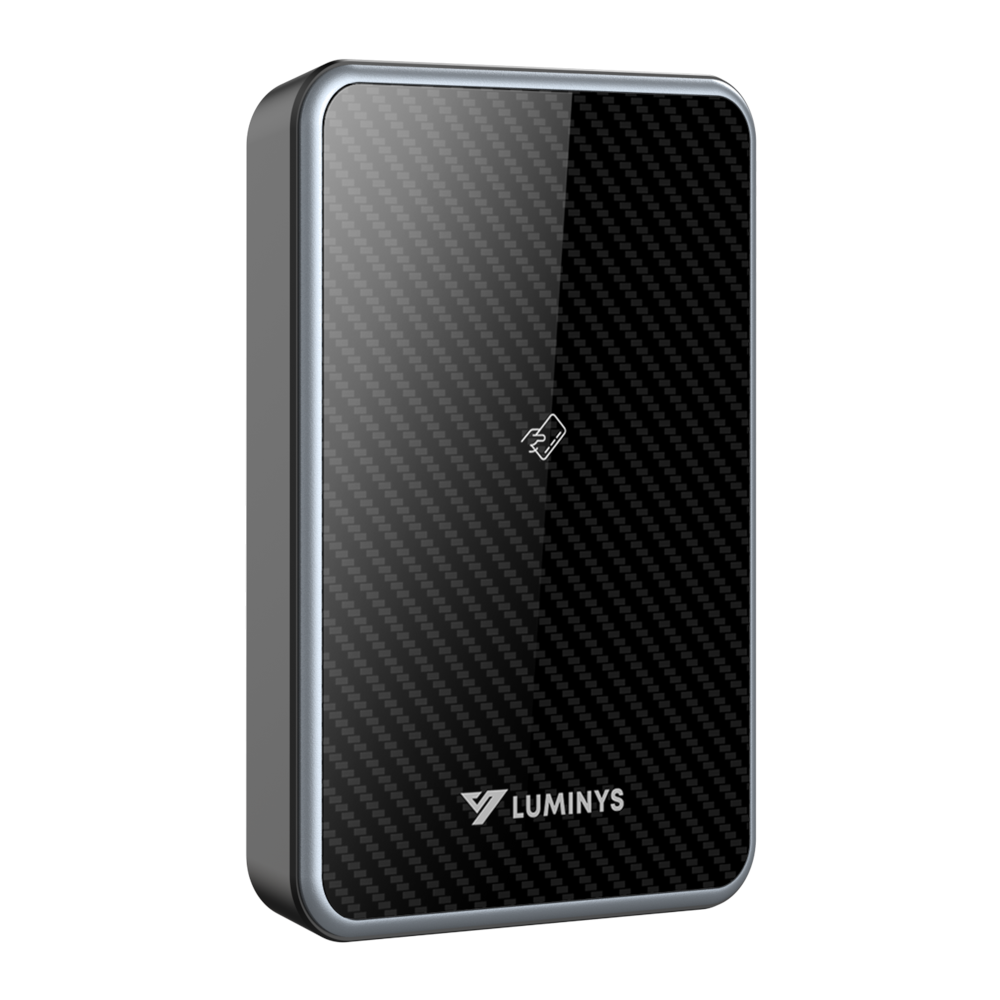

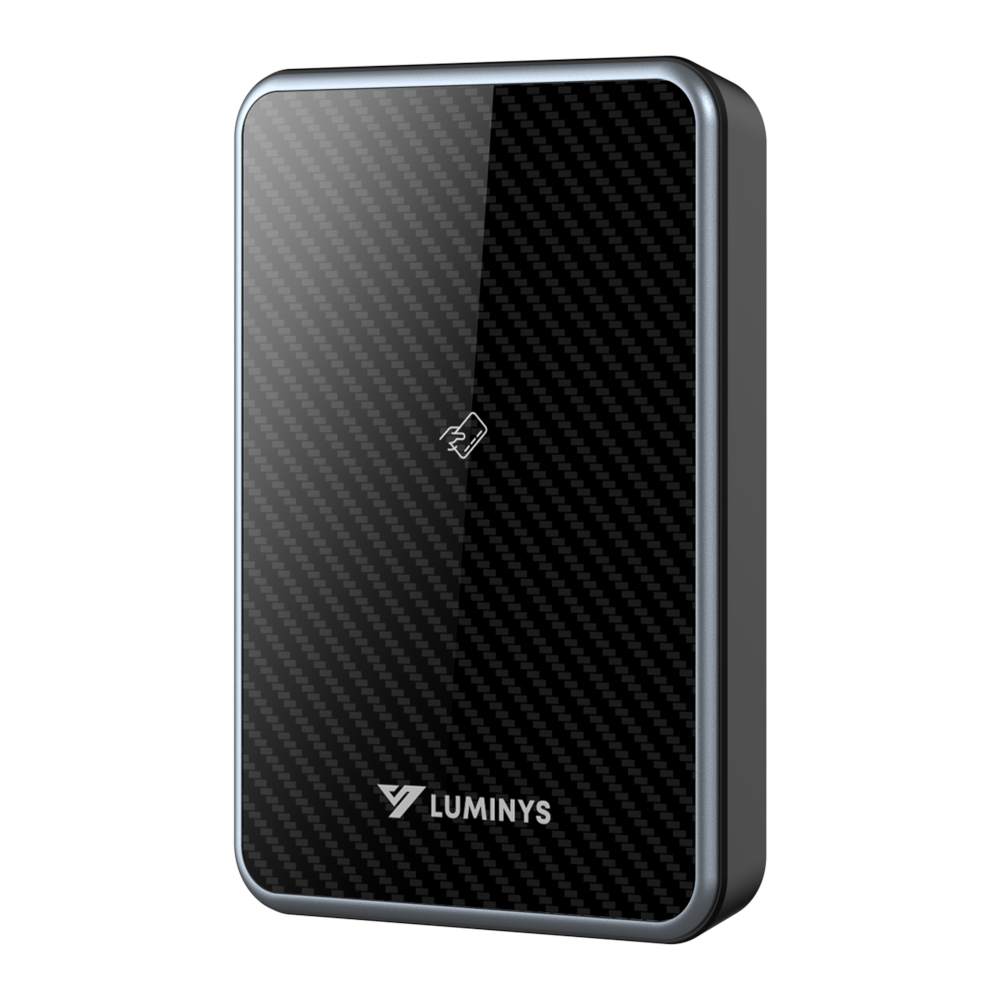

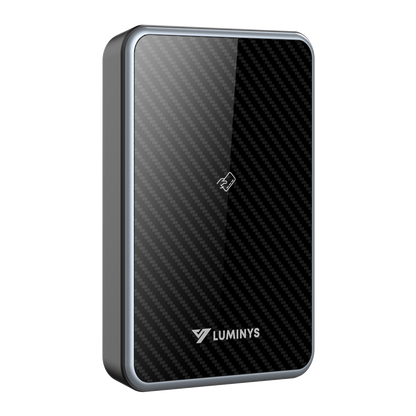

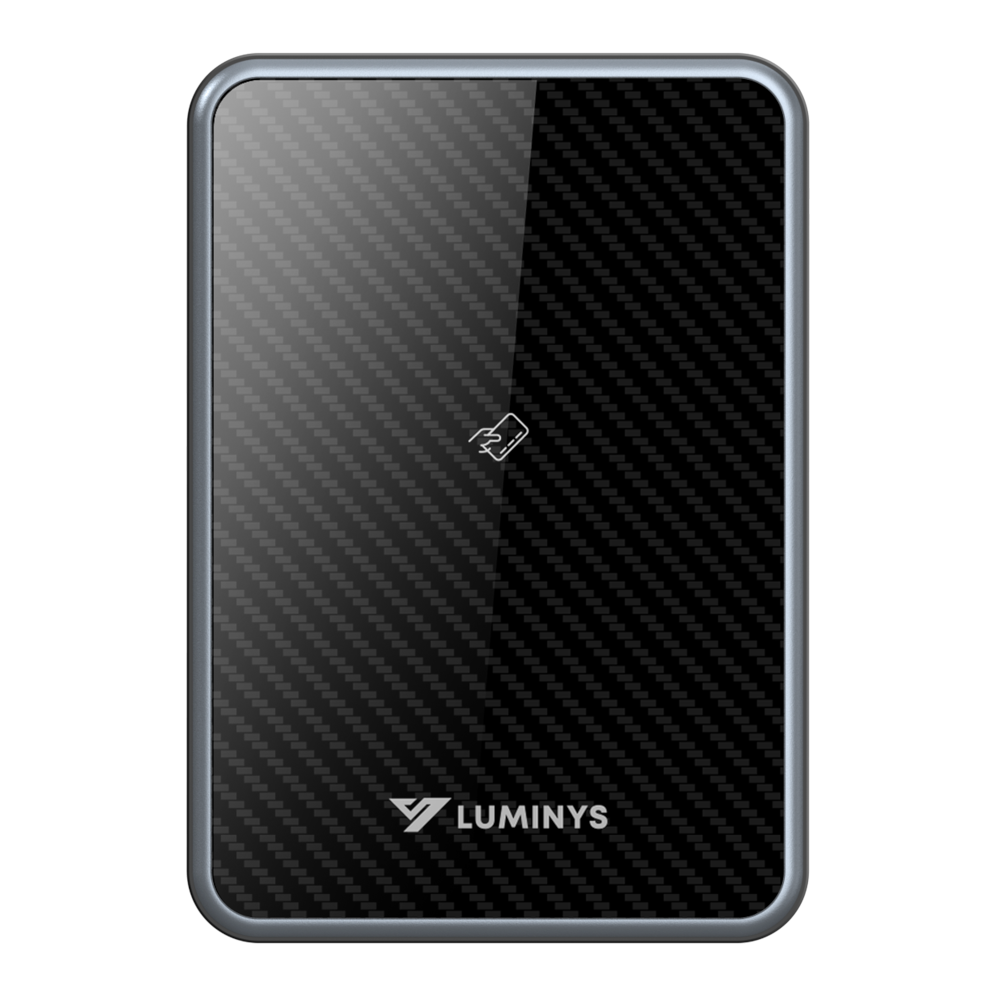

Luminys Waterproof Access Reader (RD1CW)
Luminys Waterproof Access Reader (RD1CW)
SKU:RD1CW
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support
The Luminys RD1CW is a waterproof access reader for MIFARE (IC) cards. With IP66 protection, RS-485 and Wiegand communication, and built-in LED and buzzer feedback, it brings reliable, secure card access to doors indoors and out.
- IP66 indoor and outdoorIP66 protection for indoor and outdoor use.
- MIFARE (IC) cardsSupports MIFARE (IC) cards.
- RS-485 and WiegandSupports RS-485 and Wiegand communication protocols.
- Anti-tamper alarmEquipped with an anti-tampering alarm.
- Surface mountSurface mount design.
Key technologies
- IP66 protection
- Protected against dust and heavy rain, ideal for outdoor installations and rugged conditions.
- Multi-protocol support
- RS-485 and Wiegand allow for flexible, secure access control options.
- Feedback indicators
- Integrated LEDs and a buzzer give real-time audio and visual feedback during every interaction.
Specifications
Card reading
| Card type | IC (MIFARE) |
|---|---|
| Frequency | 13.56 MHz |
| Verification method | Card |
| Response time | 0.1 s |
| Reading distance | 0 to 2.0 in. (0 to 5.0 cm) |
Interface and alarm
| RS-485 | 1 channel |
|---|---|
| Wiegand | 1 output channel |
| Alarm event | Tamper |
Electrical
| Power supply | 12 VDC, 0.5 A |
|---|---|
| Standby power | ≤ 0.9 W |
| Working power | ≤ 1.7 W |
Construction
| Net weight | 0.4 lb (0.2 kg) |
|---|---|
| Gross weight | 0.8 lb (0.4 kg) |
| Package (inner carton) | 7.3 × 6.4 × 2.8 in. (185 × 163 × 71 mm) |
| Operating temp | -22 °F to 158 °F (-30 °C to 70 °C), 5% to 95% RH non-condensing |
| Protection rating | IP66 |
| Material | PC and acrylic |
| Mounting | 86 case mount, surface mount |
| Compliance | NDAA, FCC, IC |
Download the official RD1CW datasheet (PDF)
