Luminys 16-Channel 5MP LumiDeterrent IP Kit (K5T-16D2A4)
Luminys 16-Channel 5MP LumiDeterrent IP Kit (K5T-16D2A4)
SKU:K5T-16D2A4
Regular price
$2,845.78
Regular price
Sale price
$2,845.78
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

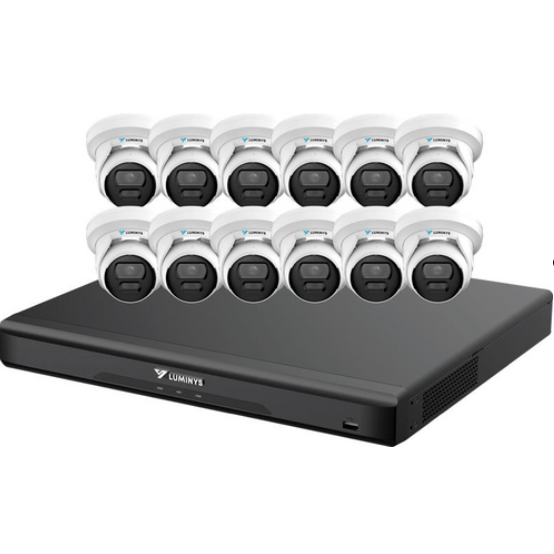

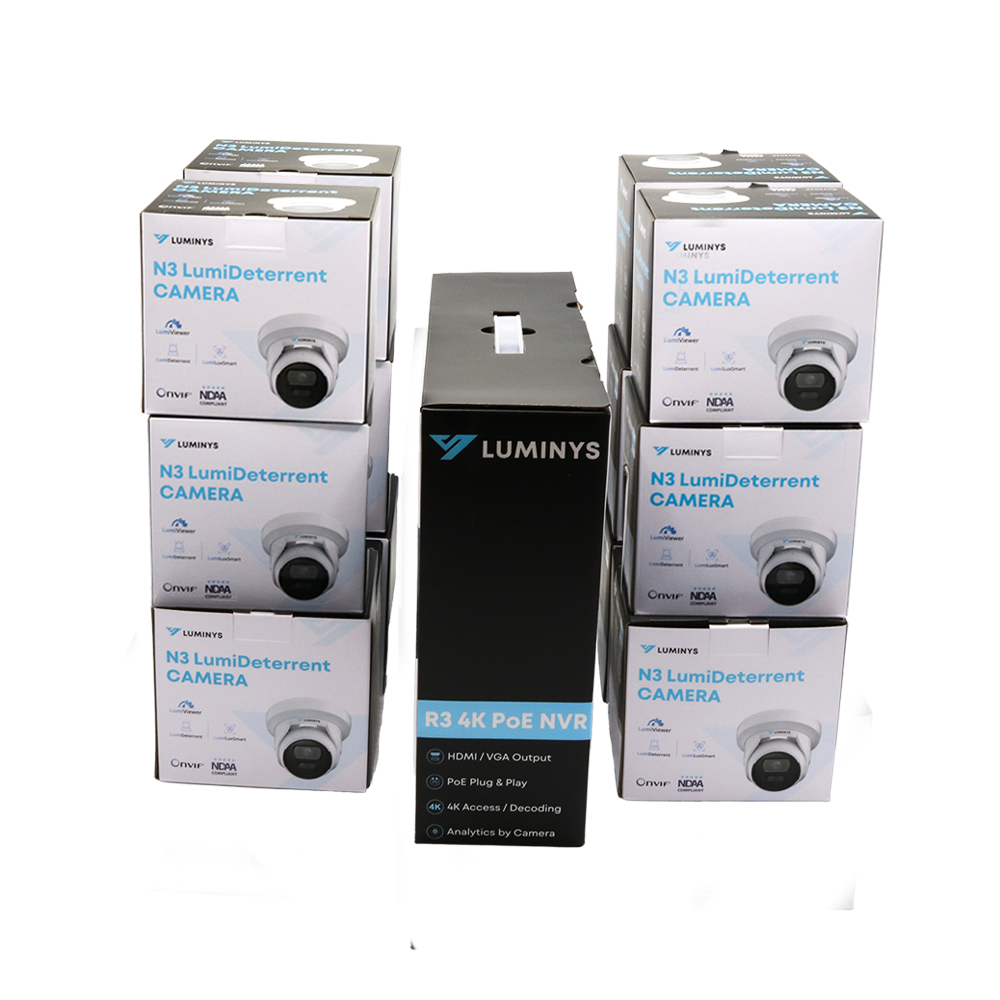

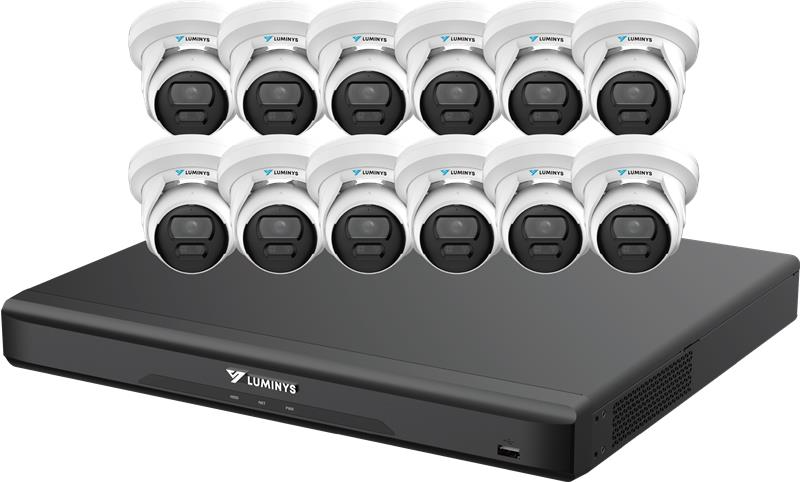

The Luminys K5T-16D2A4 is a complete security solution combining one (1) Luminys R3 Starter series NVR with twelve (12) 5MP turret network cameras. The NVR ships with a 4 TB hard drive pre-installed, and every camera connects with a single network cable for power and video. Every device is NDAA compliant.
1×
+
NVRR32-16PBR3 Starter Series NVR, 4K 16 Channel, 16 PoE4 TB hard drive pre-installed
12×

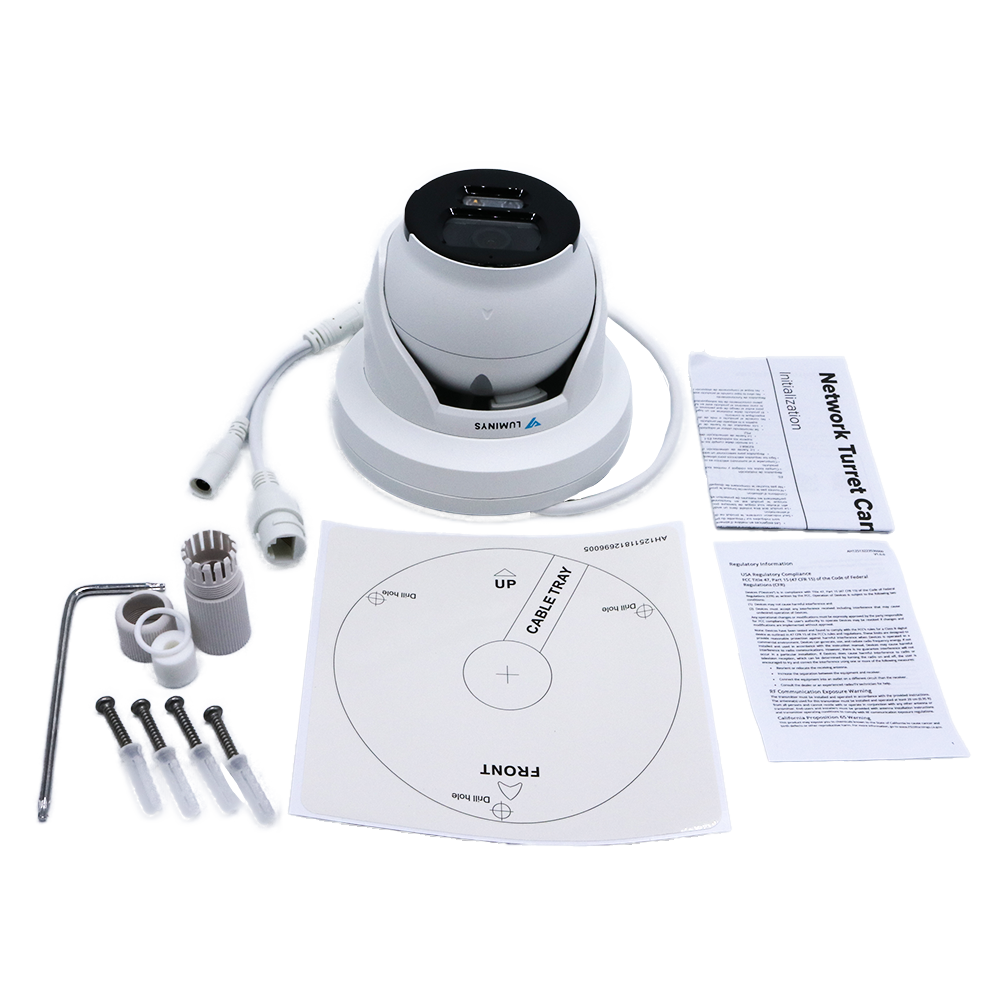

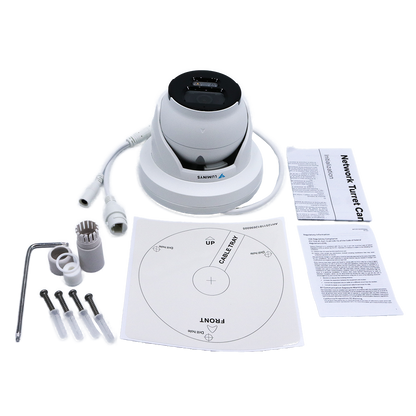

CameraN3T-5DA25MP LumiDeterrent Fixed Turret Network Camera
- 4K NVR With 4 TB HDDR32-16PB R3 Starter Series NVR with a 4 TB hard drive pre-installed (supports up to 20 TB per drive).
- 16 Channels With Two (2) SATA PortsTwelve (12) cameras are included, so four (4) channels are open for additional cameras.
- HDMI and VGA OutputHDMI output up to 4K (3840 × 2160) plus VGA output up to 1920 × 1080.
- PoE Plug-and-Play16 built-in PoE ports power and connect each camera over a single network cable, with a 130 W total PoE budget.
- 5MP Turret Housing1/2.7-in. 5MP Progressive CMOS sensor, 2960 × 1668 maximum resolution, IP67, IK10 rated.
- 2.8 mm Fixed Lens111° horizontal field of view, F1.6 maximum aperture.
- LumiDeterrent With Flashing White-Lights and Built-In SpeakerLumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security.
- Intelligent Motion Detection (iMD)Supported with alarms for vehicles and humans.
Key technologies
- LumiViewer
- R3 series NVRs are compatible with the LumiViewer desktop platform and mobile app. LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.
- LumiDeterrent
- LumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with white-light alarms and enhanced sound alarms.
- Intelligent Motion Detection (iMD)
- Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicles in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
Specifications
NVRR32-16PBR3 Starter Series NVR, 4K 16 Channel, 16 PoE
Video
| Video Input | 16 Channels |
|---|---|
| Recording Resolutions | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions |
HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 × 1024 VGA: 1920 × 1080, 1280 × 1024 |
| Live View/Playback Resolutions | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
Decoding
| Format | H.265, H.264, H.264H, H.264B, MJPEG |
|---|---|
| Capability | 1CH at 12MP (30 fps) 2CH at 8MP (30 fps) 4CH at 4MP (30 fps) 8CH at 1080p (30 fps) |
| Synchronous Playback | 1, 4, 8, 9, 16 Views |
Supported Analytics by N3T-5DA2
| Intelligent Motion Detection | Six (6) Channels |
|---|---|
| Smart Search | Search by Target Classification and Event Type |
Interface
| SATA | Two (2) Ports |
|---|---|
| HDD | 4 TB Pre-Installed HDD (Up to Max. 20 TB per HDD) |
| Network | One (1) Port, RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | 16 Ports (RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB |
Front Panel: One (1) USB 2.0 Port Rear Panel: One (1) USB 2.0 Port |
| Alarm |
Input: Four (4) Channels Output: Two (2) Channels |
| Audio |
Input: One (1) RCA Channel Output: One (1) RCA Channel |
Network
| Bandwidth |
Incoming/Recording: 160 Mbps Outgoing: 80 Mbps |
|---|---|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
Electrical
| Power Supply | 100-240 V, 47-63 Hz, 3.5 A |
|---|---|
| Power Consumption | < 10 W (Without HDD) PoE: 130 W (Max. Output for Single Port: 25.5 W) |
Construction
| Housing | 1U |
|---|---|
| Weight | 3.8 kg (8.4 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10% to 93% |
| Product Dimensions (W x L x H) | 372.0 mm × 325.8 mm × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
Certifications and Compliance
| Certifications | FCC |
|---|---|
| Compliance | NDAA |
CameraN3T-5DA25MP LumiDeterrent Fixed Turret Network Camera
Camera
| Luminys Series | Starter |
|---|---|
| Image Sensor | 1/2.7-in. 5MP Progressive CMOS |
| Maximum Resolution | 2960 × 1668 |
| Minimum Illumination |
Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | One (1) White-Light LED, One (1) IR LED |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance |
IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan/Rotation: 0° to 360° Tilt: 0° to 78° |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View |
Horizontal: 111° Vertical: 58° Diagonal: 132° |
| Close Focus Range | 1.1 m (3.6 ft) |
| DORI Distance |
Detect: 63.4 m (208.0 ft) Observe: 25.1 m (82.4 ft) Recognize: 12.4 m (40.7 ft) Identify: 6.2 m (20.3 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|---|
| Standard Codec | Supported |
| Stream Capability | Two (2) |
| Resolution | 5MP (2960 × 1668), 4MP (2688 × 1520), 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Maximum Frame Rate |
Main Stream: 5MP at 20 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate |
H.264: 3 kbps to 8,192 kbps H.265: 3 kbps to 8,192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° (90°/270° Available for 2688 × 1520 Resolution or Lower) |
| Image Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics | Line Crossing, Intrusion |
|---|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
Audio
| Compression | G.711a, G.711Mu, PCM |
|---|---|
| Interface |
Input: Built-In Microphone Output: Built-In Speaker |
Alarm
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
|---|
Network
| Port | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, MicroSD Card (Max. 256 GB) |
Electrical
| Power Supply | 12 VDC, PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Maximum 6.9 W, Normal 2.5 W PoE: Maximum 8.2 W, Normal 3.2 W |
Construction
| Net Weight | 0.5 kg (1.2 lb) |
|---|---|
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating Humidity | < 95% RH (Non-Condensing) |
| Product Dimensions | 122.0 mm × 111.8 mm (4.8 in. × 4.4 in.) |
| Packaging Dimensions (L x W x H) | 148.0 mm x 139.0 mm x 137.0 mm (5.8 in. x 5.5 in. x 5.4 in.) |
| Protection Ratings | IP67, IK10 |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Mounting options (sold separately)
| Junction Box | LUM-J02 or LUM-CJ11 |
|---|---|
| Wall Mount | LUM-W01 |
| Horizontal Pole Mount (Option 1) | LUM-W01 + LUM-P02 |
| Horizontal Pole Mount (Option 2) | LUM-A01 + LUM-W02 + LUM-P01 |
| Vertical Pole Mount | LUM-A01 + LUM-E01 + LUM-P01 |
| Pendant Mount | LUM-A01 + LUM-E01 |
| Corner Mount | LUM-A01 + LUM-W02 + LUM-C01 |
Download the official K5T-16D2A4 datasheet (PDF)
Mounting parts are sold separately; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
