Luminys LUM-W01 Wall Mount Bracket
Luminys LUM-W01 Wall Mount Bracket
SKU:LUM-W01
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

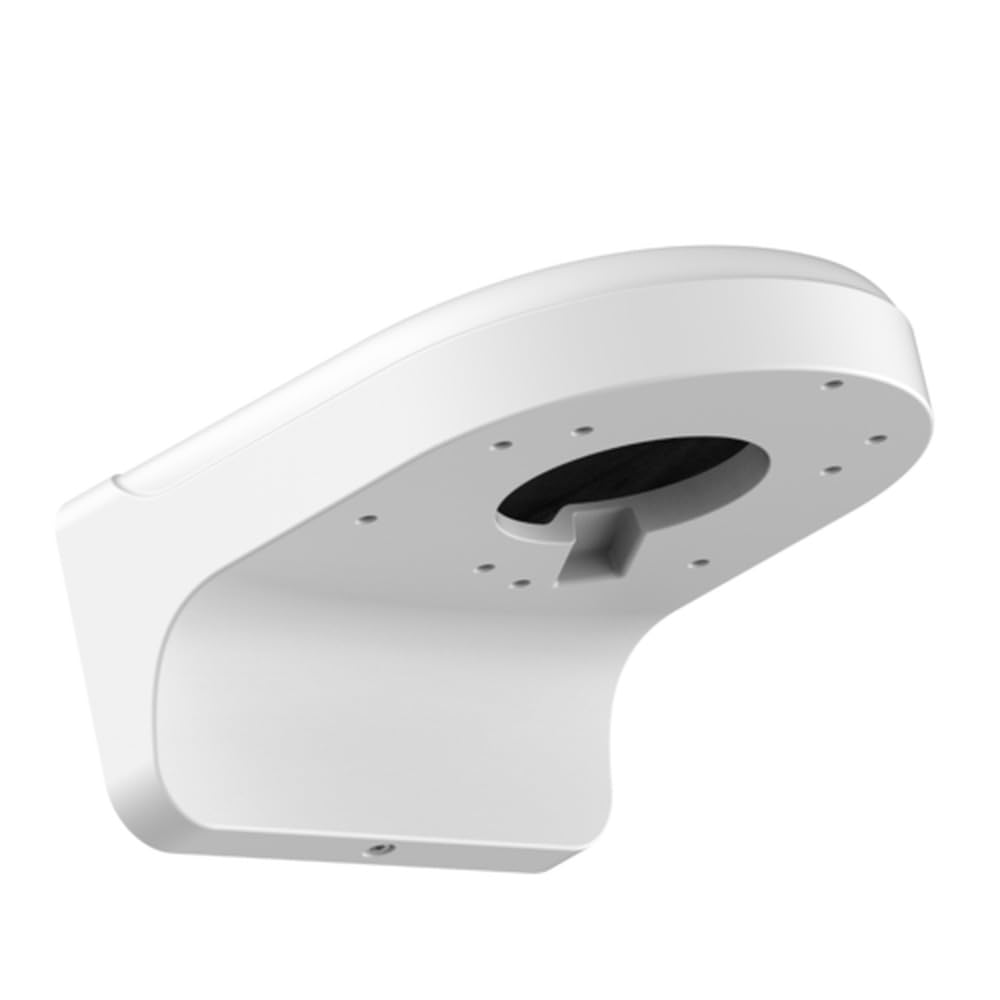

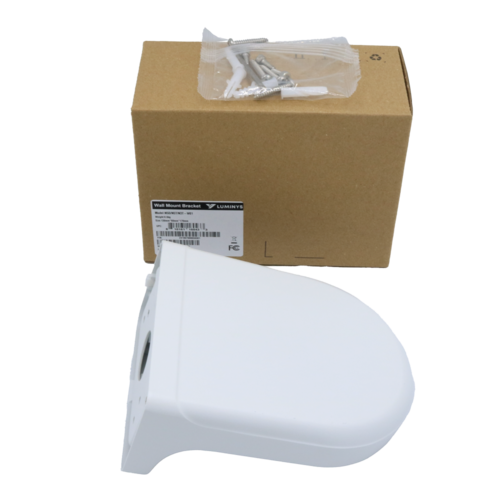

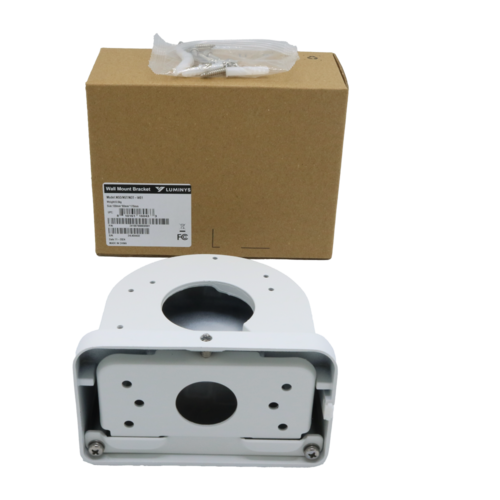

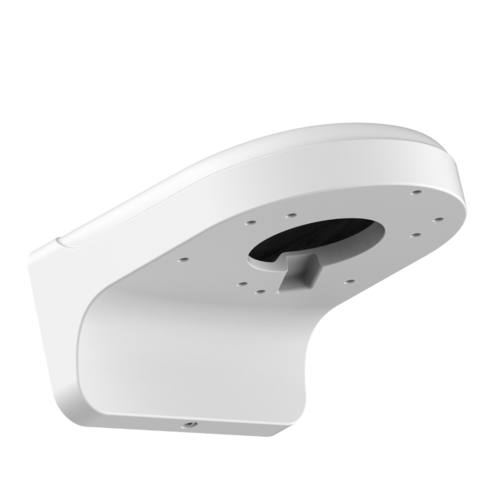

The Luminys LUM-W01 is the official dome/turret series wall mount bracket for select dome (N5D) and turret (N5T, N3T) cameras. It is rated to carry up to 1.0 kg (2.2 lb).
- For Select Dome and Turret CamerasFits select N5D dome and N5T/N3T turret cameras, per Luminys.
- Aluminum and SECC ConstructionAluminum body with SECC (electro-galvanized steel), weighing 0.5 kg (1.1 lb).
- Max. Load Capacity: 1.0 kg (2.2 lb)Rated to carry up to 1.0 kg (2.2 lb).
- 160.0 × 122.0 × 76.0 mm6.30 in. × 4.80 in. × 2.99 in. (W × H × D).
Specifications
Specifications
| Weight | 0.5 kg (1.1 lb) |
|---|---|
| Load Bearing Capacity | 1.0 kg (2.2 lb) |
| Material | Aluminum and SECC |
| Color | White or Black |
| Dimensions (W × H × D) | 160.0 mm × 122.0 mm × 76.0 mm (6.30 in. × 4.80 in. × 2.99 in.) |
Fits these TechChefs cameras
| 8-Channel 5MP LumiDeterrent IP Kit |
K56-8D1A2 Wall Mount: LUM-W01 Horizontal Pole Mount (Option 1): LUM-W01 + LUM-P02 |
|---|---|
| 16-Channel 5MP LumiDeterrent IP Kit |
K5T-16D2A4 Wall Mount: LUM-W01 Horizontal Pole Mount (Option 1): LUM-W01 + LUM-P02 |
| N5-L 4MP LumiLuxSmart IP Standard Dome 2.8 mm |
N5D-4LA2 Wall Mount: LUM-W01 Horizontal Pole Mount: LUM-W01 + LUM-P02 |
| N4 8MP LumiNightKing IP Standard Turret 2.8 mm |
N4T-8VA2 Wall Mount: LUM-W01 Horizontal Pole Mount (Option 1): LUM-W01 + LUM-P02 |
| N2T-4RA2 4MP Starter IP Turret |
N2T-4RA2 Wall Mount: LUM-W01 Horizontal Pole Mount (Option 1): LUM-W01 + LUM-P02 |
| N3T-4LA2 4MP LumiLuxSmart Mini Turret |
N3T-4LA2 Wall Mount: LUM-W01 or LUM-W01B Horizontal Pole Mount (Option 1): LUM-W01 or LUM-W01B + LUM-P02 |
| N3T-8LA2 8MP LumiLuxSmart Mini Turret |
N3T-8LA2 Wall Mount: LUM-W01 Horizontal Pole Mount (Option 1): LUM-W01 + LUM-P02 |
| N3D-8LAV 8MP Varifocal Dome |
N3D-8LAV Wall Mount: LUM-W01 Horizontal Pole Mount: LUM-W01 + LUM-P02 |
Download the official LUM-W01 datasheet (PDF)
Compatibility is taken from each camera's official Luminys datasheet. Some mount types need more than one part; every part listed for a mount type is required. Color availability may vary; call us to confirm white or black. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
