Luminys 4MP Network LumiColor Turret Camera (2.8 mm) (N5T-4CA2)
Luminys 4MP Network LumiColor Turret Camera (2.8 mm) (N5T-4CA2)
SKU:N5T-4CA2
Regular price
$367.99
Regular price
Sale price
$367.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

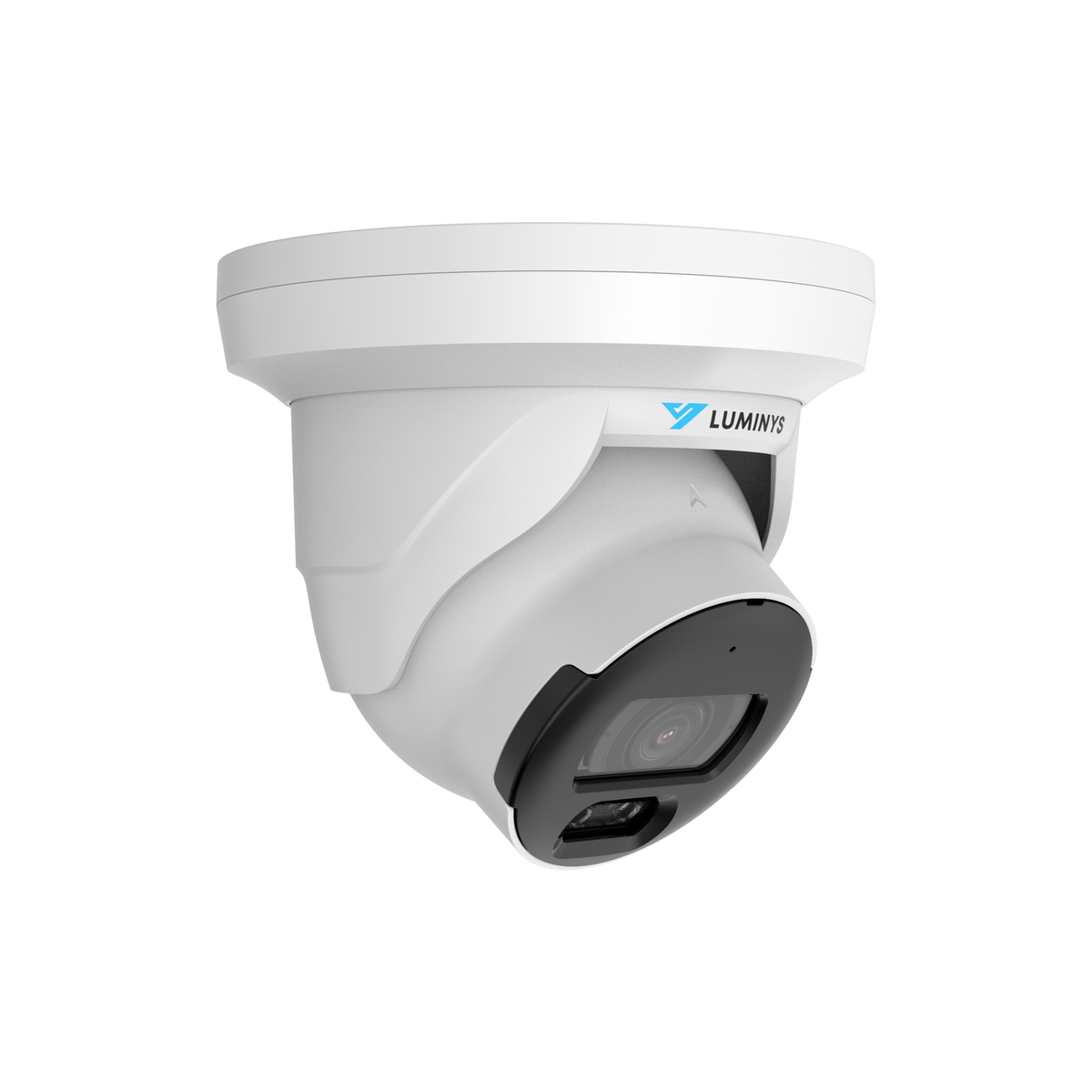

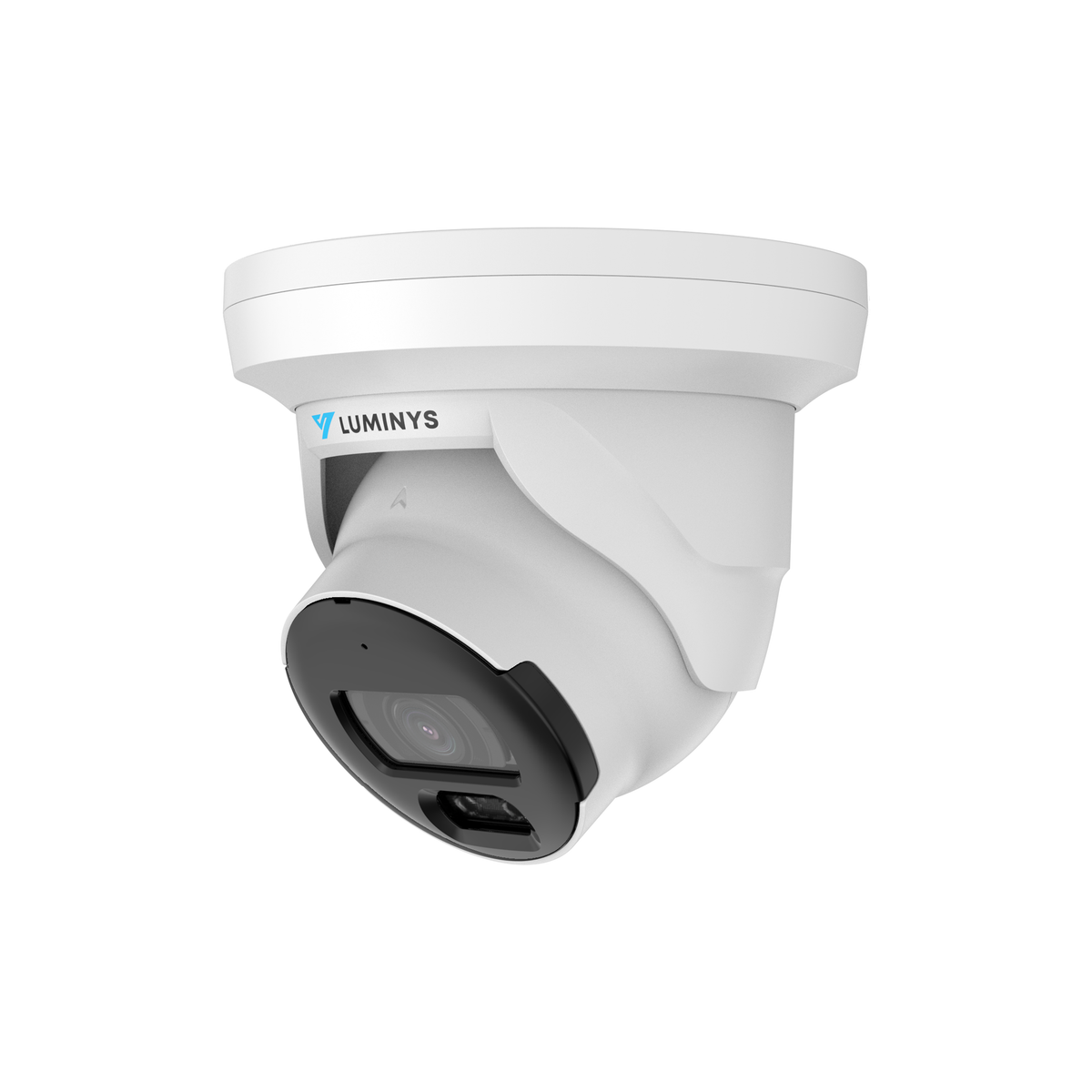

The Luminys N5T-4CA2 is a 4MP Network LumiColor Turret Camera built around a 1/1.8-in. 4MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3at), LumiPower.
- 4MP Turret Housing1/1.8-in. 4MP Progressive CMOS, 2688 × 1520 maximum resolution.
- 2.8 mm Fixed Lens110° horizontal field of view, F1.0 maximum aperture.
- LumiColorWhite-Light LEDs
- Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
- iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiSearchLumiSearch technology lets you quickly find, track, and identify targets in security footage using a reference image.
- LumiAnalyticsFace Detection, People Counting, Queue Management, Smart Object Detection, Heat Map
- LumiPowerLumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet.
- LumiPolarPro and LumiDesertProRated for -40 °C to 60 °C (-40 °F to 140 °F) operation.
Key technologies
- LumiColor
- LumiColor technology allows you to capture color footage in complete darkness (0 lux). Cameras with this technology have integrated white-light LEDs to illuminate scenes in low lighting. The integrated white lights work in combination with a large aperture lens to capture more available light and reproduce color images with superior detail and contrast.
- LumiSearch
- LumiSearch technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR.
- LumiAnalytics
- LumiAnalytics technology uses detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.
- LumiPower
- LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | 0.0005 Lux at F1.0 0 Lux With White Light On |
| Number of Illuminators | Two (2) White-Light LEDs |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan: 0° Tilt: 0° Rotation: 0° to 360° |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View |
Horizontal: 110° Vertical: 59° Diagonal: 130° |
| Close Focus Range | 1.6 m (5.3 ft) |
| DORI Distance |
Detect: 58.2 m (190.9 ft) Observe: 23.3 m (76.4 ft) Recognize: 11.6 m (38.1 ft) Identify: 5.8 m (19.0 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|---|
| Stream Capability | Three (3) Streams |
| Resolution | 4MP (2688 × 1520), 3MP (2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D (704 × 576), D (704 × 480), VGA (640 × 480), CIF (352 × 288), CIF (352 × 240) |
| Maximum Frame Rate |
Main Stream: 2688 × 1520 at 30 fps Sub Stream 1: D at 30 fps Sub Stream 2: 1920 × 1080 at 30 fps |
| Video Bit Rate |
H.265: 32 kbps to 16384 kbps H.264: 32 kbps to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Color, Black and White |
| Light Balancing | Wide Dynamic Range (130 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° With 4MP Resolution and Lower) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
|---|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| Heat Map | Supported |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
| LumiAnalytics | Supported |
| Object Monitoring | Supported |
Audio
| Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
|---|---|
| Interface | Input: Built-in Microphone |
Alarm
| Event | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Fast Moving, Abandoned Object, Missing Object, Loitering Detection, People Gathering, Scene Changing, Audio Detection, External Alarm, Face Detection, iMD, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection |
|---|
Network
| Port | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, MicroSD Card (Max. 512 GB) |
Electrical
| Power Supply | 12 VDC, PoE (802.3at), LumiPower |
|---|---|
| Power Consumption |
12 VDC: Maximum 8.4 W, Normal 2.4 W PoE: Maximum 9.8 W, Normal 3.2 W |
Construction
| Net Weight | 0.6 kg (1.2 lb) |
|---|---|
| Gross Weight | 0.7 kg (1.5 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions (L × W × H) | 111.8 mm × Φ 122.0 mm (4.4 in. x Φ 4.8 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Download the official N5T-4CA2 datasheet (PDF)
