Luminys 4MP Network LumiNightKing Turret Camera (2.8mm) (N4T-4VA2)

Name: Luminys 4MP Network LumiNightKing Turret Camera (2.8mm) (N4T-4VA2)
Brand: Luminys
SKU: N4T-4VA2
Price: 325.99 USD
Availability: InStock

SKU:N4T-4VA2

$325.99

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

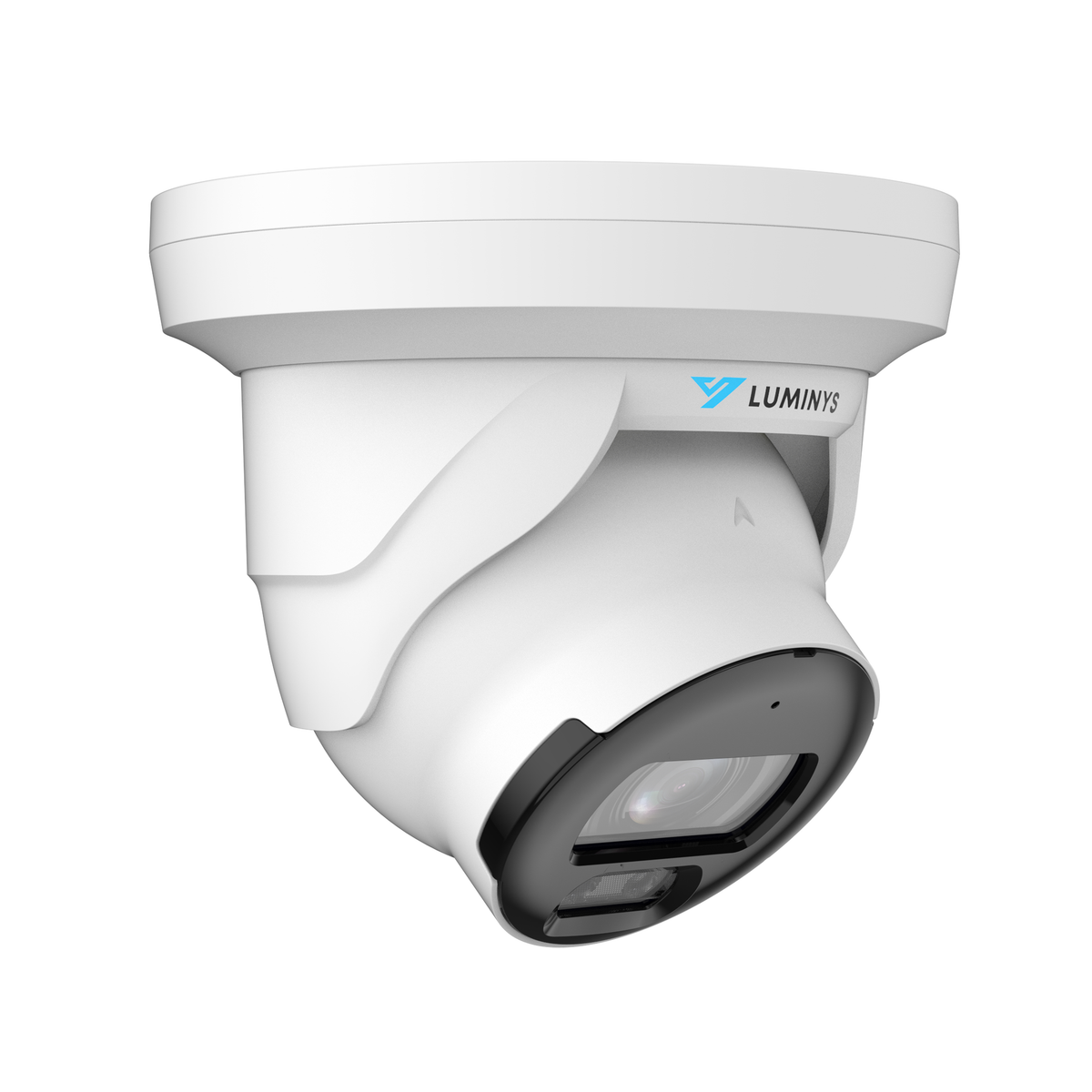

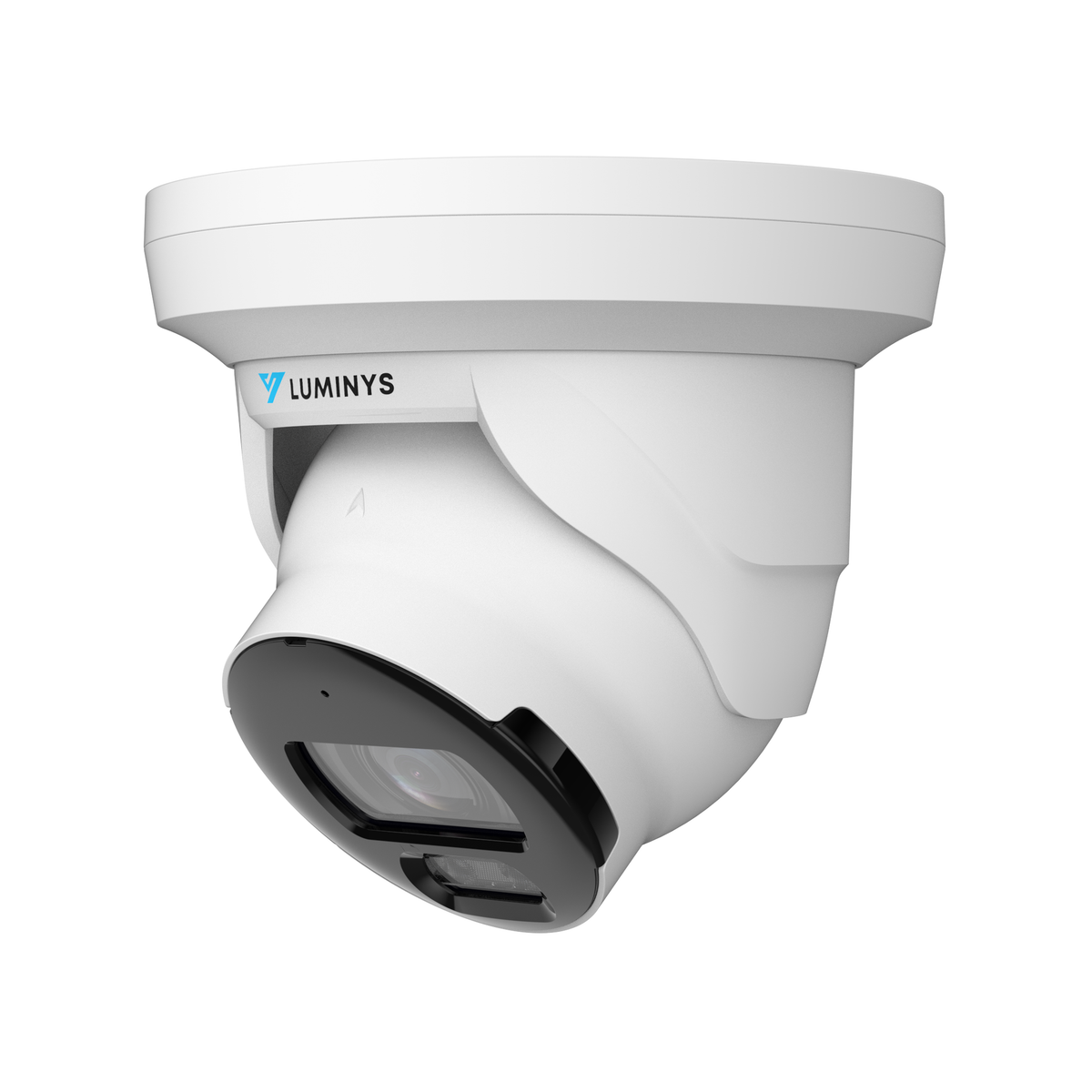

The Luminys N4T-4VA2 is a 4MP Network LumiNightKing Turret Camera built around a 1/1.8-in. 4MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC or PoE (802.3af).

4MP Turret Housing1/1.8-in. 4MP Progressive CMOS, 2688 x 1520 maximum resolution.
2.8 mm Lens112° horizontal field of view, F1.0 maximum aperture.
AI-ISP
White-Light LEDsIllumination up to 100.0 ft (30.48 m).
Video Content AnalyticsLine Crossing, Intrusion
iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.

Key technologies

LumiNightKing: LumiNightKing technology provides advanced, versatile low-light performance. Cameras with this technology combine a large pixel size sensor, an advanced AI-ISP, and ultra-wide F1.0 to capture images in near-total darkness without relying on IR or visible white-light LEDs. LumiNightKing cameras also have white-light LEDs that can be programmed to remain on throughout the night for deterrence and lighting.
Video Content Analytics (VCA): Video Content Analytics (VCA) is the umbrella for line crossing and intrusion analytics. Line crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. VCA is available on most Luminys network cameras.
LumiPolarPro and LumiDesertPro: LumiPolarPro and LumiDesertPro technology ensures rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 60 °C (140 °F).

Specifications

Camera

Luminys Series	Mainstream
Image Sensor	1/1.8-in. 4MP Progressive CMOS
Maximum Resolution	2688 x 1520
Minimum Illumination	Color: 0.0006 lux at F1.0
Number of Illuminators	White Light: Two (2)
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	100.0 ft (30.48 m)
Electronic Shutter Speed	Automatic, Manual 1/3 s to 1/100,000 s
Installation Angle	Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360°
S/N Ratio	> 50 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.0
Field of View	Horizontal: 112° Vertical: 60° Diagonal: 134°
Close Focus Range	2.0 m (6.6 ft)
DORI Distance	Detect: 46.9 m (153.9 ft) Observe: 17.9 m (58.7 ft) Recognize: 9.3 m (30.5 ft) Identify: 4.5 m (14.8 ft)

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Stream Capability	Two (2) Streams
Resolution	4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D (704 x 480), VGA (640 x 480), CIF (352 x 240)
Maximum Frame Rate	Main Stream: 4MP at 30 fps Sub Stream 1: D at 30 fps
Video Bit Rate	H.264: 3 to 6144 kbps H.265: 3 to 6144 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB)
Noise Reduction	3D NR
Image Angle	0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower)
Mirror Image	Supported
Region of Interest (ROI)	Four (4) Zones
Privacy Masking	Four (4) Zones

Analytics

Video Content Analytics	Line Crossing, Intrusion
Intelligent Motion Detection	Supported With Alarms for Vehicles and Humans

Audio

Compression	PCM, G.711a, G.711Mu
Sampling Rates	PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz
Interface	Input: Built-In Microphone

Alarm

Event	Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning

Network

Interface	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
Interoperability	ONVIF (Profile S/G/T), CGI
Browser	Chrome, Firefox, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP, SFTP, NAS, Micro SD Card (Max. 256 GB)

Electrical

Power Supply	12 VDC/PoE (802.3af)
Power Consumption	12 VDC: Maximum 5.3 W, Normal 2.0 W PoE: Maximum 6.4 W, Normal 2.5 W

Construction

Net Weight	0.5 kg (1.2 lb)
Gross Weight	0.7 kg (1.6 lb)
Operating Temperature	-40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing)
Storage Temperature	-40 to 60 °C (-40 to 140 °F)
Protection Ratings	IP67
Dimensions	Φ122.0 mm x 111.8 mm (Φ4.8 in. x 4.4 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

Mounting options

Junction Box	LUM-J02 or LUM-CJ11
Wall Mount	LUM-W01
Horizontal Pole Mount (Option 1)	LUM-W01 + LUM-P02

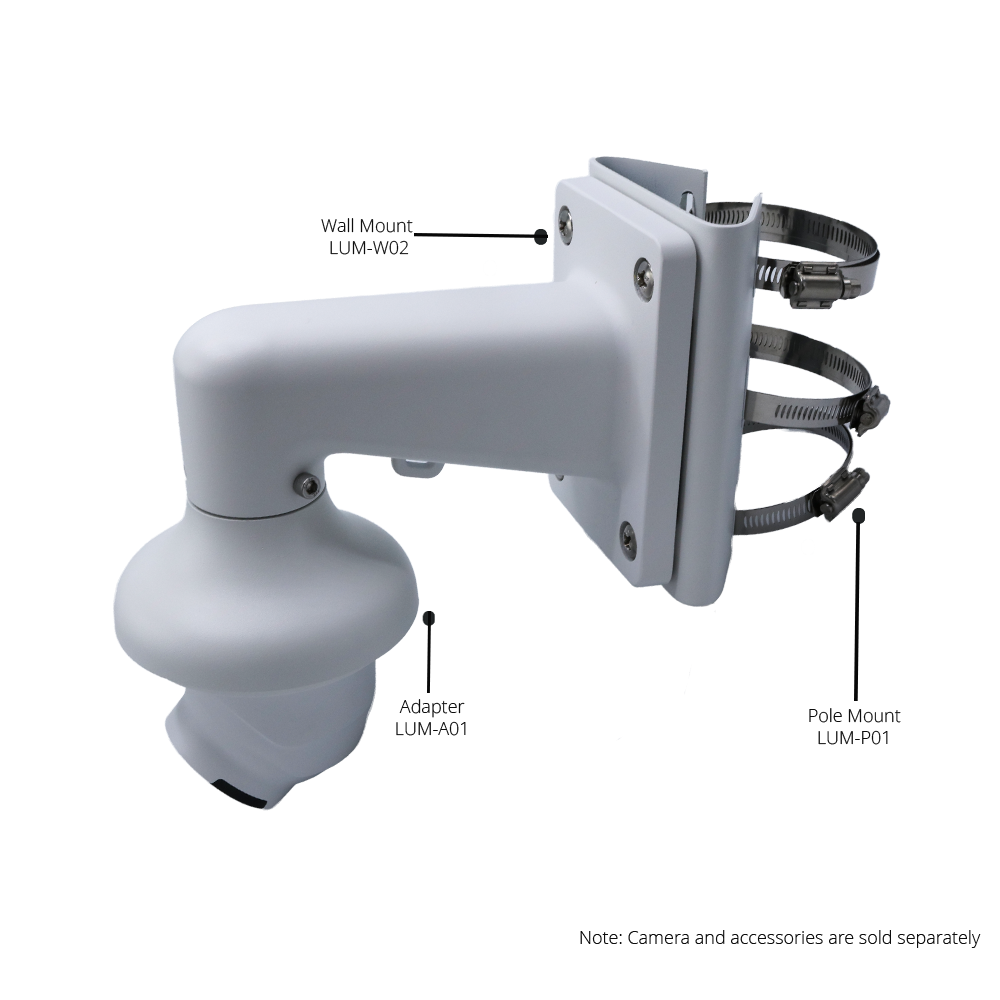

Horizontal Pole Mount (Option 2)	LUM-A01 + LUM-W02 + LUM-P01
Vertical Pole Mount	LUM-A01 + LUM-E01 + LUM-P01
Pendant Mount	LUM-A01 + LUM-E01
Corner Mount	LUM-A01 + LUM-W02 + LUM-C01

Download the official N4T-4VA2 datasheet (PDF)
