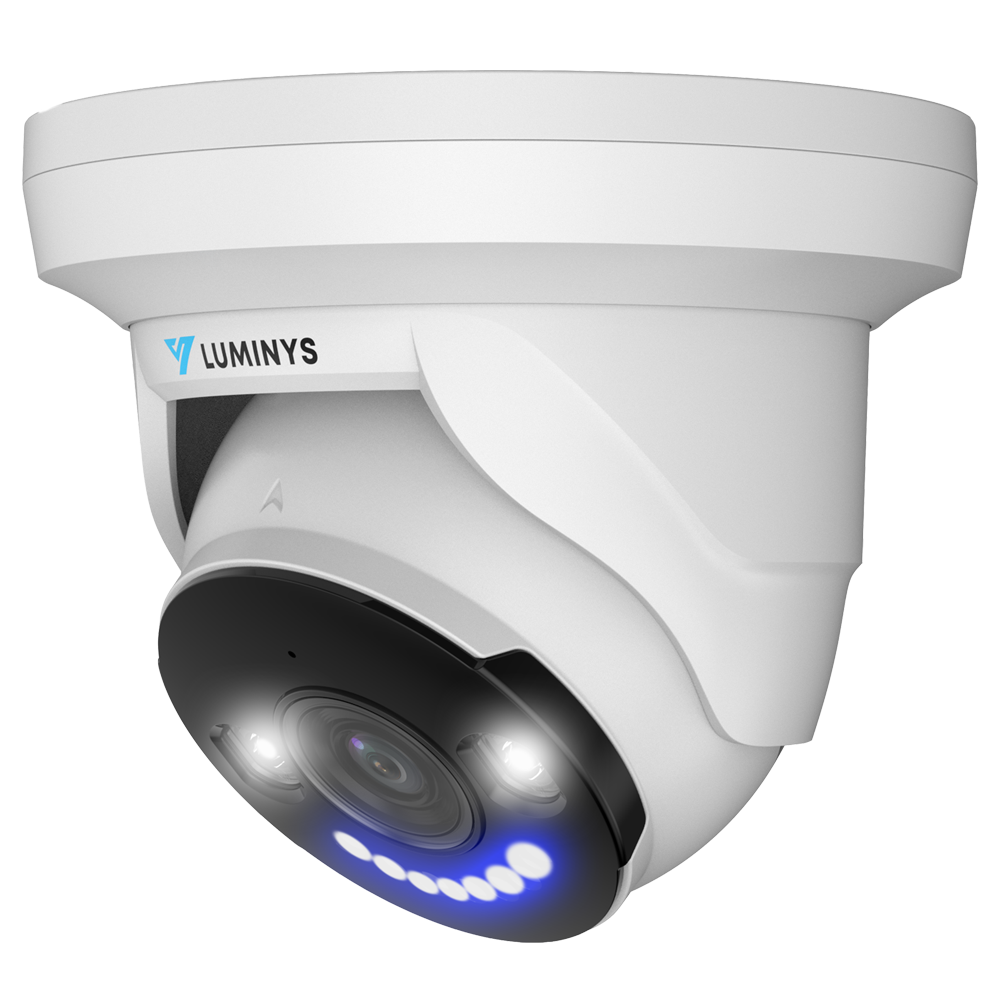

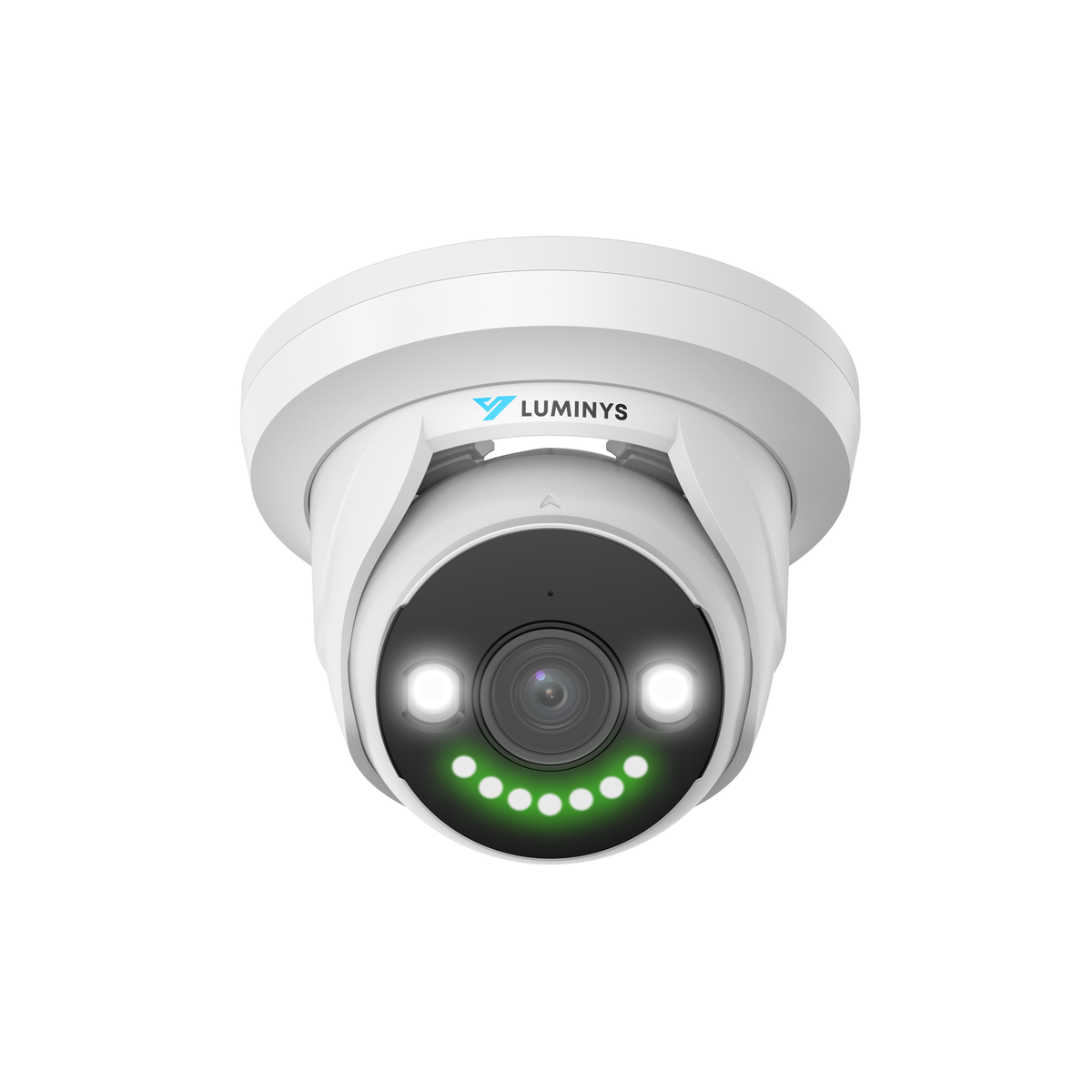

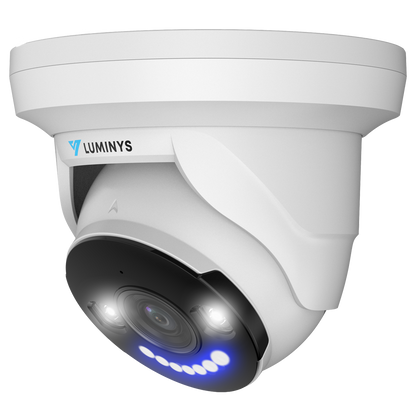

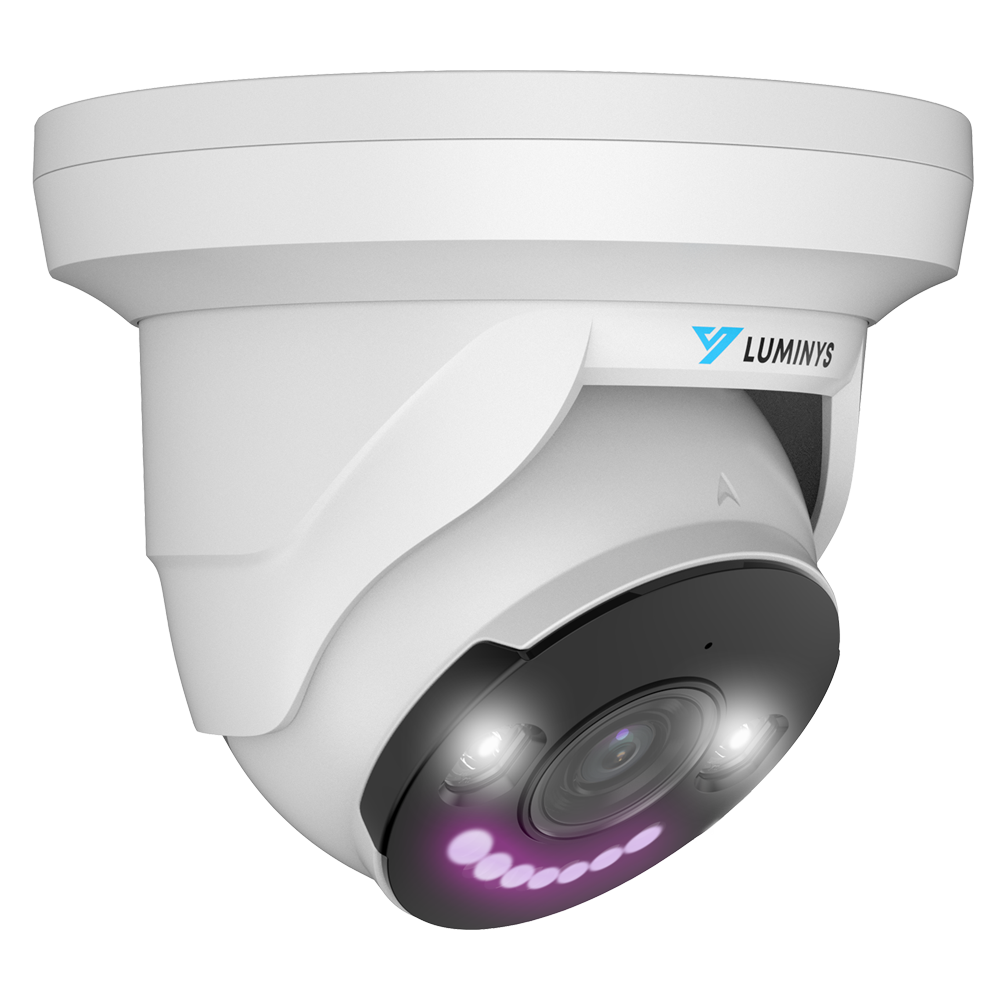

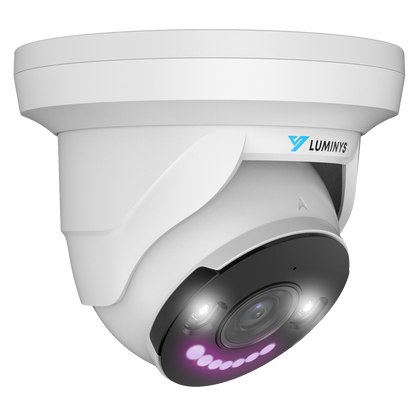

Luminys 8MP Network LumiLightBand Turret Camera (2.8 mm) (N3T-8BA2)

Name: Luminys 8MP Network LumiLightBand Turret Camera (2.8 mm) (N3T-8BA2)
Brand: Luminys
SKU: N3T-8BA2
Price: 419.99 USD
Availability: InStock

SKU:N3T-8BA2

$419.99

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

The Luminys N3T-8BA2 is an 8MP Network LumiLightBand Turret Camera built around a 1/2.8-in. 8MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3af).

8MP Turret Housing1/2.8-in. 8MP Progressive CMOS, 3840 × 2160 maximum resolution.
2.8 mm Lens111° horizontal field of view, F1.6 maximum aperture.
Dual Illumination With Built-In IR and White- Light LEDs
Video Content AnalyticsLine Crossing and Intrusion
iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
LumiPolarPro and LumiDesertProRated for -40 °C to 60 °C (-40 °F to 140 °F) operation.

Key technologies

LumiLightBand: LumiLightBand technology activates a camera's light strip according to a schedule, event trigger, or motion detection. When the camera's sensor detects motion, the semi-ring of colorful LEDs turn red to deter intruders. Once motion stops, the colorful LEDs return to their normal state. The lights come in eight (8) different colors and can be set to keep steady, wave, or flash for a specific amount of time.
LumiPolarPro and LumiDesertPro: LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.

Specifications

Camera

Luminys Series	Starter
Image Sensor	1/2.8-in. 8MP Progressive CMOS
Maximum Resolution	3840 × 2160
Minimum Illumination	Color: 0.008 Lux at F1.6 (30 IRE) Black/White: 0.0008 Lux at F1.6 (30 IRE) 0 Lux With IR Light On
Number of Illuminators	One (1) IR LED, Two (2) White-Light LEDs Supports LumiLightBand
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	IR/Warm-Light: Up to 30.0 m (98.4 ft)
Electronic Shutter Speed	Automatic, Manual; 1/3 s to 1/100,000 s
Installation Angle	Pan and Rotation: 0° to 360° Tilt: 0° to 78°
S/N Ratio	> 50 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.6
Field of View	Horizontal: 111° Vertical: 58° Diagonal: 132°
Close Focus Range	1.5 m (4.9 ft)
DORI Distance	Detect: 58.2 m (190.9 ft) Observe: 23.3 m (76.4 ft) Recognize: 11.6 m (38.1 ft) Identify: 5.8 m (19.0 ft)

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Stream Capability	Two (2) Streams
Resolution	8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 5MP (2880× 1620), 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2048 × 1536), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Maximum Frame Rate	Main Stream: 3840 x 2160 at 20 fps Sub Stream: D at 20 fps
Video Bit Rate	H.264: 32 to 8192 kbps H.265: 12 to 8192 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB)
Noise Reduction	3D NR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° With 4MP Resolution and Lower)
Mirroring	Supported
Region of Interest	Four (4) Zones
Privacy Masking	Four (4) Zones

Analytics

Video Content Analytics	Line Crossing, Intrusion
Intelligent Motion Detection	Supported With Alarms for Vehicles and Humans

Audio

Compression	PCM, G.711a, G.711Mu
Interface	Input: Built-in Microphone

Alarm

Event	No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Audio Detection, iMD

Network

Port	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP,RTSP, RTMP, FTP, SFTP,NAS, DHCP,DNS DDNS, QoS, UPnP, NTP, NFS, PPPoE, SMTP, 802.1x
Interoperability	ONVIF (Profile S/G/T), CGI, SDK
Browser	Chrome, Firefox, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP, SFTP, NAS, MicroSD Card (Max. 256 GB)

Electrical

Power Supply	12 VDC, PoE (802.3af)
Power Consumption	12 VDC: 8.4 W (Max.), 3.2 W (Normal) PoE: 9.8 W (Max.), 4.3 W (Normal)

Construction

Net Weight	0.5 kg (1.1 lb)
Gross Weight	0.7 kg (1.4 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F) < 95% RH (Non-Condensing)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Protection Ratings	IP67
Dimensions (L × W × H)	Φ 122.0 × 104.7 mm (Φ 4.8 × 4.1 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

Mounting options

Junction Box	LUM-J02 or LUM-CJ11
Wall Mount	LUM-W01
Horizontal Pole Mount (Option 1)	LUM-W01 + LUM-P02

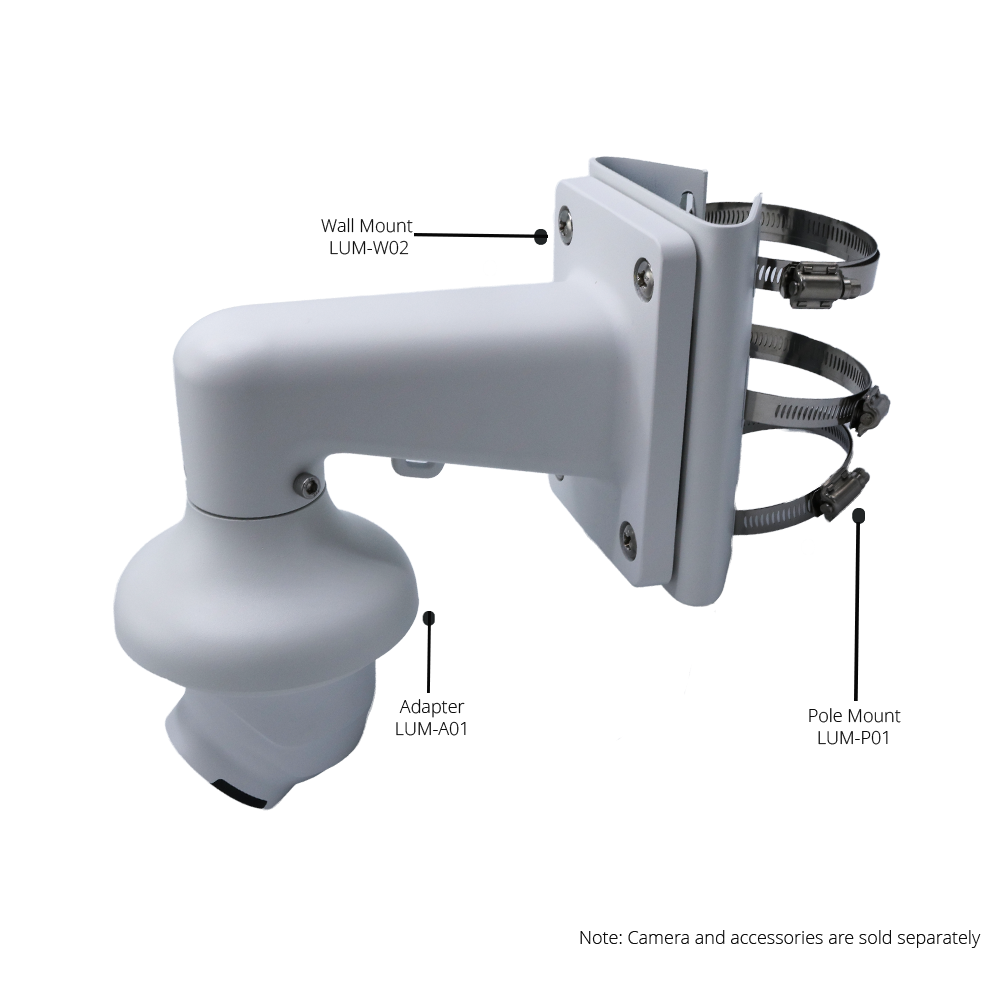

Horizontal Pole Mount (Option 2)	LUM-A01 + LUM-W02 + LUM-P01
Vertical Pole Mount	LUM-A01 + LUM-E01 + LUM-P01
Pendant Mount	LUM-A01 + LUM-E01
Corner Mount	LUM-A01 + LUM-W02 + LUM-C01

Download the official N3T-8BA2 datasheet (PDF)
