Luminys

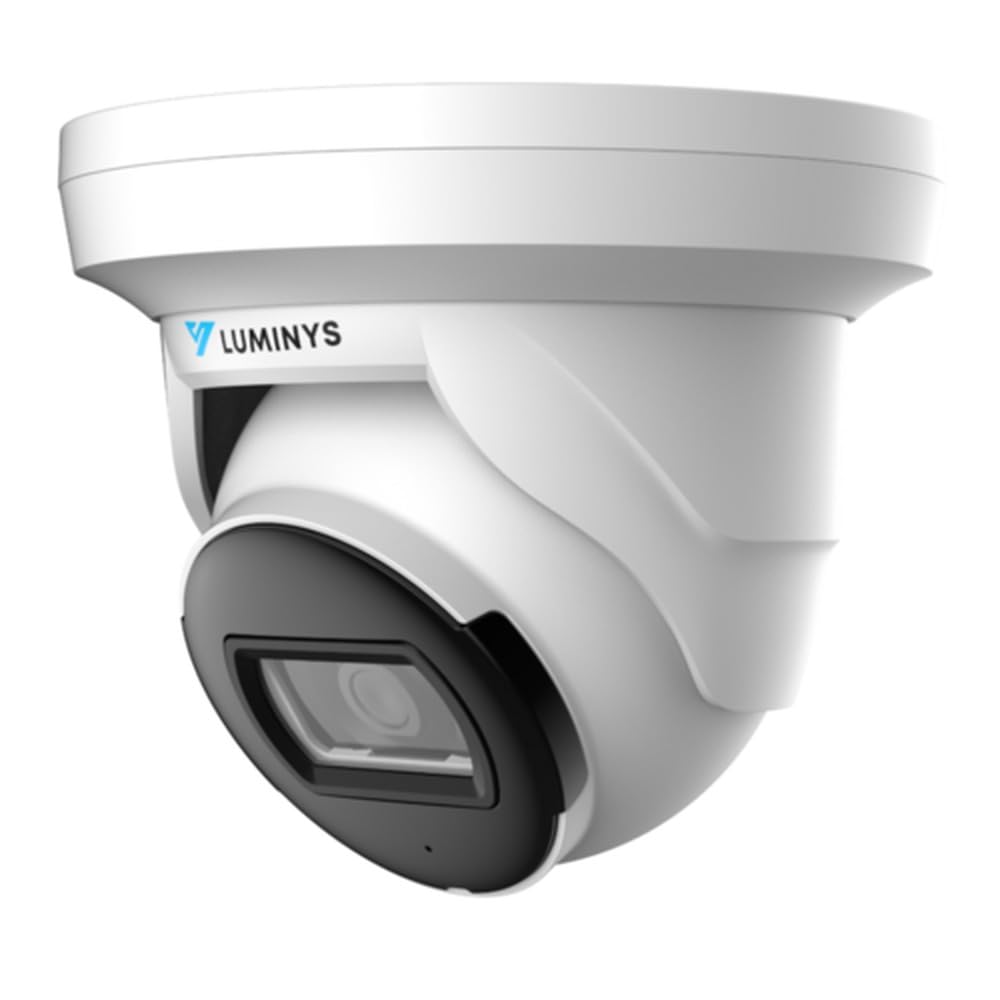

Luminys N2T-4RA2 4MP Starter IP Turret

Name: Luminys N2T-4RA2 4MP Starter IP Turret
Brand: Luminys
SKU: N2T-4RA2
Price: 170.98 USD
Availability: InStock

SKU:N2T-4RA2

$170.98

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

The Luminys N2T-4RA2 is a 4MP Fixed Turret Camera built around a 1/2.9-in. 4MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3af).

4MP Turret Housing1/2.9-in. 4MP Progressive CMOS, 2688 x 1520 maximum resolution.
2.8 mm Fixed Lens95° horizontal field of view, F1.6 maximum aperture.
Video Content AnalyticsLine Crossing, Intrusion
Intelligent Motion Detection (iMD)Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area.

Key technologies

Video Content Analytics (VCA): Video Content Analytics (VCA) is the umbrella for line crossing and intrusion analytics. Line Crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. VCA is available on most Luminys network cameras.
Intelligent Motion Detection (iMD): Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.

Specifications

Camera

Luminys Series	Starter
Image Sensor	1/2.9-in. 4MP Progressive CMOS
Maximum Resolution	2688 x 1520
Minimum Illumination	Color: 0.005 Lux at F1.6 Black and White: 0.0005 Lux at F1.6 0 Lux With IR On
Number of Illuminators	Two (2) IR LEDs
Illuminator Control	Automatic, Manual, Off
Maximum Illumination Distance	Up to 30.5 m (100 ft.)
Electronic Shutter Speed	Automatic, Manual 1/3 s to 1/100,000 s
Installation Angle	Pan: 0 to 360° Tilt: 0° to 78° Rotation: 0° to 360°
S/N Ratio	> 56 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.6
Field of View	Horizontal: 95° Vertical: 52° Diagonal: 114°
Close Focus Range	1.1 m (3.6 ft)
DORI Distance	Detect: 63.4 (208.0 ft) Observe: 25.1 m (82.4 ft) Recognize: 12.4 m (40.7 ft) Identify: 6.2 m (20.3 ft)

Video

Compression	H.265, H.264, MJPEG (Sub Stream Only)
Standard Codec	Supported
Stream Capability	Two (2) Streams
Resolution	4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D (704 x 480), VGA (640 x 480), CIF (352 x 240)
Maximum Frame Rate	Main Stream: 4MP (2688 x 1520) at 20 OR: fps 4MP (2560 x 1440) at 30 fps Sub Stream: D (704 x 480) at 30 fps
Video Bit Rate	H.264: Main Stream : 3,072 kbps to 6,144 kbps Sub Stream: 512 kbps to 2,048 kbps H.265: Main Stream : 1,280 kbps to 6,144 kbps Sub Stream: 211 kbps to 1,280 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic, Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB)
Noise Reduction	3D NR
Image Angle	0°, 90°, 180°, 270° (90° and 270° Supported for 2688 x 1520 Resolution and Lower)
Mirroring	Supported
Region of Interest	Four (4) Zones

Analytics

Video Content Analytics	Line Crossing, Intrusion
Intelligent Motion Detection	Supported with Alarms for Vehicles and Humans

Audio

Compression	G.PCM, G.711a, G.711Mu
Interface	Input: Built-In Microphone

Alarm

Event	Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception

Network

Interface	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
Interoperability	ONVIF (Profile S/G/T), CGI
Browser	Chrome, Firefox, Edge* *Must Have Internet Explorer Compatability Mode On
Client	LumiViewer Desktop Client, LumiViewer Mobile App
Storage	FTP, SFTP, MicroSD Card (Max. 256 GB)

Electrical

Power Supply	12 VDC, PoE (802.3af)
Power Consumption	12 VDC: Maximum 6.6 W, Average 2.4 W PoE: Maximum 7.9 W, Average 3.0 W

Construction

Net Weight	0.52 kg (1.2 lb)
Gross Weight	0.68 kg (1.5 lb)
Operating Temperature	-40 °C to 60 °C (-40°F to 140°F) < 95% RH
Storage Temperature	-40 °C to 60 °C (-40°F to 140°F)
Product Dimensions	Φ122.0 mm x 105.4 mm (Φ4.8 in. x 4.2 in.)
Packaging Dimensions (L x W x H)	148.0 mm x 139.0 mm x 137.0 mm (5.8 in. x 5.5 in. x 5.4 in.)
Protection Ratings	IP67
Material	Metal

Certifications and Compliance

Certifications	FCC
Compliance	NDAA

Mounting options

Junction Box	LUM-J02 or LUM-CJ11
Wall Mount	LUM-W01
Horizontal Pole Mount (Option 1)	LUM-W01 + LUM-P02
Horizontal Pole Mount (Option 2)	LUM-A01 + LUM-W02 + LUM-P01
Vertical Pole Mount	LUM-A01 + LUM-E01 + LUM-P01
Pendant Mount	LUM-A01 + LUM-E01
Corner Mount	LUM-A01 + LUM-W02 + LUM-C01

Download the official N2T-4RA2 datasheet (PDF)

Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
