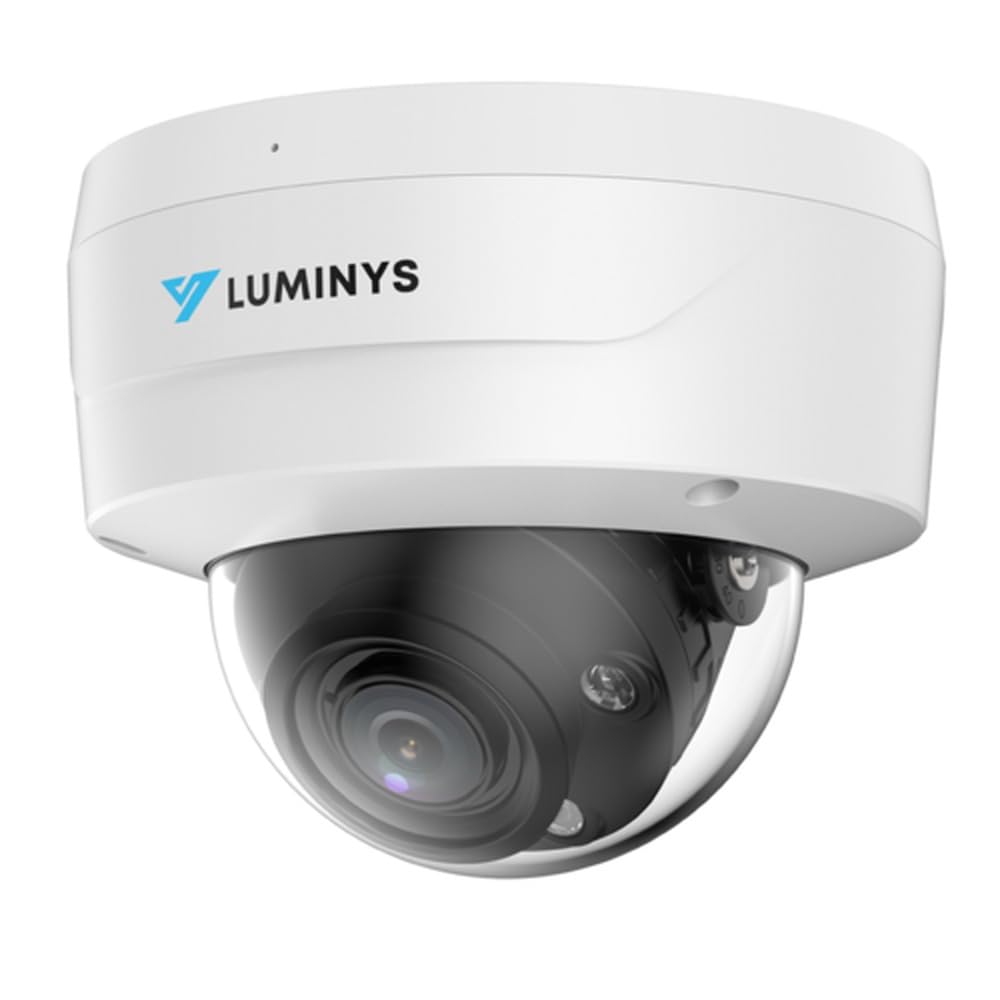

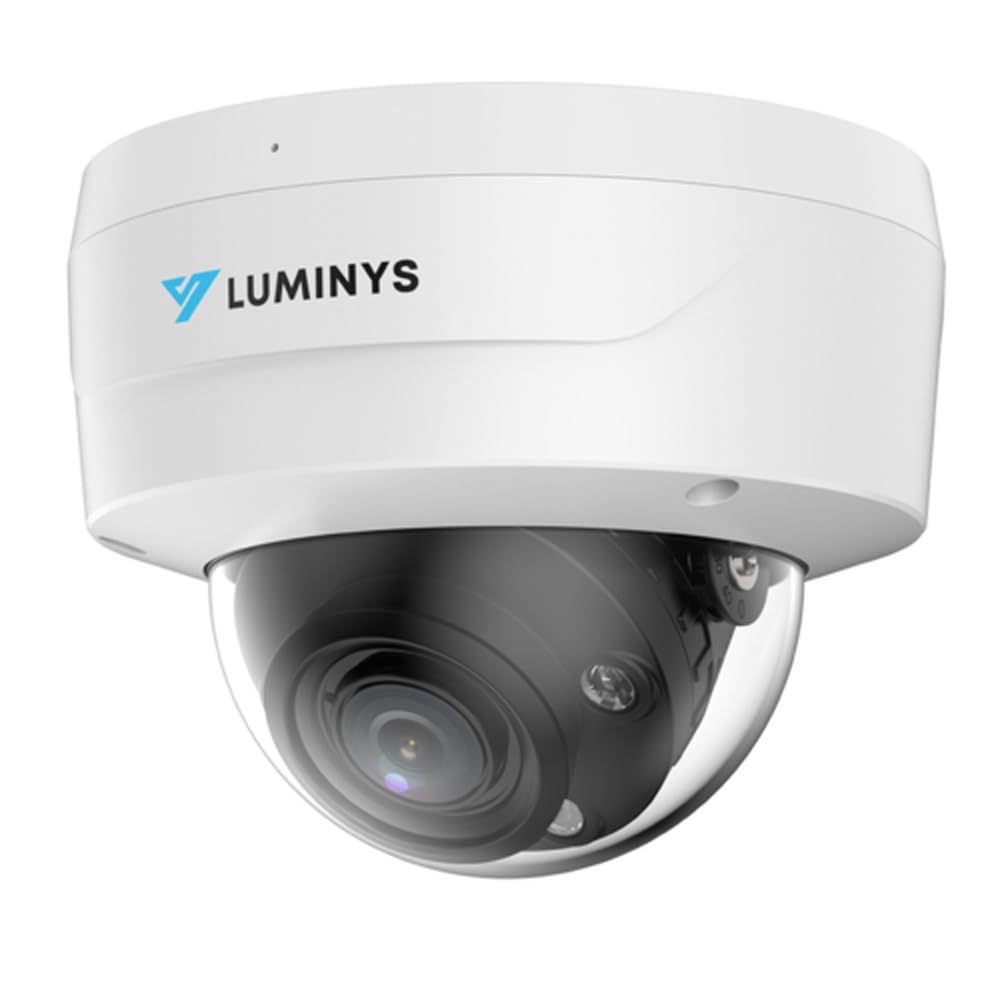

Luminys N3D-8LAV 8MP Varifocal Dome
Luminys N3D-8LAV 8MP Varifocal Dome
SKU:N3D-8LAV
Regular price
$525.58
Regular price
Sale price
$525.58
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

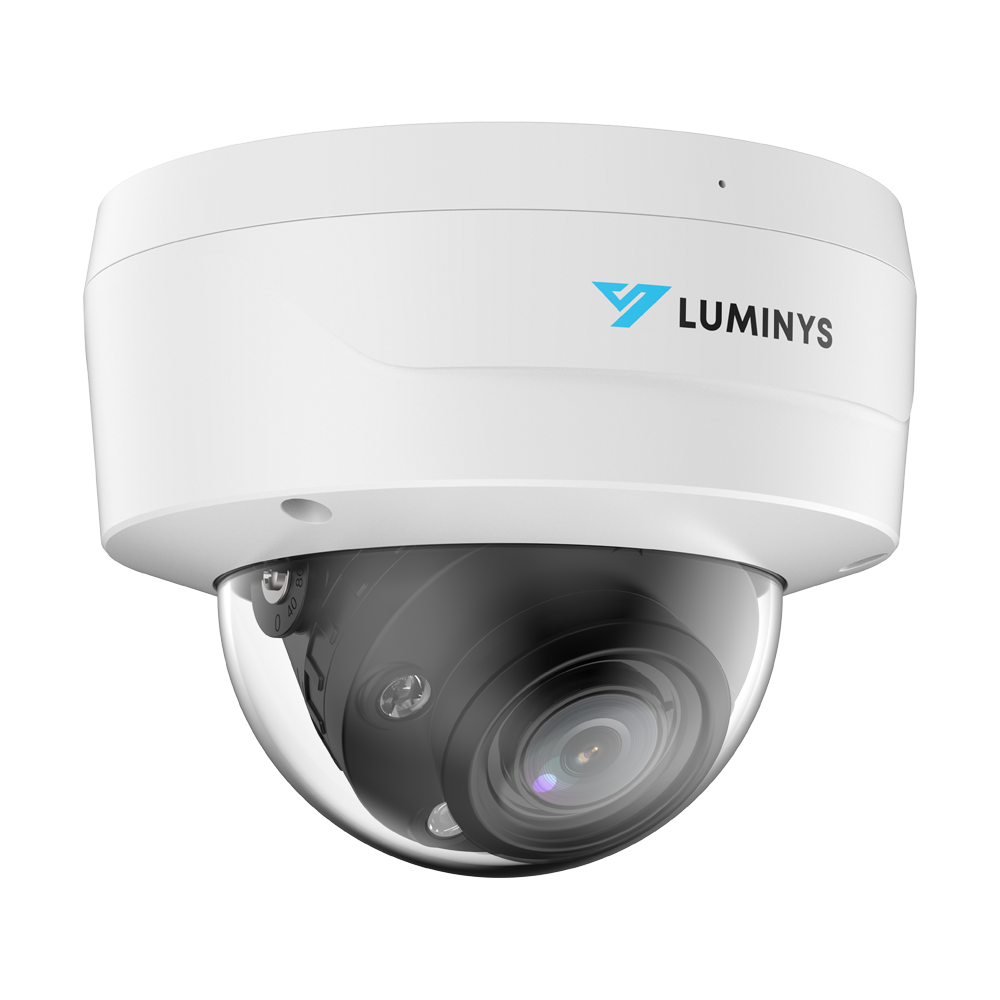

The Luminys N3D-8LAV is an 8MP Network LumiLuxSmart Dome Camera built around a 1/2.7-in. 8MP Progressive CMOS sensor and a 2.7 mm to 13.5 mm vari-focal lens. It is IP67 and IK10 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3af).
- 8MP Dome Housing1/2.7-in. 8MP Progressive CMOS, 3840 x 2160 maximum resolution.
- 2.7 mm to 13.5 mm Motorized Vari-Focal Lens114° to 32° horizontal field of view, F1.5 maximum aperture.
- LumiLuxSmartIR and White-Light LEDs
- Video Content AnalyticsLine Crossing, Intrusion
- iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.
Key technologies
- LumiLuxSmart
- LumiLuxSmart technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxSmart cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
- Intelligent Motion Detection (iMD)
- Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
- Video Content Analytics (VCA)
- Video Content Analytics (VCA) is the umbrella for line crossing and intrusion analytics. Line crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. VCA is available on most Luminys network cameras.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.
Specifications
Camera
| Luminys Series | Starter |
|---|---|
| Image Sensor | 1/2.7-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 x 2160 |
| Minimum Illumination |
Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | Four (4) White-Light LEDs, Four (4) IR LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual, Zoom Priority |
| Maximum Illumination Distance |
IR: Up to 61.0 m (200.0 ft) White Light: Up to 61.0 m (200.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan/Rotation: 0° to 355° Tilt: 0° to 80° |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Motorized Vari-Focal |
| Focal Length | 2.7 mm to 13.5 mm |
| Maximum Aperture | F1.5 |
| Field of View |
Horizontal: 114° to 32° Vertical: 58° to 17° Diagonal: 138° to 36° |
| Close Focus Range | 0.8 m (2.6 ft) |
| DORI Distance |
Detect: 85.0 m to 279.5 m (278.9 ft to 917.0 ft) Observe: 33.9 m to 111.8 m (111.22 ft to 366.80 ft) Recognize: 16.9 m to 55.8 m (55.45 ft to 183.07 ft) Identify: 8.3 m to 27.8 m (27.23 ft to 91.21 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|---|
| Standard Codec | Supported |
| Stream Capability | Two (2) |
| Resolution | 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 5MP (2880 x 1620), 4MP (2688 x 1520), 3MP (2048 x 1536), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate |
Main Stream: 3840 x 2160 at 20 fps Sub Stream 1: D at 30 fps |
| Video Bit Rate |
H.264: 3 kbps to 8,192 kbps H.265: 3 kbps to 8,192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° (Only 90°/270° Available for 2688 × 1520 Resolution or Lower) |
| Mirror Rotation | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics | Line Crossing, Intrusion |
|---|---|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
Audio
| Compression | G.711a, G.711Mu, PCM |
|---|---|
| Interface |
Input: Built-in Microphone and One (1) RCA Input Output: One (1) RCA Output |
Alarm
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
|---|---|
| Interface |
Input: One Port (Max. 5 VDC, 5 mA) Output: One (1) Port (Max. 12 VDC, 300 mA) |
Network
| Port | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, NAS, SFTP, Micro SD Card (Max. 256 GB) |
Electrical
| Power Supply | 12 VDC, PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Maximum 6.9 W, Normal 2.6 W PoE: Maximum 8.3 W, Normal 3.3 W |
Construction
| Net Weight | 0.6 kg (1.3 lb) |
|---|---|
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67, IK10 |
| Product Dimensions | Φ 126.0 mm × 100.0 mm (Φ 5.0 in. × 4.0 in.) |
| Packaging Dimensions (L x W x H) | 148.0 mm x 139.0 mm x 137.0 mm (5.3 in. x 5.5 in. x 5.4 in.) |
| Material | Metal (Housing), Plastic (Dome Covering) |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Download the official N3D-8LAV datasheet (PDF)
Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
