Luminys N3T-5DA2: 5MP Network LumiDeterrent Flashing White-light Turret Camera (N3T-5KA2)

Name: Luminys N3T-5DA2: 5MP Network LumiDeterrent Flashing White-light Turret Camera (N3T-5KA2)
Brand: Luminys
SKU: N3T-5KA2
Price: 239.99 USD
Availability: InStock

SKU:N3T-5KA2

$239.99

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

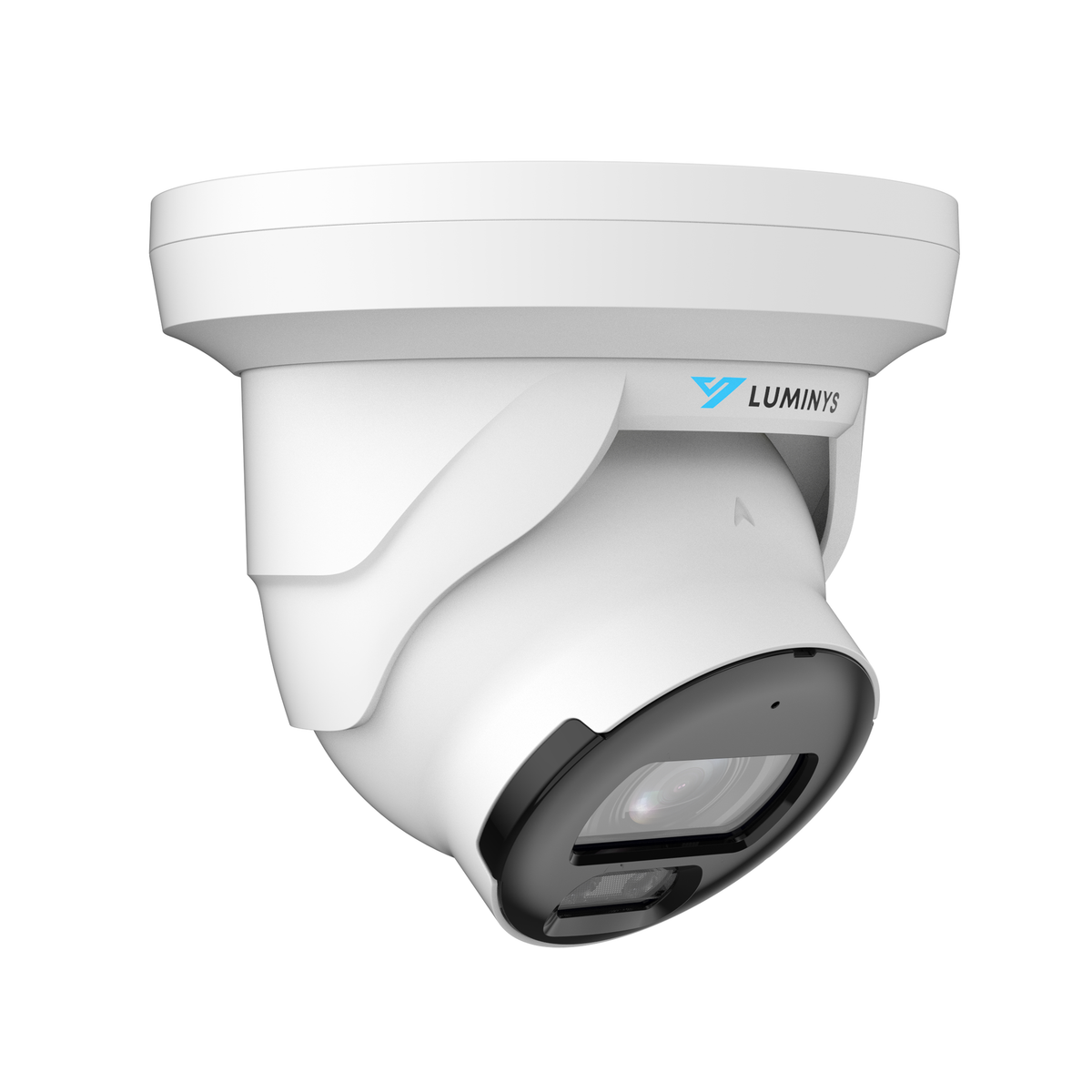

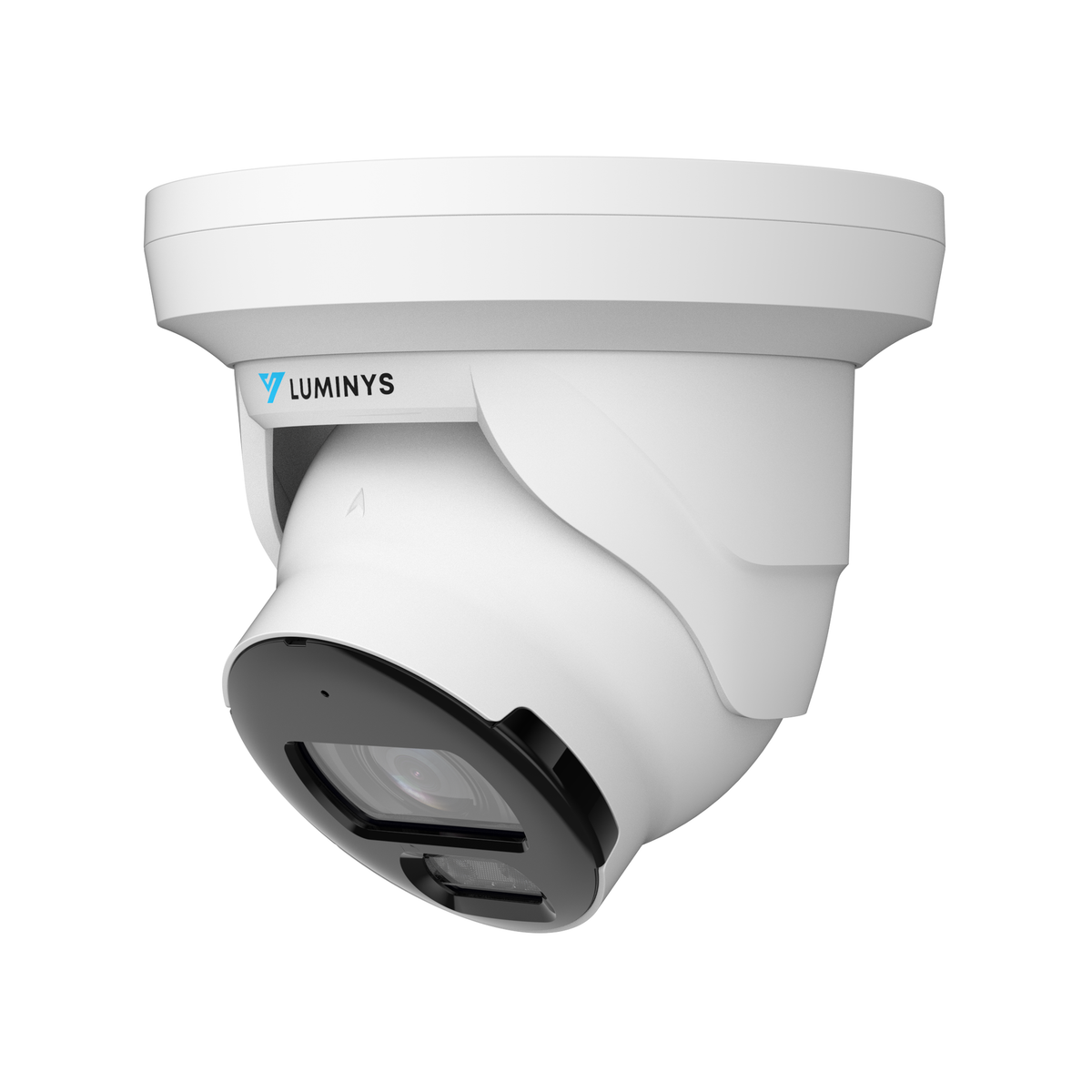

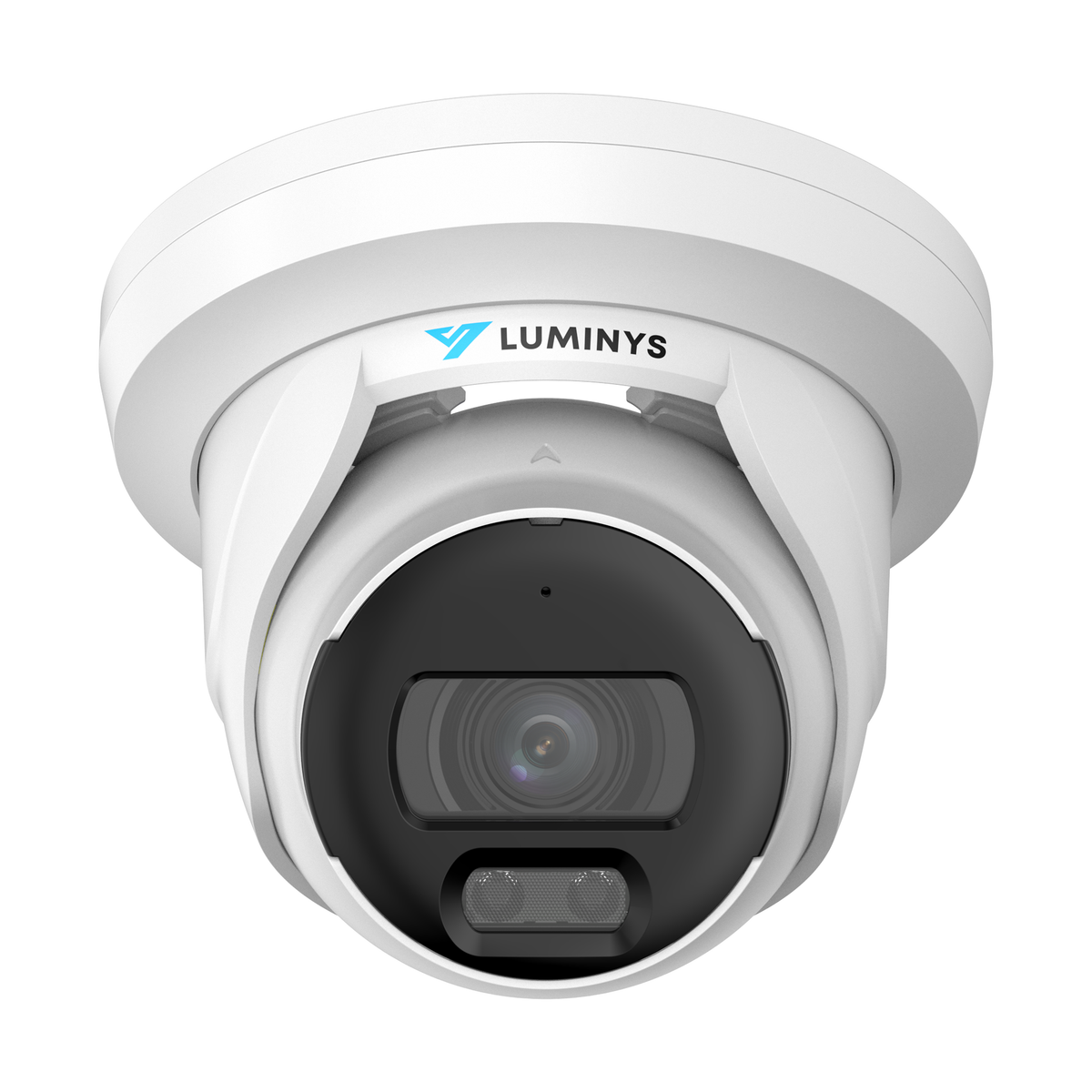

The Luminys N3T-5KA2 is a 5MP LumiDeterrent Turret Camera built around a 1/2.7-in. 5MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 and IK10 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3af).

5MP Turret Housing1/2.7-in. 5MP Progressive CMOS, 2960 × 1668 maximum resolution.
2.8 mm Fixed Lens111° horizontal field of view, F1.6 maximum aperture.
Dual-IlluminationIR and White-Light LEDs
Video Content AnalyticsLine Crossing, Intrusion
LumiDeterrent With Flashing White-Lights and Built-In SpeakerLumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security.
iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.

Key technologies

LumiDeterrent: LumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with white-light alarms and enhanced sound alarms.
Intelligent Motion Detection (iMD): Intelligent Motion Detection (iMD) technology accurately detects and filters humans and vehicle in a monitoring area. Using an advanced algorithm, iMD can accurately detect humans and vehicles while reducing false alarms caused by other objects, animals, or lighting. Users can be alerted to iMD events for timely security. iMD events can be saved for future reference and easily searched for at a later time for forensic analysis and to assist in investigations.
Video Content Analytics (VCA): Video Content Analytics (VCA) is the umbrella for line crossing and intrusion analytics. Line crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. VCA is available on most Luminys network cameras.
LumiPolarPro and LumiDesertPro: LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.

Specifications

Camera

Luminys Series	Starter
Image Sensor	1/2.7-in. 5MP Progressive CMOS
Maximum Resolution	2960 × 1668
Minimum Illumination	Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On
Number of Illuminators	One (1) White-Light LED, One (1) IR LED
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft)
Electronic Shutter Speed	Automatic, Manual 1/3 s to 1/100,000 s
Installation Angle	Pan/Rotation: 0° to 360° Tilt: 0° to 78°
S/N Ratio	> 56 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.6
Field of View	Horizontal: 111° Vertical: 58° Diagonal: 132°
Close Focus Range	1.1 m (3.6 ft)
DORI Distance	Detect: 63.4 m (208.0 ft) Observe: 25.1 m (82.4 ft) Recognize: 12.4 m (40.7 ft) Identify: 6.2 m (20.3 ft)

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Standard Codec	Supported
Stream Capability	Two (2)
Resolution	5MP (2960 × 1668), 4MP (2688 × 1520), 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D (704 × 480), VGA (640 × 480), CIF (352 × 240)
Maximum Frame Rate	Main Stream: 5MP at 20 fps Sub Stream 1: D at 30 fps
Video Bit Rate	H.264: 3 kbps to 8,192 kbps H.265: 3 kbps to 8,192 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB)
Noise Reduction	3D NR
Image Angle	0°/90°/180°/270° (90°/270° Available for 2688 × 1520 Resolution or Lower)
Image Mirroring	Supported
Region of Interest	Four (4) Zones
Privacy Masking	Four (4) Zones

Analytics

Video Content Analytics	Line Crossing, Intrusion
Intelligent Motion Detection	Supported with Alarms for Vehicles and Humans

Audio

Compression	G.711a, G.711Mu, PCM

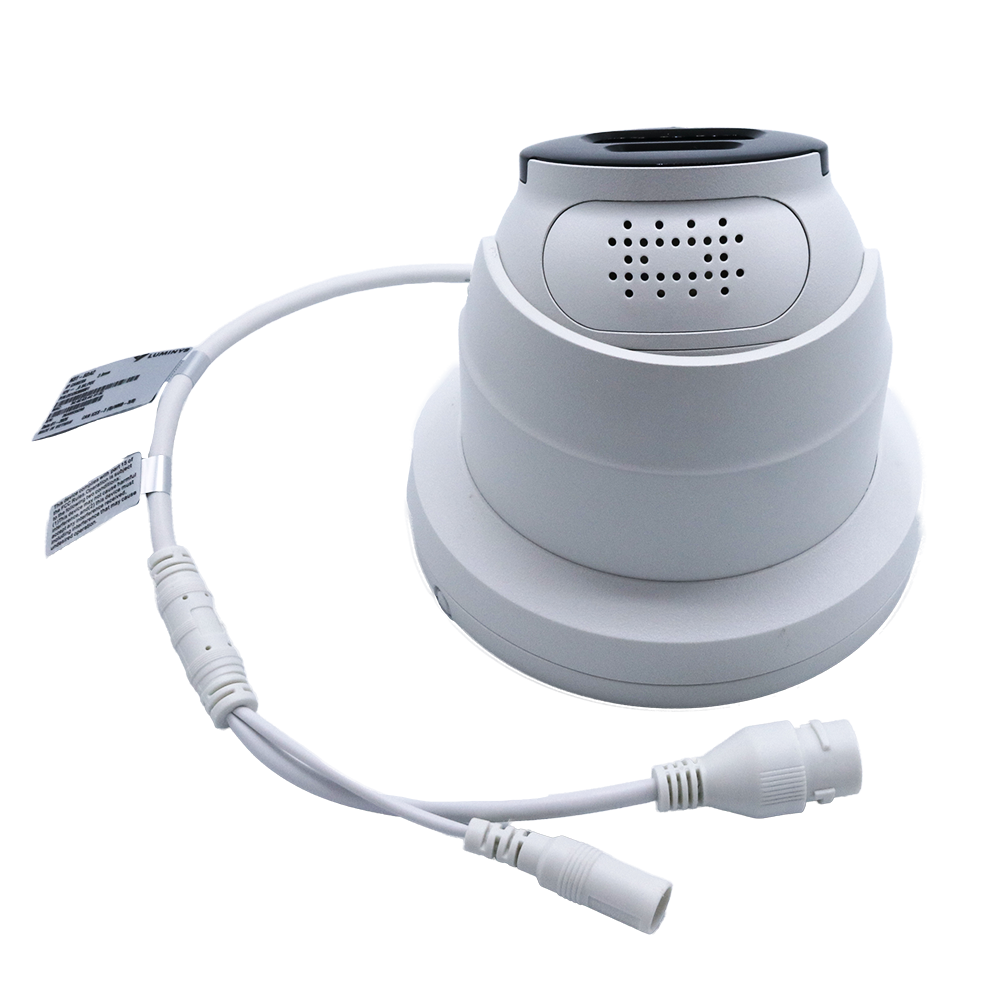

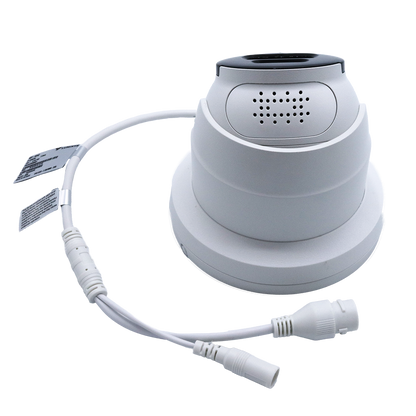

Interface	Input: Built-In Microphone Output: Built-In Speaker

Alarm

Event	Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception

Network

Port	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
Interoperability	ONVIF (Profile S/G/T), API, SDK
Browser	Chrome, Firefox, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP, SFTP, MicroSD Card (Max. 256 GB)

Electrical

Power Supply	12 VDC, PoE (802.3af)
Power Consumption	12 VDC: Maximum 6.9 W, Normal 2.5 W PoE: Maximum 8.2 W, Normal 3.2 W

Construction

Net Weight	0.5 kg (1.2 lb)
Gross Weight	0.7 kg (1.6 lb)
Operating Temperature	-40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing)
Product Dimensions	122.0 mm × 111.8 mm (4.8 in. × 4.4 in.)
Packaging Dimensions (L x W x H)	148.0 mm x 139.0 mm x 137.0 mm (5.8 in. x 5.5 in. x 5.4 in.)
Protection Ratings	IP67, IK10
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

Mounting options

Junction Box	LUM-J02 or LUM-CJ11
Wall Mount	LUM-W01
Horizontal Pole Mount (Option 1)	LUM-W01 + LUM-P02

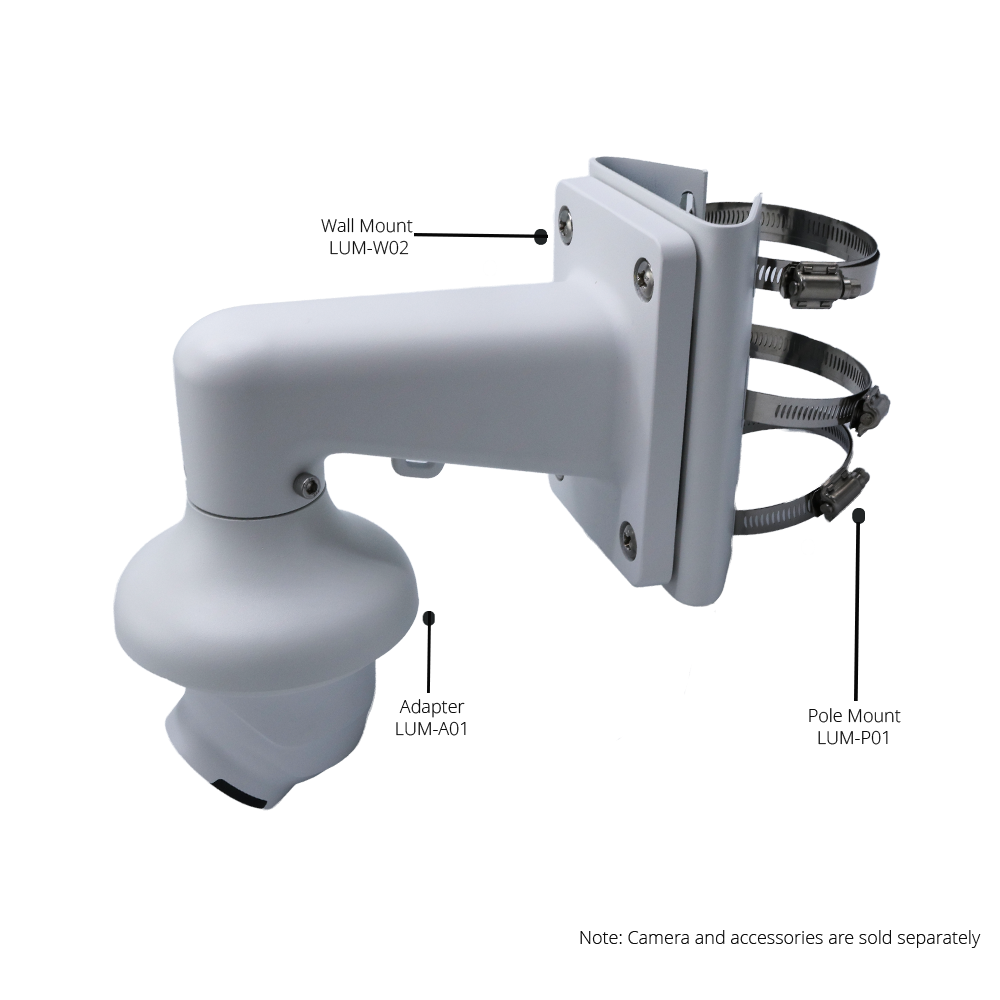

Horizontal Pole Mount (Option 2)	LUM-A01 + LUM-W02 + LUM-P01
Vertical Pole Mount	LUM-A01 + LUM-E01 + LUM-P01
Pendant Mount	LUM-A01 + LUM-E01
Corner Mount	LUM-A01 + LUM-W02 + LUM-C01

Download the official N3T-5KA2 datasheet (PDF)

Kit-only SKU; photos from related N3T-5DA2 LumiDeterrent turret. Verify before publish. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
