Luminys N4 8MP LumiNightKing IP Standard Turret 2.8 mm, White-light LEDs (N4T-8VA2)
Luminys N4 8MP LumiNightKing IP Standard Turret 2.8 mm, White-light LEDs (N4T-8VA2)
SKU:N4T-8VA2
Regular price
$377.98
Regular price
Sale price
$377.98
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

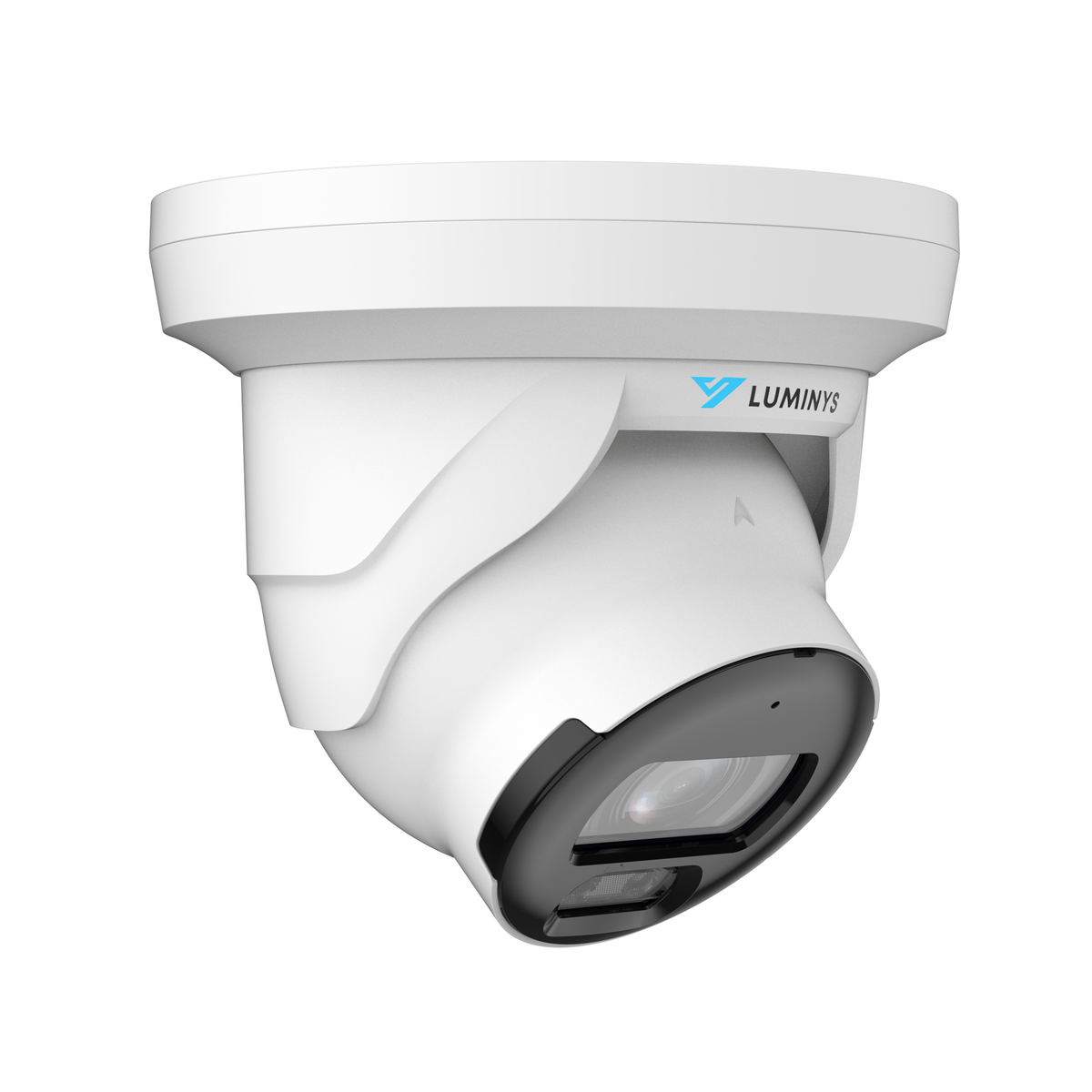

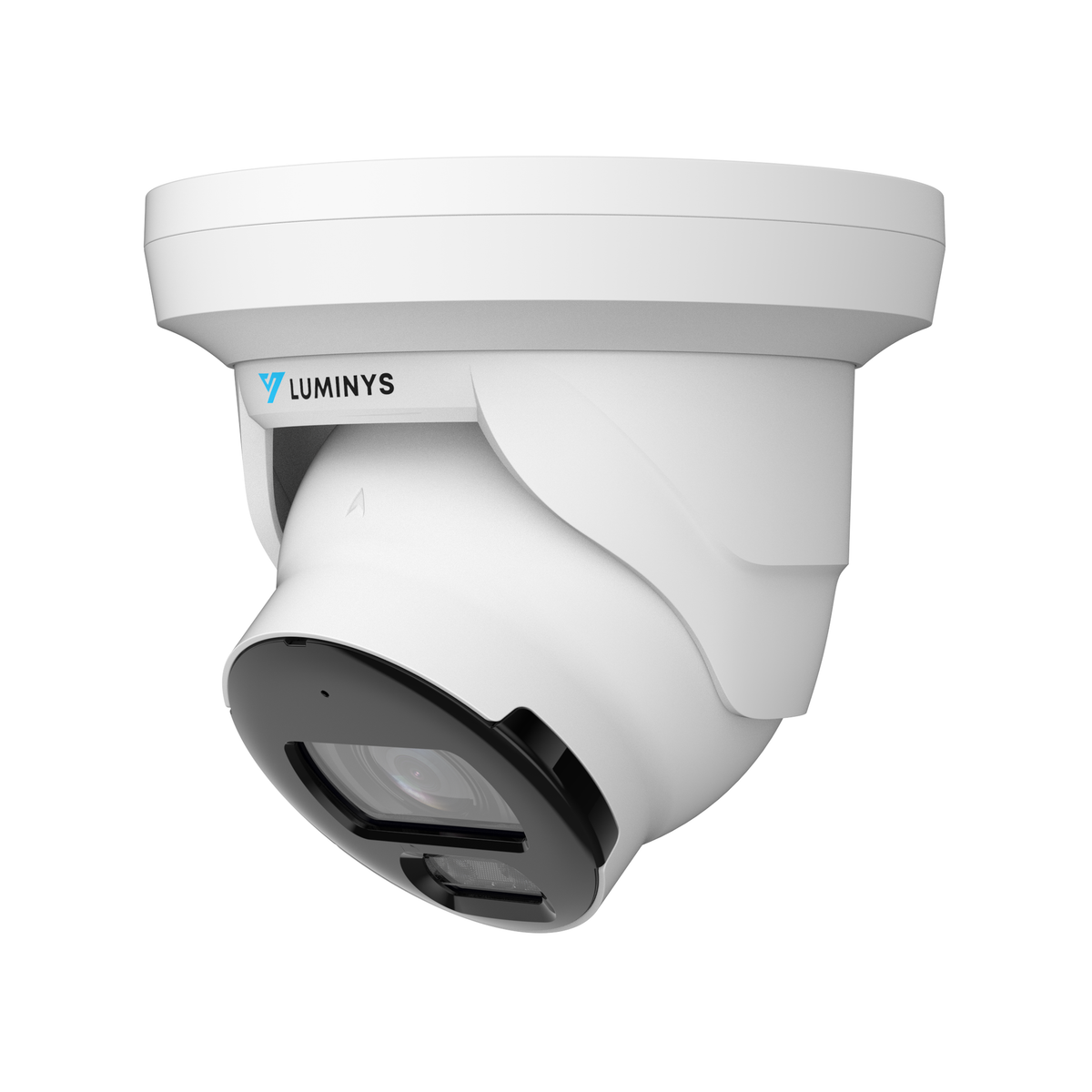

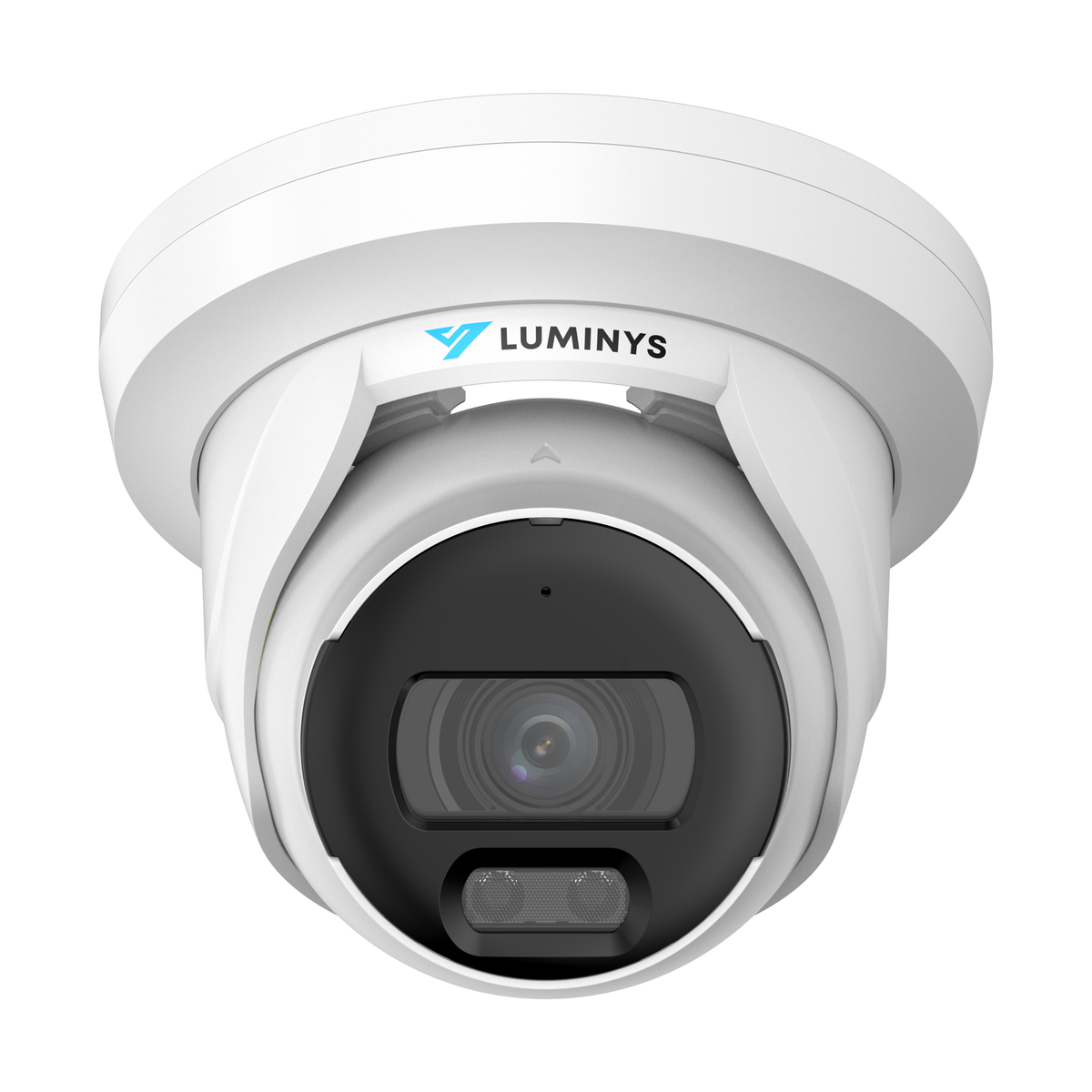

The Luminys N4T-8VA2 is an 8MP Network LumiNightKing Turret Camera built around a 1/1.8-in. 8MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC or PoE (802.3af).
- 8MP Turret Housing1/1.8-in. 8MP Progressive CMOS, 3840 x 2160 maximum resolution.
- 2.8 mm Lens110° horizontal field of view, F1.0 maximum aperture.
- AI-ISP
- White-Light LEDsIllumination up to 30.0 m (98.4 ft).
- Video Content AnalyticsLine Crossing, Intrusion
- iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.
Key technologies
- LumiNightKing
- LumiNightKing technology provides advanced, versatile low-light performance. Cameras with this technology combine a large pixel size sensor, an advanced AI-ISP, and ultra-wide F1.0 to capture images in near-total darkness without relying on IR or visible white-light LEDs. LumiNightKing cameras also have white-light LEDs that can be programmed to remain on throughout the night for deterrence and lighting.
- Video Content Analytics (VCA)
- Video Content Analytics (VCA) is the umbrella for line crossing and intrusion analytics. Line crossing identifies when a person or object crosses a defined line. Intrusion detects when a person or object breaches the boundaries of a defined area or enters a restricted area. VCA is available on most Luminys network cameras.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensures rugged all-weather performance. LumiPolarPro enables dependable performance in temperatures as low as -40 °C (-40 °F). LumiDesertPro allows operation in temperatures up to 60 °C (140 °F).
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Image Sensor | 1/1.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 x 2160 |
| Minimum Illumination | Color: 0.0003 lux at F1.0 |
| Number of Illuminators | White Light: Two (2) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.0 |
| Field of View |
Horizontal: 110° Vertical: 59° Diagonal: 131° |
| Close Focus Range | 2.8 m (9.2 ft) |
| DORI Distance |
Detect: 84.0 m (275.6 ft) Observe: 33.6 m (110.2 ft) Recognize: 16.8 m (55.1 ft) Identify: 8.4 m (27.6 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|---|
| Stream Capability | Two (2) Streams |
| Resolution | 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 5MP (2880 x 1620), 4MP (2688 x 1520), 3MP (2048 x 1536), 3MP(2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D (704 x 480), VGA (640 x 480), CIF (352 x 288), CIF (352 x 240) |
| Maximum Frame Rate |
Main Stream: 8MP at 20 fps Sub Stream 1: D at 20 fps |
| Video Bit Rate |
H.264: 32 kbps to 8,192 kbps H.265: 12 kbps to 8,192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirror Image | Supported |
| Region of Interest (ROI) | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics | Line Crossing, Intrusion |
|---|---|
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
Audio
| Compression | PCM, G.711a, G.711Mu |
|---|---|
| Sampling Rates |
PCM: 8,000 Hz, 16,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz |
| Interface | Input: Built-In Microphone |
Alarm
| Event | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning, No SD Card, Insufficient SD Card Space, and SD Card Error |
|---|
Network
| Interface | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
Electrical
| Power Supply | 12 VDC/PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Maximum 5.6 W, Normal 2.4 W PoE: Maximum 6.4 W, Normal 3.0 W |
Construction
| Net Weight | 0.5 kg (1.2 lb) |
|---|---|
| Gross Weight | 0.7 kg (1.6 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Product Dimensions | Φ122.0 mm x 111.8 mm (Φ4.8 in. x 4.4 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Mounting options
| Junction Box | LUM-J02 or LUM-CJ11 |
|---|---|
| Wall Mount | LUM-W01 |
| Horizontal Pole Mount (Option 1) | LUM-W01 + LUM-P02 |
| Horizontal Pole Mount (Option 2) | LUM-A01 + LUM-W02 + LUM-P01 |
| Vertical Pole Mount | LUM-A01 + LUM-E01 + LUM-P01 |
| Pendant Mount | LUM-A01 + LUM-E01 |
| Corner Mount | LUM-A01 + LUM-W02 + LUM-C01 |
Download the official N4T-8VA2 datasheet (PDF)
Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
