Luminys N5-D 2 x 4MP LumiDeterrent IP Turret 2.8 mm, 180º Stitched IR White-lights (N5P-8DA2)
Luminys N5-D 2 x 4MP LumiDeterrent IP Turret 2.8 mm, 180º Stitched IR White-lights (N5P-8DA2)
SKU:N5P-8DA2
Regular price
$631.78
Regular price
Sale price
$631.78
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

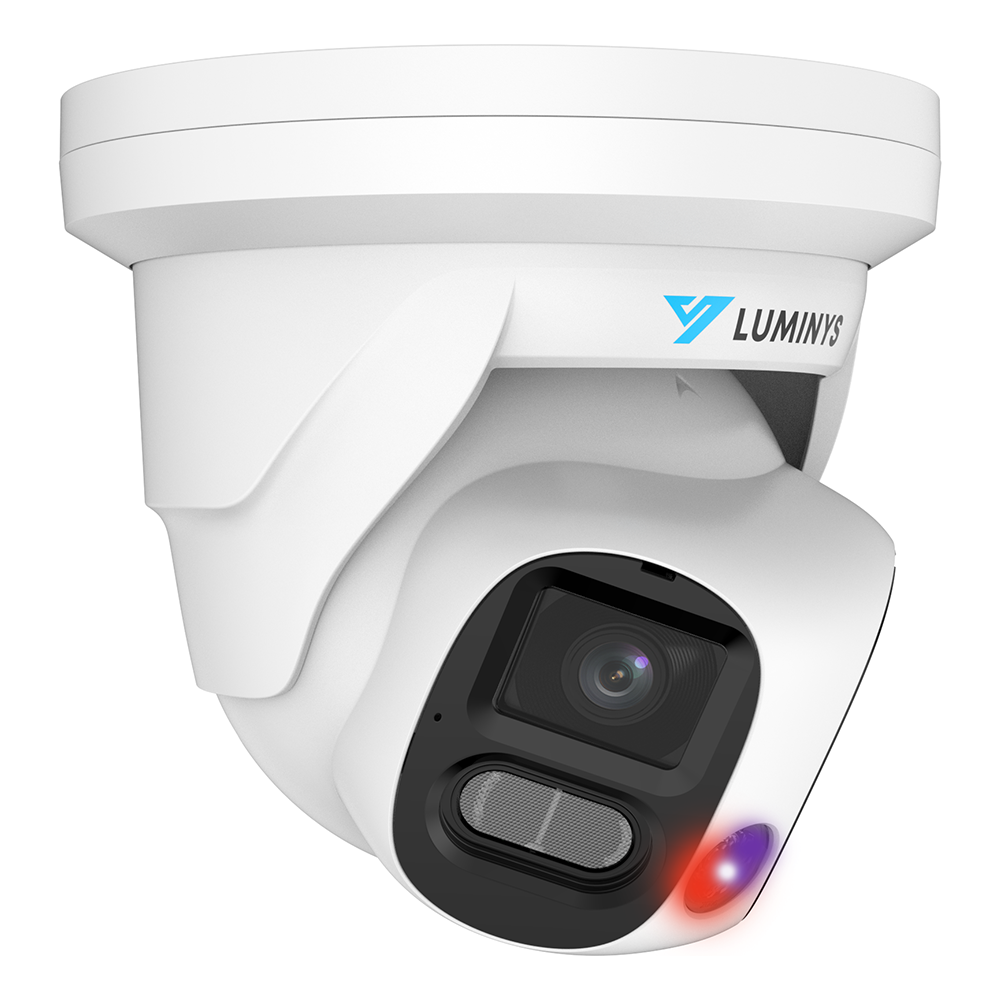

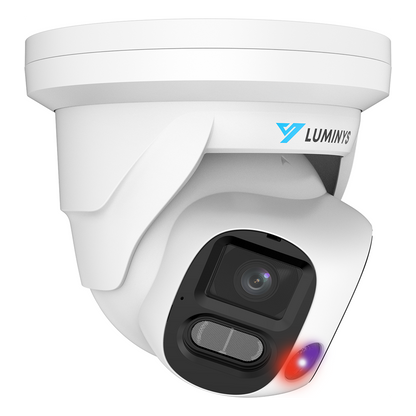

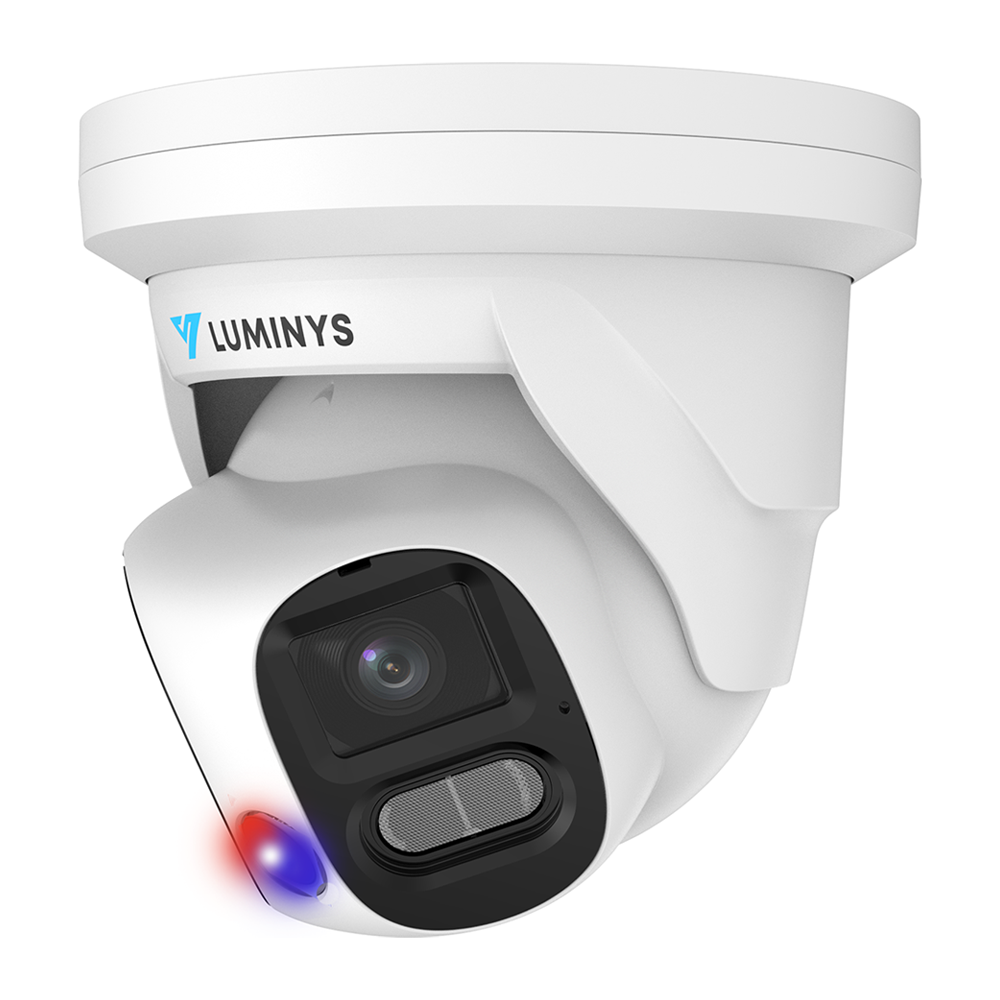

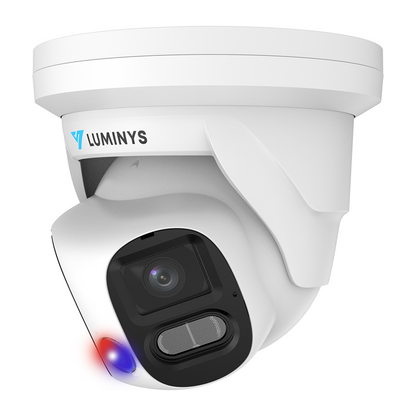

The Luminys N5P-8DA2 is a 2 x 4MP LumiDeterrent Series Stitched Turret Camera built around two 1/2.7-in. 4MP Progressive CMOS sensors and 2.8 mm lenses. It is IP67 rated, NDAA compliant, and powered by 12 VDC or PoE (802.3af).
- 2 x 4MP Turret Housing1/2.7-in. 4MP Progressive CMOS, 4096 × 1860 maximum resolution.
- 180° Stitched Multi-Sensor180° horizontal and 86° vertical field of view.
- 2.8 mm Lens180° horizontal field of view, F1.4 maximum aperture.
- LumiDeterrent With Red/Blue Lights and Built-In SpeakerLumiDeterrent technology integrates covert IR-only recording, full-color video using white-light LEDs, dual IR and white-light illumination, active deterrence, and AI algorithms to provide 24/7 security.
- Video Content Analytics+Line Crossing, Intrusion, Loitering Detection
- iMD, LumiTracking-EIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.
Key technologies
- LumiDeterrent
- LumiDeterrent technology integrates covert IR-only recording, full-color video using white-light LEDs, dual IR and white-light illumination, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.
- LumiTracking-E
- LumiTracking-E technology enhances security and efficiency using electronical tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Image Sensor | 1/2.7-in. 4MP Progressive CMOS |
| Maximum Resolution | 4096 × 1860 |
| Minimum Illumination |
Color: 0.002 Lux at F1.4 Black/White: 0.0002 Lux at F1.4 0 Lux With IR Light On |
| Number of Illuminators |
IR: Two (2) White Light: Two (2) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance |
IR: Up to 25.0 m (82.0 ft) White Light: Up to 20.0 m (66.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan: 0° to 360° Tilt: 0° to 77° Rotation: 0° to 360° |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.4 |
| Field of View |
Horizontal: 180° Vertical: 86° |
| Close Focus Range | 0.8 m (2.6 ft) |
| DORI Distance |
Detect: 50.6 m (166.0 ft) Observe: 20.2 m (66.3 ft) Recognize: 10.1 m (33.1 ft) Identify: 5.1 m (16.7 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Substream Only) |
|---|---|
| Stream Capability | Three (3) Streams |
| Resolution | 8MP (4096 × 1860), 6MP (3632 x 1632), 4MP (3040 x 1368), 1.6MP (1920 x 860), 1200 x 530, 960 x 432 |
| Maximum Frame Rate |
Main Stream: 4096 × 1860 at 20 fps Sub Stream 1: 1200 × 530 at 20 fps Sub Stream 2: 1920 × 1080 at 20 fps |
| Video Bit Rate |
H.264: 6 to 16384 kbps H.265: 6 to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Defog | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
Analytics
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering Detection |
|---|---|
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
| LumiTracking-E | Electronically Zoom and Track Multiple Humans/Vehicles and Trigger Alarms Automatically |
Audio
| Compression | PCM, G.711a, G.711Mu |
|---|---|
| Interface |
Input: Built-in Dual Microphones and One (1) RCA Port Output: Built-in Speaker and One (1) RCA Port |
Alarm
| Event | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm, iMD |
|---|---|
| Interface |
Input: One (1) Channel (3V-5VDC, 5 mA) Output: One (1) Channel (12 VDC, 300 mA) |
Network
| Port | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
Electrical
| Power Supply | 12 VDC/PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Maximum 8.7 W, Normal 4.0 W PoE: Maximum 10.9 W, Normal 5.0 W |
Construction
| Net Weight | 1.0 kg (2.2 lb) |
|---|---|
| Gross Weight | 1.3 kg (2.8 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | 140.6 mm × Φ 142.5 mm (5.5 in. × Φ 5.6 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Download the official N5P-8DA2 datasheet (PDF)
Per Luminys: This camera does not support Parking Detection. Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
