Luminys LUM-W04 Wall Mount Bracket
Luminys LUM-W04 Wall Mount Bracket
SKU:LUM-W04
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

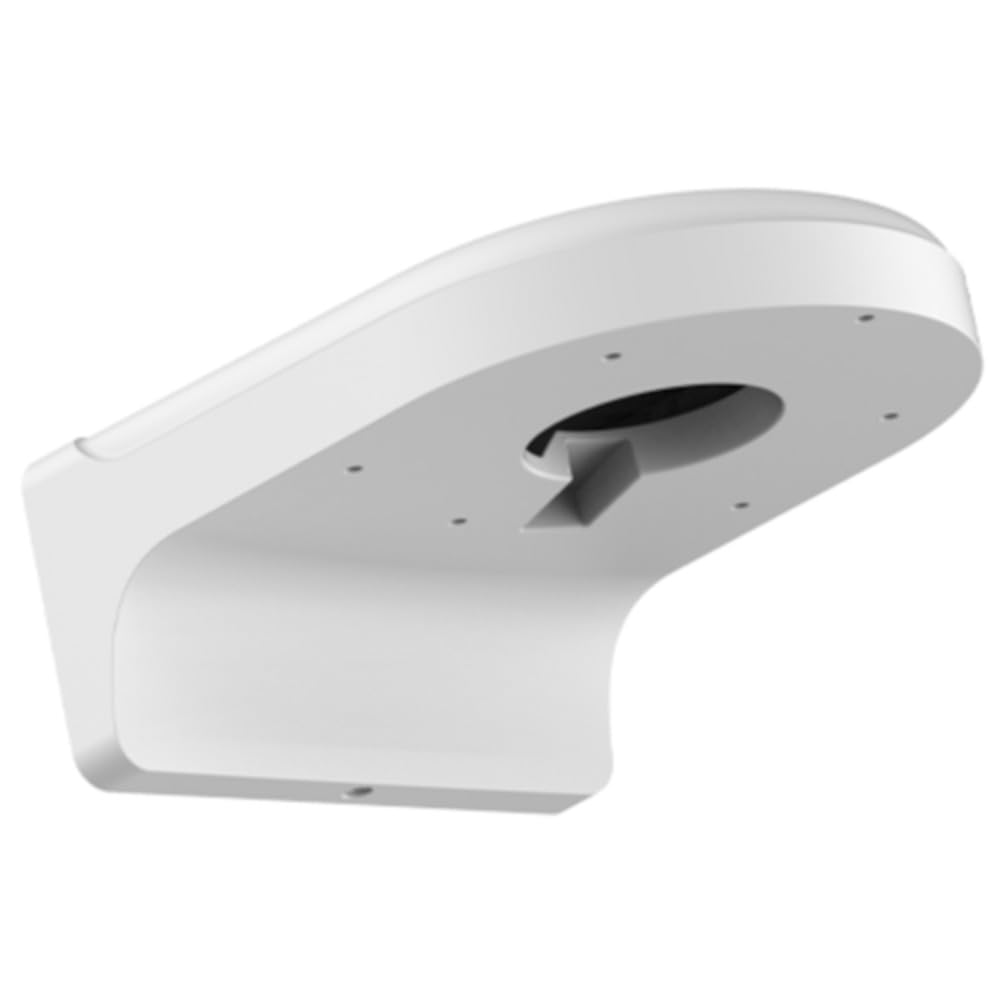

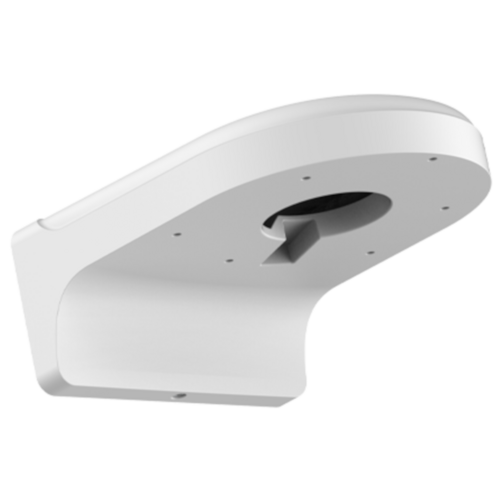

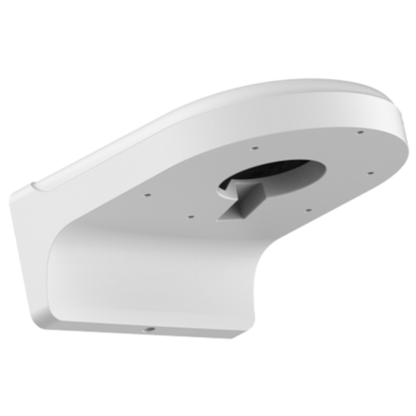

The Luminys LUM-W04 is the official standard size turret wall mount bracket for select N5T and N5P standard size turret cameras. It is rated to carry up to 2.0 kg (4.4 lb).
- For Select N5T and N5P Standard Size Turret CamerasBuilt for the standard size turret housing, per Luminys.
- Aluminum ConstructionAll-aluminum body, weighing 0.6 kg (1.3 lb).
- Max. Load Capacity: 2.0 kg (4.4 lb)Rated to carry up to 2.0 kg (4.4 lb).
- 188.2 × 146.3 × 76.0 mm7.4 in. × 5.8 in. × 3.0 in.
Specifications
Specifications
| Weight | 0.6 kg (1.3 lb) |
|---|---|
| Load Bearing Capacity | 2.0 kg (4.4 lb) |
| Material | Aluminum |
| Color | White or Black |
| Dimensions | 188.2 mm × 146.3 mm × 76.0 mm (7.4 in. × 5.8 in. × 3.0 in.) |
Fits these TechChefs cameras
| N5-L 4MP LumiLuxSmart IP Standard Turret 2.8 mm |
N5T-4LA2 Wall Mount: LUM-W04 Horizontal Pole Mount: LUM-W04 + LUM-P02 |
|---|---|
| N5-L 8MP LumiLuxSmart IP Standard Turret 2.8 mm |
N5T-8LA2 Wall Mount: LUM-W04 or LUM-W04B Horizontal Pole Mount: LUM-W04 or LUM-W04B + LUM-P02 |
| N5-L 8MP LumiLuxSmart IP Standard Turret 2.7-12 |
N5T-8LAV Wall Mount: LUM-W04 Horizontal Pole Mount: LUM-W04 + LUM-P02 |
| N5-D 2 x 4MP LumiDeterrent IP Turret 2.8 mm |
N5P-8DA2 Wall Mount: LUM-W04 Horizontal Pole Mount: LUM-W04 + LUM-P02 |
| N5-L 12MP LumiLuxSmart IP Standard Turret 2.8 mm |
N5T-12LA2 Wall Mount: LUM-W04 Horizontal Pole Mount: LUM-W04 + LUM-P02 |
| N5T-8DA2 8MP LumiDeterrent Turret |
N5T-8DA2 Wall Mount: LUM-W04 Horizontal Pole Mount: LUM-W04 + LUM-P02 |
| N3T-8LAV 8MP Varifocal Turret |
N3T-8LAV Wall Mount: LUM-W04 Horizontal Pole Mount: LUM-W04 + LUM-P02 |
Download the official LUM-W04 datasheet (PDF)
Compatibility is taken from each camera's official Luminys datasheet. Some mount types need more than one part; every part listed for a mount type is required. Color availability may vary; call us to confirm white or black. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
