Luminys N5-L 12MP LumiLuxSmart IP Standard Turret 2.8 mm, IR, White-lights, Dual-mode (N5T-12LA2)

Name: Luminys N5-L 12MP LumiLuxSmart IP Standard Turret 2.8 mm, IR, White-lights, Dual-mode (N5T-12LA2)
Brand: Luminys
SKU: N5T-12LA2
Price: 505.78 USD
Availability: InStock

SKU:N5T-12LA2

$505.78

Sale Sold out

Shipping calculated at checkout.

Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.

Genuine OEM part
Ships from Texas
Real tech support

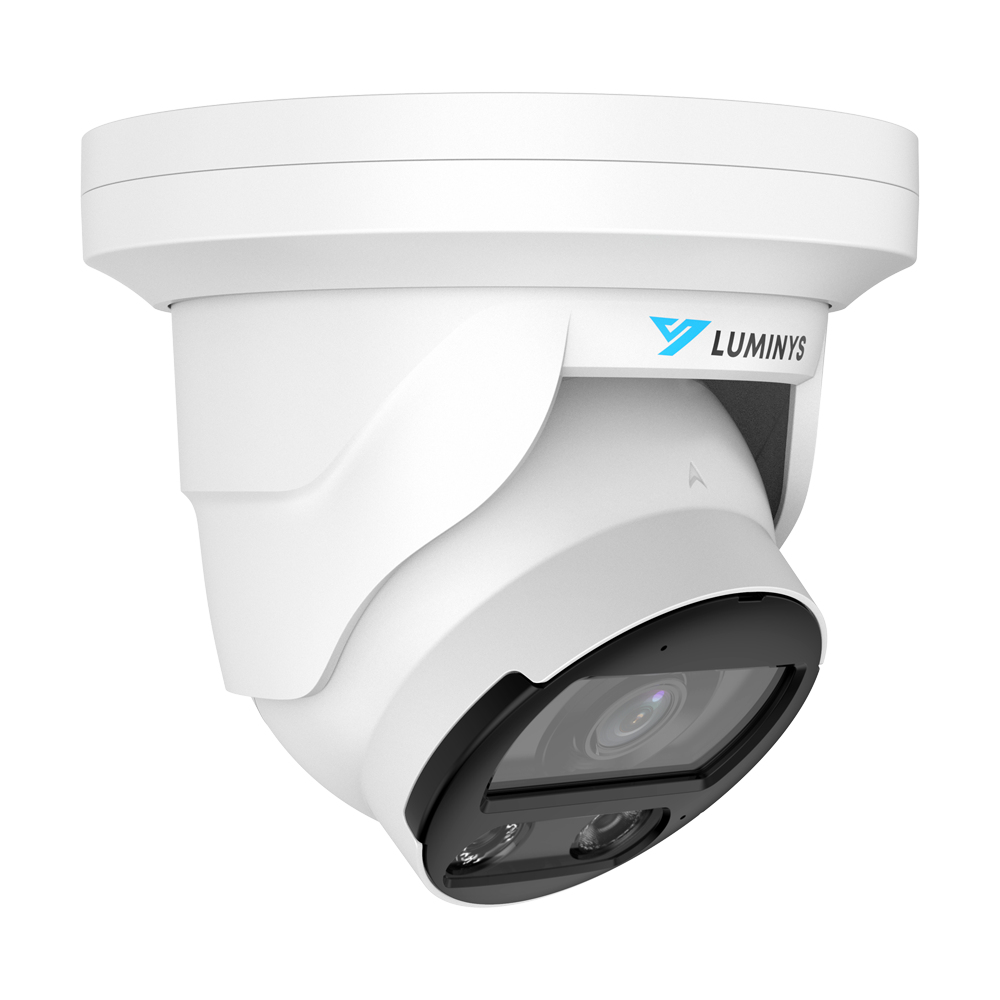

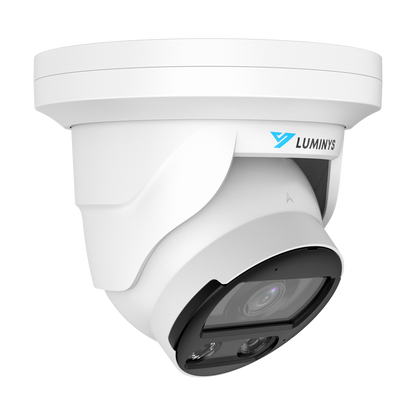

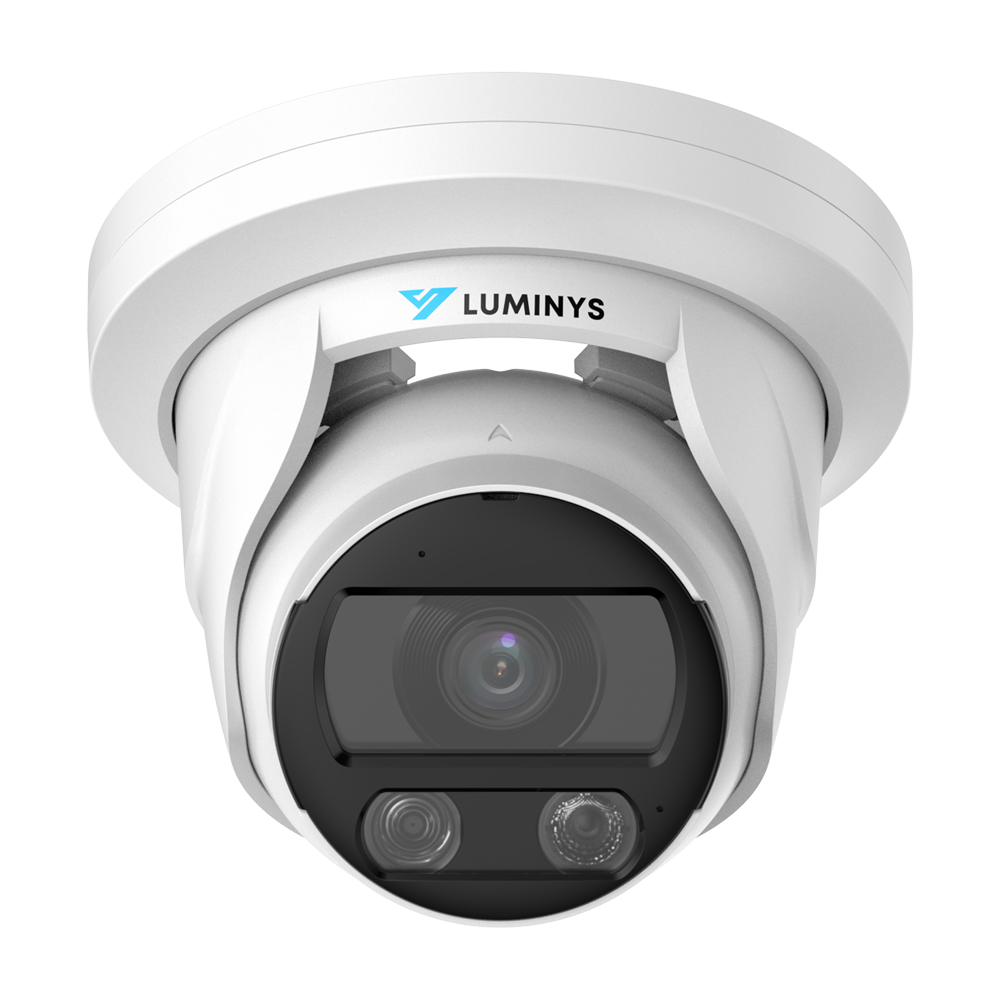

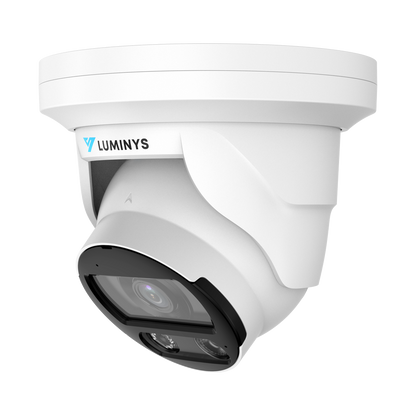

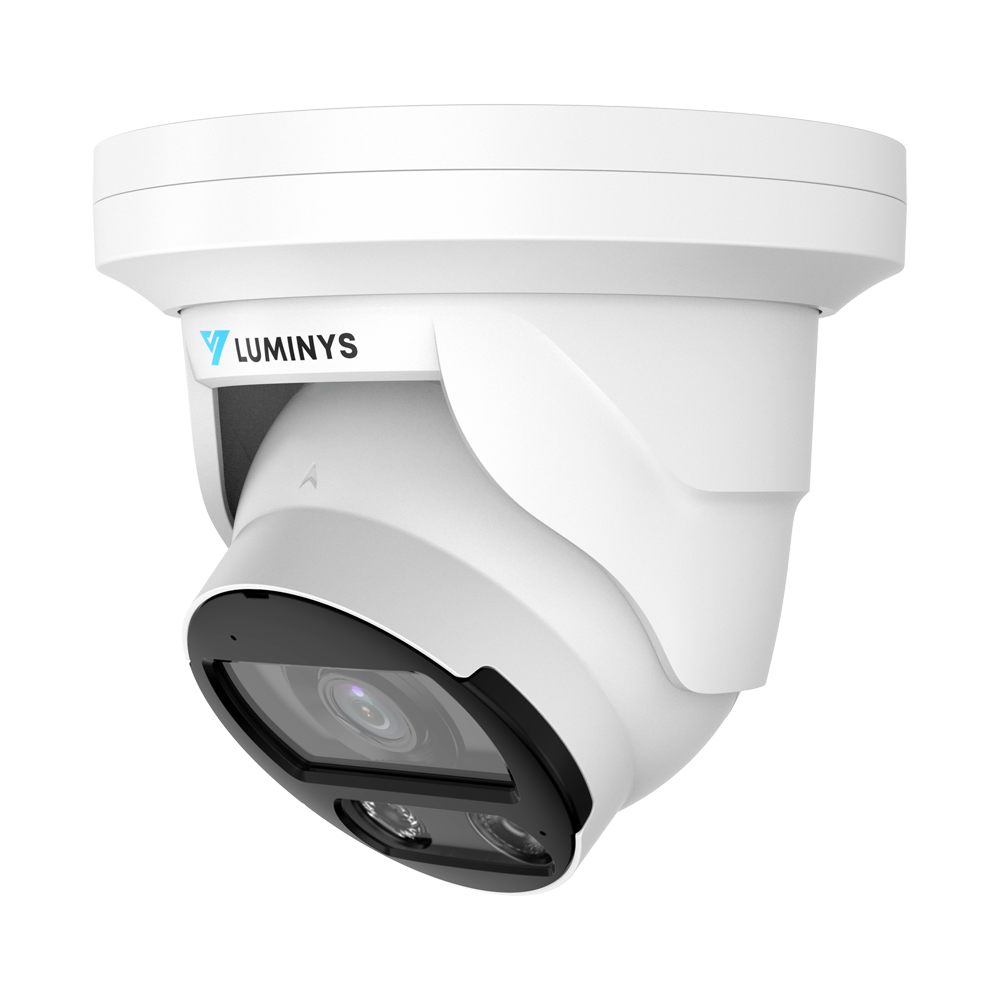

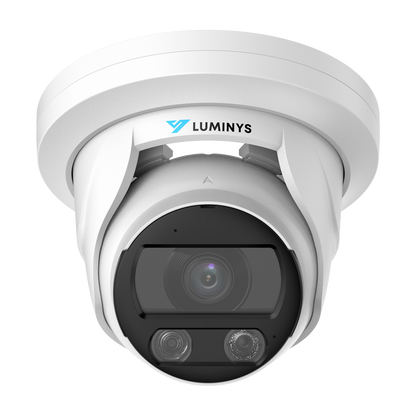

The Luminys N5T-12LA2 is a 12MP Network LumiLuxSmart Series Turret Camera built around a 1/2.5-in. 12MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC, PoE (802.3at), LumiPower.

12MP Turret Housing1/2.5-in. 12MP Progressive CMOS, 4512 × 2512 maximum resolution.
2.8 mm Fixed Lens112° horizontal field of view, F1.6 maximum aperture.
LumiLuxSmartIR and White-Light LEDs
Video Content Analytics+Line Crossing, Intrusion, Loitering Detection, Parking Detection
iMDIntelligent Motion Detection, supported with alarms for vehicles and humans.
LumiSearch+LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image.
LumiAnalyticsFace Detection, People Counting, Queue Management, Smart Object Detection, Heat Map
LumiPowerLumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet.
LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.

Key technologies

LumiLuxSmart: LumiLuxSmart technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxSmart cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
LumiSearch+: LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch+ algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch+-enabled camera and NVR.
LumiAnalytics: LumiAnalytics technology uses detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.
LumiPower: LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.
LumiPolarPro and LumiDesertPro: LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.

Specifications

Camera

Luminys Series	Mainstream
Image Sensor	1/2.5-in. 12MP Progressive CMOS
Maximum Resolution	4512 × 2512
Minimum Illumination	Color: 0.0085 Lux at F1.6 Black/White: 0.0008 Lux at F1.6 0 Lux With IR Light On
Number of Illuminators	Two (2) Dual-Core (IR and White Light) LEDs, Supports LumiLuxSmart
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	IR: Up to 30.0 m (98.4 ft) White Light: Up to 30.0 m (98.4 ft)
Electronic Shutter Speed	Automatic, Manual 1/3 s to 1/100,000 s
Installation Angle	Pan: 0° Tilt: 0° Rotation: 0° to 360°
S/N Ratio	> 50 dB

Lens

Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.6
Field of View	Horizontal: 112° Vertical: 58° Diagonal: 139°
Close Focus Range	1.8 m (5.9 ft)
DORI Distance	Detect: 98.9 m (324.2 ft) Observe: 39.6 m (129.9 ft) Recognize: 19.8 m (65.0 ft) Identify: 9.9 m (32.5 ft)

Video

Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Stream Capability	Three (3) Streams
Resolution	12MP (4512 × 2512), 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 5MP (2592 × 1944), 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2048 × 1536), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Maximum Frame Rate	Main Stream: 4512 × 2512 at 15 fps Sub Stream 1: D at 15 fps Sub Stream 2: 1080p at 15 fps
Video Bit Rate	H.265: 12 kbps to 14436 kbps H.264: 32 kbps to 14436 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Digital Wide Dynamic Range (DWDR)
Noise Reduction	3D NR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower)
Mirroring	Supported
Defog	Supported
Region of Interest	Four (4) Zones
Privacy Masking	Four (4) Zones

Analytics

Video Content Analytics	Line Crossing, Intrusion, Loitering Detection, Parking Detection
Intelligent Motion Detection	Supported with Alarms for Vehicles and Humans
Face Detection	Capture Snapshots and Facial Attributes
Heat Map	Supported
People Counting	Tripwire and In-Area People Counting, Queue Management With Report
LumiSearch+	Supported When Used With LumiSearch+-Enabled NVRs
LumiAnalytics	Supported
Object Monitoring	Supported

Audio

Compression	G.711a, G.711Mu, PCM
Interface	Input: Built-in Microphone and 1-channel RCA Input Output: 1-channel RCA Output

Alarm

Event

No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Line Crossing, Intrusion, Abandoned Object, Missing Object, Loitering Detection, Parking Detection, Scene Changing, Audio Detection, Voltage Detection, External Alarm, Face Detection, iMD, Security Exception, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection

Interface

Input: One (1) Channel (Max. 5 VDC, 5 mA)
Output: One (1) Channel (Max. 12 VDC, 300 mA)

Network

Port	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, HTTP, TCP, RTSP, RTMP, SNMP, FTP, NAS, DHCP, DDNS, QoS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP
Interoperability	ONVIF (Profile S/G/T), API, SDK
Browser	Chrome, Firefox, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP, NAS, Micro SD Card (Max. 512 GB)

Electrical

Power Supply	12 VDC, PoE (802.3at), LumiPower
Power Consumption	12 VDC: Maximum 8.5 W, Normal 4.6 W PoE: Maximum 10.7 W, Normal 6.1 W

Construction

Net Weight	0.8 kg (1.7 lb)
Gross Weight	1.0 kg (2.1 lb)
Operating Temperature	-40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing)
Storage Temperature	-40 to 60 °C (-40 to 140 °F)
Protection Ratings	IP67
Dimensions	Φ 142.0 mm × 130.1 mm (Φ 5.6 in. × 5.1 in.)
Material	Metal

Certifications and Compliance

Certifications	FCC, IC
Compliance	NDAA

Mounting options

Junction Box	LUM-J04
Wall Mount	LUM-W04
Horizontal Pole Mount	LUM-W04 + LUM-P02
Vertical Pole Mount	LUM-J04 + LUM-P02
Pendant Mount	LUM-A02 + LUM-E02

Download the official N5T-12LA2 datasheet (PDF)

Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
