Luminys N5T-8DA2 8MP LumiDeterrent Turret
Luminys N5T-8DA2 8MP LumiDeterrent Turret
SKU:N5T-8DA2
Regular price
$518.38
Regular price
Sale price
$518.38
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Not sure this fits your system?Call or text a TechChefs tech at 972-901-9948 or email us the model number. We will confirm before you order.
- Genuine OEM part
- Ships from Texas
- Real tech support

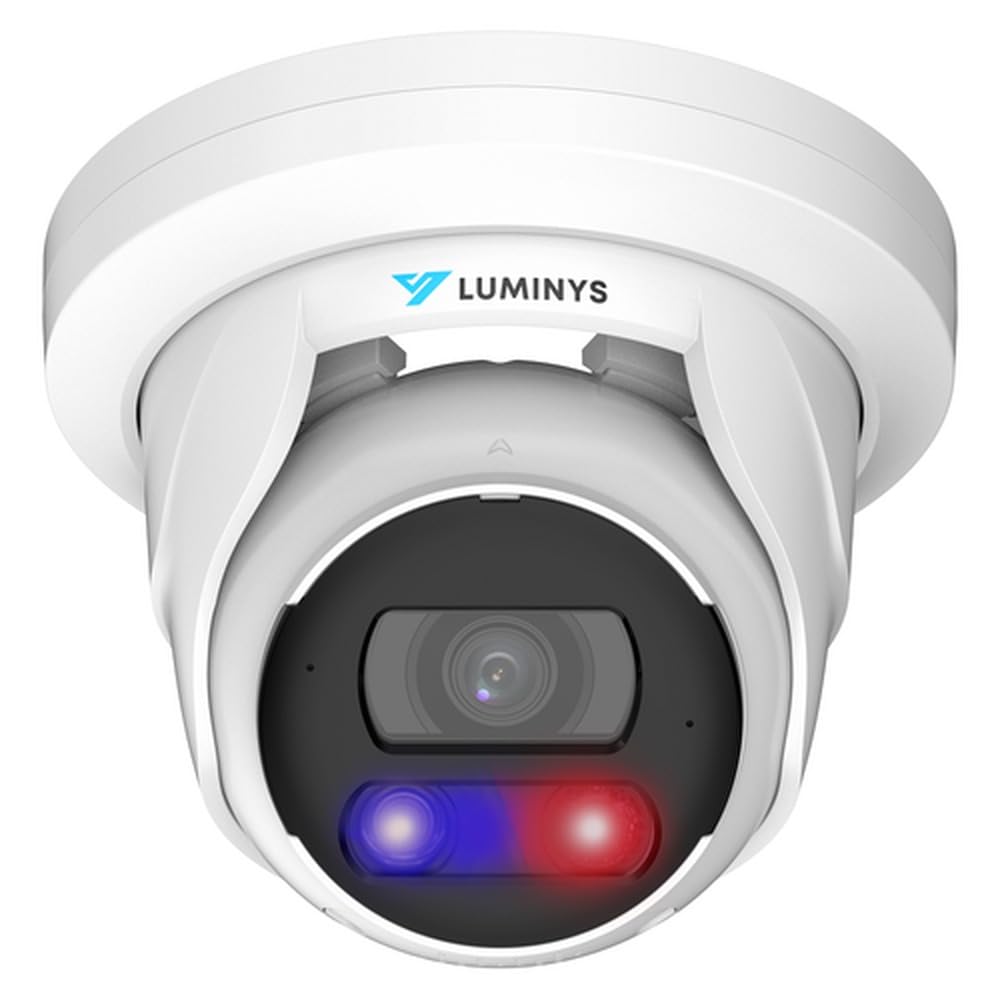

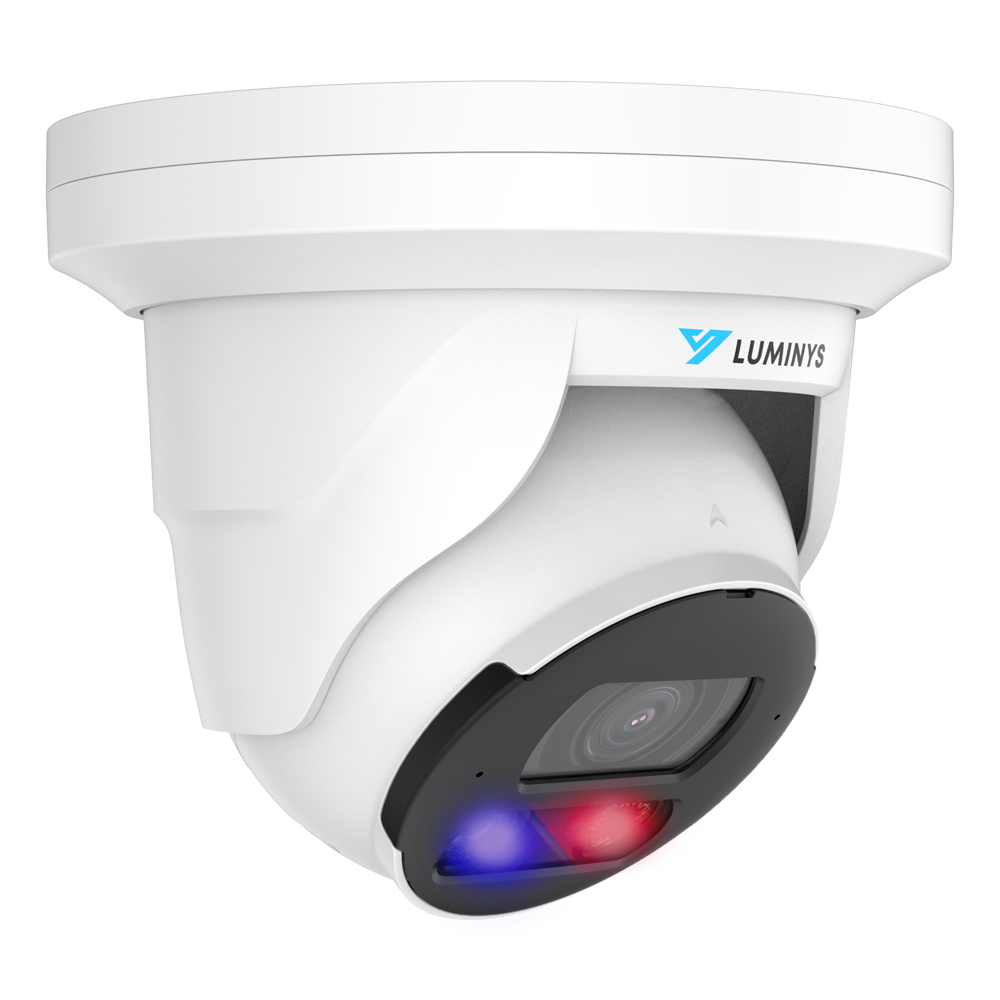

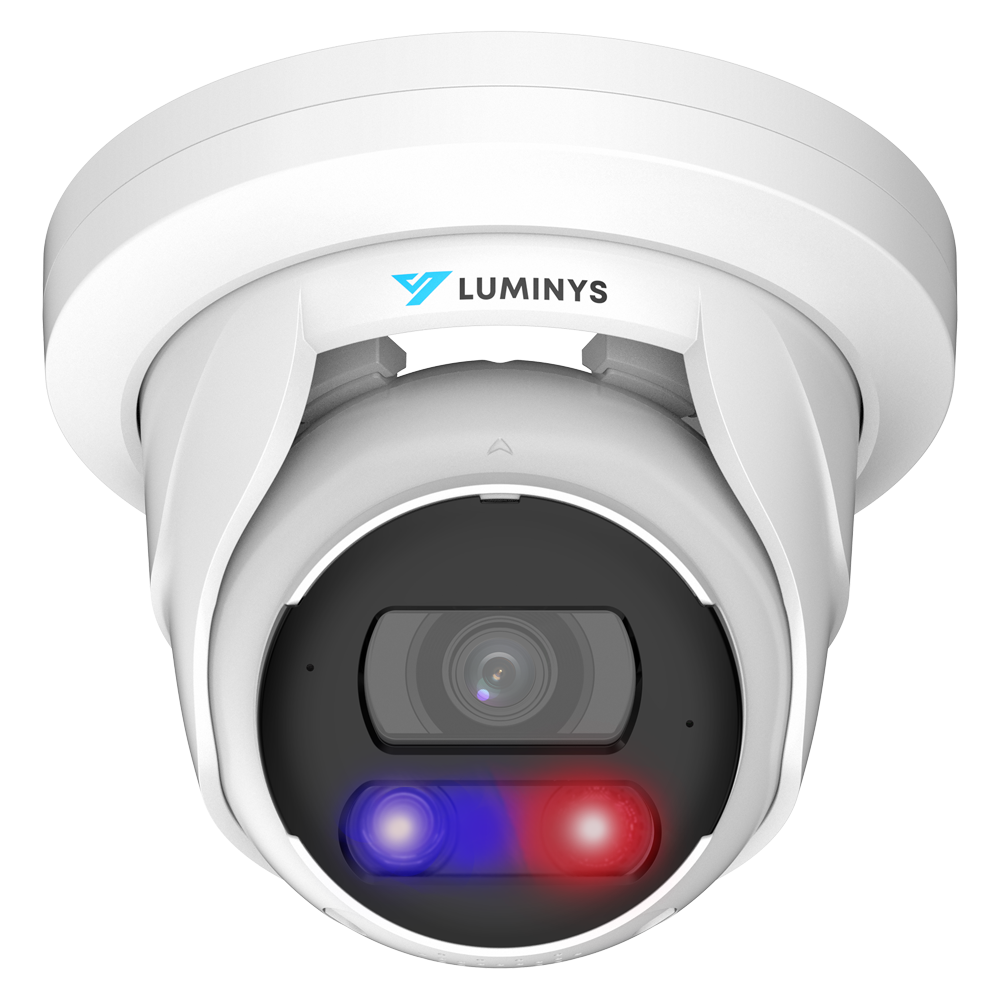

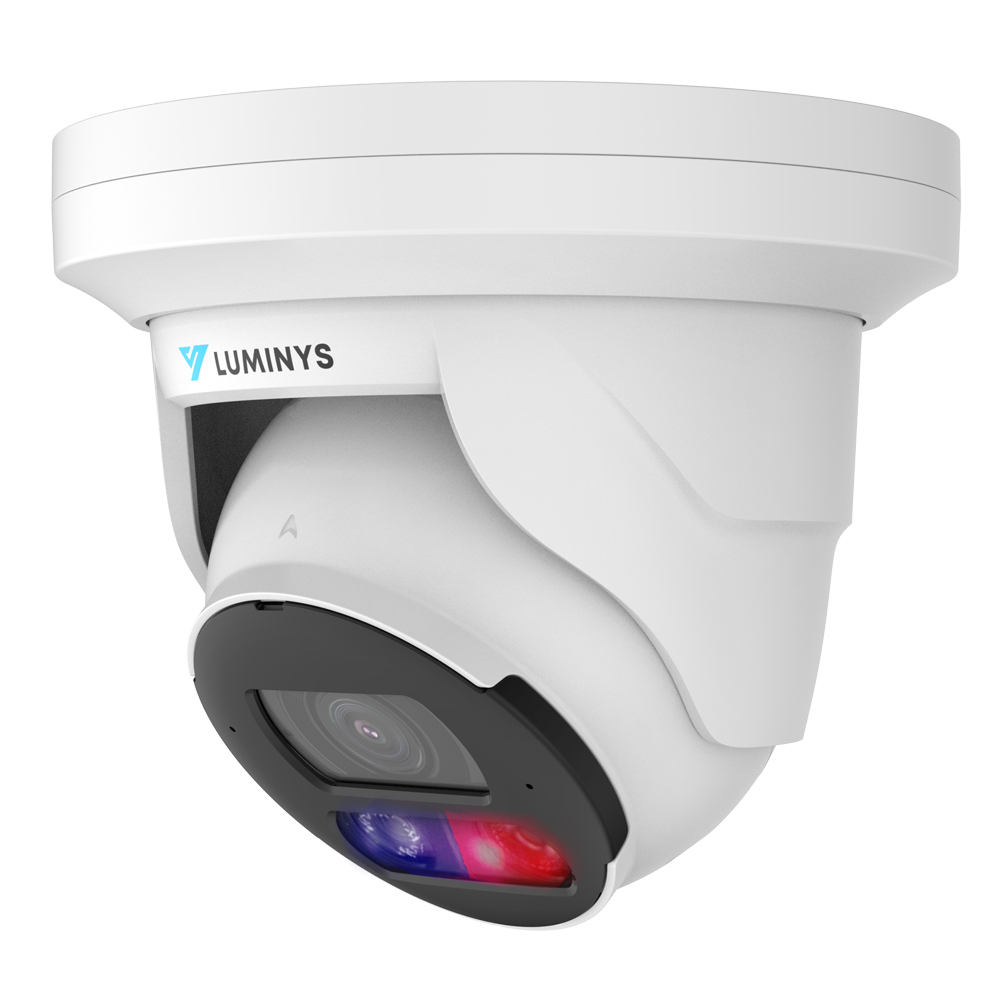

The Luminys N5T-8DA2 is an 8MP Network LumiDeterrent Turret Camera built around a 1/2.8-in. 8MP Progressive CMOS sensor and a 2.8 mm lens. It is IP67 rated, NDAA compliant, and powered by 12 VDC or PoE (802.3af).
- 8MP Turret Housing1/2.8-in. 8MP Progressive CMOS, 3840 × 2160 maximum resolution.
- 2.8 mm Lens106° horizontal field of view, F1.2 maximum aperture.
- LumiLuxSmartIR and White-Light LEDs
- LumiDeterrent With Red/Blue Lights and Built-In SpeakerLumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security.
- Video Content Analytics+Line Crossing, Intrusion, Loitering Detection
- iMD, LumiSearchIntelligent Motion Detection, supported with alarms for vehicles and humans.
- LumiPolarPro and LumiDesertProRated for -40 to 60 °C (-40 to 140 °F) operation.
Key technologies
- LumiDeterrent
- LumiDeterrent technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.
- LumiLuxSmart
- LumiLuxSmart technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxSmart cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
- LumiSearch
- LumiSearch technology lets you quickly find, track, and identify targets in security video using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in video captured by any LumiSearch-enabled camera and NVR.
- LumiPolarPro and LumiDesertPro
- LumiPolarPro and LumiDesertPro technology ensure rugged all-weather performance. Depending on the product model, LumiPolarPro enables dependable performance in -40 °C (-40 °F) or lower, and LumiDesertPro allows operation in temperatures 60 °C (140 °F) or higher.
Specifications
Camera
| Luminys Series | Mainstream |
|---|---|
| Image Sensor | 1/2.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination |
Color: 0.001 Lux Black/White: 0.0001 Lux 0 Lux With IR Light On |
| Number of Illuminators |
IR: Two (2) White Light: Two (2) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance |
IR: Up to 50.0 m (164.0 ft) White Light: Up to 40.0 m (131.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle |
Pan: 0° Tilt: 0° Rotation: 0° to 360° |
| S/N Ratio | > 56 dB |
Lens
| Iris Type | Fixed |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.2 |
| Field of View |
Horizontal: 106° Vertical: 55° Diagonal: 125° |
| Close Focus Range | 2.0 m (6.6 ft) |
| DORI Distance |
Detect: 91.0 m (298.6 ft) Observe: 36.4 m (119.4 ft) Recognize: 18.2 m (59.7 ft) Identify: 9.1 m (29.9 ft) |
Video
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|---|---|
| Stream Capability | Three (3) Streams |
| Resolution | 3840 x 2160 (8MP), 3072 × 2048 (6MP), 3072 × 1728 (5MP), 2592 × 1944 (5MP), 2688 × 1520 (4MP), 2560 × 1440 (4MP), 2304 × 1296 (3MP), 2048 × 1536 (3MP), 1920 × 1080 (1080p), 1280 × 960 (1.3MP), 1280 × 720 (720p), 704×576 (D1), 704 × 480 (D1), VGA 640 × 480 (480p), 352 × 288 (CIF), 352 × 240 (CIF) |
| Maximum Frame Rate |
Main Stream: 3840 × 2160 at 30 fps Sub Stream 1: 704 × 576 at 30 fps, 704 × 480 at 30 fps Sub Stream 2: 1920 × 1080 at 30 fps |
| Video Bit Rate |
H.264: 32 to 8192 kbps H.265: 12 to 8192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Eight (8) Zones |
Analytics
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering Detection |
|---|---|
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
Audio
| Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
|---|---|
| Interface |
Input: Built-in Dual Microphones and One (1) RCA Port Output: Built-in Speaker and One (1) RCA Port |
Alarm
| Event | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm, iMD |
|---|---|
| Interface |
Input: One (1) Channel (3V-5VDC, 5 mA) Output: One (1) Channel (12 VDC, 300 mA) |
Network
| Port | RJ-45 (10/100 Base-T) |
|---|---|
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
Electrical
| Power Supply | 12 VDC/PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Maximum 8.7 W, Normal 4.0 W PoE: Maximum 10.9 W, Normal 5.0 W |
Construction
| Net Weight | 0.8 kg (1.9 lb) |
|---|---|
| Gross Weight | 1.0 kg (2.2 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | 123.5 mm × Φ 142.0 mm (4.9 in. × Φ 5.6 in.) |
| Material | Metal |
Certifications and Compliance
| Certifications | FCC, IC |
|---|---|
| Compliance | NDAA |
Download the official N5T-8DA2 datasheet (PDF)
Per Luminys: This camera does not support Parking Detection. Mounting parts are sold separately unless marked included; every part listed for a mount type is required. Sold, installed and supported by TechChefs, an authorized Luminys dealer (TX Security License B30874201).
